Wholesale A58SW31ZY Worm Gear Motor 24v 7-470r/min 12v volt Dc Micro C

100% customers enjoyed this motor after ordering, please buy it without any concern!

OurMounting bracketcan help motor to get a stable and superb using experience, why not to have one:

The speed of our motor support to be adjusted, and reversible running, you can buySpeed Controllerfrom below link,we offer 2 kinds of option:

Without Reversed function Speed ContorllerWith Reversed control function Speed Controller

Motor support Reversible running and has more noise when reversed running than normal running, this is a normal phenomenon, please know before buying.

( If you buyour controller, and wantA rpmspeed, so can adjust speed from0 to A rpm,Such as 12v 160rpm, can adjust 0-160rpm)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

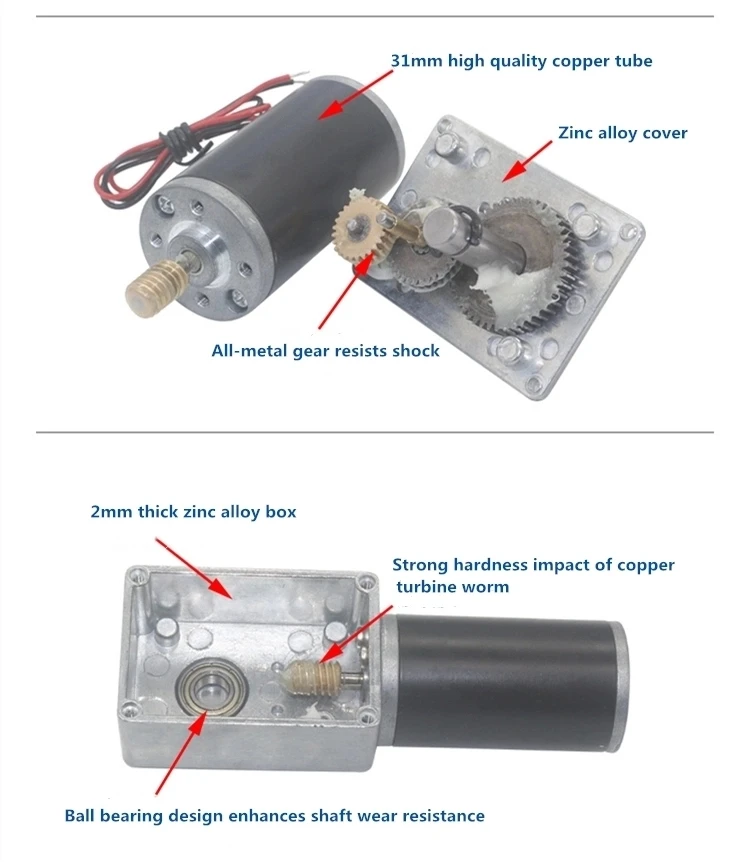

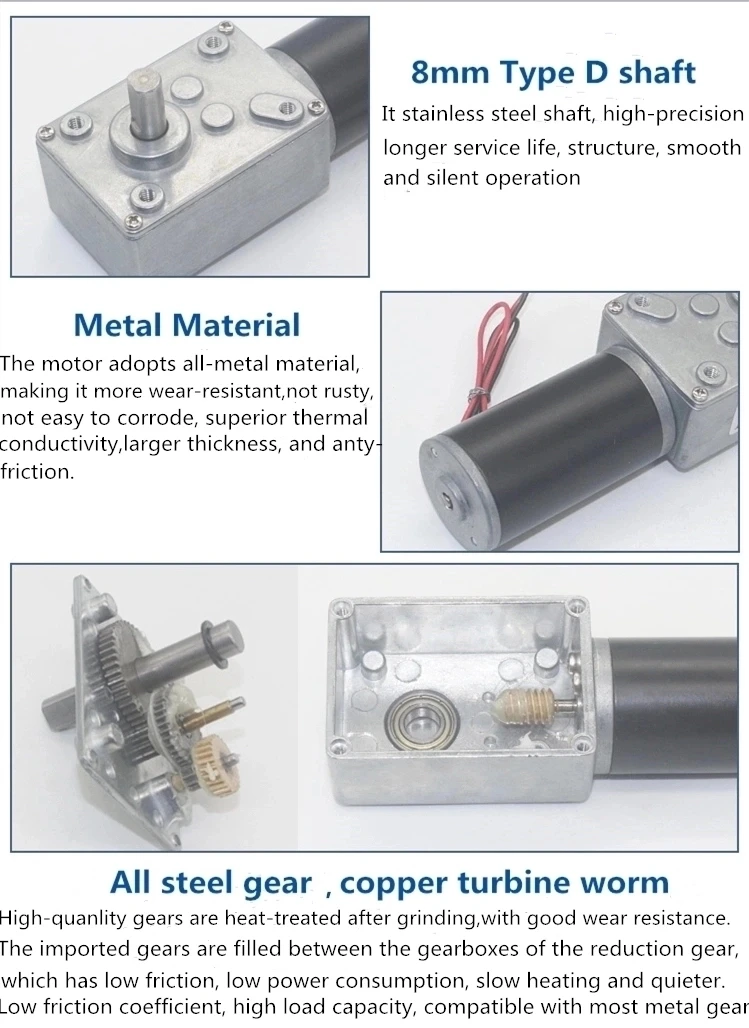

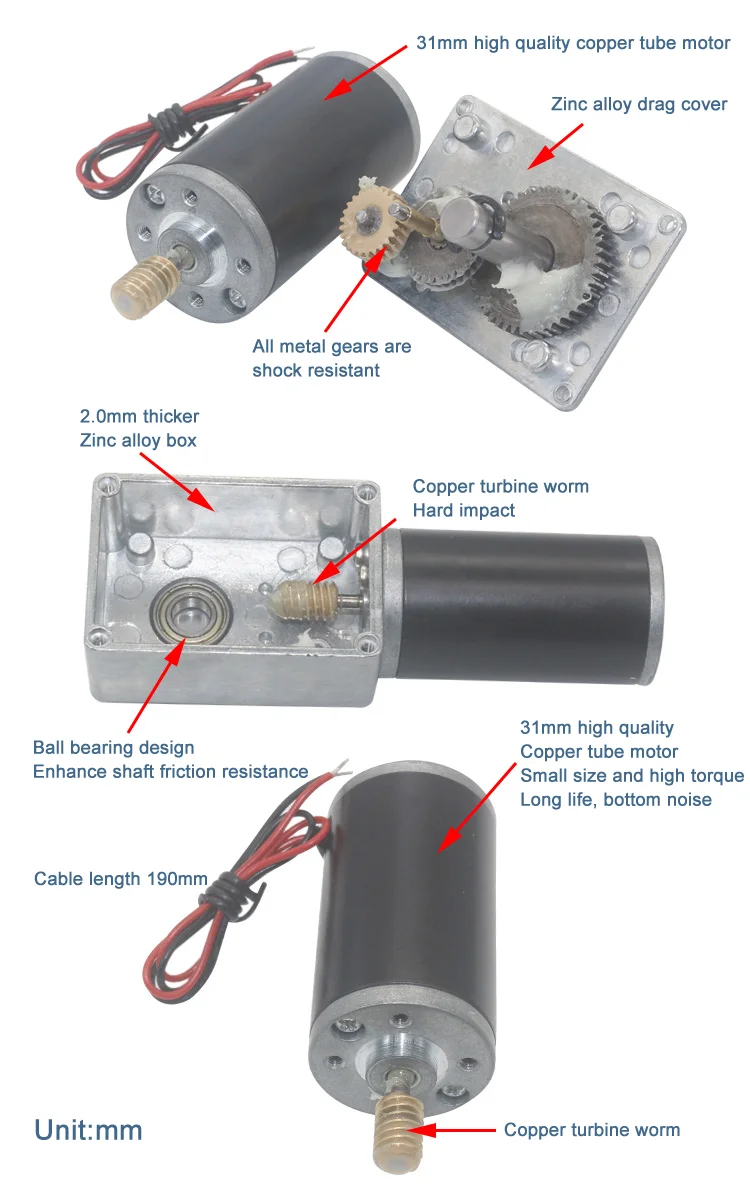

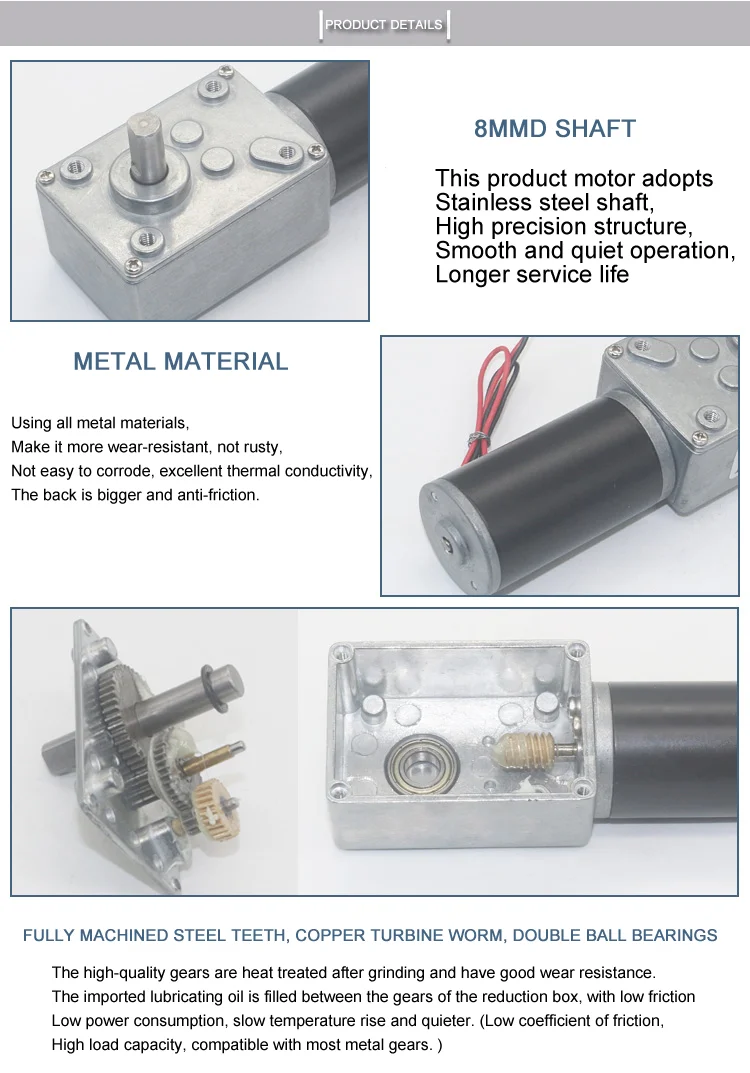

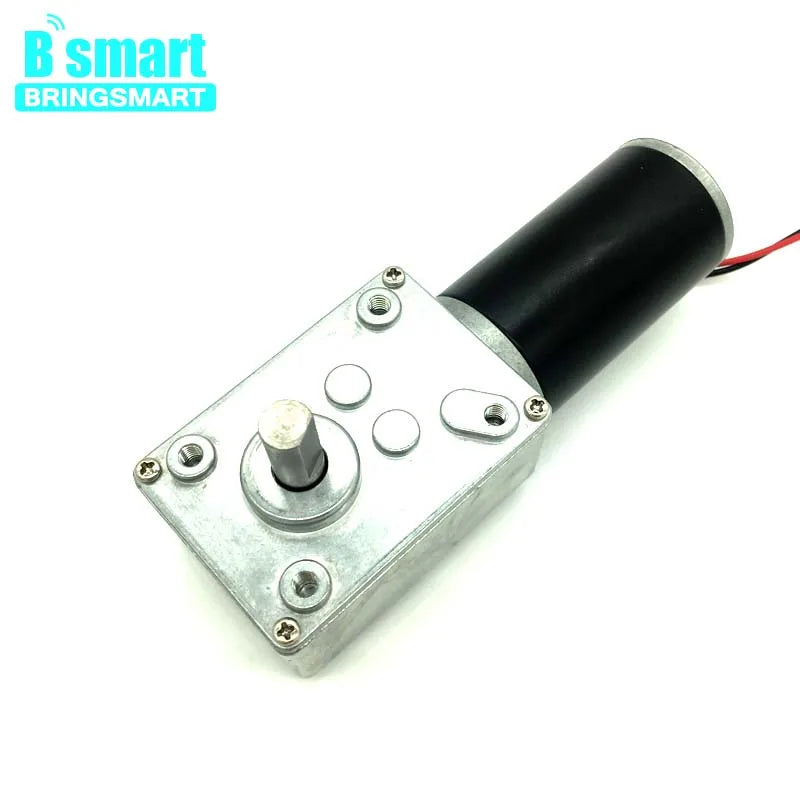

Feature: High torque, self-lock,D type shaft.

What is self-locking function?

After disconnect the power supply, the shaft can be securely locked, even if you want to rotate the shaft by hand, The shaft still will not move, so when your project is not connected to the power, you can make your project safely stay somewhere

We offerCustomized Speedservice. And only we can offer so much speed for choosing.

12V no load speed:

12rpm 16rpm 27rpm 40rpm 80rpm160rpm 260rpm 470rpm;

24V no load speed:

5rpm 7rpm 10rpm 12rpm16rpm17rpm25rpm27rpm 35rpm40rpm50rpm 70rpm80rpm 100rpm 110rpm 160rpm 200rpm 260rpm300rpm470rpm;

How to choose the product you need ?

For example

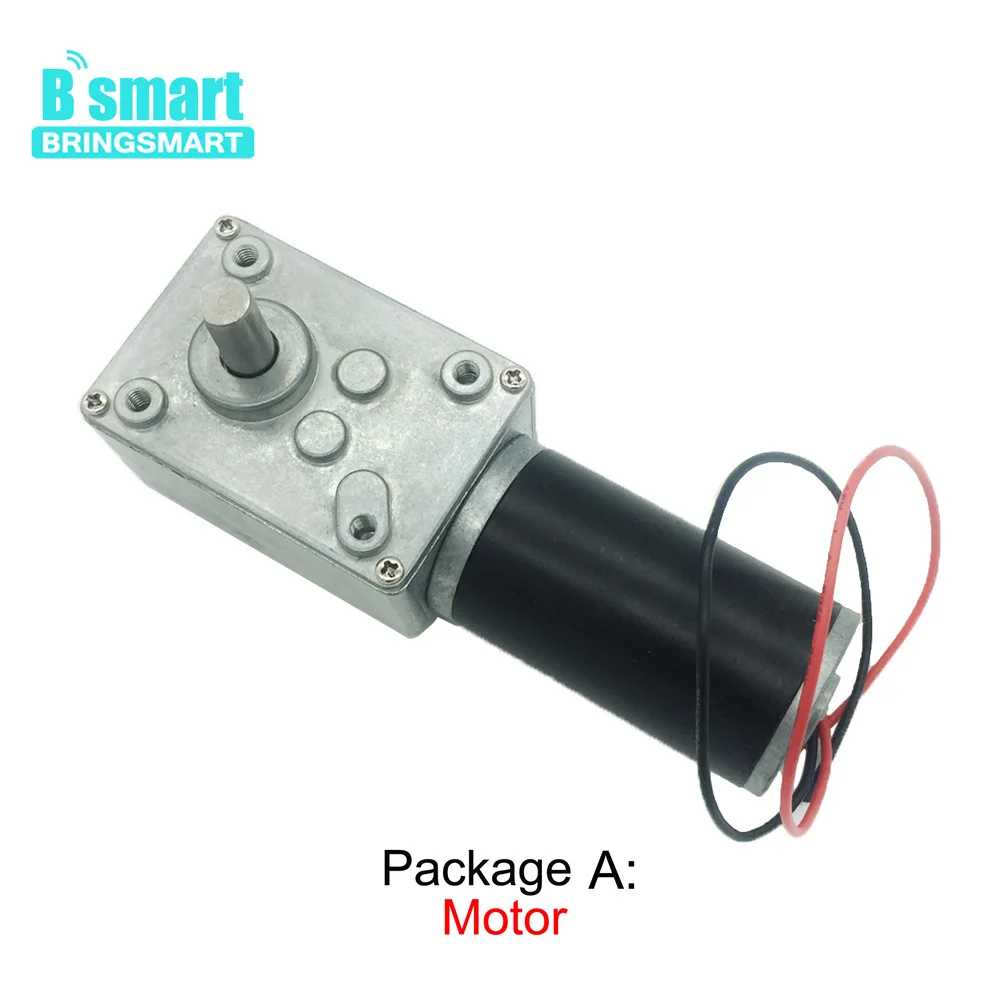

(1)12v 12rpm+Package A, you will receive 1 piece of the motor(12v 12rpm)

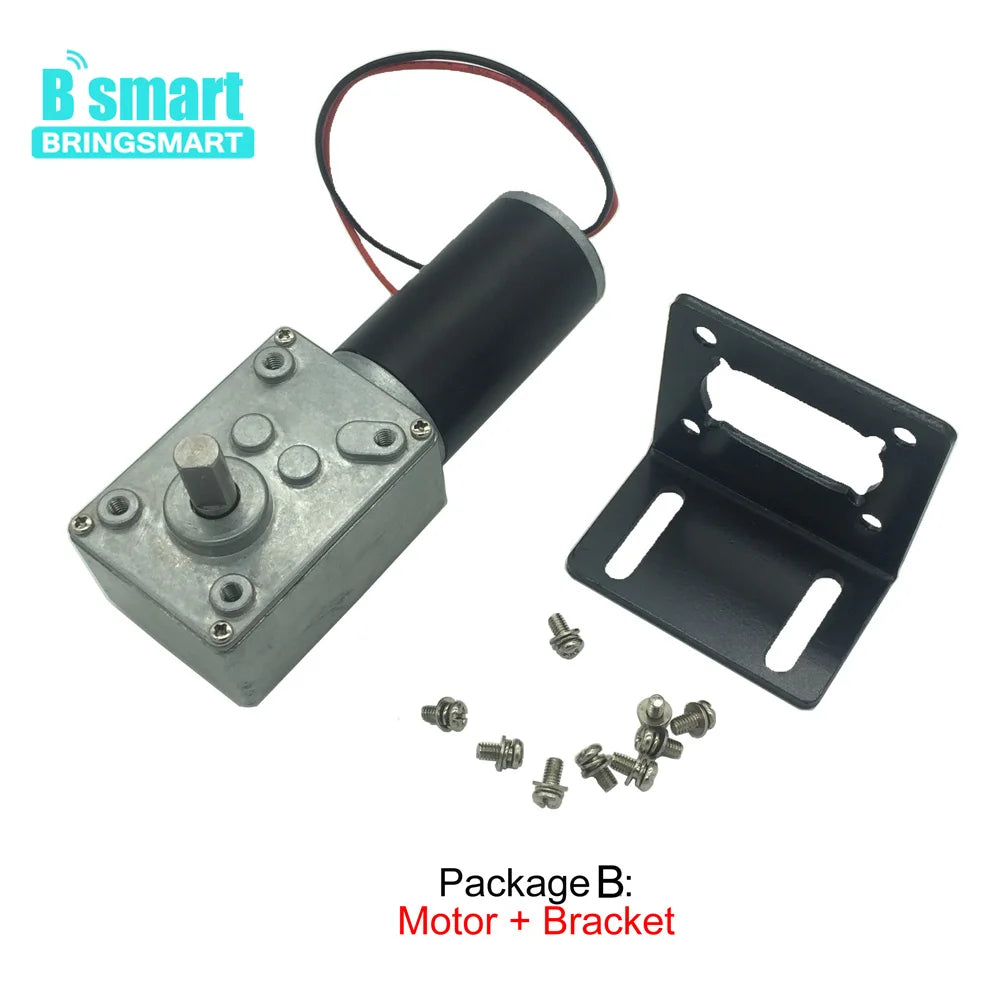

(2)12v 12rpm+Package B, you will receive 1 piece of the motor(12v 12rpm) +Mounting bracket

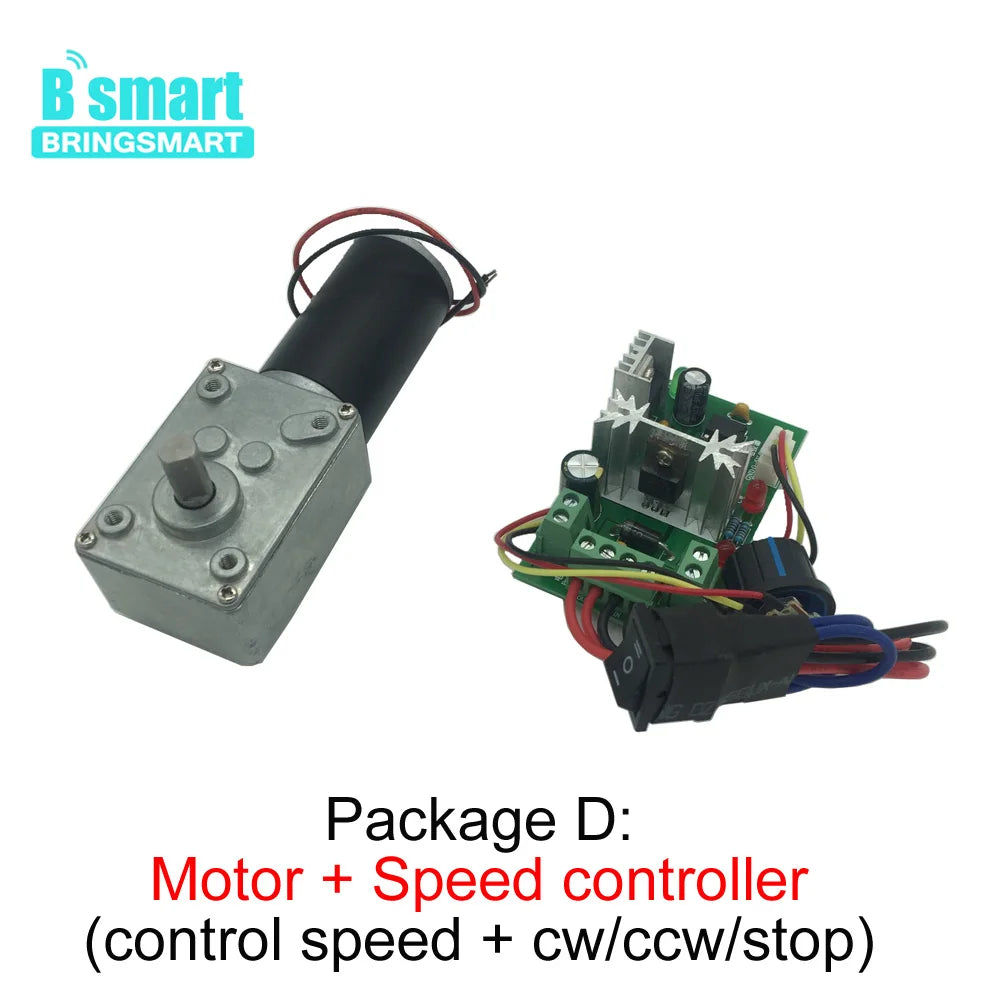

(3)12v 12rpm+Package D, you will receive 1 piece of the motor(12v 12rpm)+Speed controller, speed controller function: you can control the motor the direction of rotation CW/CCW, start/stop and adjust speed

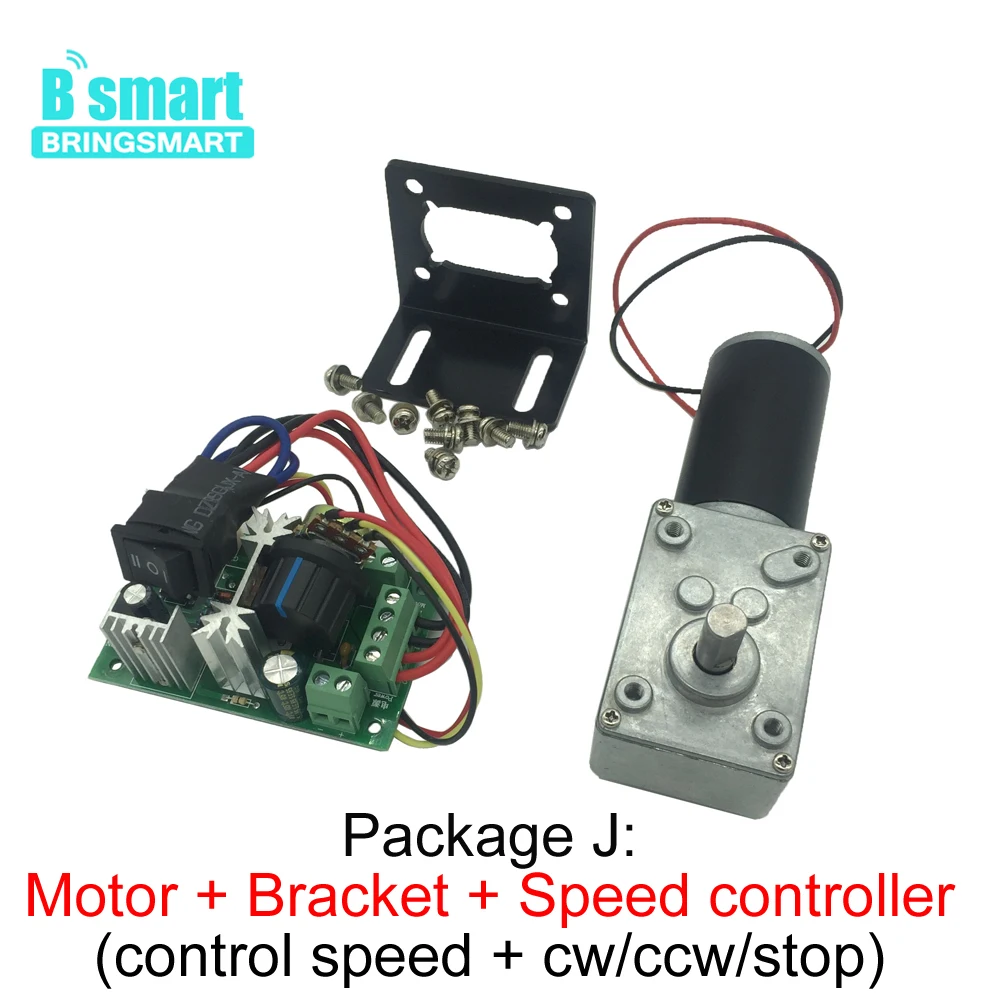

(4)12v 12rpm+Package J, you will receive 1 piece of the motor(12v 12rpm) + Mounting bracket + Speed controller

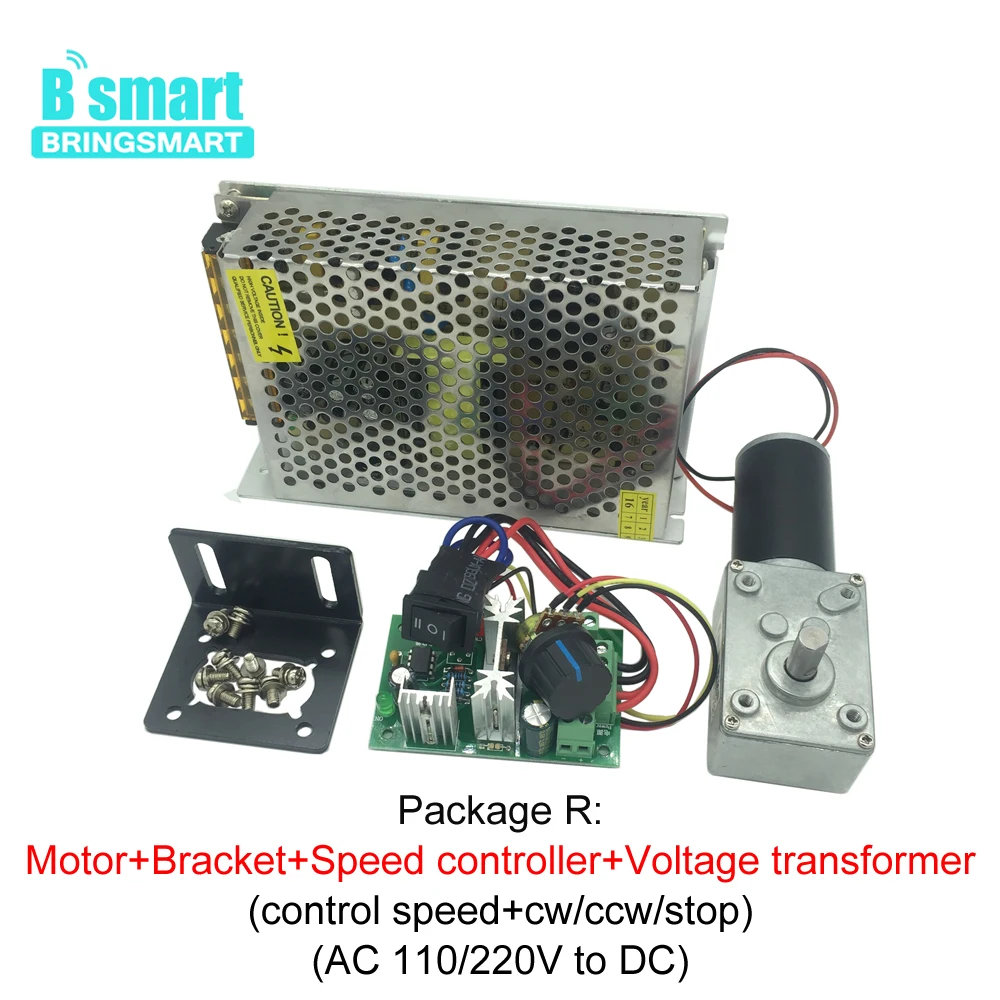

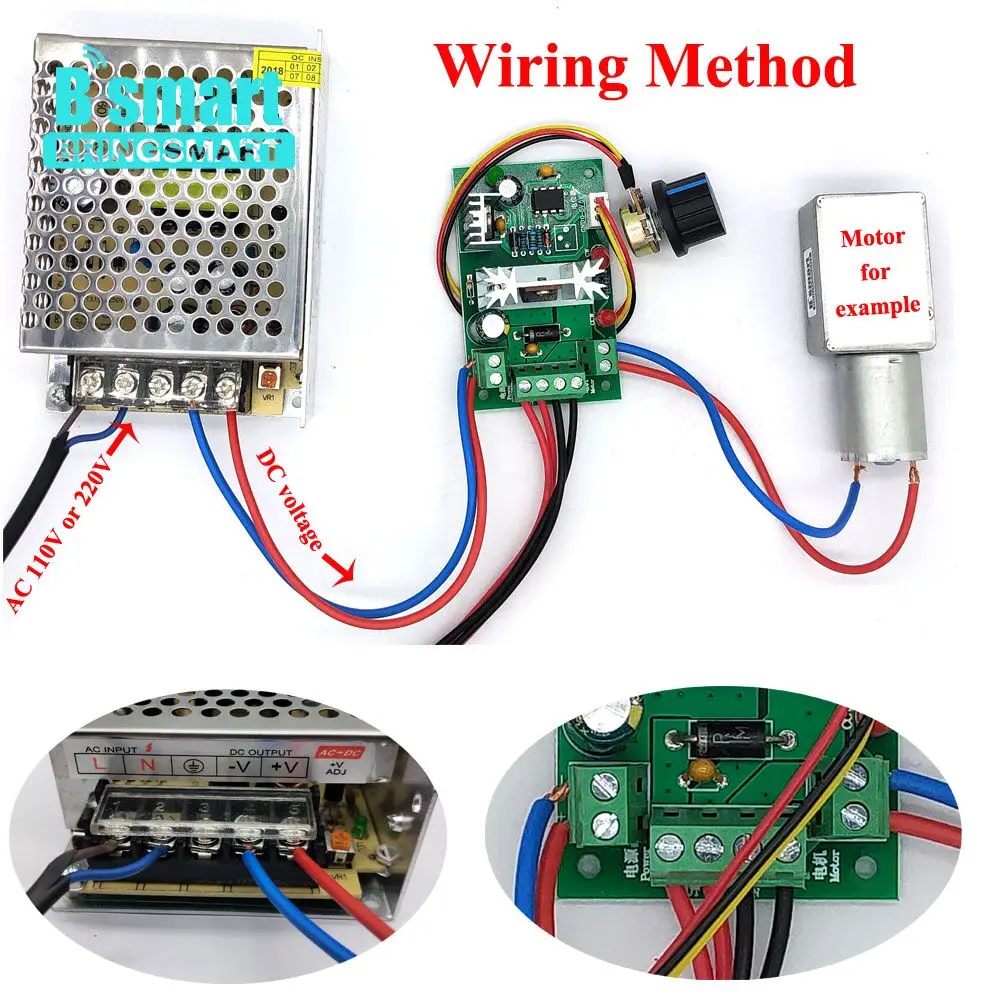

(5)12v 12rpm+Package R, you will receive 1 piece of the motor(12v 12rpm) + Mounting bracket + Speed controller + Transformer (Power Supply), transformer function : input AC 110V/220V, output DC 12V Or 24V

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Note

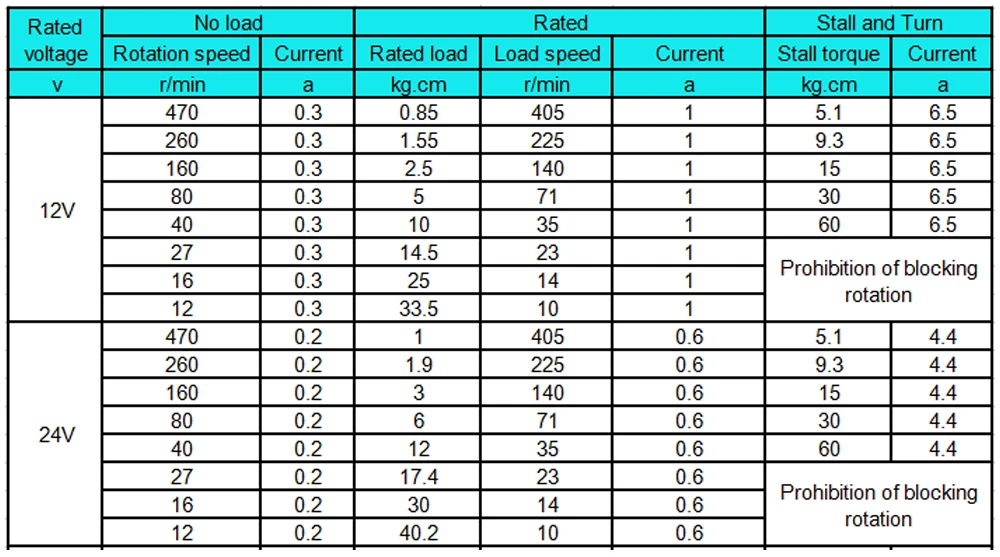

1) Before you buy, we have a reminder, please carefully check the following parameters table, you can seerated loadtorqueandstall torque, if you choose one of the speed, your project load can not exceedrated load torque, otherwise the motor current will increase, the motor operating temperature increases, after a period of time, the gear will be worn, line will be burnd, the motor will be damaged, can not continue to work.

2)If you connect the voltage less than the rated voltage, the rated load torque will be reduced.

Note: please buy according to Max Efficient torque(rated torque) , Stall torque is just as a reference. Because if the load is above rated torque, it may damage the gear of motor.

Such as, if the load of your project is 55kg, we suggest 12v 16rpm(rated torque 60kg.cm), not 12v 32rpm(rated torque 50kg.cm).

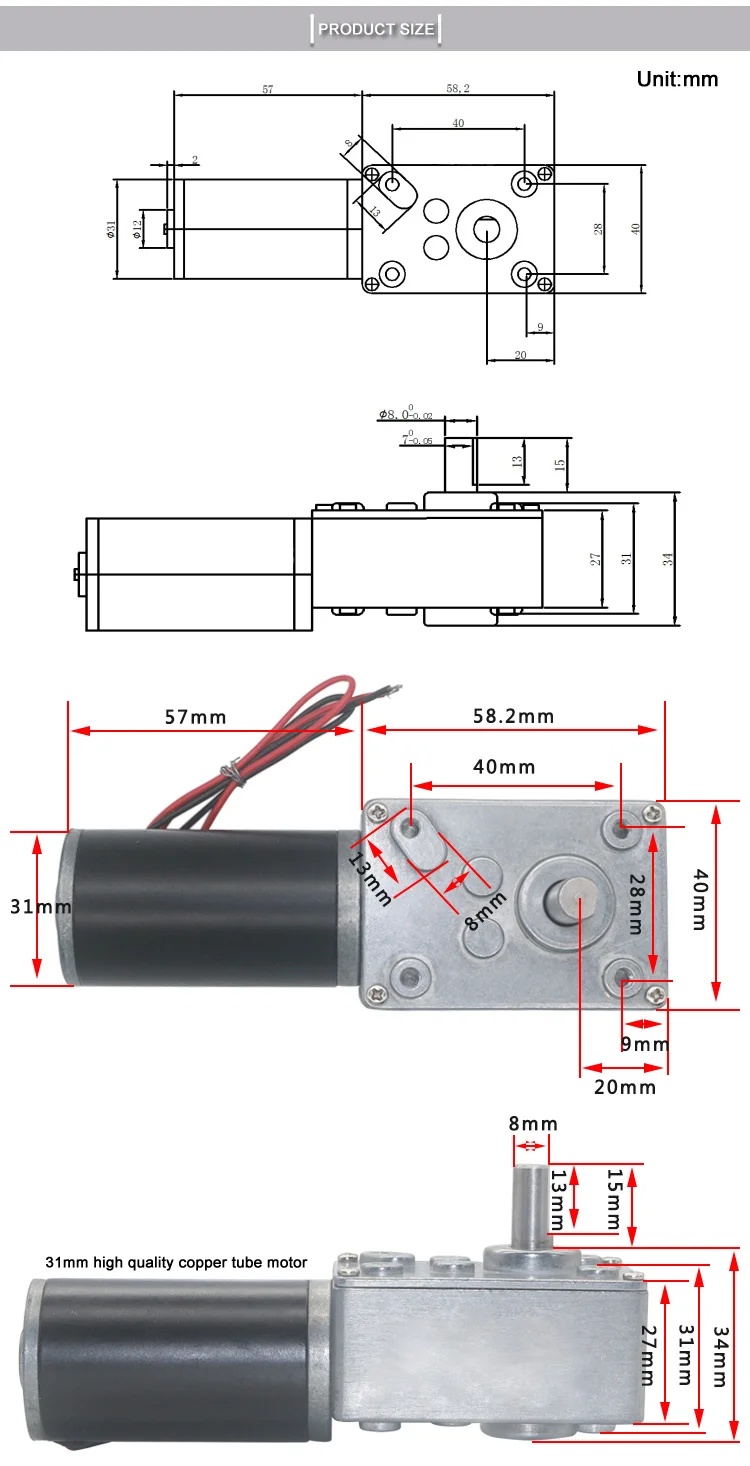

Note :The following product specifications are measured inmillimeters（mm）.
