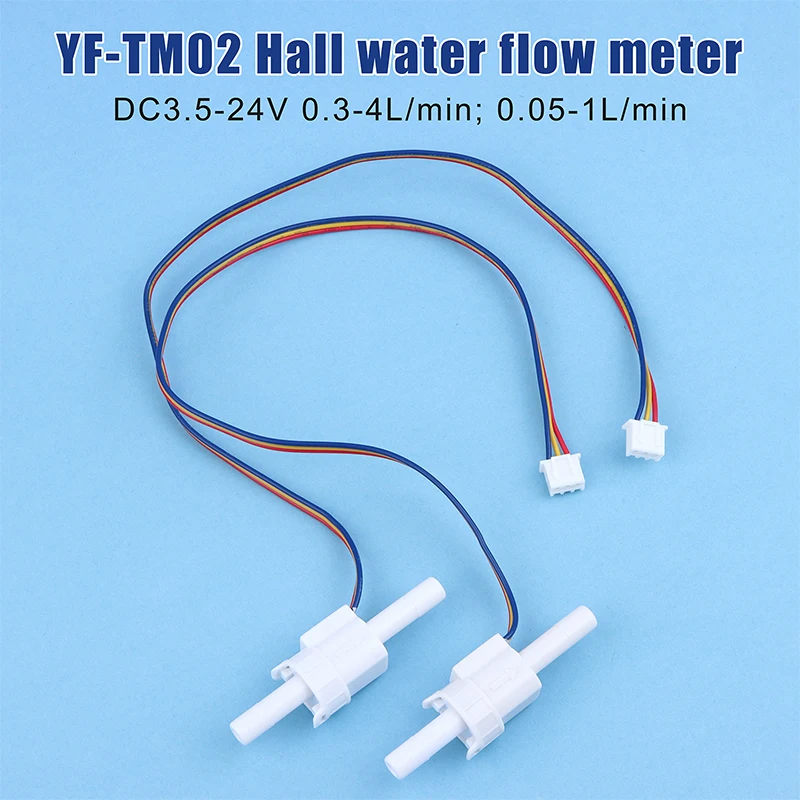

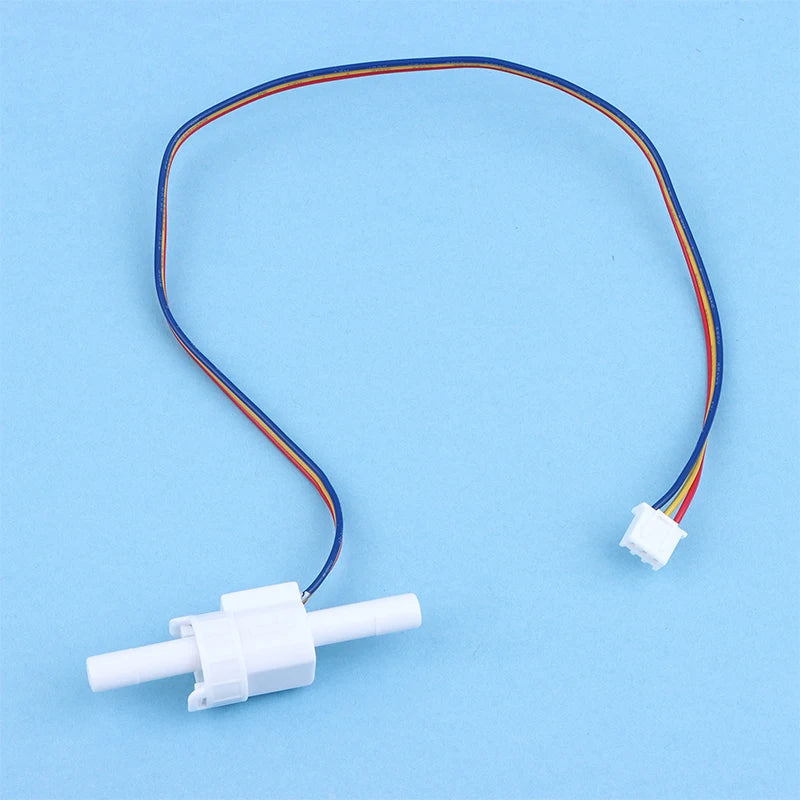

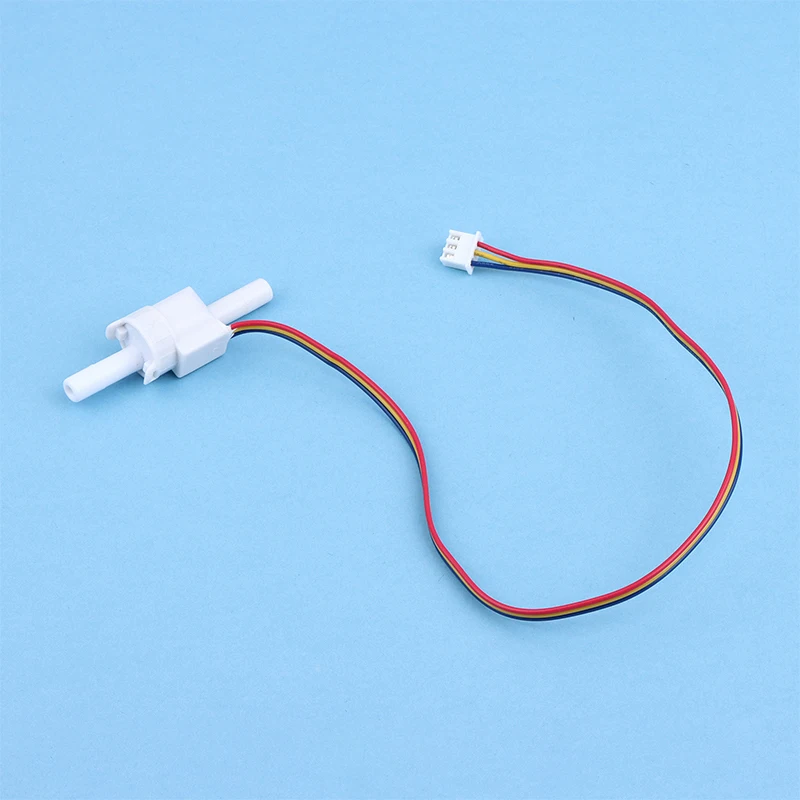

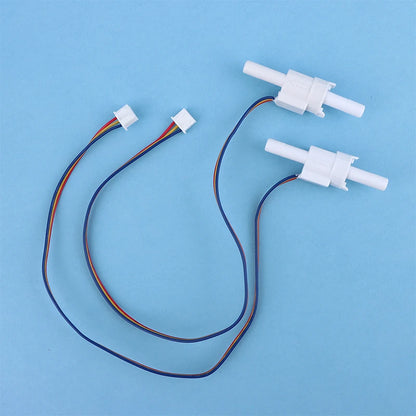

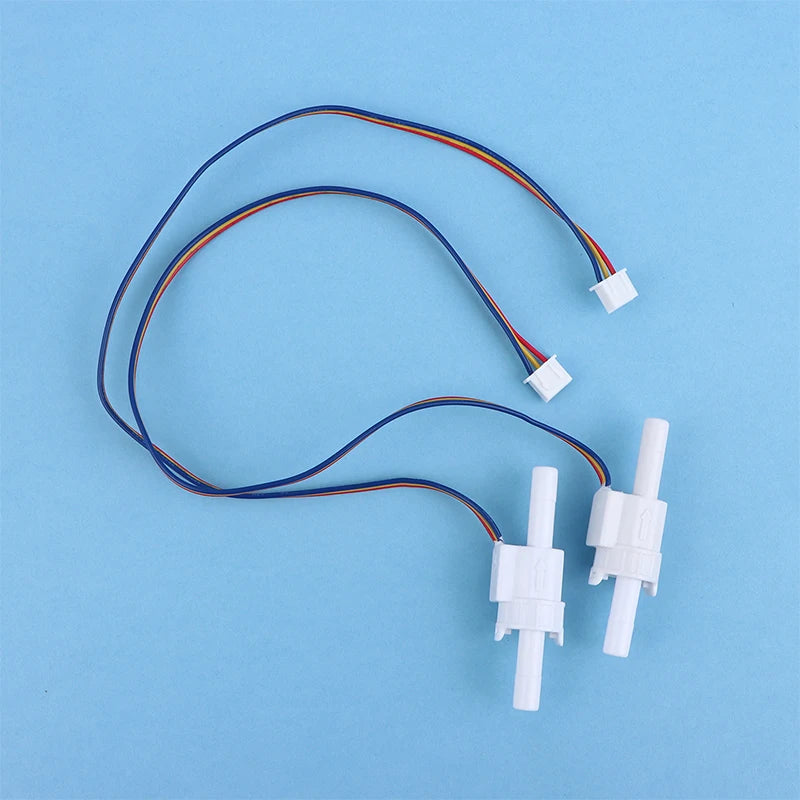

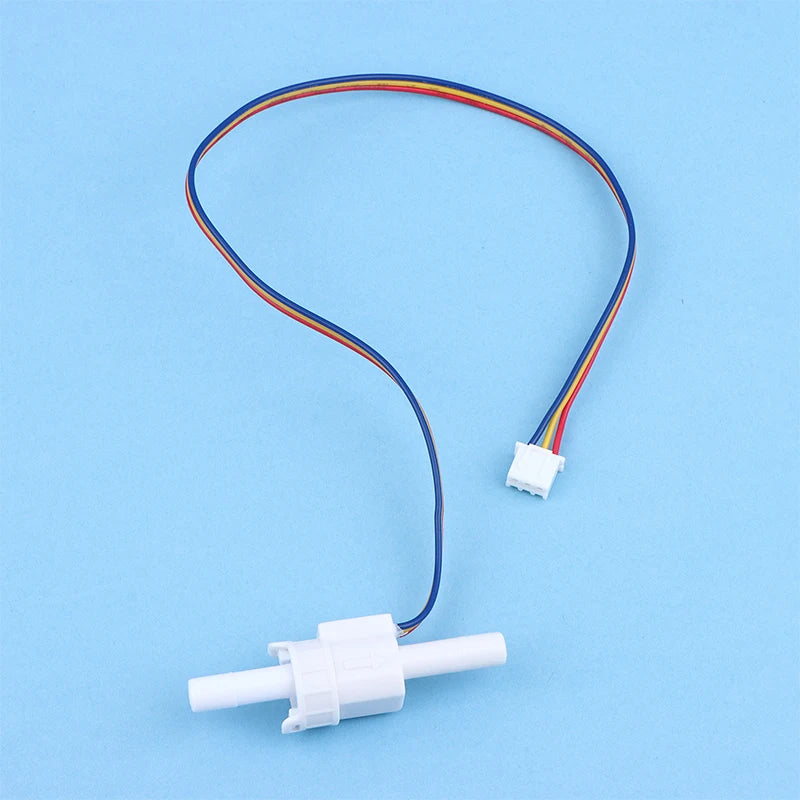

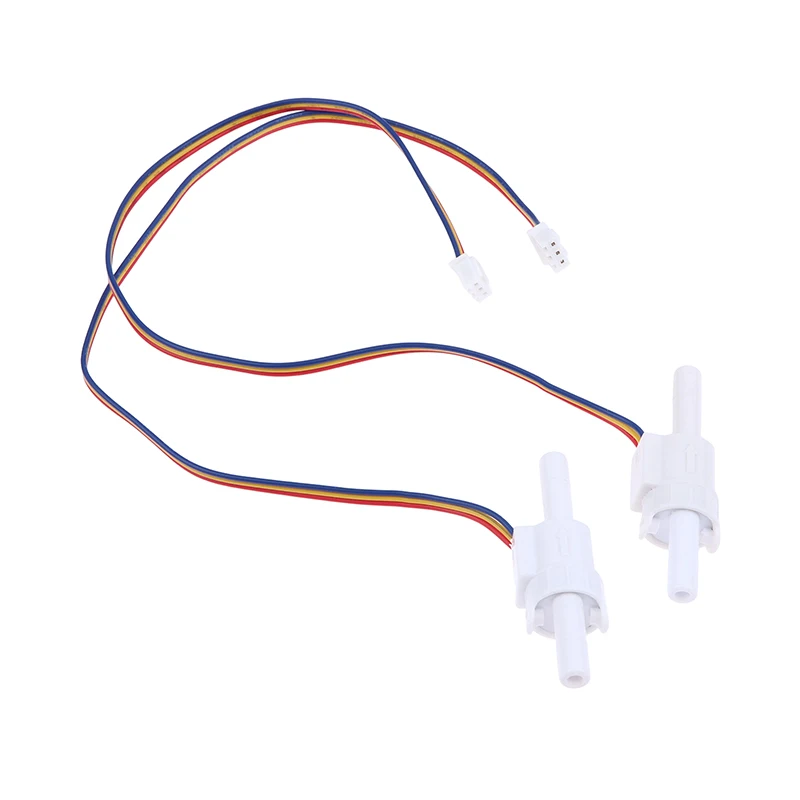

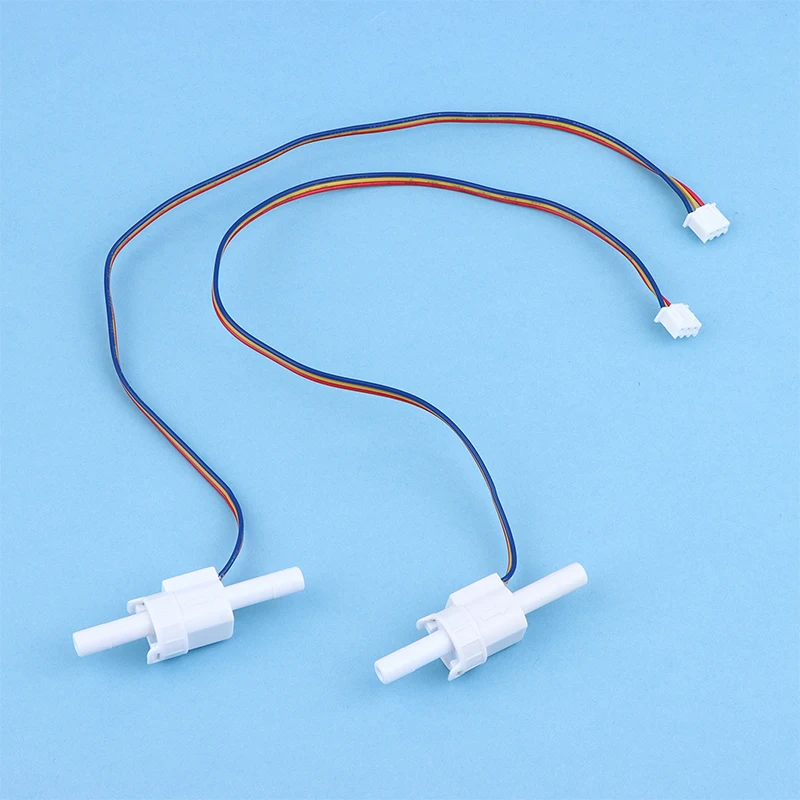

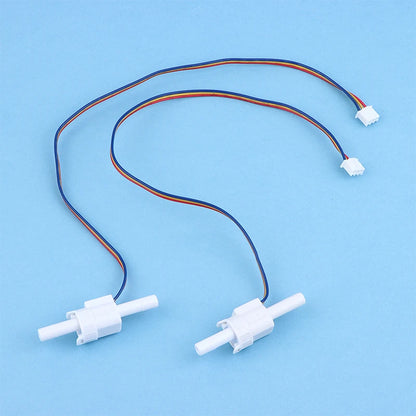

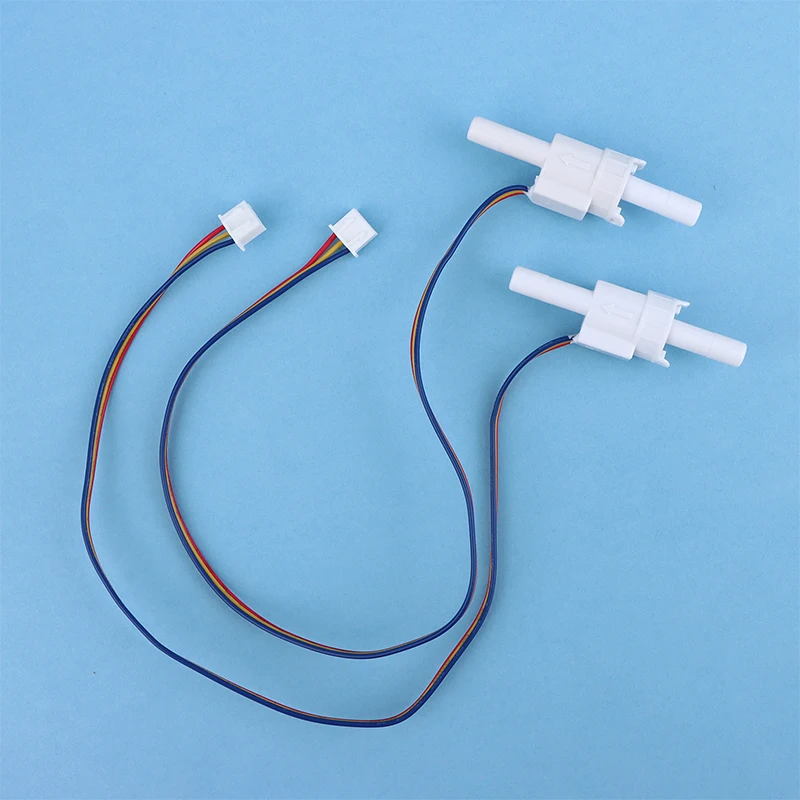

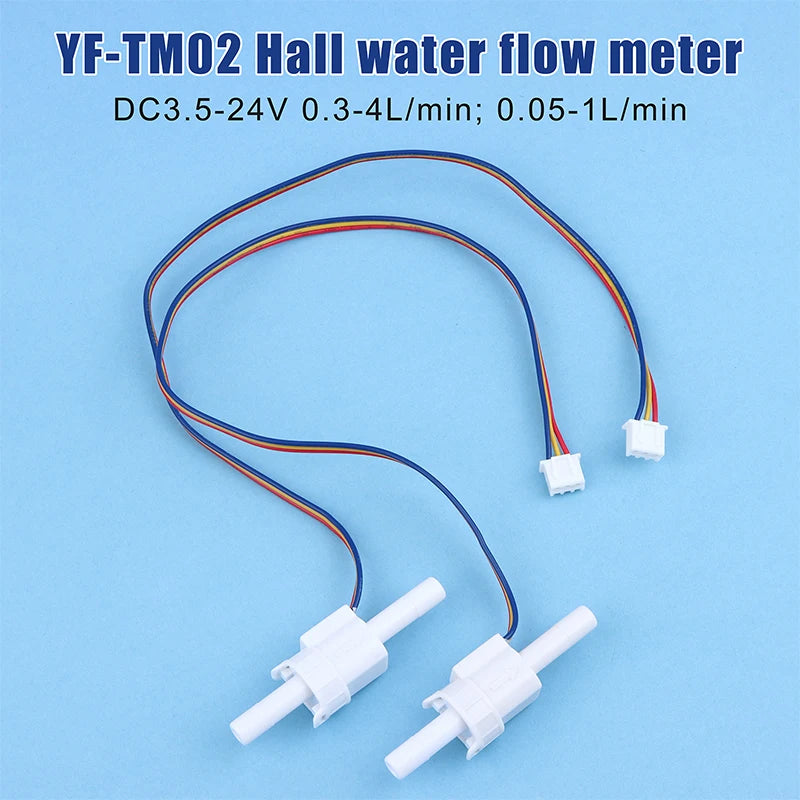

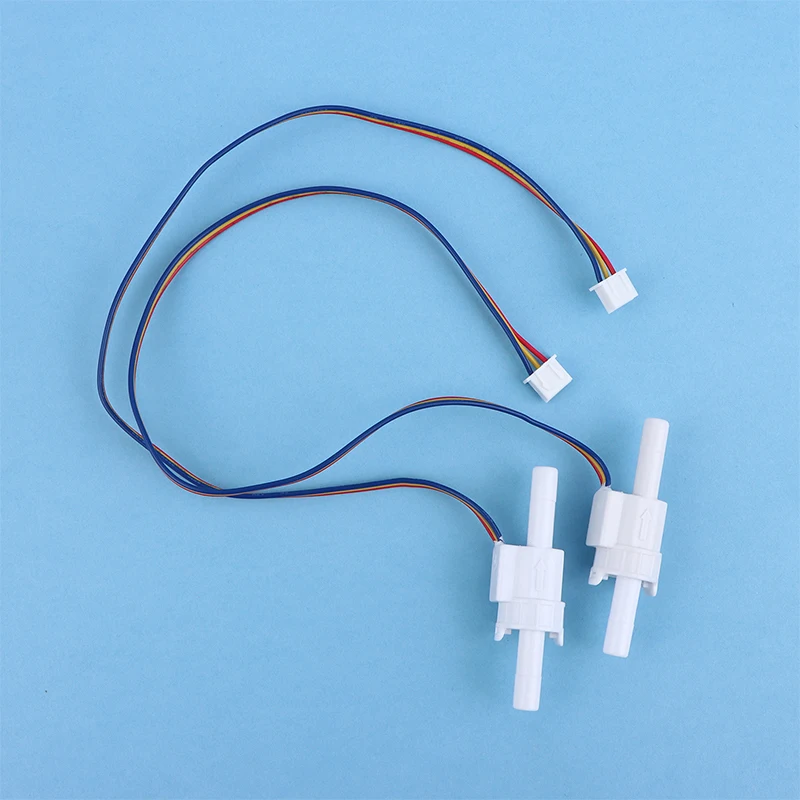

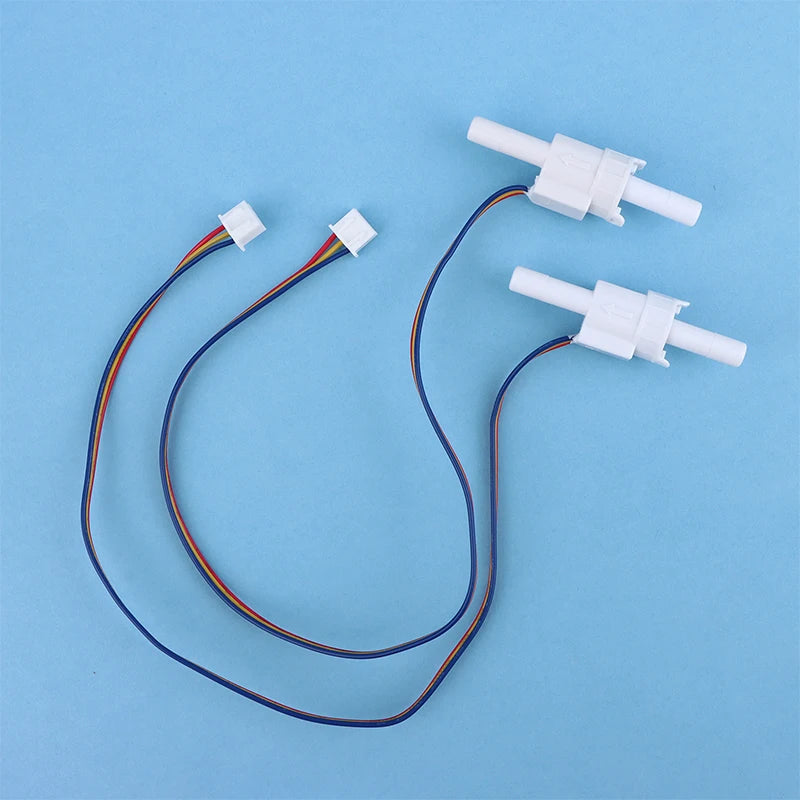

Water Flow Meter G1/4 DN8 Fluid Counter Sensor for Water Purifier Coffee Machine Filtration System Measuring Tool

1.The POM Meter offers precise liquid measurement with a high resistance to pressure up to 0.8mpa, ensuring reliable performances for critical applications.

2.Crafted from POM material, this meter is corrosion resistant and can withstands temperatures up to 80℃.

3.For professional in laboratories, and experiments who require accurate small scale liquid measurements for their work.

4.Perfectly suited for compounding, reagent mixing, and scientific research, this meter ensures control over liquid flows in various experimental setups.

5.With its easy installation, either horizontally or vertically, and the need for a filter at the inlets to prevent debris, Meter is for easy use and maintenance, enhancing workflows efficiency.

Material: POM

Pressure Resistance: ≤0.8mpa

Working Voltages: DC3.5-24V

Working Current: 15mA(DC5V)

Insulation Resistance: >100MΩ

Load Capacity: ≤10mA(DC5V)

Working Temperature: 0-80℃

High Level Output DC4.5V(Input DC5V)

Low Level Output DC0.5V(Input DC5V)

Ranges: 0.3-4L/Min±3%, 0.05-1L/Min±3%

Pulses Characteristics:

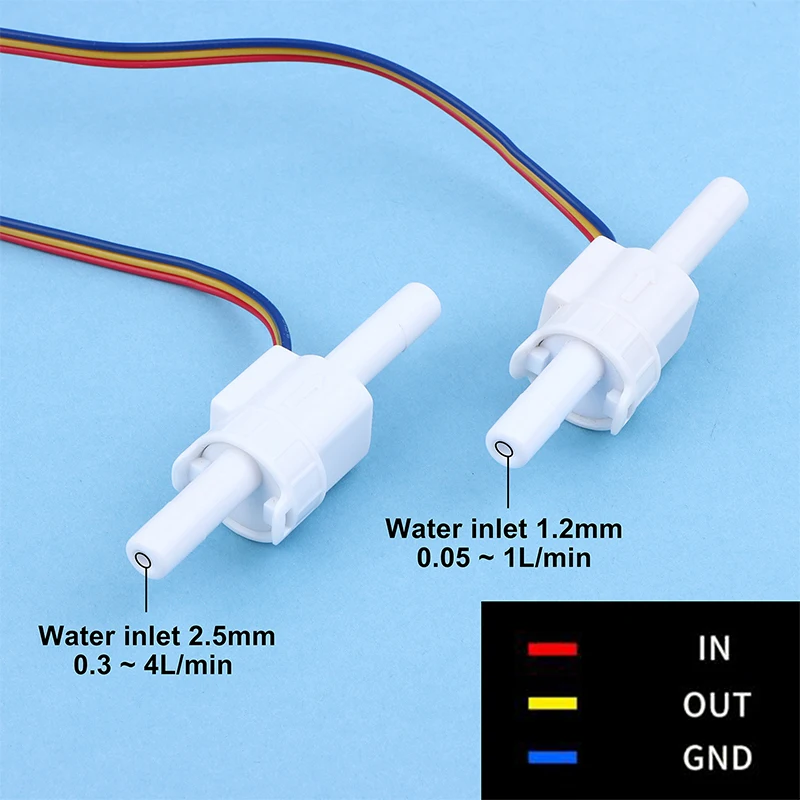

2.5mm Inner Diameter: Hz=[43xQ]±2%(Horizontal Testing)

1.2mm Inner Diameter: Hz=[86xQ]±2%(Horizontal Testing)

Color: White

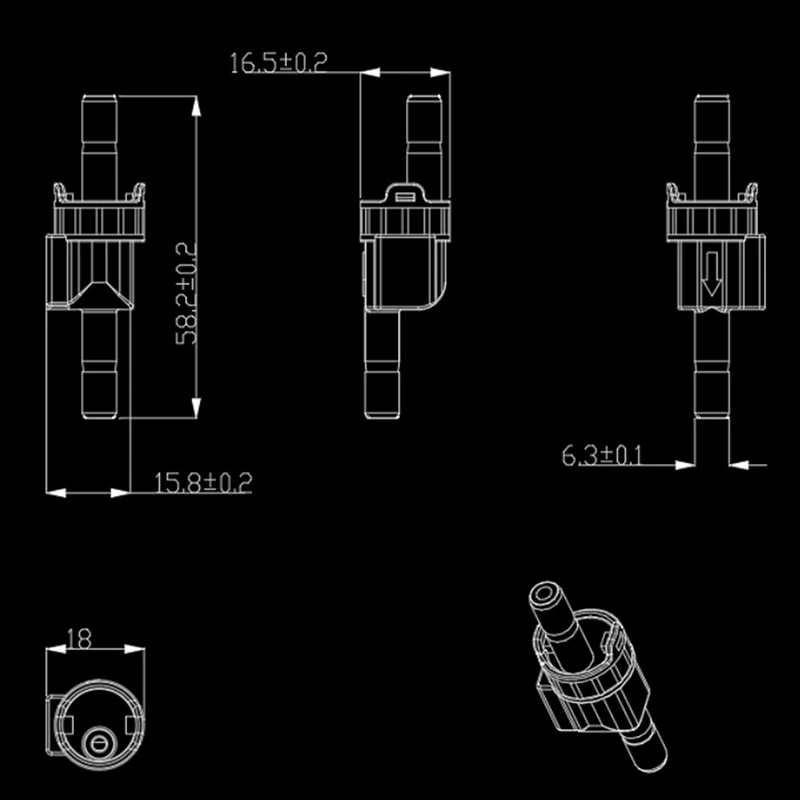

Size:As the pictures show

Package quantity:1Pc

Note:

Please allow 2%-3% differences due to manual measurement. The above dimensions are for reference only.
