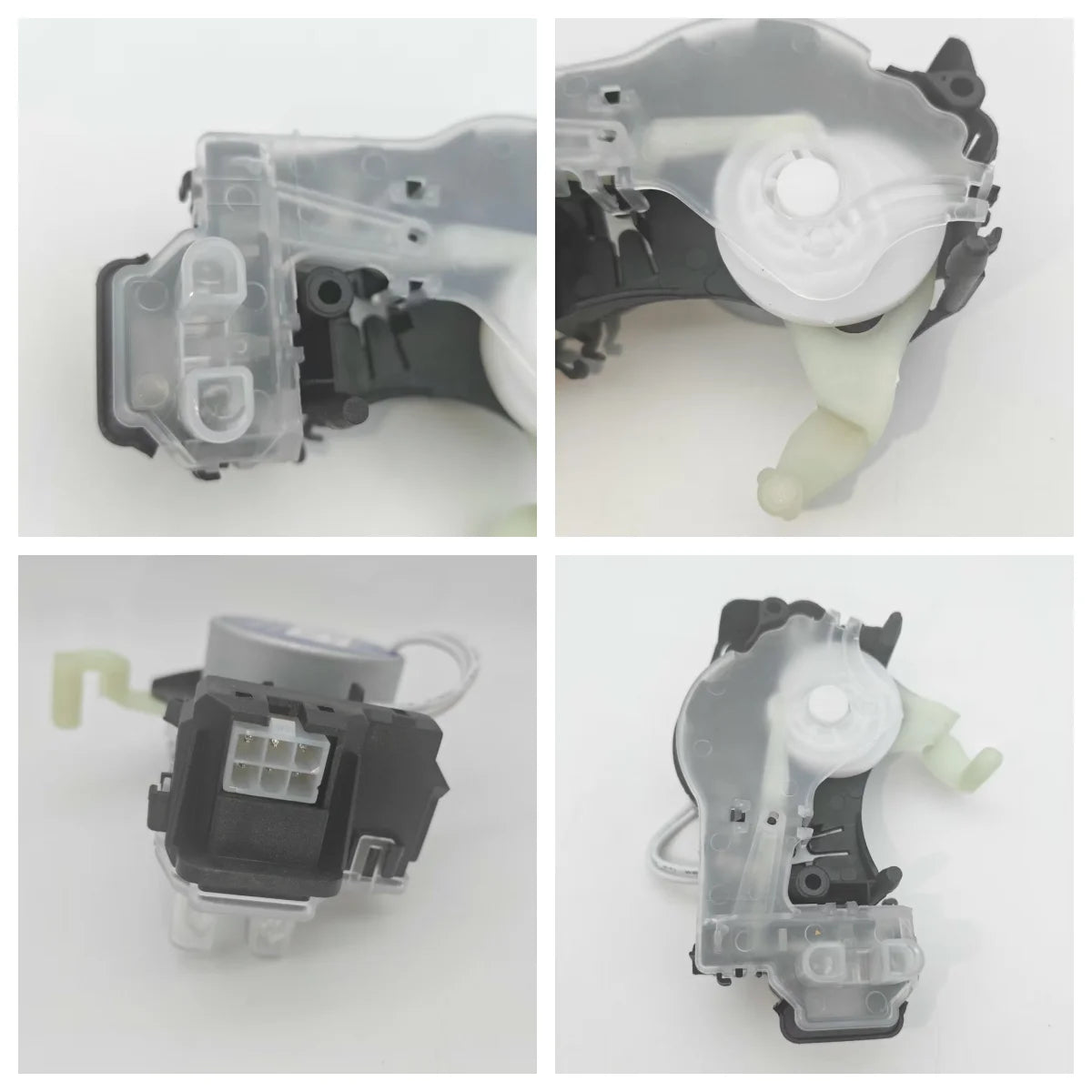

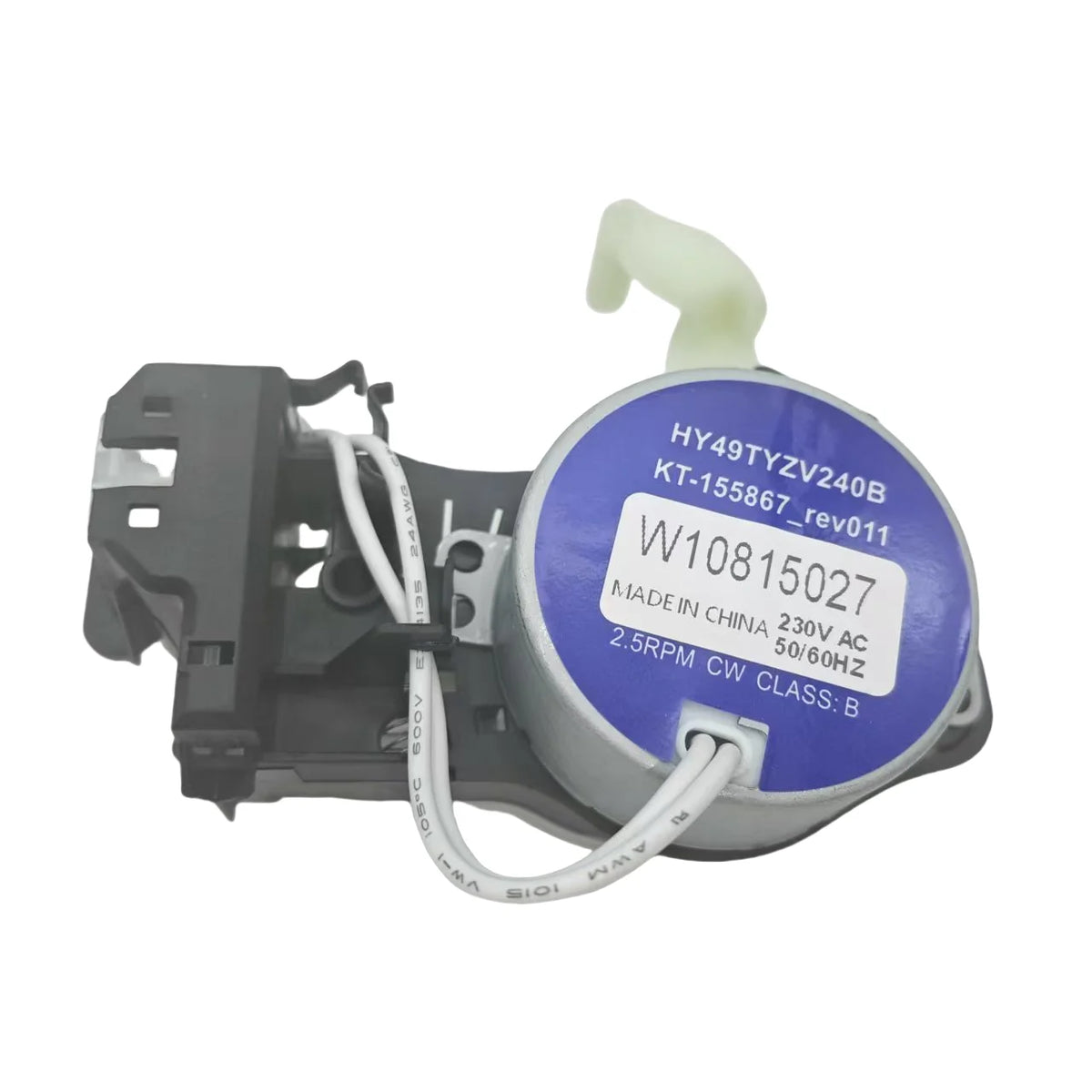

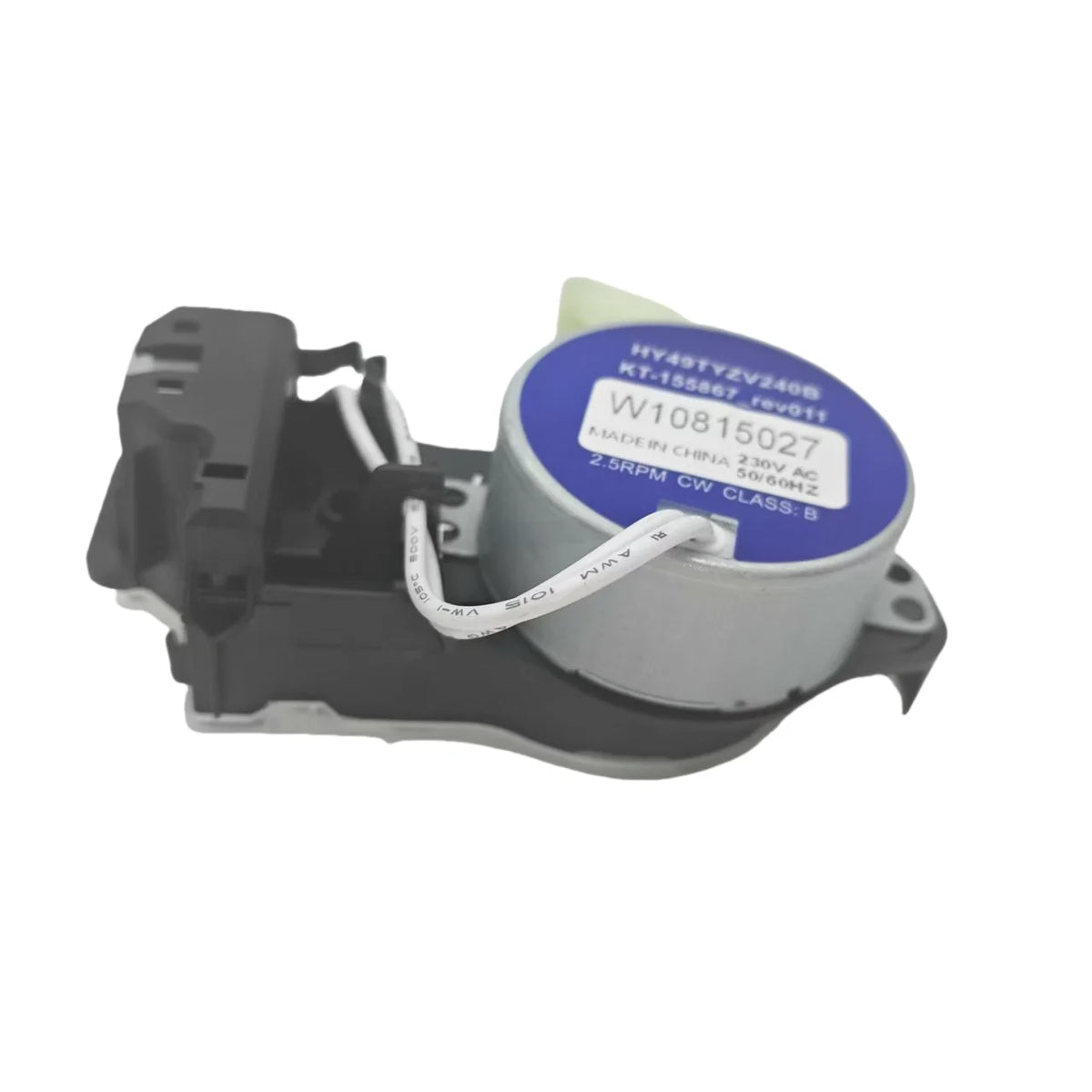

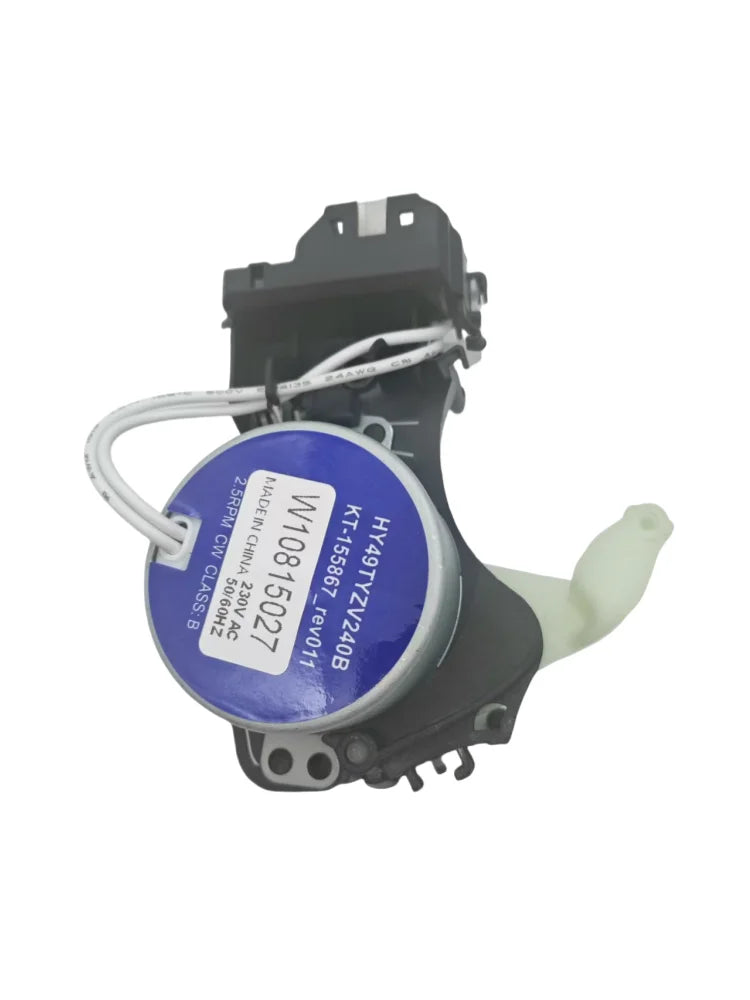

W10815027 Washer Shift Actuator – W11511138 Compatible with Whirlpool W11511138, W10597178, W10913952, W11398782, 4964028

Product Overview

Restore proper agitation and spin on your top-load washer with this W10815027 Shift Actuator. The actuator shifts the transmission between wash and spin modes and includes the tachometer sensor that reports basket speed to the control board. A failed actuator is a very common cause of no spin, no agitate, or F7E1 / F7E3 / F7E4 error codes. Direct replacement for many Whirlpool, Maytag, Amana, Kenmore and related top-load washers. Current superseding part number is W11511138.

Key Features

• Part Number: W10815027
• Universal / Alternative Numbers: W11511138, W10597178, W10913952, W11398782, 4964028
• Type: Washer Shift Actuator (Shifter + Tachometer)
• Function: Switches between agitate and spin modes; sends speed signal to control board
• Voltage: 120V (standard North American models)
• Quantity: 1 actuator

Installation Instructions

1. Unplug the washer and turn off the water supply.
2. Tip the washer back carefully or remove the front lower access panel (model dependent).
3. Locate the shift actuator on the side of the transmission / gearcase near the drive pulley.
4. Disconnect the wiring connector and remove the mounting screws.
5. Disengage the actuator arm from the shift cam.
6. Install the new W10815027 / W11511138 actuator, reconnect the wiring, and reassemble.
7. Run a test cycle to confirm proper agitation and spin.

Tip: Take a photo of the wiring and arm position before removal. Some models require a 5/16" nut driver and Phillips screwdriver.

Compatibility / Fit Models

This shift actuator fits many Whirlpool, Maytag, Amana, Kenmore and related top-load washers that originally used W10815027 or W11511138.

Whirlpool WTW4815EW WTW4816FW WTW4850HW WTW4915EW WTW4955HW WTW5000DW WTW5005KW WTW5100HC WTW5105HW WTW6120HC WTW6120HW WTW4616FW WTW4655JW and many other Cabrio / top-load models using this actuator series

Maytag MVWC415EW MVWC465HW MVWC555DW MVWC565FW MVW6200KW MVW6230HW MVW6230RHW MVWX655DW and related Bravos / top-load models

Amana / Kenmore / other related Many models sharing the same Whirlpool platform (including selected Admiral, Crosley, Estate, Roper and Kenmore 500/600 series).

Note: Always verify your original actuator is marked W10815027, W11511138, W10597178 or W10913952 before ordering. This is not the same as the W10815026 / W10913953 series used on different models.

Applications

• Washer will not spin or will not agitate
• Grinding or shifting noises during cycle
• Error codes F7E1, F7E3, F7E4 (tachometer / basket engagement related)
• Ideal for home DIY repairs

Package Includes

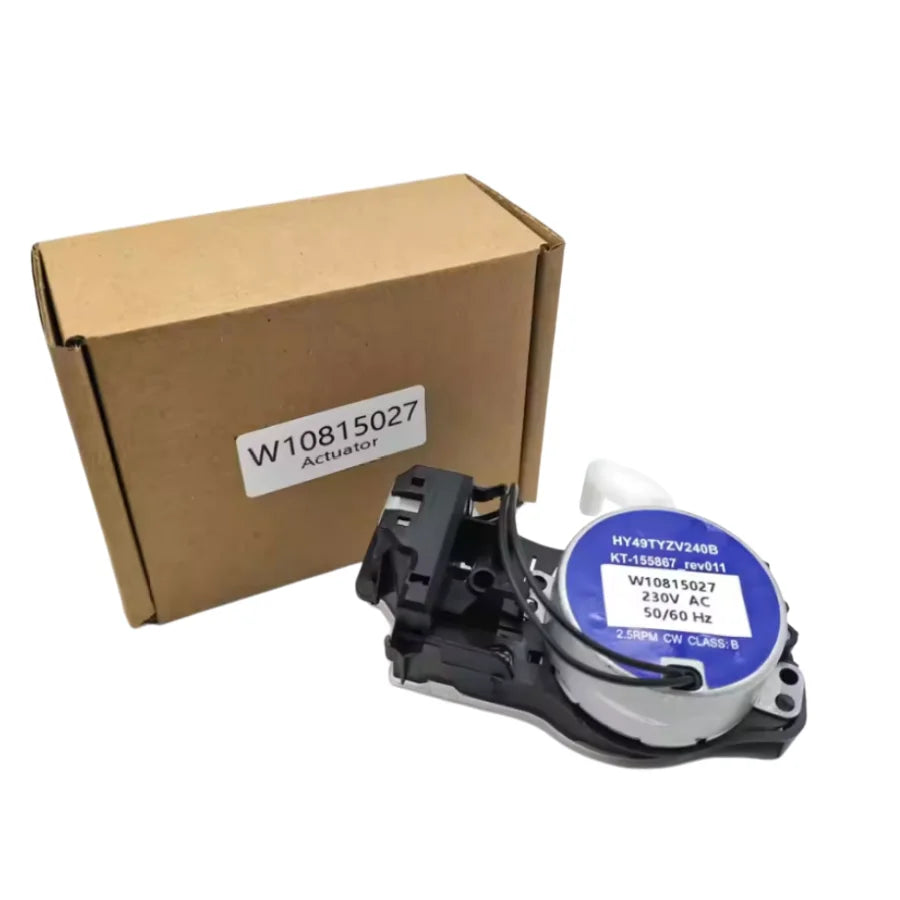

• 1 × Washer Shift Actuator (W10815027 / W11511138 Compatible)
