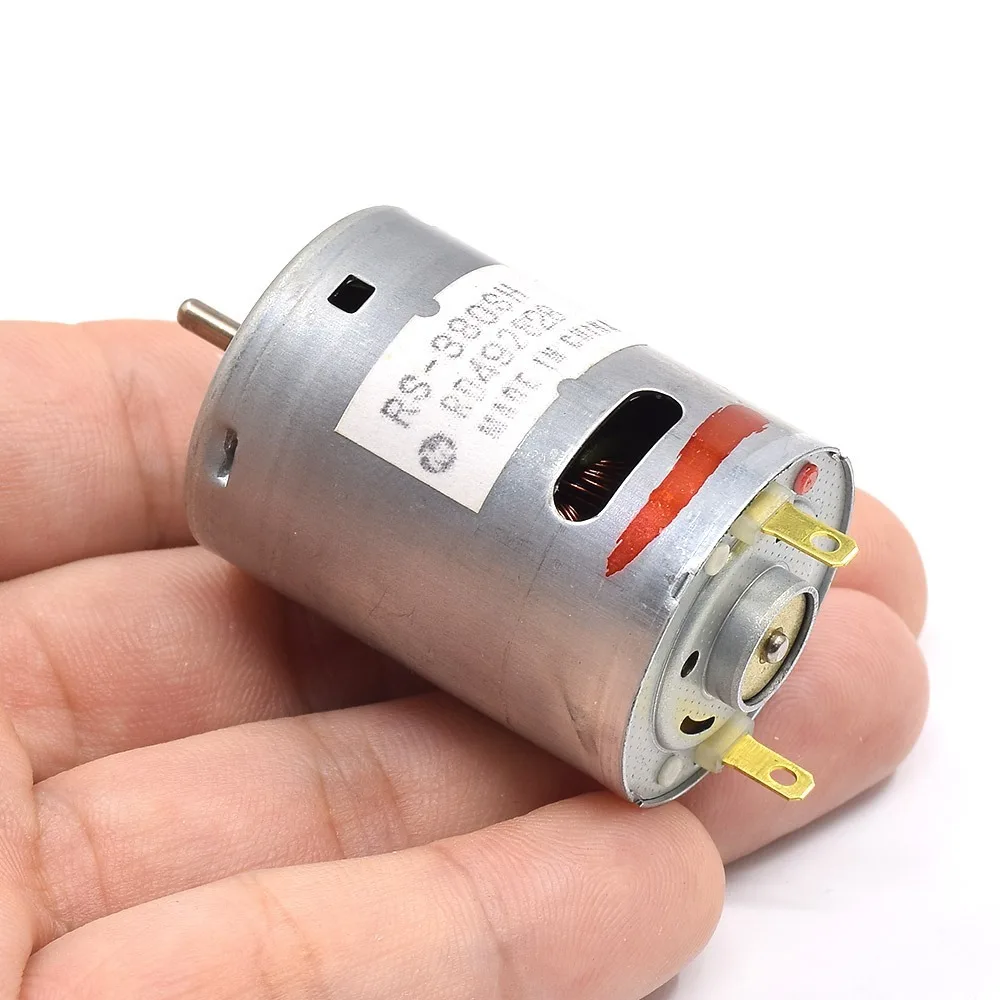

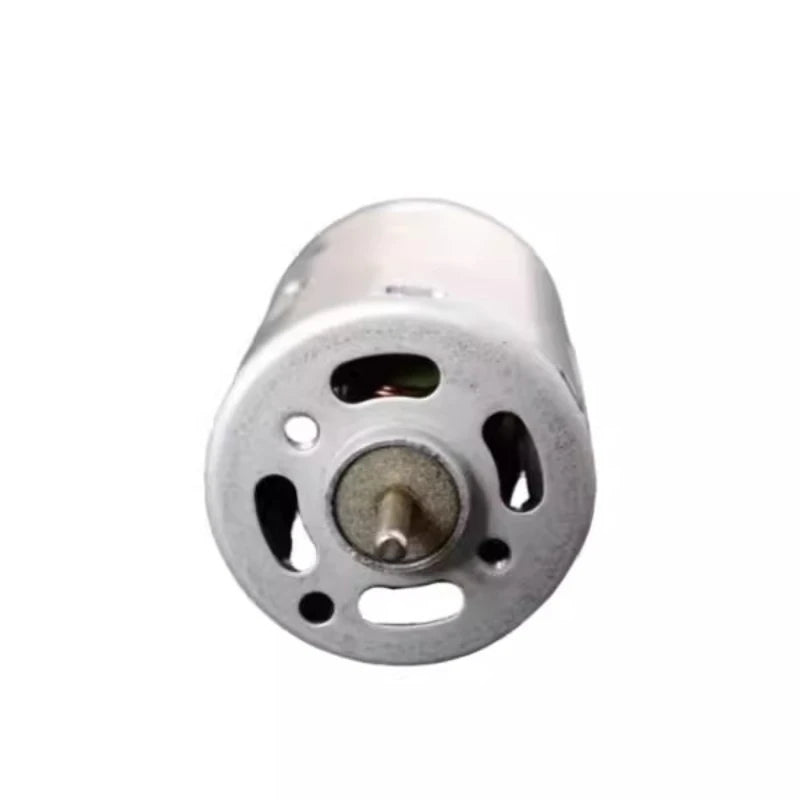

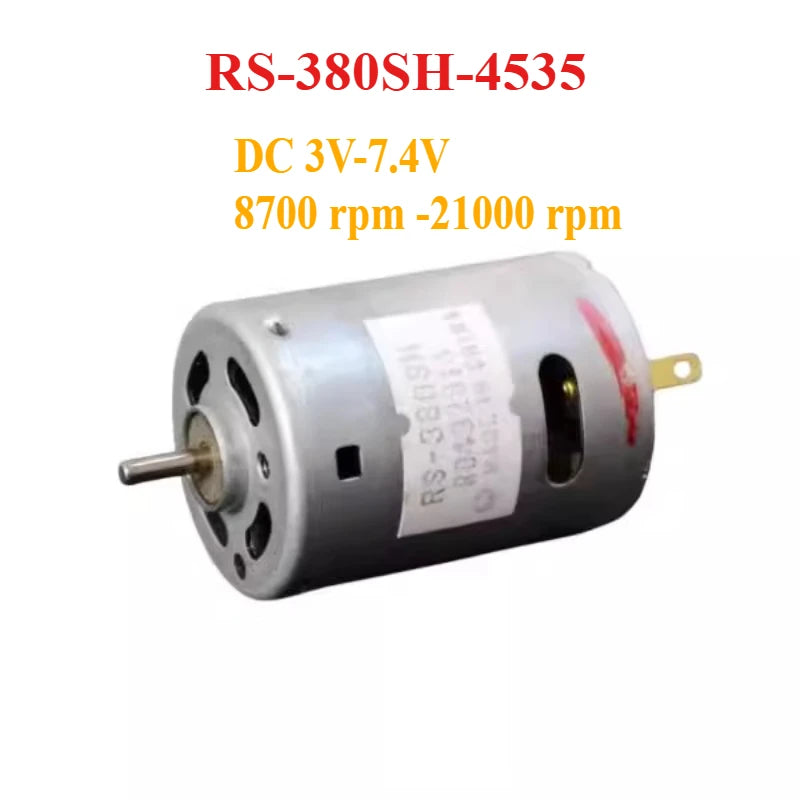

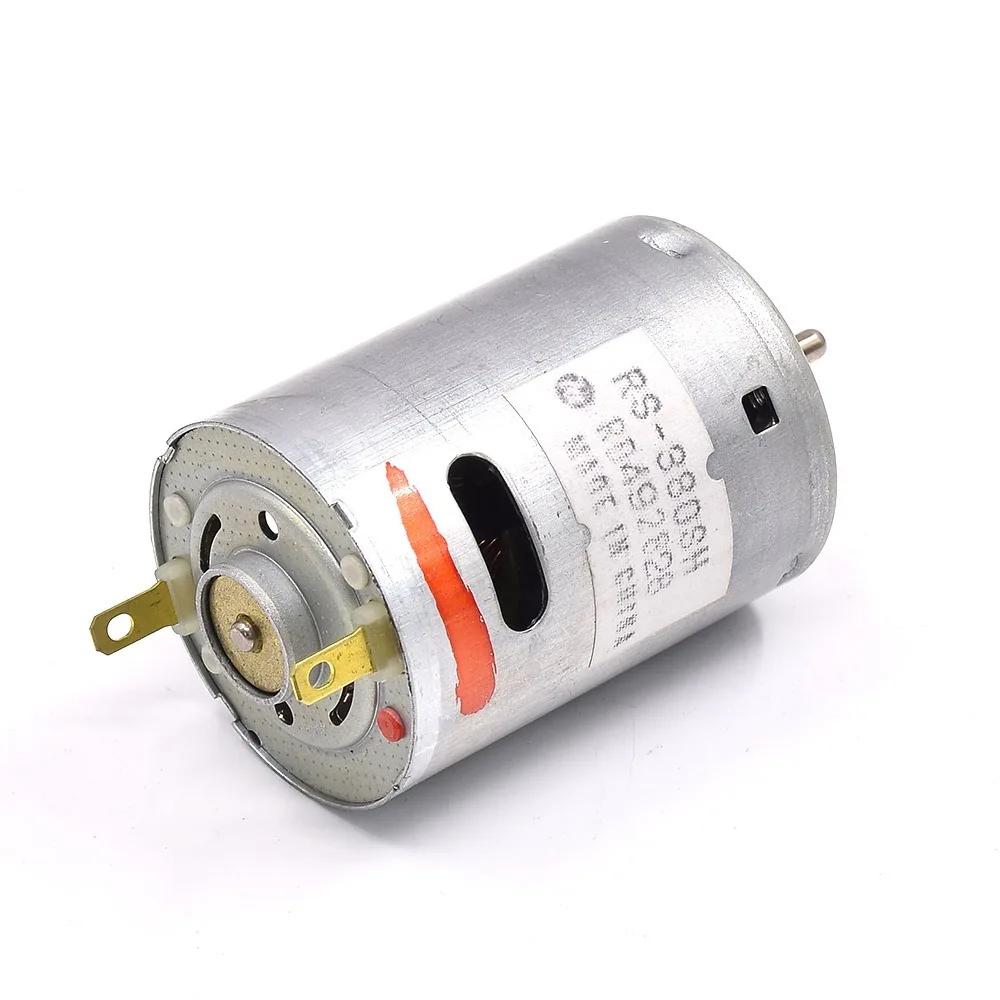

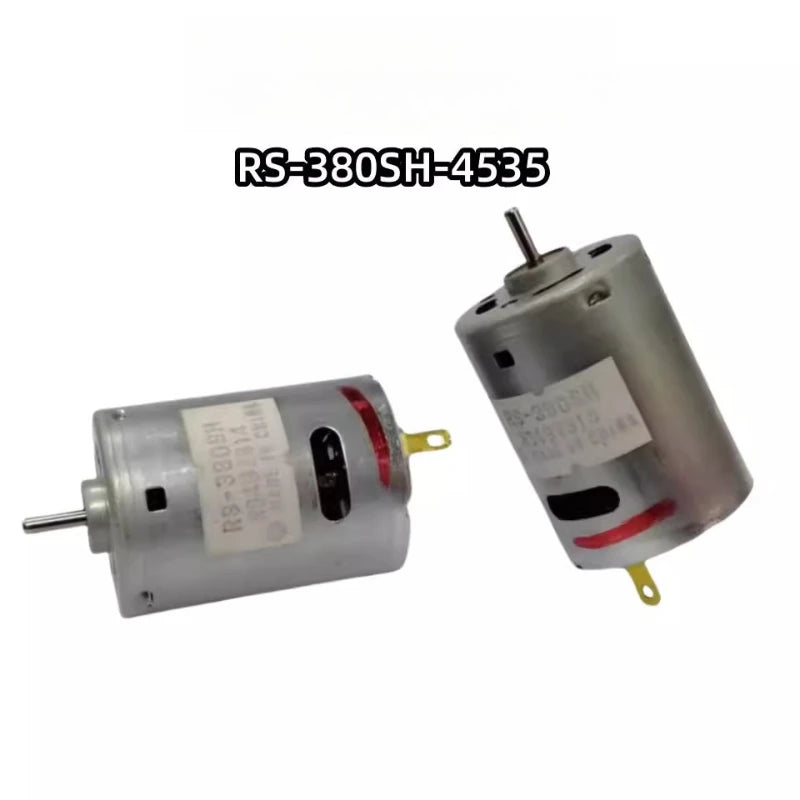

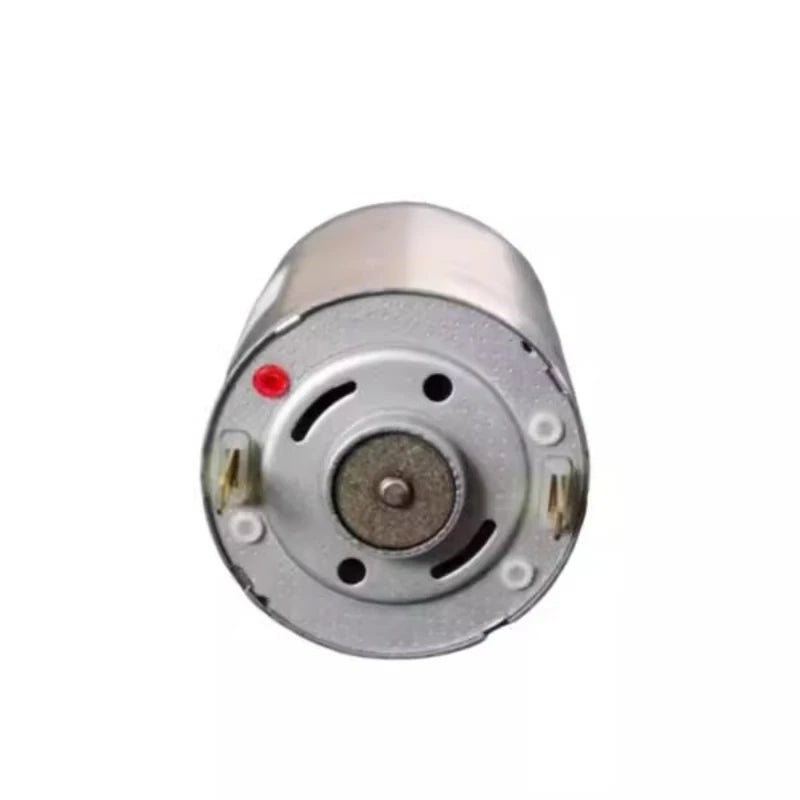

MABUCHI RS-380SH-4535 Micro 380 Motor DC High Torque 3V-7.4V 18000RPM 27.7MM High-Speed Carbon Brush Model Motor Vacuum Cleaner

MABUCHI RS-380SH-4535 Micro 380 Motor DC High Torque 3V-7.4V 18000RPM 27.7MM High-Speed Carbon Brush Model Motor Vacuum Cleaner

$6.87 USD
$6.87 USD $6.87 USD
Sale Sold out
Taxes included. Australia: US$4.99 shipping, free on orders US$49+. United States: US$5.99 shipping, free on orders US$59+. Delivery details.

CHECK BEFORE YOU CHOOSE

Check the device or intended use, dimensions and selected pack. For replacement parts, match the existing reference and connection.

Part details & fitting checklist ↓
Gear Count

Delivery to Australia & the US

Returns & refunds

Product description & listing images


Model: RS-385SH-4535
Type: Brushed DC motor
Applicable voltage range: DC 3-7.4 volts.
Rated voltage: 6 volts DC
No-load current: about 140 mA
No-load speed: 9000 rpm
Application: model and electric tools, household appliances, etc., which are typically used in the voltage range of charging vacuum cleaners.

No-load speed 18000rpm
No-load current 0.8A
Rated speed is 15200rpm.
Maximum current is 4.38A
The rated torque is 117g.cm
Rated power 18.6W
Locked-rotor torque is 771g.cm
Locked rotor current 24A
Tengyi DC

The following are the measured no-load speed and current values under different voltages
3.0V 8700 to 0.45A
3.7V 10000 to 0.5A
6.0V 17000 rpm to 0.7A
7.4V 21000 to 0.76A
The motor runs at a faster speed, which is not a silent type and has a large torque.
