HTD 3M Timing Belt Length 195 198 201 204 207 210 213 216 219 222 225 228mm Width 6/9/10/15/20mm Sweeper Washing Machine Belt

HTD 3M Timing Belt Length 195 198 201 204 207 210 213 216 219 222 225 228mm Width 6/9/10/15/20mm Sweeper Washing Machine Belt

Regular price $7.00 USD
Regular price $7.00 USD Sale price $7.00 USD
Sale Sold out
Taxes included. Australia: US$4.99 shipping, free on orders US$49+. United States: US$5.99 shipping, free on orders US$59+. Delivery details.

CHECK BEFORE YOU CHOOSE

Check the device or intended use, dimensions and selected pack. For replacement parts, match the existing reference and connection.

Part details & fitting checklist ↓
Width
Length
Number of Pcs
Quantity
Product description & listing images

Description

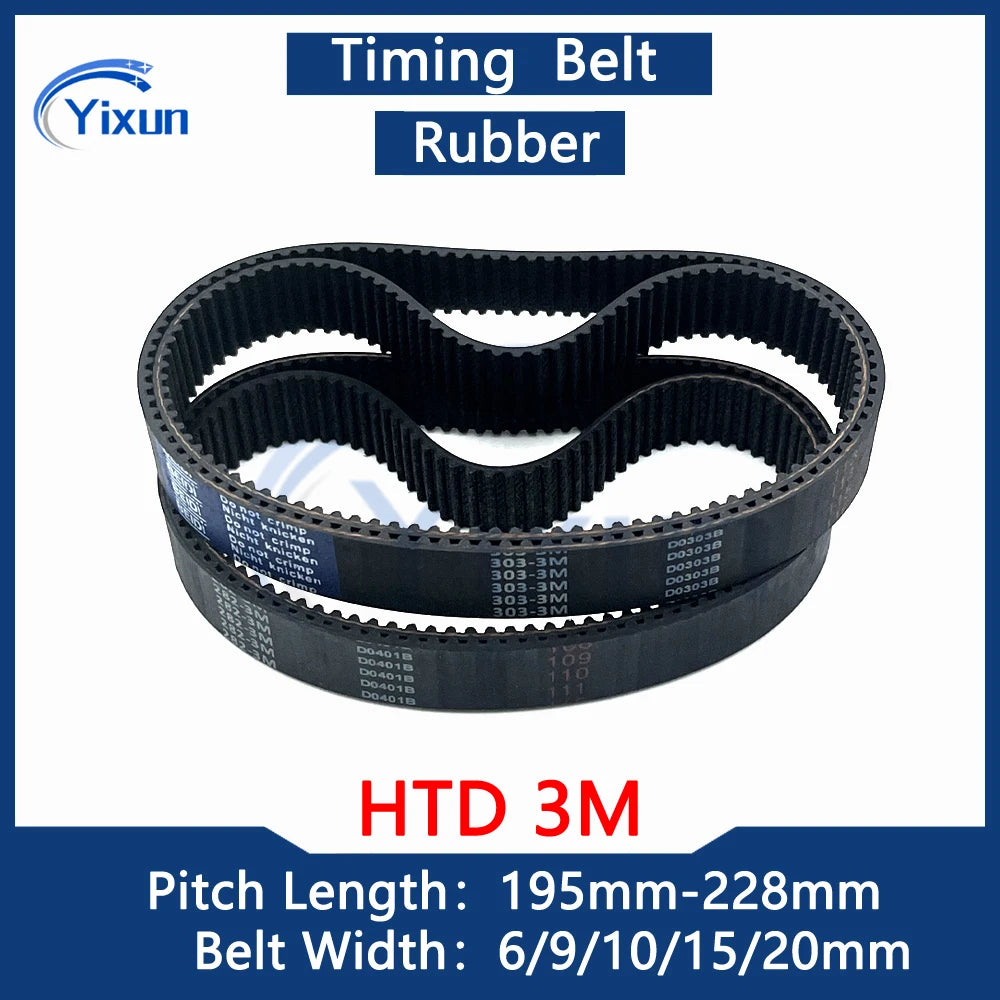

HTD 3M Rubber Closed-loop Synchronous Timing Belt
Pitch Length 195 198 201 204 207 210 213 216 219 222 225 228mm
Pitch 3.0mm
Constructed as Neoprene Rubber Fiberglass core in Closed-loop
Teeth Number 65 66 67 68 69 70 71 72 73 74 75 76
Belt Width 6mm/9mm/10mm/15mm/20mm
Fit for High Torqure Transmisson.

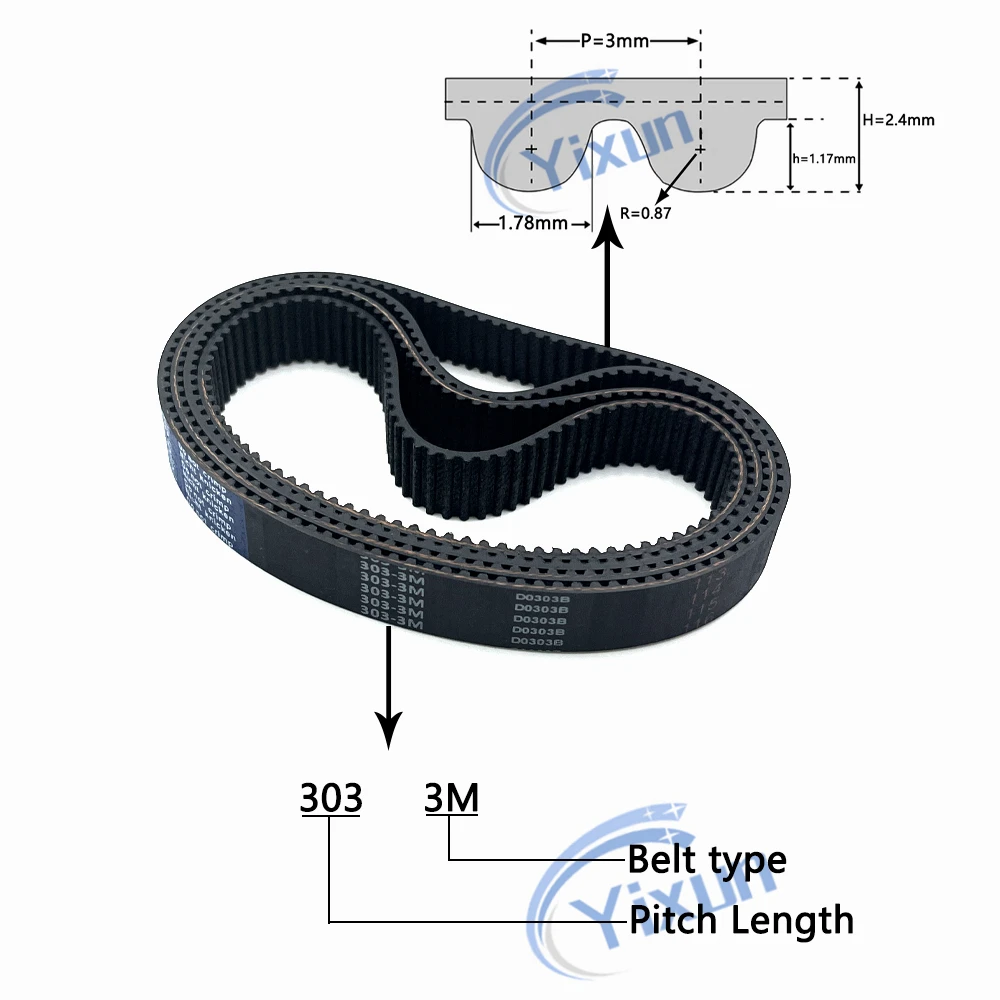

HTD 3M Timing Belt Sketch Map

Type: Circular toothed synchronous belt
Pitch(P):3.0mm
Total thickness of belt(H) : 2.40mm
Tooth Height(h): 1.17mm
Maetrial:Neoprene Rubber with Fiberglass Core
Belt Width :6/9/10/15/20mm
For example: 303-3M
303 represents a belt length (circumference) of 303mm
3M indicates that the synchronous belt model is HTD 3M, corresponding to a tooth pitch of 3mm
The pitch length (circumference) of HTD 3M belt is usually marked on the surface of the belt, and can also be calculated by multiplying the number of teeth of the belt by the tooth spacing. For example, 303-3M, pitch length=101x3=303mm

Remark:We have a large number of stock,we can instantly delivery.

if you need other width of HTD 3M Belt,please contact with me, we can customize!)

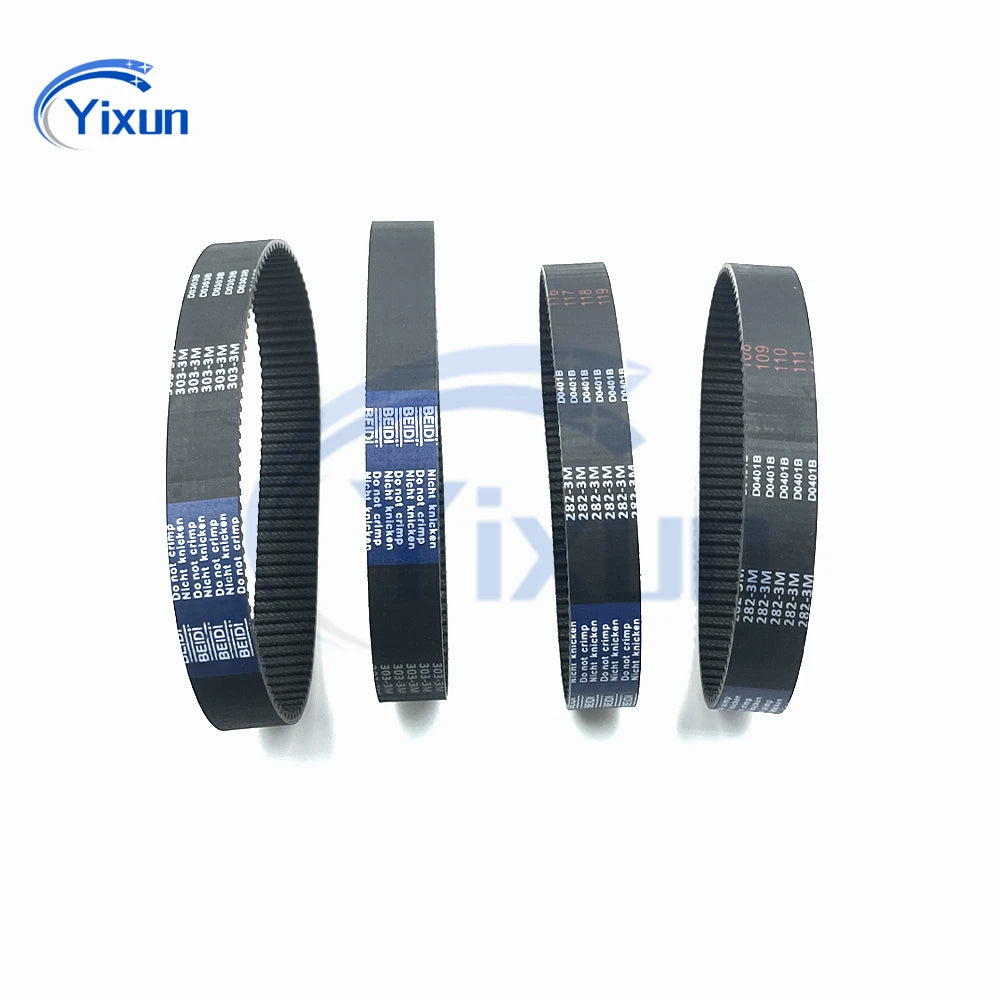

Product picture



Service

Satisfaction Exchange Guarantee: If you are not completely satisfied with the purchased product, you can return it to us for timely exchange, and we will refund your payment. All purchases must be returned within 7 days of purchase. After 7 days from the date of receipt, returns or exchanges are not accepted.
After receiving the returned goods, we will refund the customer based on the price of the goods (excluding round-trip shipping).
Please understand that shipping and handling fees are non refundable. The buyer will be responsible for the shipping cost incurred for returns that are not caused by product quality issues.
Please note that synchronous belt products belong to customized processing and cutting products. After payment for the order, they need to be cut and processed according to the order. They cannot be resold without use. Therefore, synchronous belt orders do not support returns or exchanges unless it is a quality issue. When purchasing synchronous belts, please choose the correct size you need. If you are unsure about the model, you can consult us, and we will be happy to serve you
