DN15-DN50 Normally Closed Motorized Solenoid Valve Brass Switch Valve Water Valve AC220V DC24V

Product description

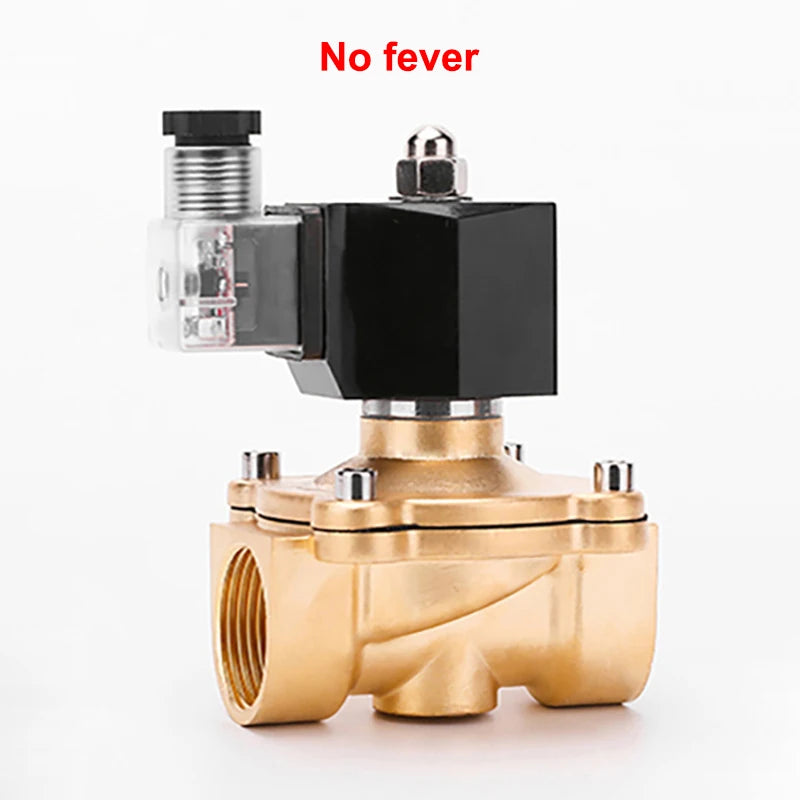

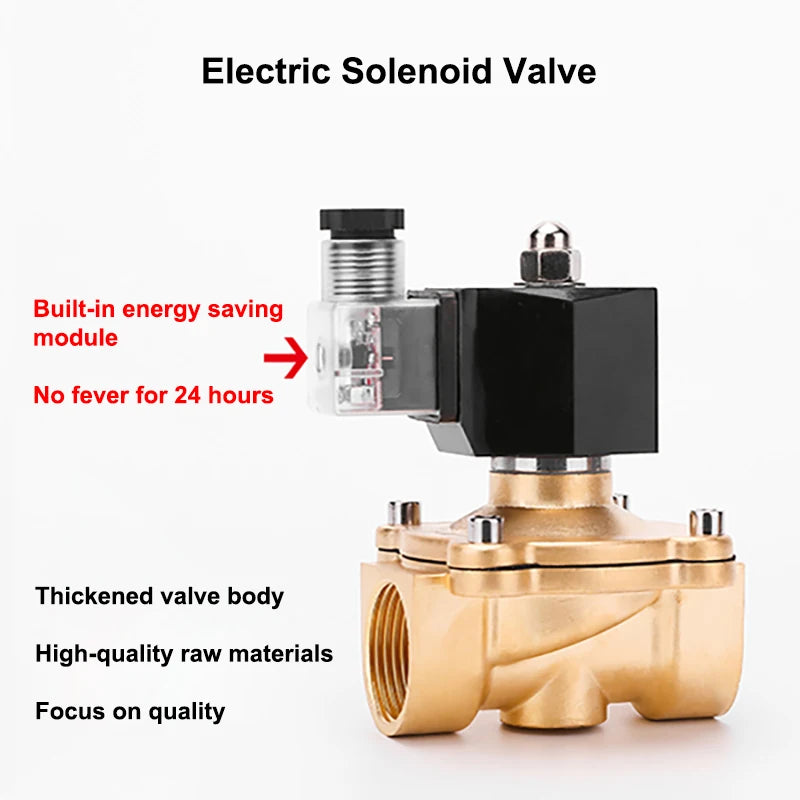

Name: Electric Solenoid Valve

Model: 2W Series

Material: Brass

Voltage: AC220V DC24V

Type: Normally closed type

Acting Motion: Direct action

Connecting Format: Inside thread

Pipe Diameter: DN15(1/2"), DN20 (3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2")

Nominal Diameter: DN15(16mm), DN20(20mm), DN25(25mm), DN32(32mm), DN40(40mm), DN50(50mm)

Fluid Temperature: -5~80℃

Work Pressure: 0~10Kg/cm2

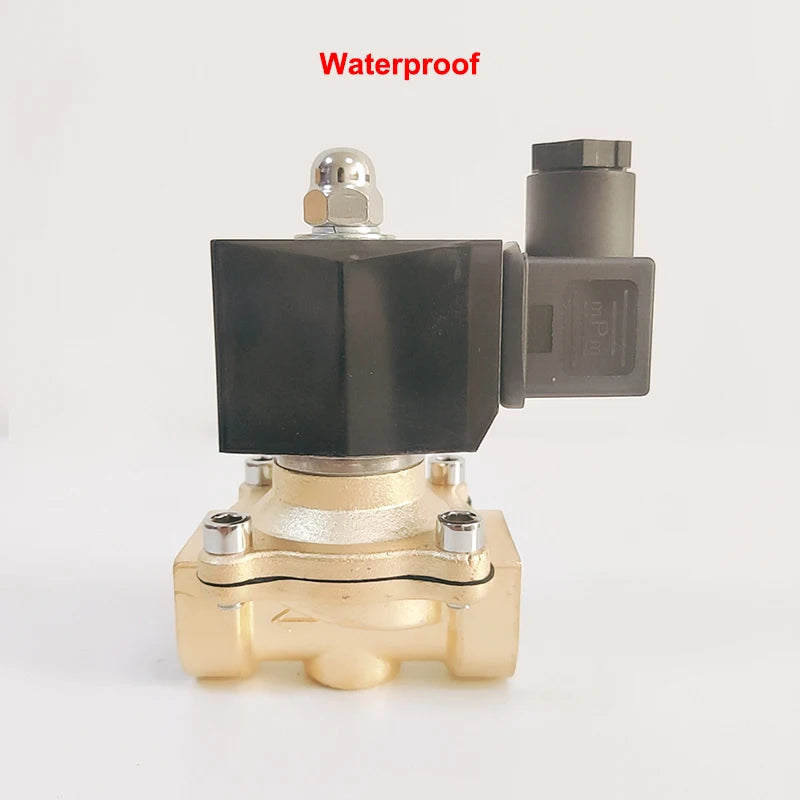

Protect Class: IP65(Water-proof)

Seal Material: NBR

Working Medium: Air, Water, Oil

Features:

· Two-position, one-way, normal close switch, magnetic solenoid water valve.

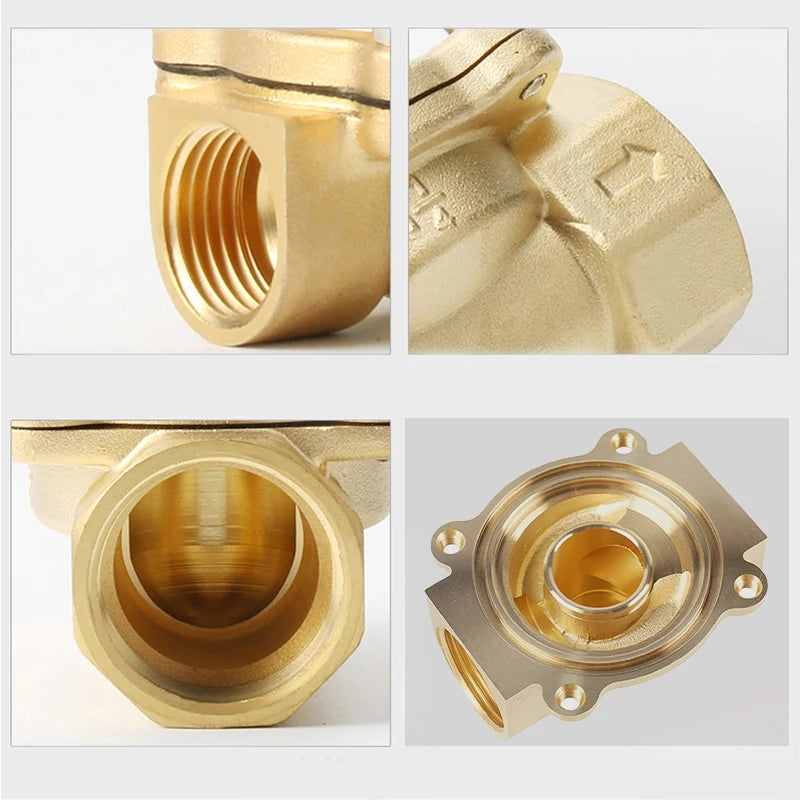

· High-quality aluminum alloy gravity casting, hard and durable, non-corrosive, the product has the direction of water inlet and outlet.

· Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.

· Easily replaces broken valves for use with pipelines in water, air and diesel-gas applications.


Package include

1Pc x Solenoid Valve

Notice:

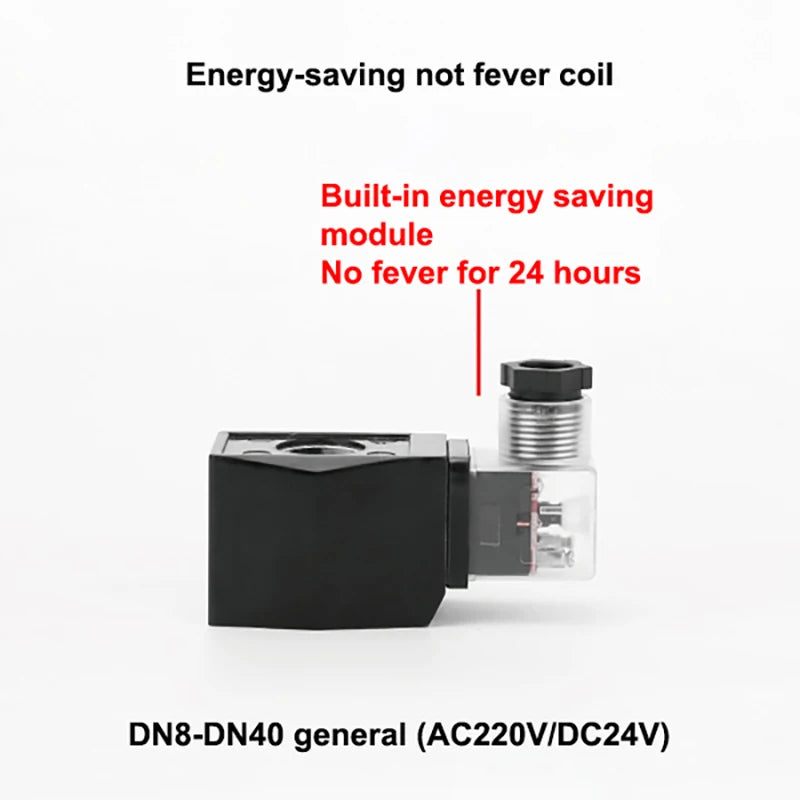

1.This type of solenoid valve is suitable for continuous opening for 24 hours without burning,And it can also be used outdoors.

2.Please allow 1-5mm error due to manual measurement and make sure you do not mind before ordering.

3.Please understand that colors may exist chromatic aberration as the different placement of pictures.
