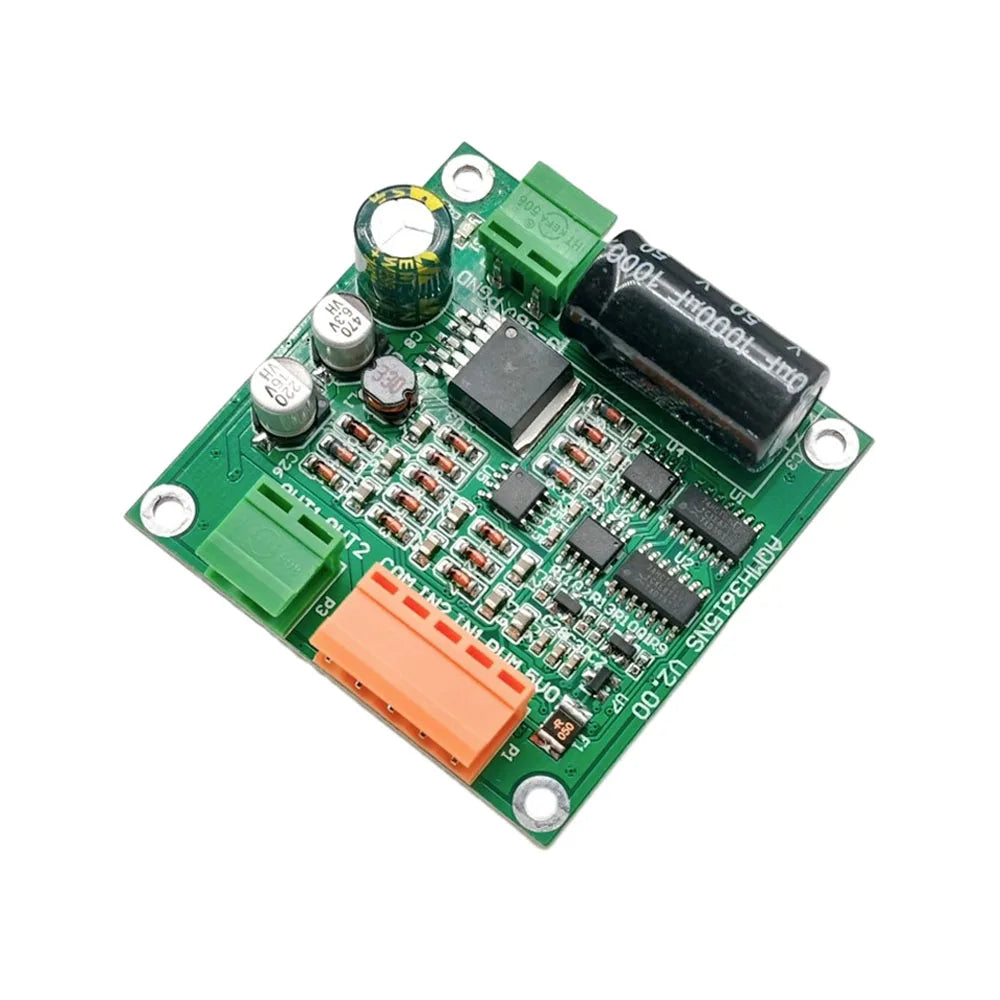

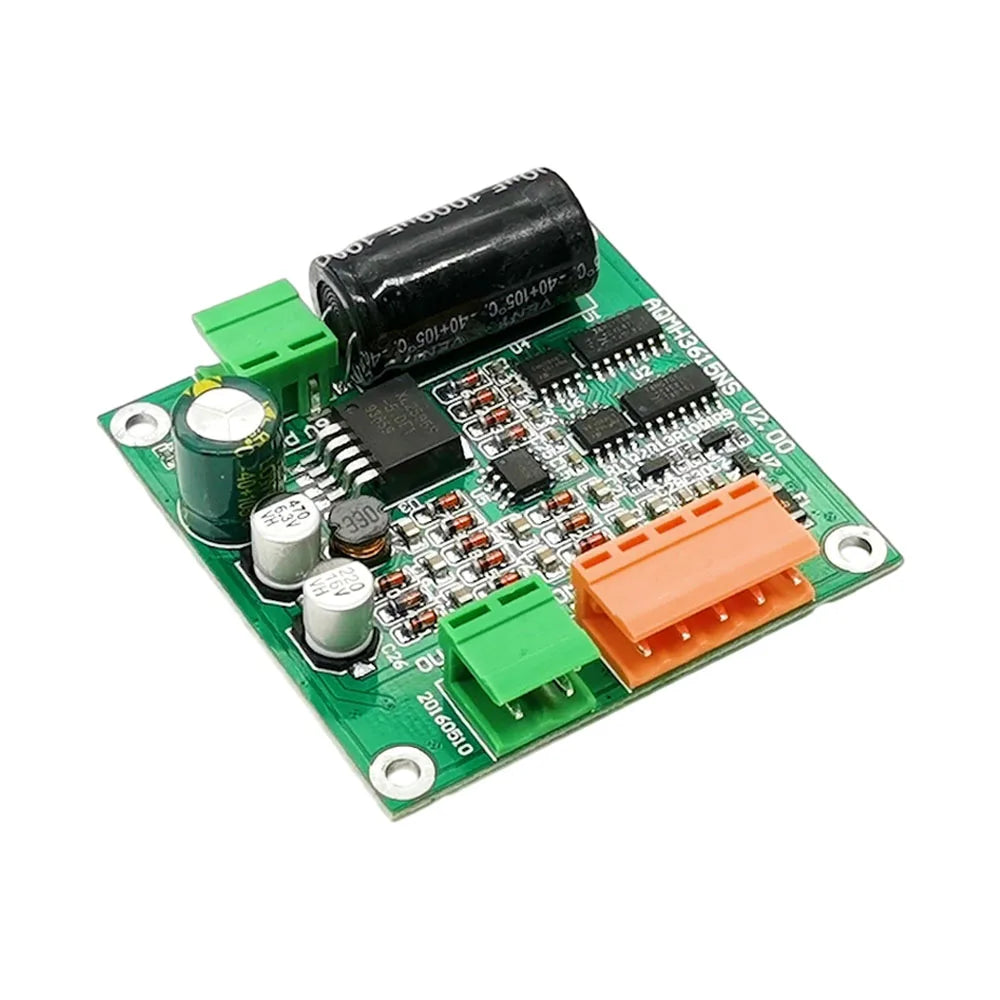

Features:

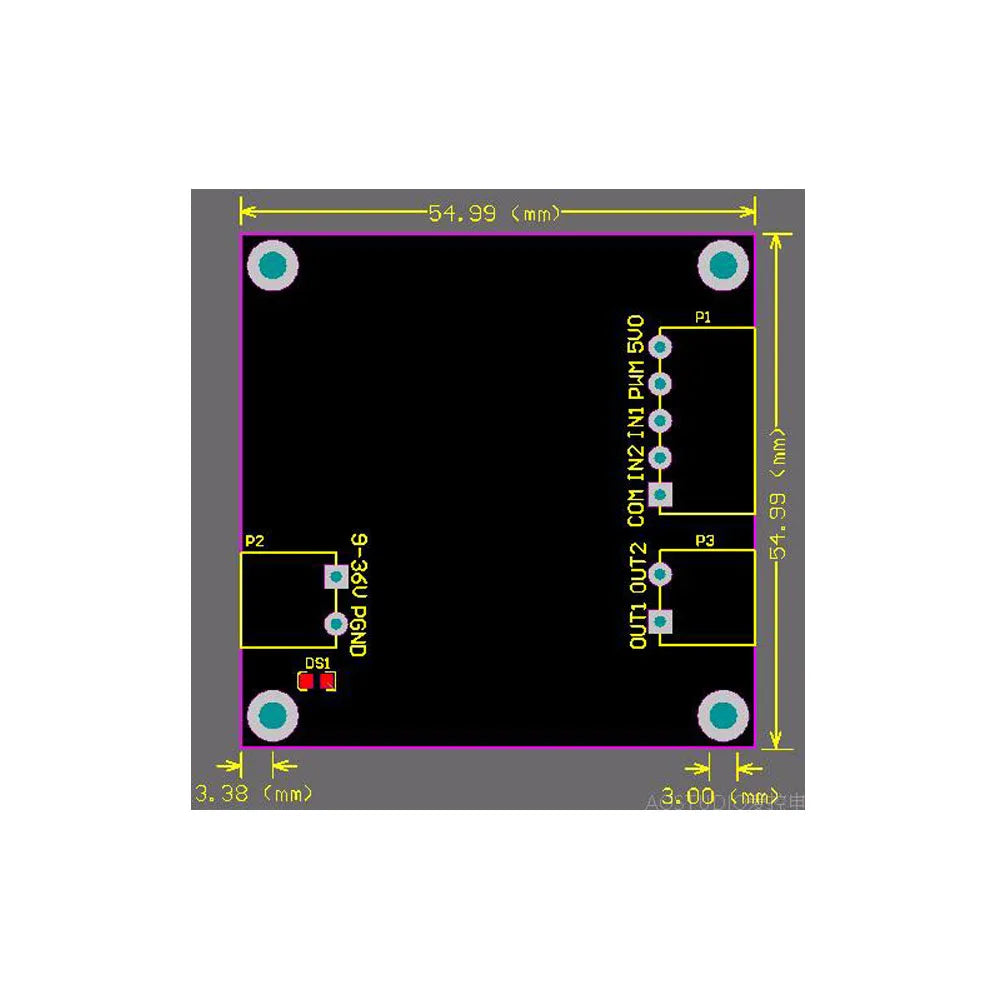

Extremely small size, only 5.5cm×5.5cm.

Support voltage range 6.5-40V, undervoltage protection.

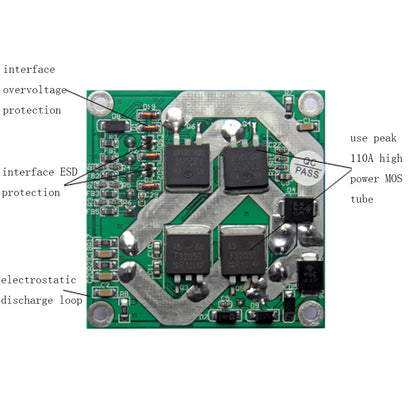

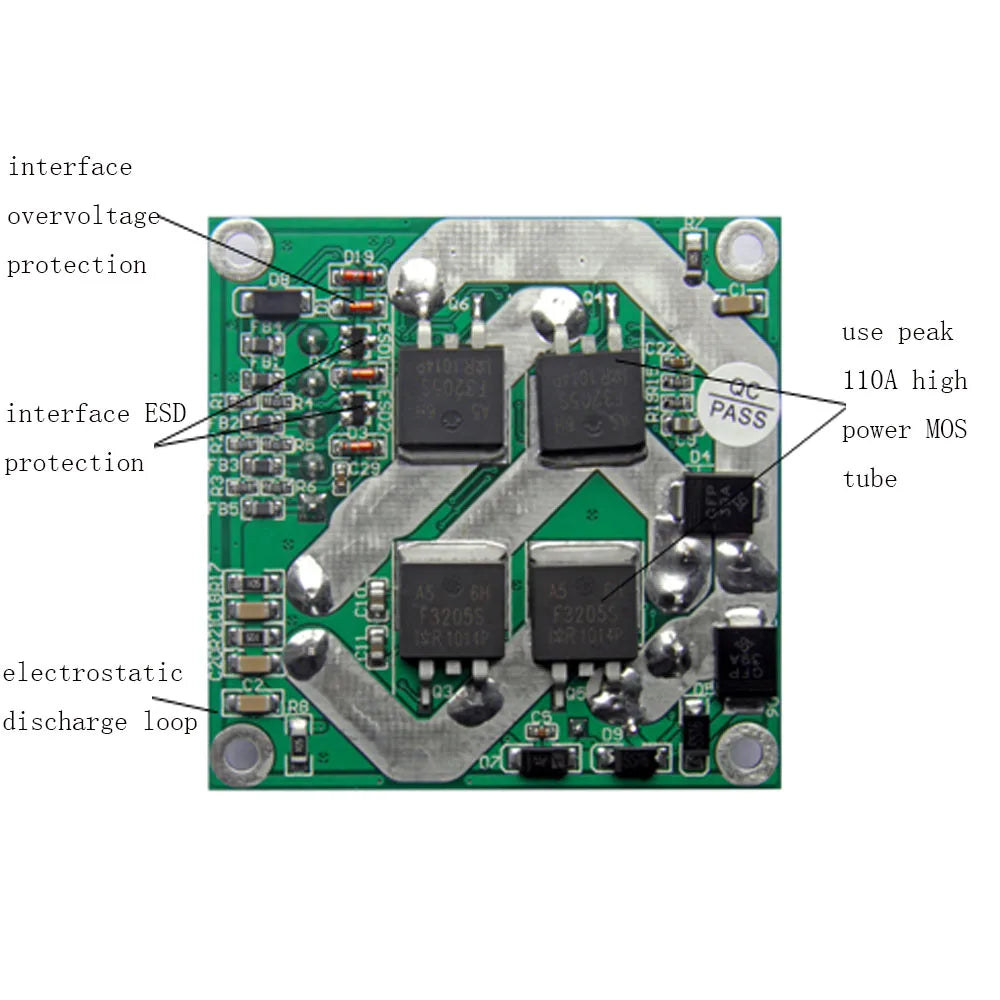

Maximum load current 12A(without heat dissipation), 15A(with heat dissipation), Instantaneous peak current 110A.

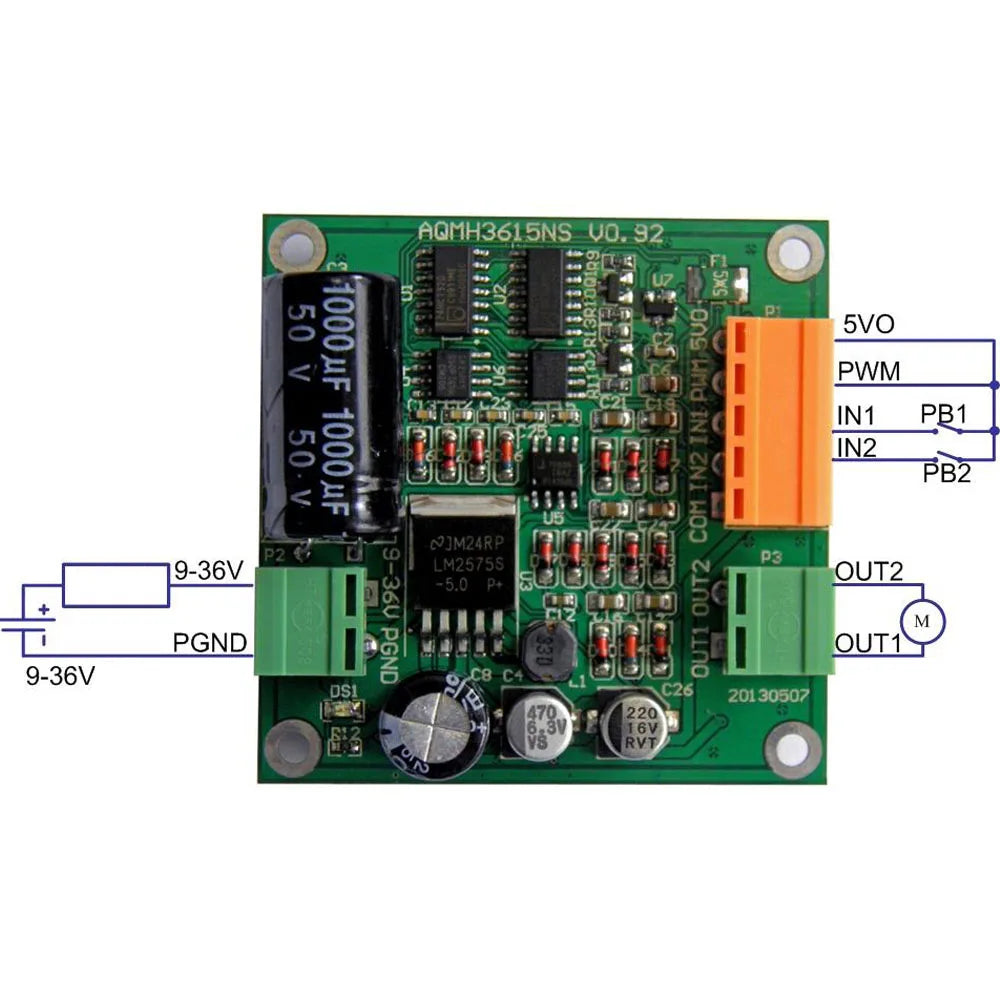

Three-wire control speed regulation, positive and negative rotation and braking.

Support full PWM, can directly use the key to control positive and negative rotation, PWM effective range of 0.1%~100.0%.

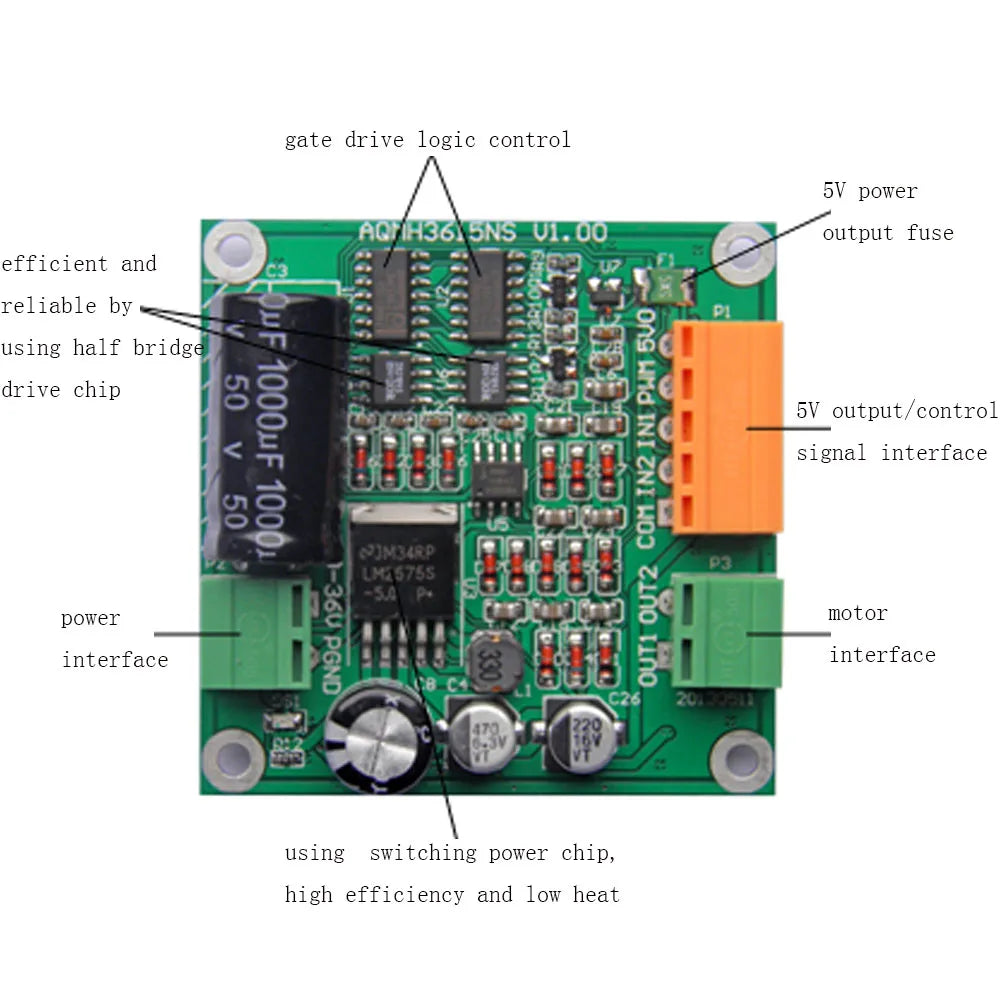

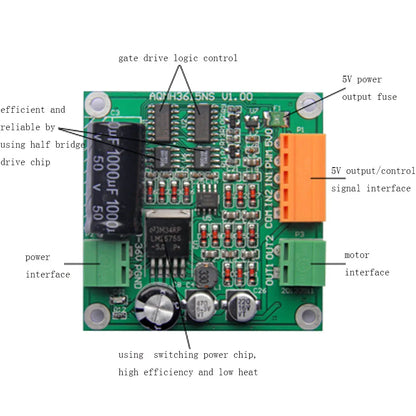

It can provide 5V power supply for single chip computer.

Interface ESD protection.

Specifications:

Motor power input voltage: DC6.5V~40V

Maximum load current:

12A(no heat dissipation)

15A(with heat dissipation)

Output power:

12V 180W

24V 360W

36V 540W

Peak current: 110A

Maximum output current of 5V power supply: 500mA

Control signal high level voltage (VHI) : 2.0V~5.5V

Control signal low-level voltage (VLI) : 0V~0.8V

Control signal current: 50uA

PWM effective range: 0.1 %~100.0%

PWM minimum effective pulse width: 200ns

Notice: The board has no current detection. If the motor is overloaded or the lock current is too large, it will burn

When using 15A current, a heat dissipation must be added, when the board is overheated, must reduce the operating current

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.

Package Included:

1x Motor Drive Board
