Bringsmart BLDC Motor DC Micro Motor 5V 6V 9V 12V 24V Motor Fixed Speed 0.6-60rpm For Display Stand Auto JS-50B Customized

Bringsmart BLDC Motor DC Micro Motor 5V 6V 9V 12V 24V Motor Fixed Speed 0.6-60rpm For Display Stand Auto JS-50B Customized

$10.37 USD
$10.37 USD $10.37 USD
Sale Sold out
Taxes included. Australia: US$4.99 shipping, free on orders US$49+. United States: US$5.99 shipping, free on orders US$59+. Delivery details.

CHECK BEFORE YOU CHOOSE

Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.

Part details & fitting checklist ↓
Speed(RPM)
Voltage
Gear Count
Delivery & checkout totalPrices are in USD. See shipping terms and review the final total before payment. Returns & problem ordersRead the returns policy and contact us about an incorrect, damaged or faulty part. Help from our storeAsk us about a model or an order. Our contact page lists the business and support details.
Product description & listing images





Power: 4W

Long life, wide range of applications, commonly used power supply voltage DC5V, 6V, 9V, 12V, 24V, speed per minute 0.9R 1.4R 2R 3R 4R 5R 8R 10R 15R 20R 30R 50R 60R, the smaller the speed, the greater the torque, the special output shaft can be customized


Applications: Mainly used in the wind guide mechanism of the DC fan, shaking his head mechanism, heater, heater, small sun swing angle, all kinds of display stand, handicrafts, lamps and lanterns lighting, toys and other appliances as well as various air- Microwave oven turntable motor.

Wiring method:

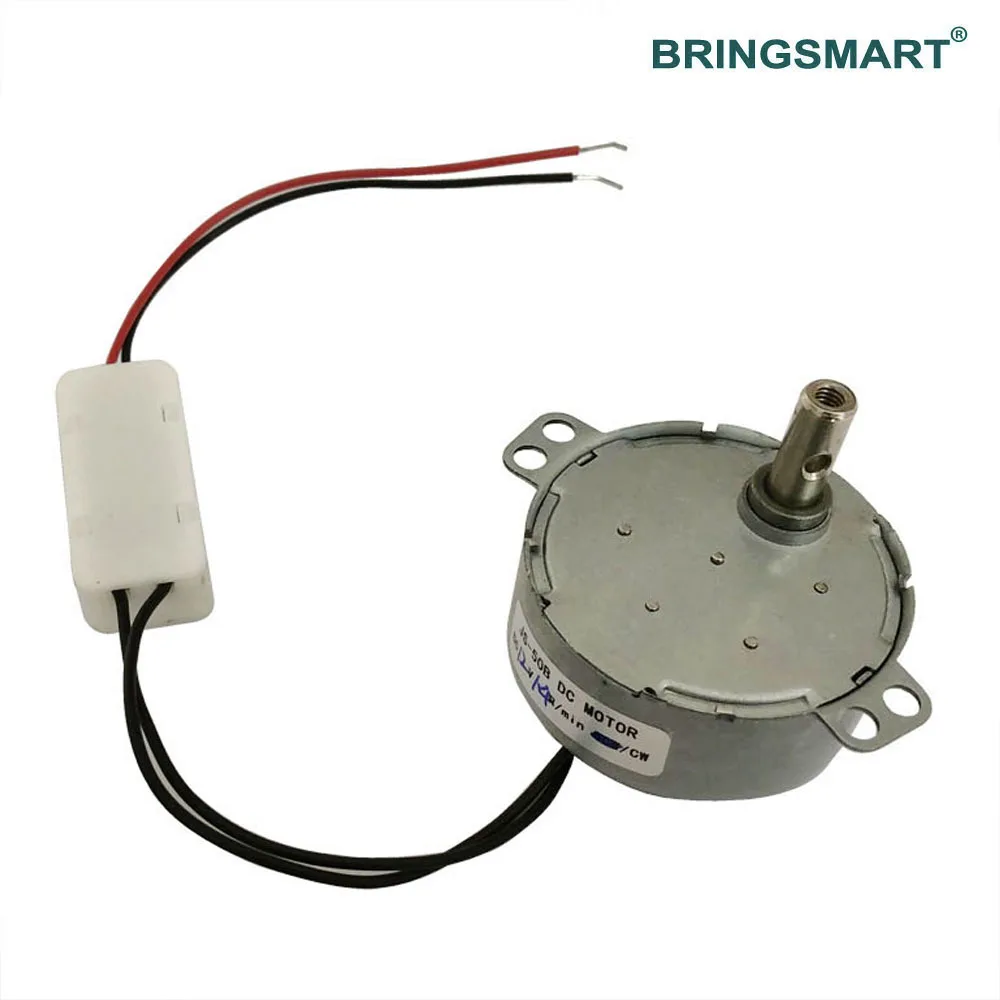

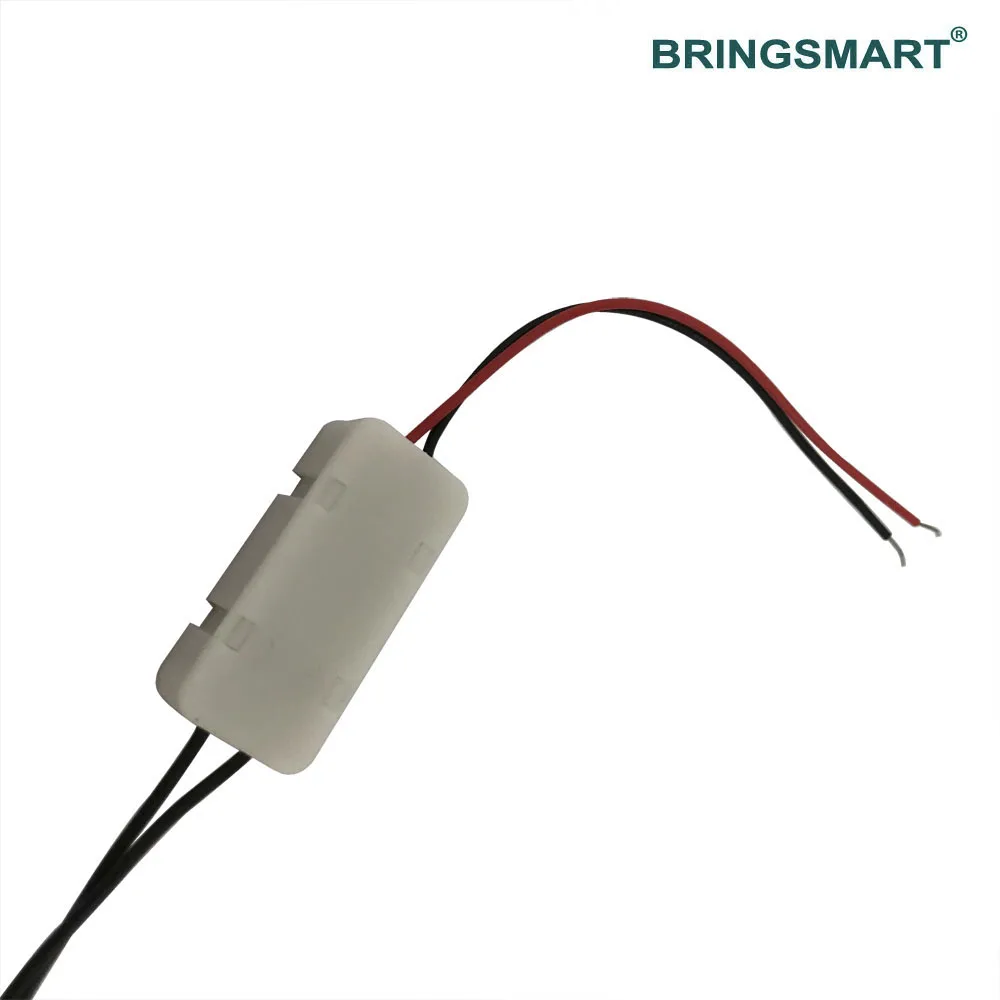

Positive power supply connected to the red line, negative power supply connected to the black line, if the connection is wrong, the motor will not work, when the load reaches the rated torque of the motor will automatically reverse


There are three directions of rotation: CW/CCW ; CW ; CCW


Note

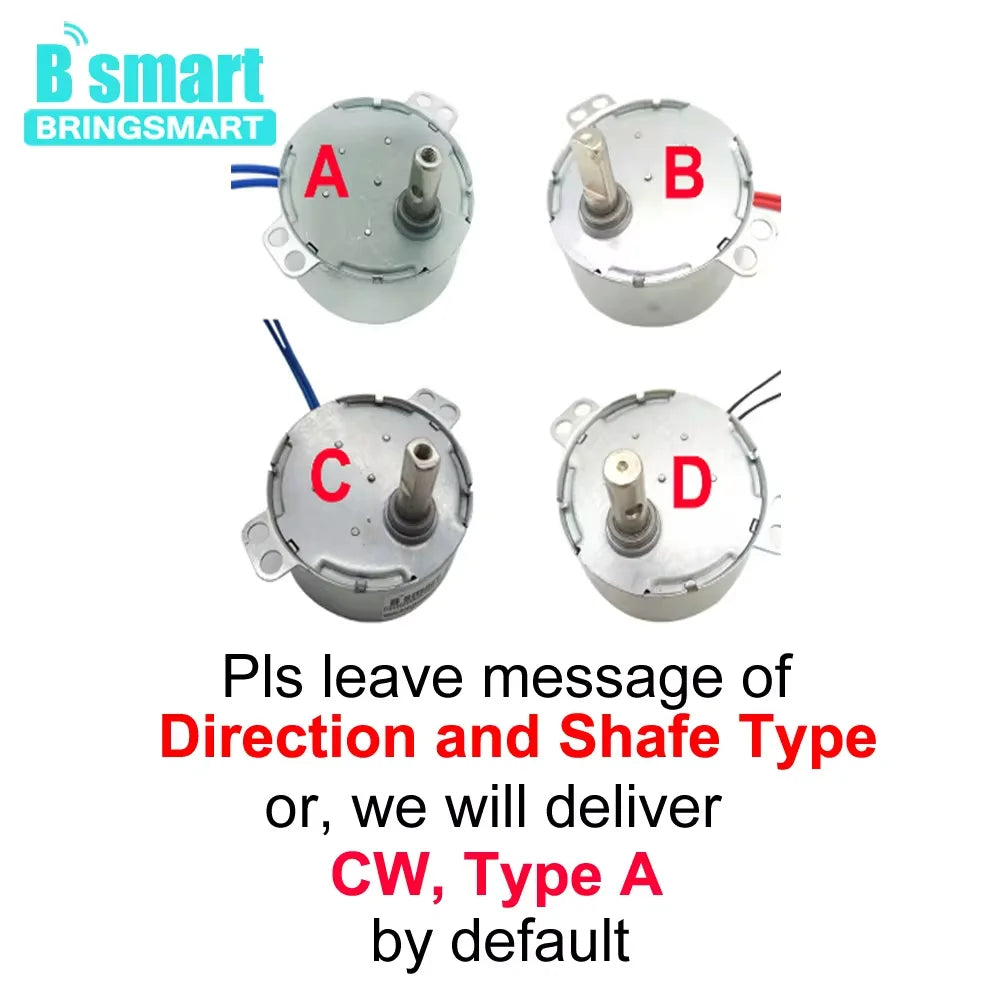

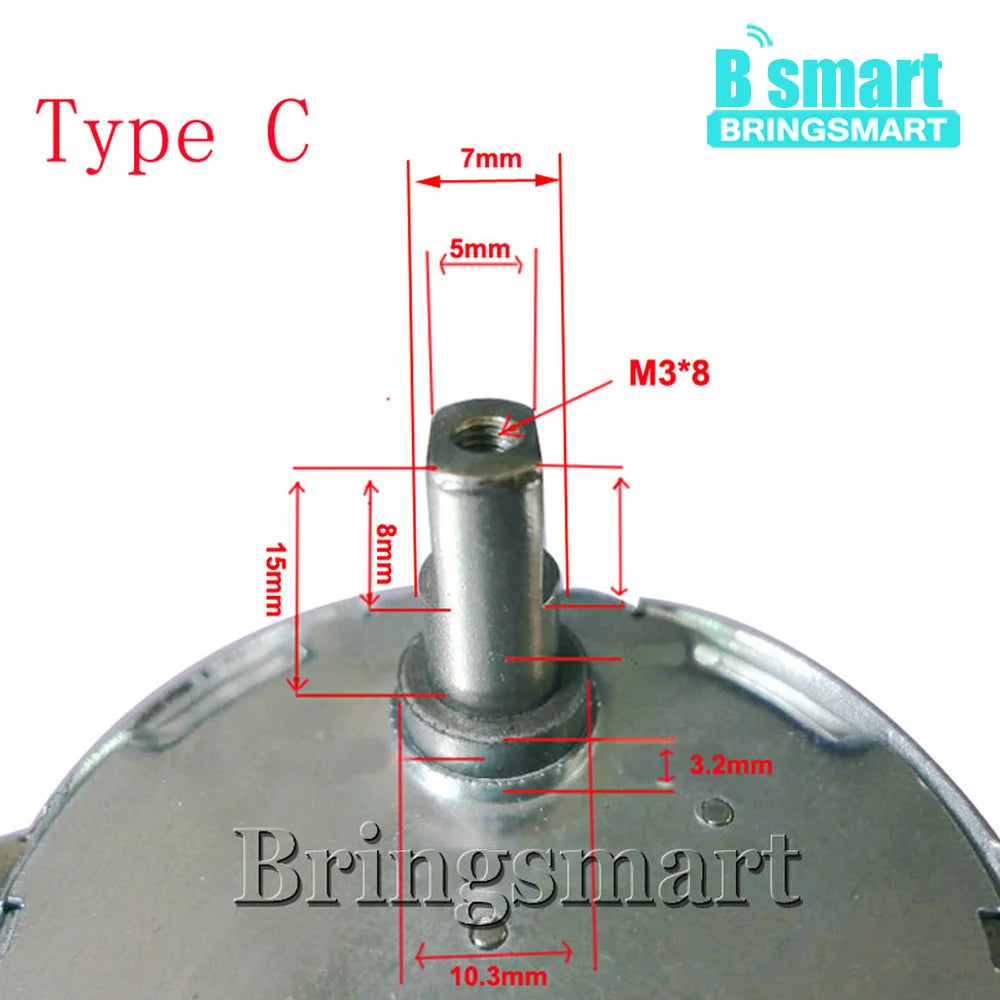

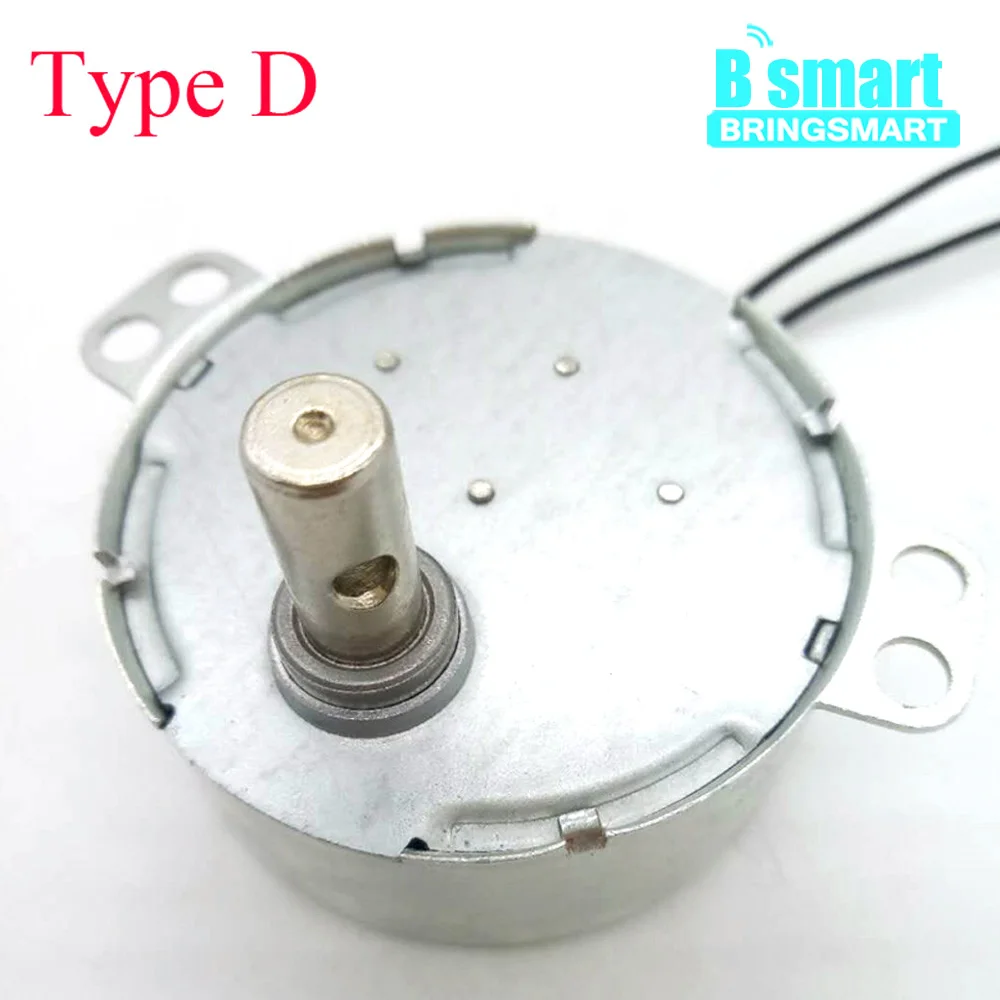

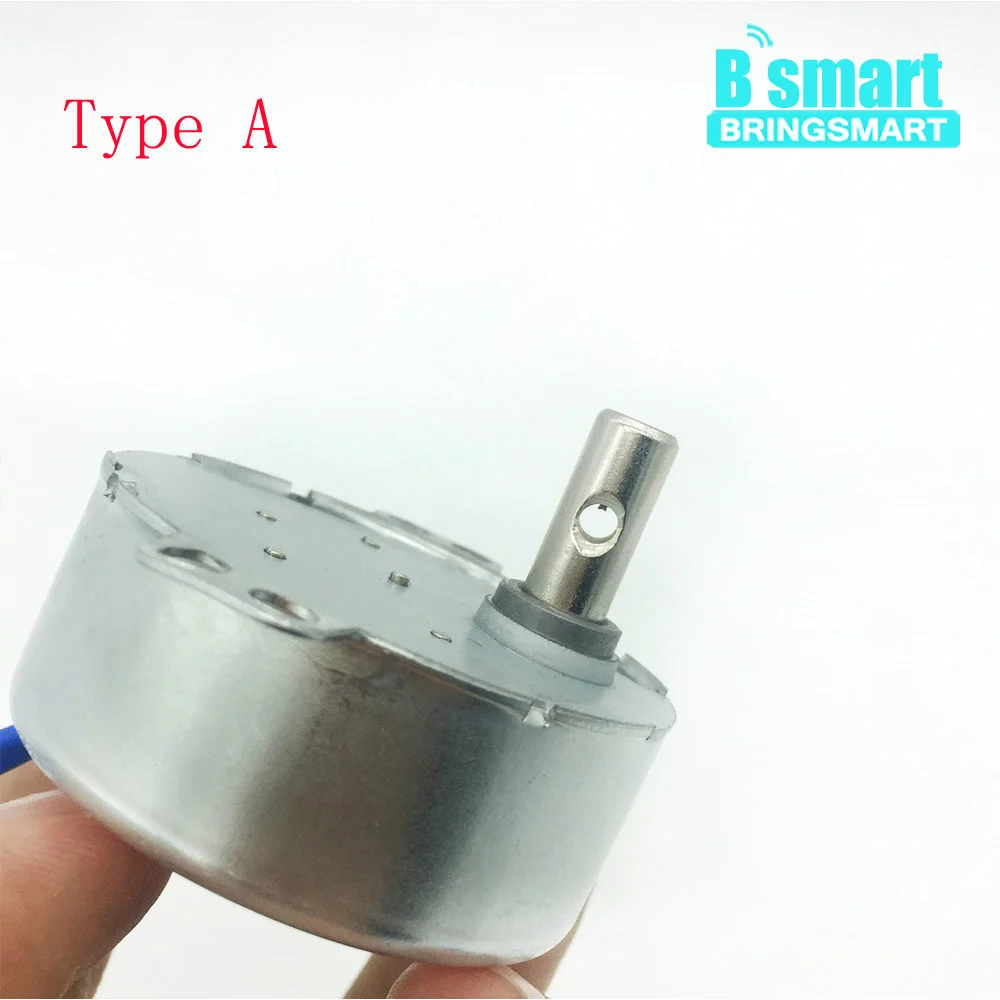

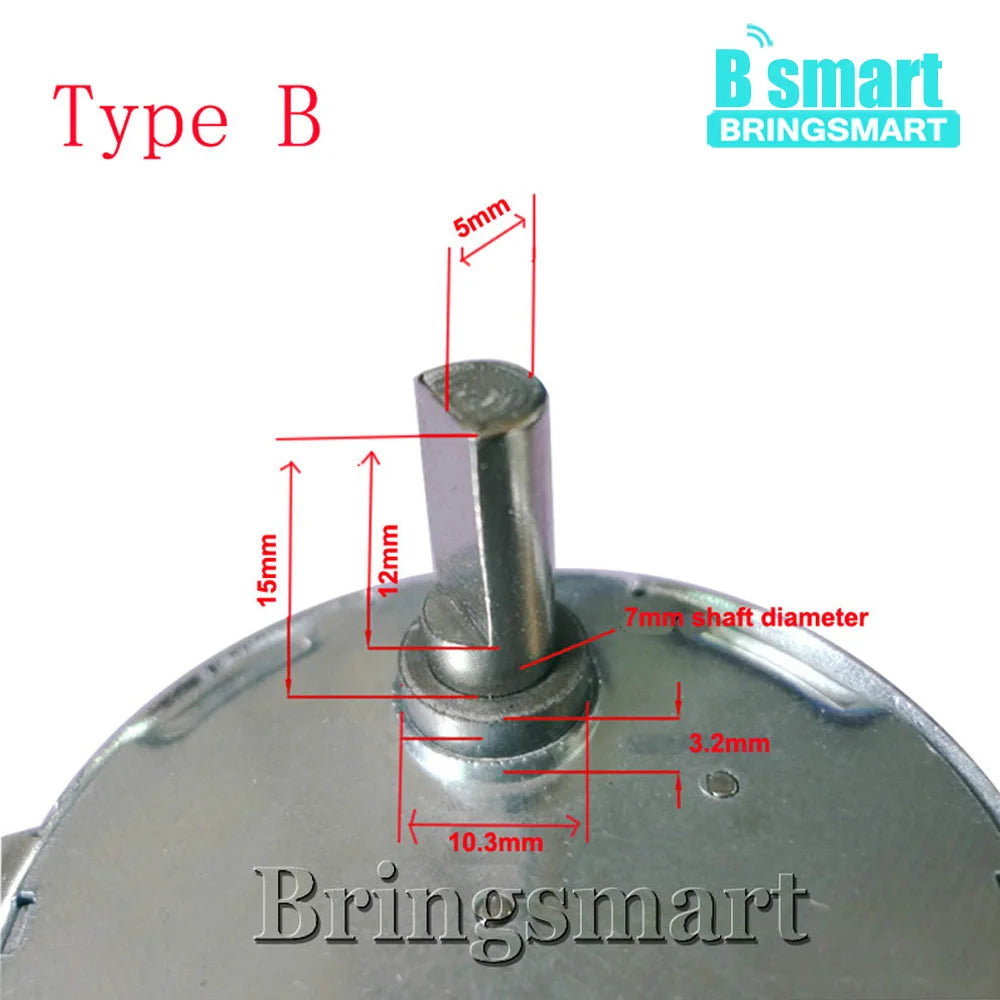

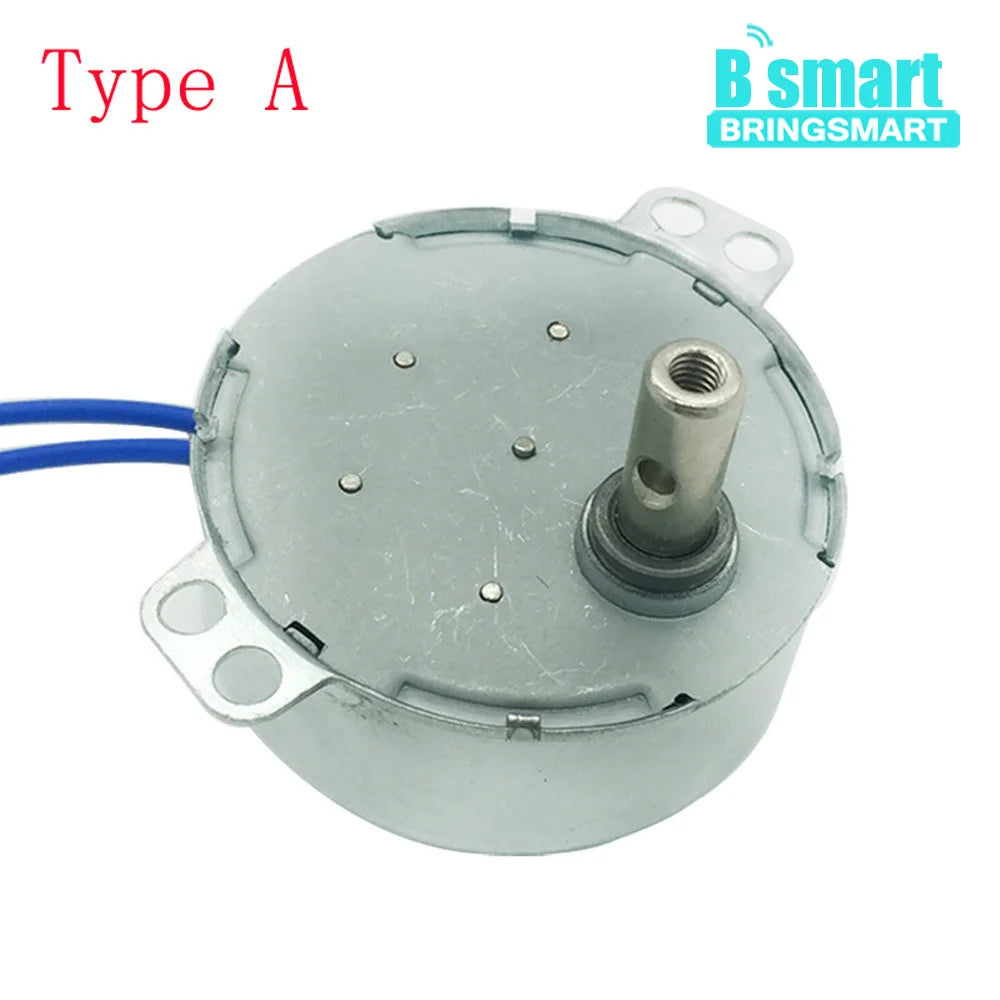

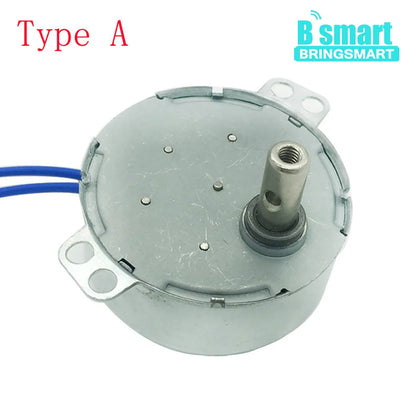

Please leave a message to tell us your choice of direction of rotation (CW / CCW;CW; CCW three type) and the type of shaft ( Type A ; Type B ; Type C ; Type D )

For example CW ; Type A


If did not get your message within 6 hours after your payment, we will deliver CW And Type A by default.



Thanks for your understand.


View full details

KNOW WHAT YOU ARE CHOOSING

Part details & buying guide

Product details

Part type
Motors & Drive Components
Part listing
Bringsmart BLDC Motor DC Micro Motor 5V 6V 9V 12V 24V Motor Fixed Speed 0.6-60rpm For Display Stand Auto JS-50B Customized
Speed(RPM)
10rpm 2kgf.cm, 1.4rpm 11kgf.cm, 2rpm 10kgf.cm, 3rpm 8kgf.cm, 4rpm 6kgf.cm, 5rpm 4kgf.cm, 8rpm 3kgf.cm, 15rpm 1.5kgf.cm, 20rpm 1kgf.cm, 30rpm 0.8kgf.cm, 60rpm 0.4kgf.cm, 0.9rpm 12kgf.cm
Voltage
DC 12V (9V), DC 24V, DC 6V (5V)
Gear Count
type A (CW), type B (CW), type C (CW), type A (CW CCW), type B (CW CCW), type C (CW CCW), Please Specify
