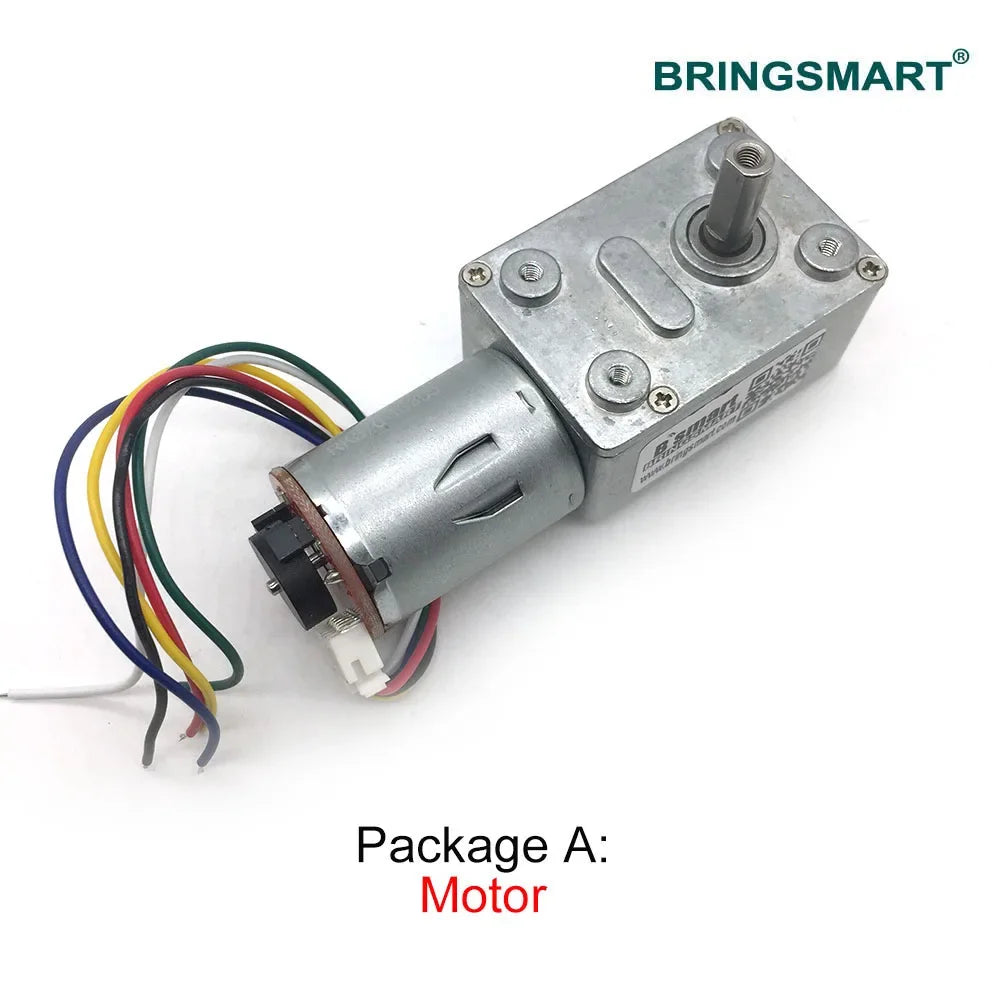

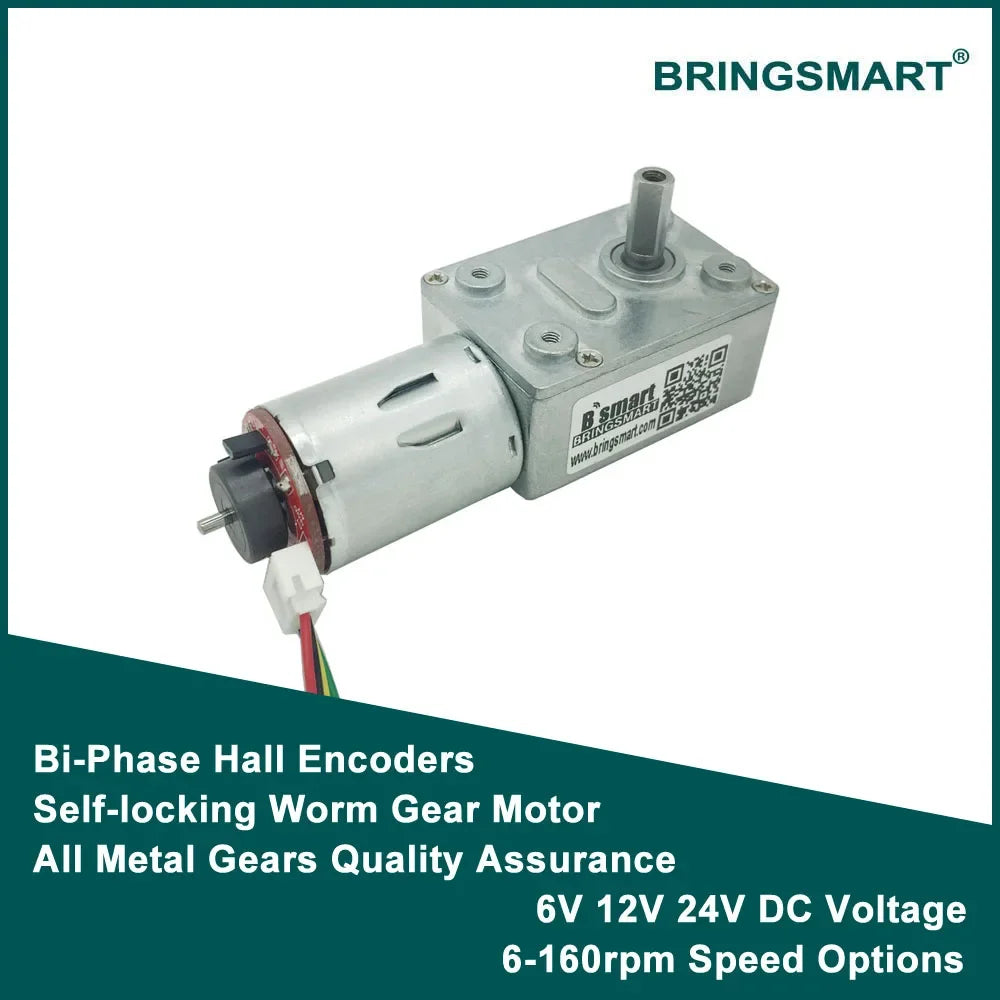

Bringsmart 6V 12V 24V Low Speed DC Electric Motor Worm Encoder Disk High Torque Micro Gearbox Motor Reductor JGY-370B
Bringsmart 6V 12V 24V Low Speed DC Electric Motor Worm Encoder Disk High Torque Micro Gearbox Motor Reductor JGY-370B
Couldn't load pickup availability
1) Before you buy, we have a reminder, please carefully check the following parameters table, you can see the rated load torque and stall torque, if you choose one of the speed, your project load can not exceed the rated load, otherwise the motor current will increase, the motor operating temperature increases, after a period of time, the gear will be worn, line will be burnd, the motor will be damaged, can not continue to work.
2)If you connect the voltage less than the rated voltage, the rated torque will be reduced.

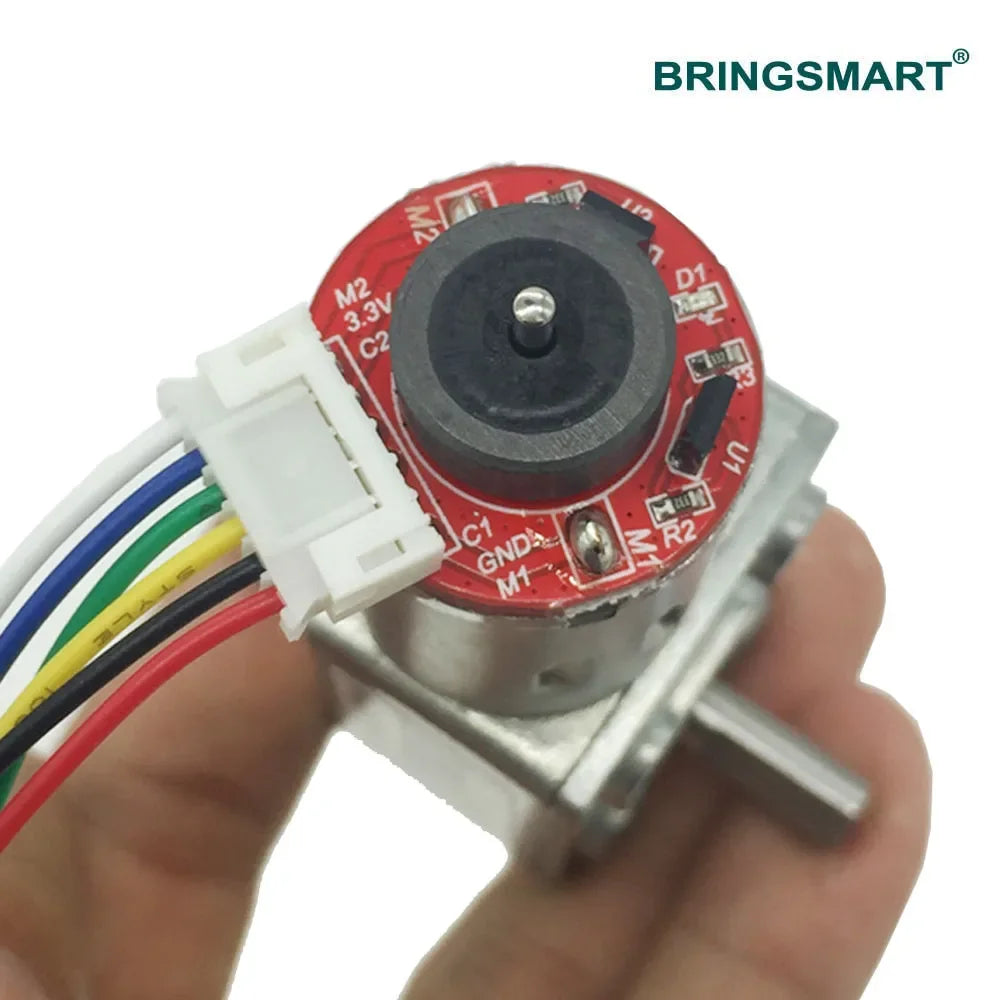

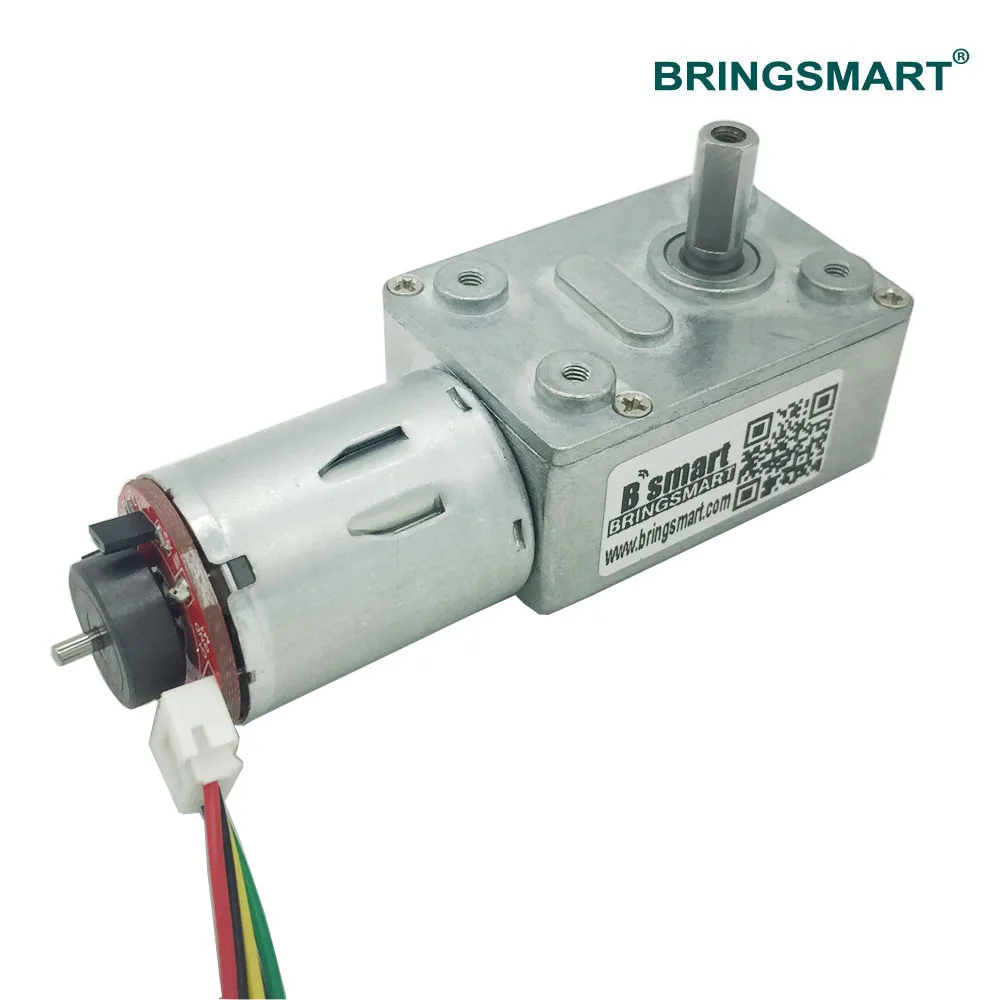

It is12CPRfor resolution for Hall encoder (this type ishall encoder);
360CPRfor Photoelectric encoder (Price will be more high, if need, please contact with us, we will change price).

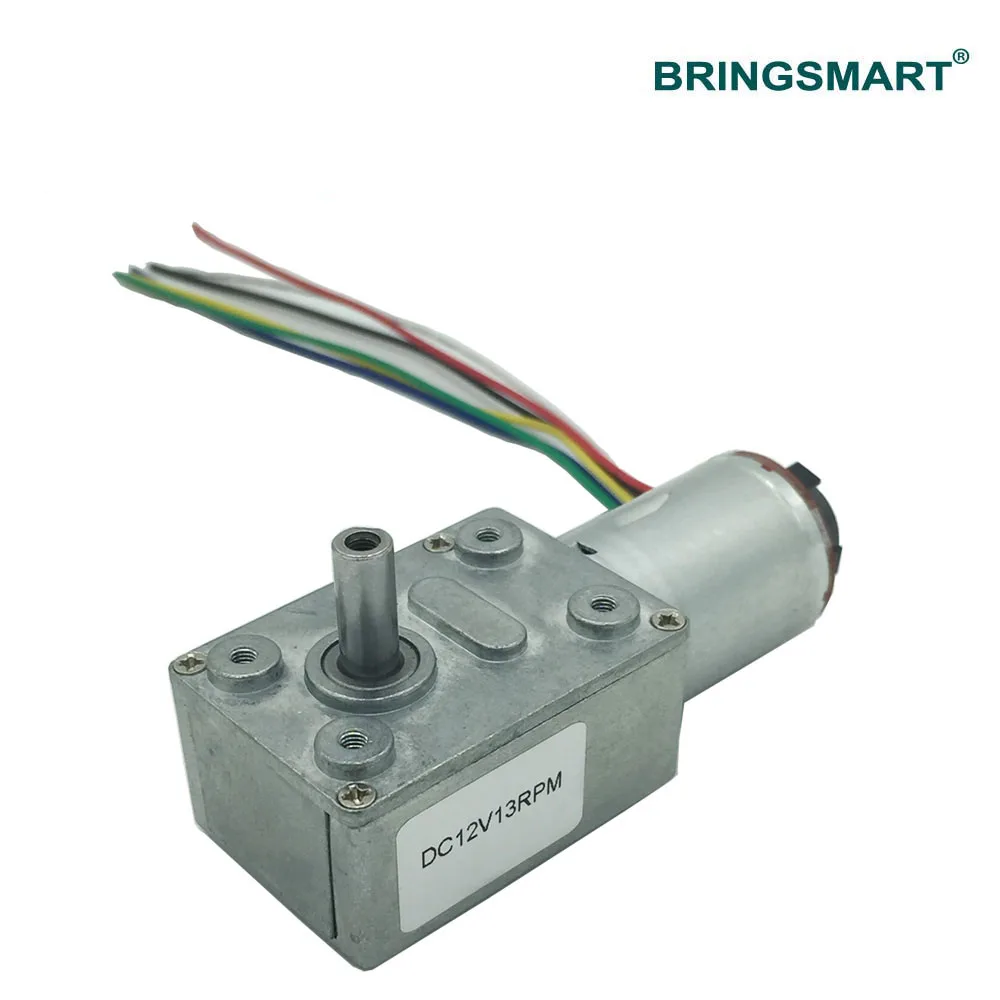

Wiring method:
Red
→ motor power + (exchange can control the motor forward and reverse)
Black
→ Encoding Power - (positive and negative can not be wrong 3.3-5V)
Yellow
→ signal feedback (motor 1 rotation is 16 signals)
Green
→ signal feedback ( motor 1 rotation is 16 signals )
Blue
→ coding power + (positive and negative polarity can not be wrong 3.3-5V)
White
→ Motor power - (exchange can control the motor forward and reverse)
Please connect wire strictly according to instruction, we can not take responsibility for wrong connection.
