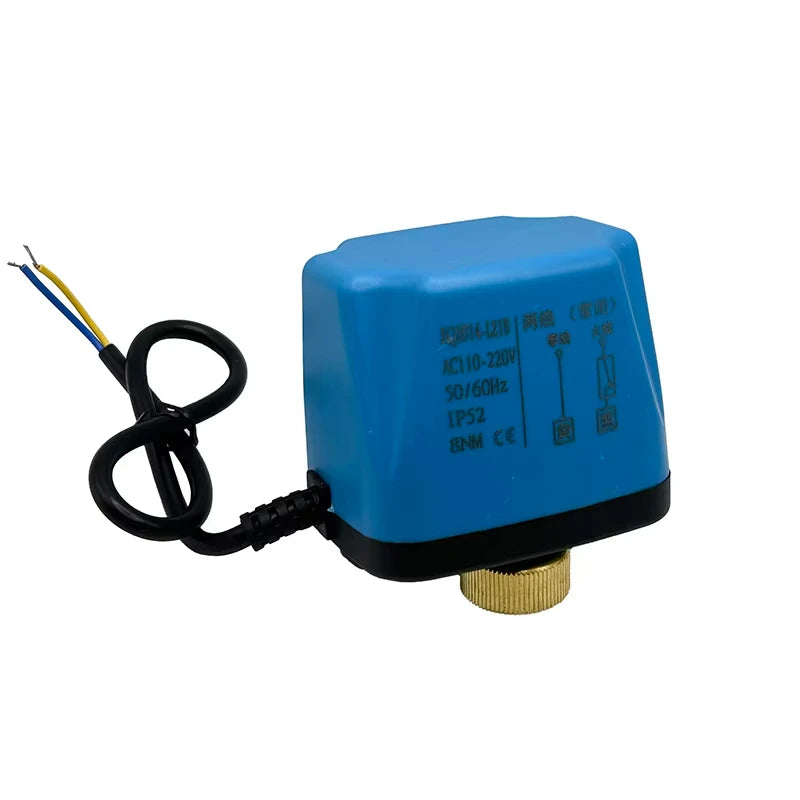

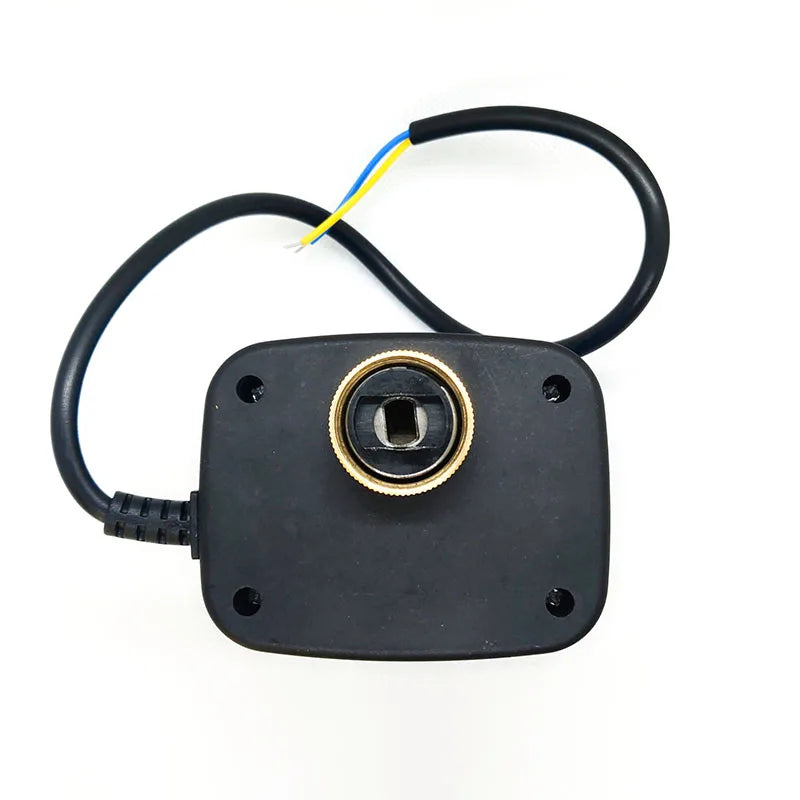

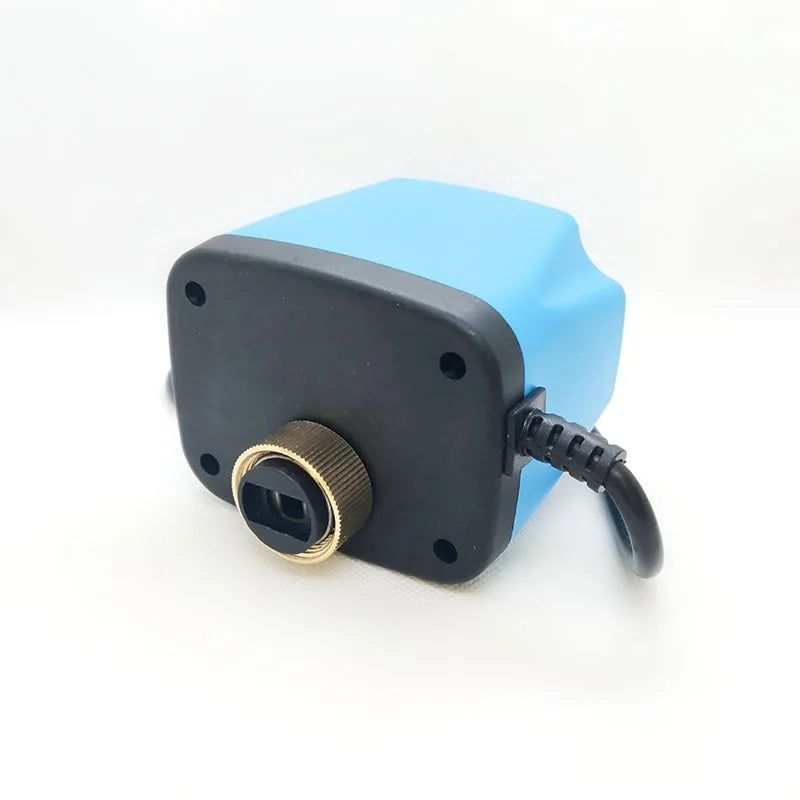

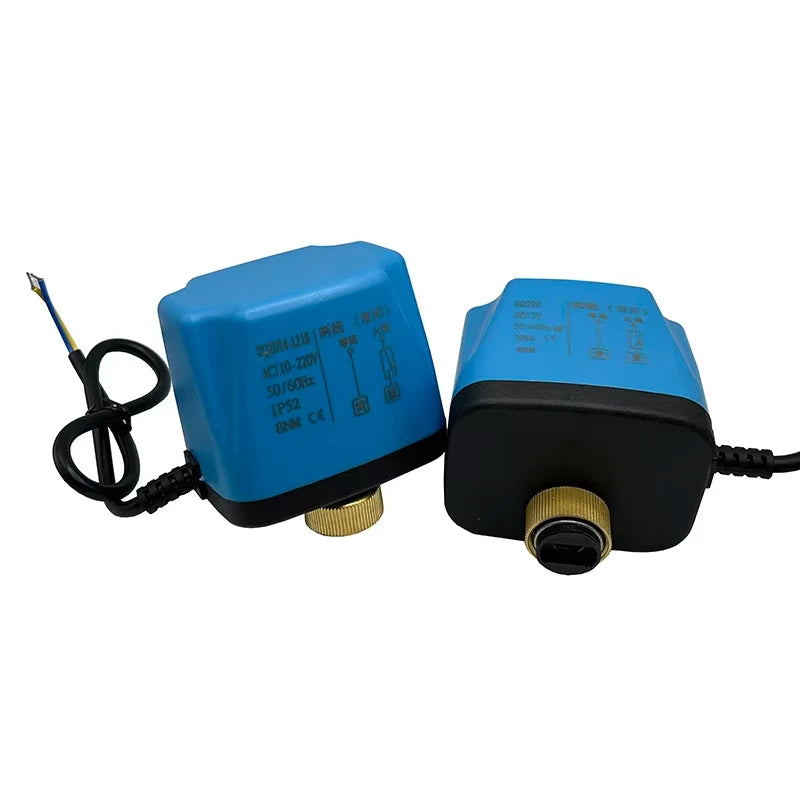

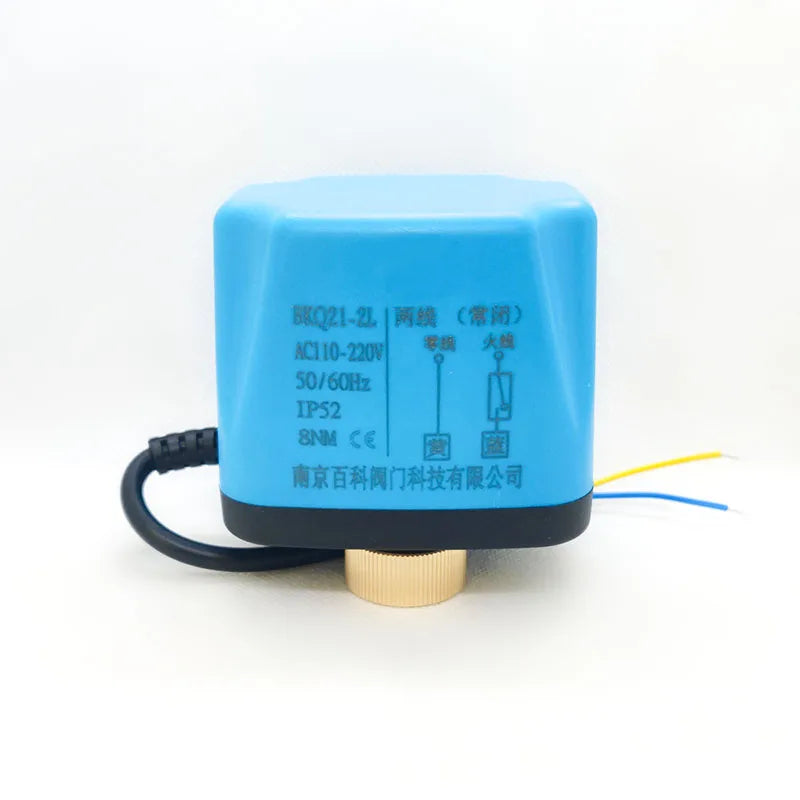

Acarps DN15-50 Motorized Ball Valve Actuator Motor Two Wire AC220V DC24V DCV12V Electric Valve Actuator

The electric ball valve is composed of a valve body and a driver. It has the advantages of simple structure, reliable work, strong fluid passing capacity, and energy saving. It can be widely used in heating, central air-conditioning, solar hot water system, water treatment system cold and hot water switch control.

Specification

Applicable medium: Cold, Hot water or 50% glycol solution

Material: Brass

Type: Normally closed / Normally open

Power supply: AC220V DC24V DC12V, 50/60Hz

Power: 6VA (only when the valve is open and closed)

Playing time: 15 seconds

Nominal pressure: 1.6MPa

Applicable medium temperature: 0-95℃

Applicable ambient temperature: 0-65℃

Maximum pressure difference: 1.0MPa

Drive torque: 8N.M

Connection method: G internal thread
