Acarps 3-Way Motorized Ball Valve 3-Wire 2-Control T/L Type 1/2" 3/4"

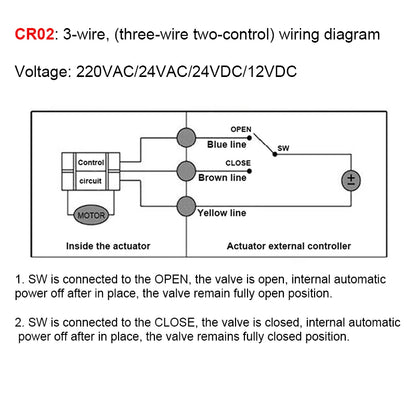

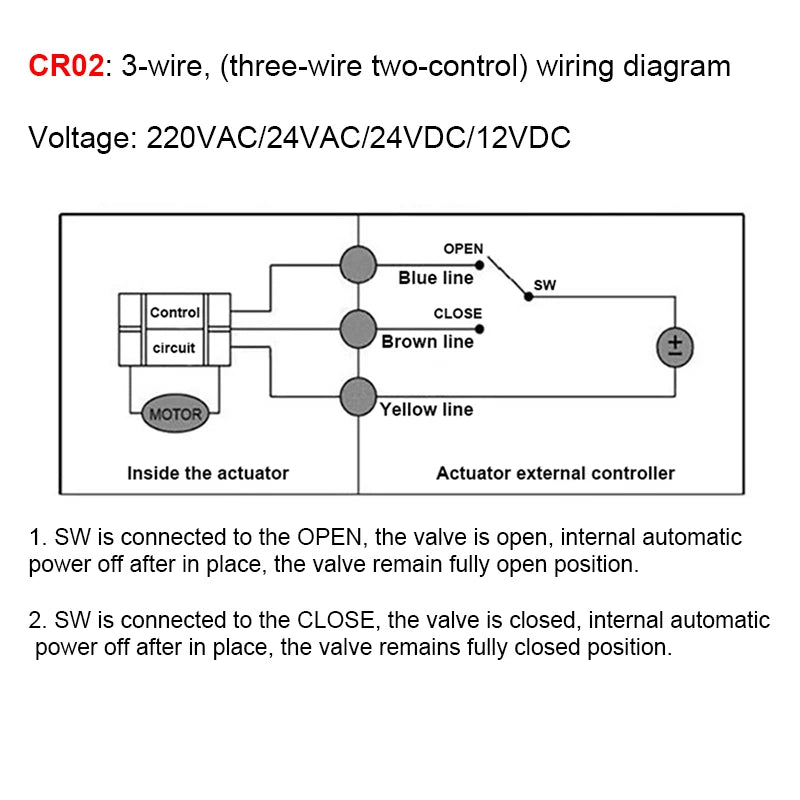

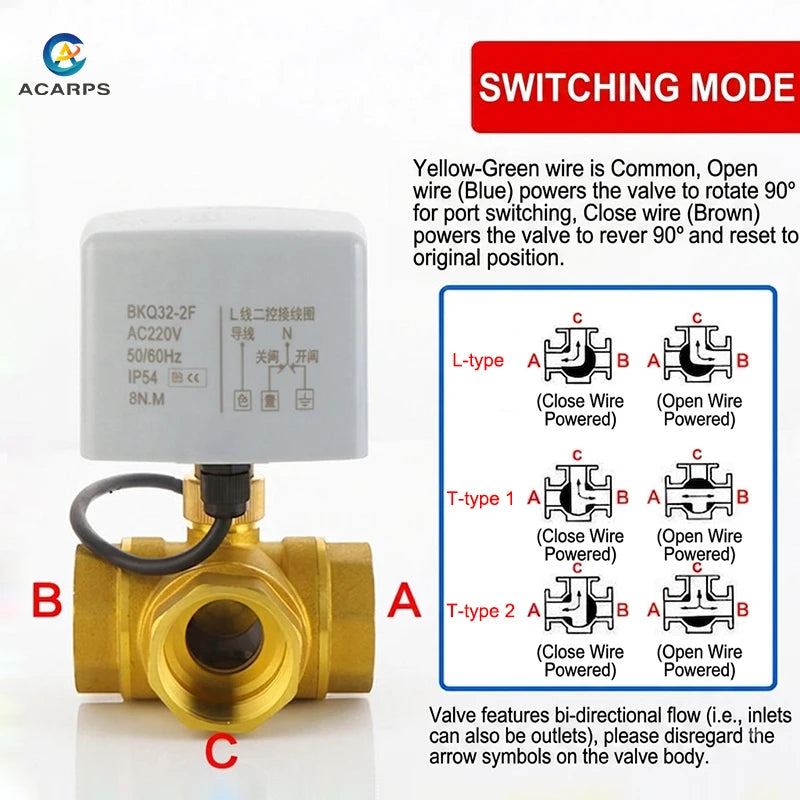

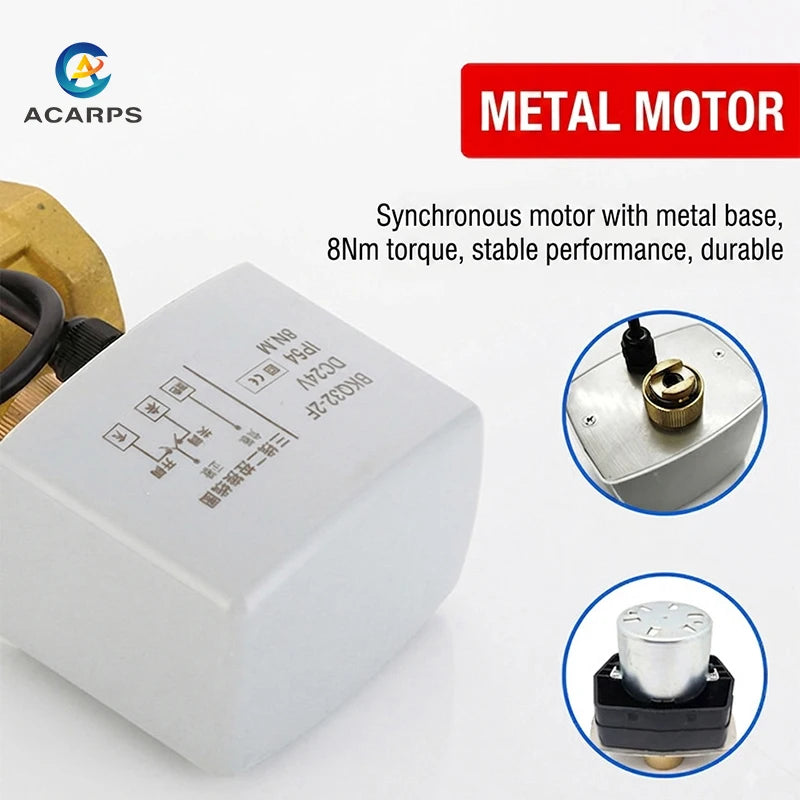

Acarps 3-Way Motorized Ball Valve 3-Wire 2-Control T/L Type 1/2" 3/4" 1" 2" DN15-50 Brass Hvac Electric Ball Valve 220V 24V 12VAbout this itemMotorized Ball Valve consists of valve body and actuator. and the actuator drives the valve core to rotate 90°, The actuator is driven by a synchronous motor and has built-in limit contacts, which can make the valve power off when it is fully open or fully closed. It has the advantages of simple structure, reliable operation, large straight-through flow, energy saving, and can replace solenoid valves. It can be widely used in heating, central air conditioning, solar water heating system, water treatment system cold and hot water switch control.Three way ball valves are available in T type and L type. T type can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence. L three-way ball valve type can only connect two mutually orthogonal pipelines, and can not keep the third pipeline connected at the same time, which only plays a role of distribution.Product informationMedium: Cold water, Hot water or 50% Glycol solutionBody material: BrassWiring mode: Three-Wire two-controlDriving voltage: 220VAC, 24VAC, 24VDC, 12VDCPower consumption: 6 W (only when the valve is opened and closed)Applicable medium temperature: 0-95℃Action time: 5-15 SNominal Pressure: 1.6 MpaLead length: 30 CMConnection method: Female threadNotice:1. The more you order, the more offers, please contact us3. Package list: Ball Valve*1
