AC 5V-240V 0.9 To 70RPM Permanent Magnet Electric Synchronous Motor 4W Four Shafts CW/CCW For Electrical AC Fan/Microwave Oven

AC Voltage 6-24v 110v 220v 1.4 2 4 8 10 15 20 30 48 58rpm Crafts Rotate Exhibition Fan Microwave Oven Gear DC AC Synchronous Motor TYC-50

(1) Power: 4W

Long life, wide range of applications, commonly used power supply voltage AC5V, 6V, 9V, 12V, 24V, 110V, 220V, speed per minute 1.4rpm, 2rpm, 3rpm, 4rpm, 5rpm, 8rpm, 10rpm, 15rpm, 30rpm, 50rpm, 60rpm, the smaller the speed, the greater the torque, the special output shaft can be customized

(2)This product is integrated by a permanent magnet synchronous motor and reduction gearbox.

With features of low power consumption, high torque, low noise, small size, light weight, easy to use.

At rated frequency, motor speed is not affected by voltage.

If overload or stall when load, the motor coil will not burn!




(3) There are three directions of rotation: CW/CCW ; CW ; CCW

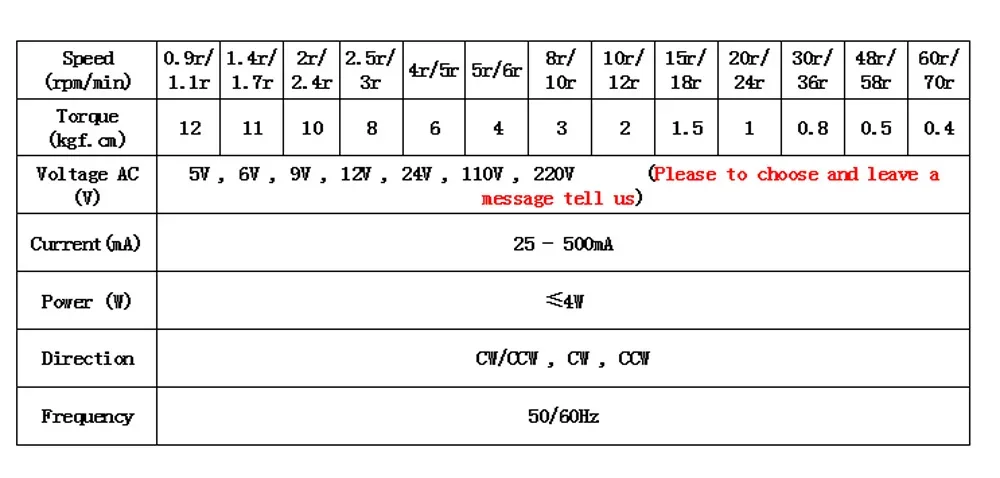

Please see the parameter table, for example you choose 1.4/1.7r/min



If your country's frequency is 50Hz, the motor rotation speed is 1.4rpm/min

If your country's frequency is 60Hz, the motor rotation speed is 1.7rpm/min




(4) Note : When the load reaches the rated torque, the motor will automatically reverse.



(5) Application: electric fireplace; Heater / microwave / refrigerator, Display; lighting motor; fan motor / light box motor,Popcorn machine






Note

Please leave a message to tell us your choice of direction of rotation (CW / CCW; CW; CCW three type) and the type of shaft ( Type A ; Type B ; Type C ; Type D )



For example CW ; Type A




If did not get your message within 6 hours after your payment, we will deliver CW And Type A by default.

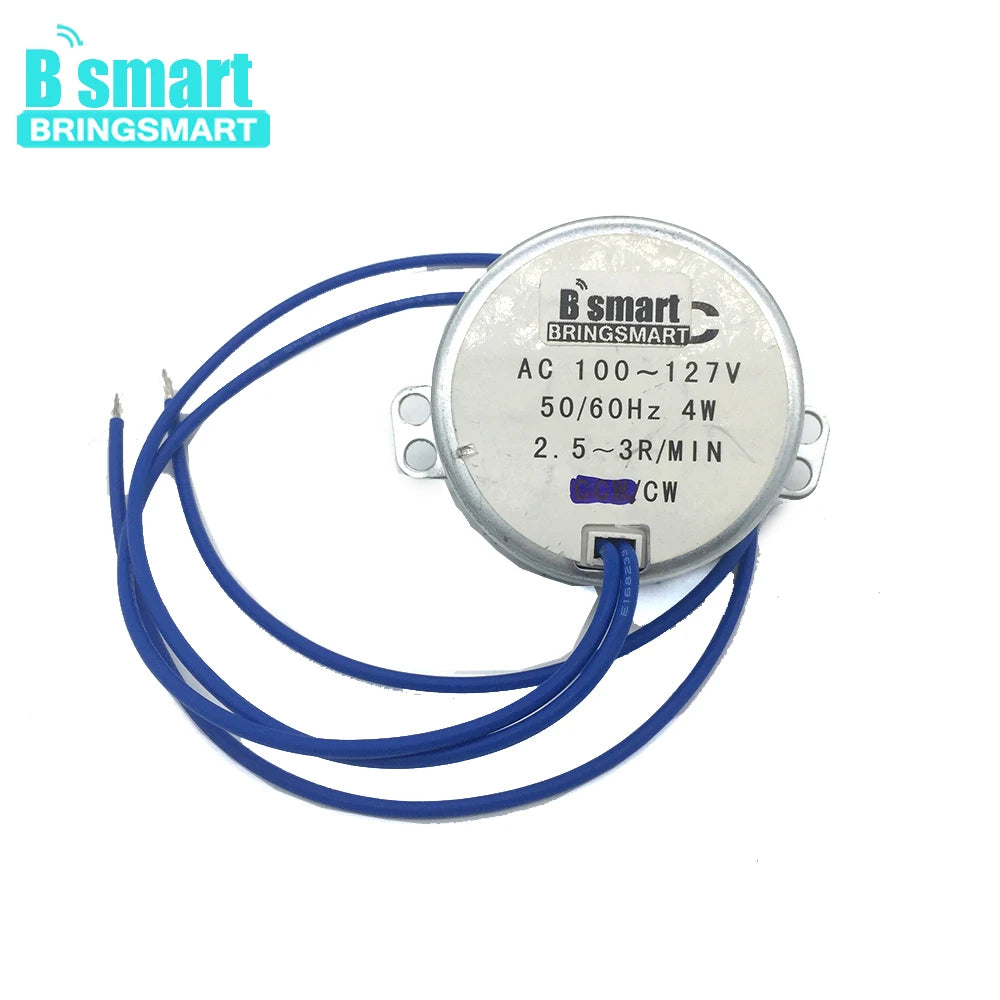

If you don't have too much request for speed, we offer below product 2.5-3r; 8-10r with more competitive price for you:

2.5-3r; 8-10r

Shaft Type:

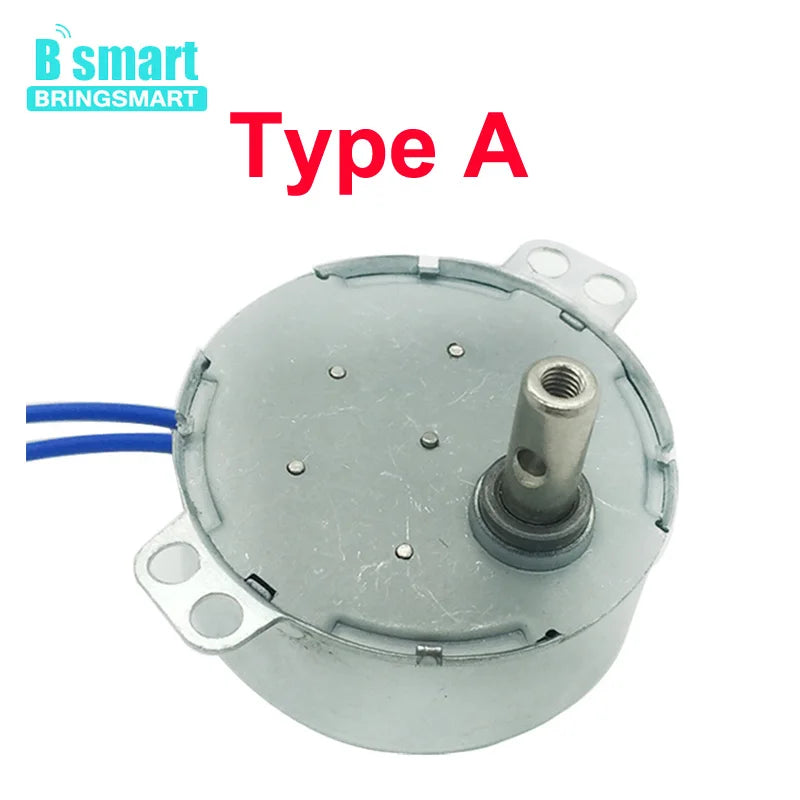

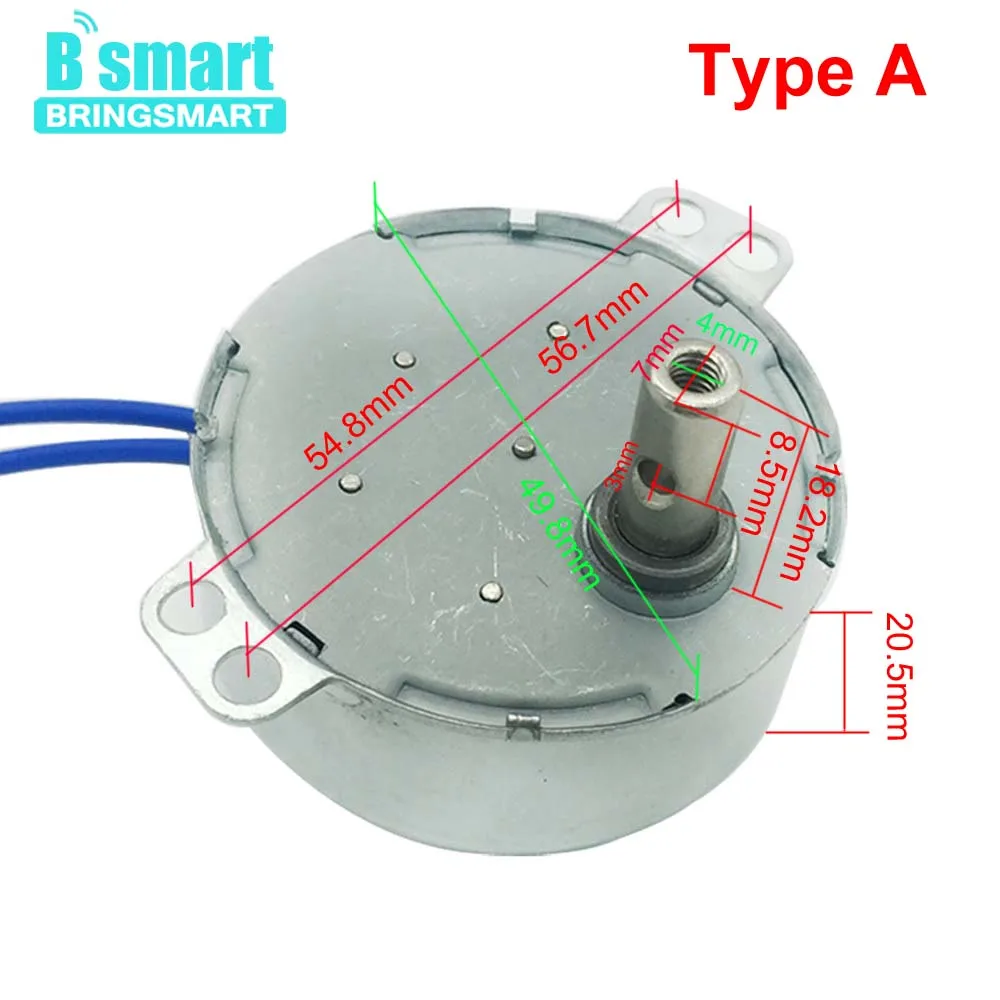

Type A:

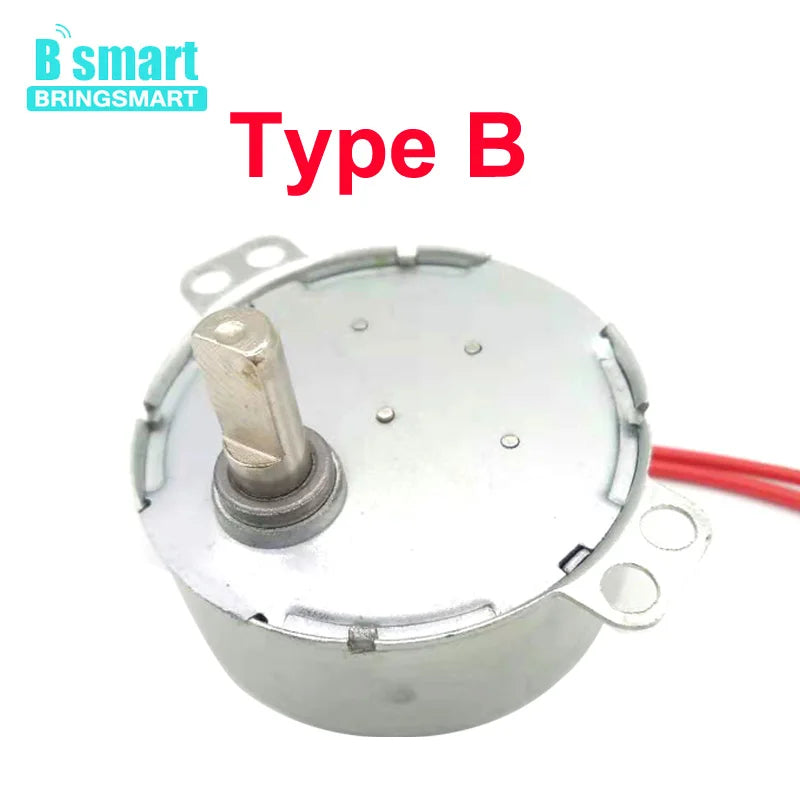

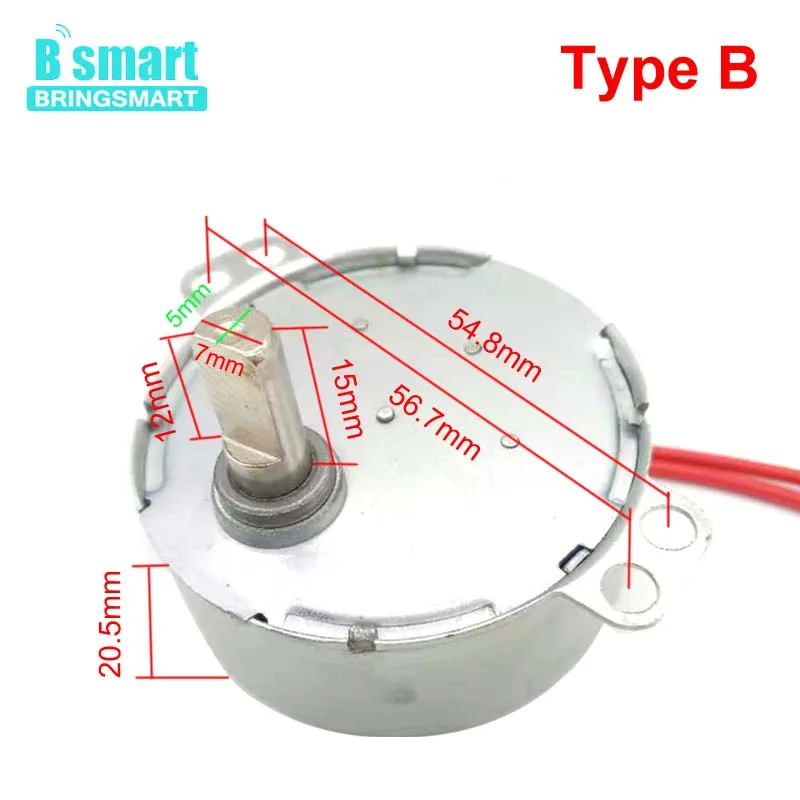

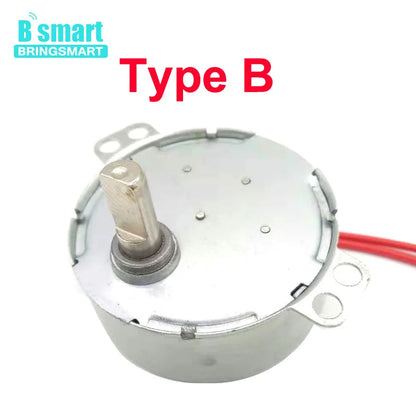

Type B:

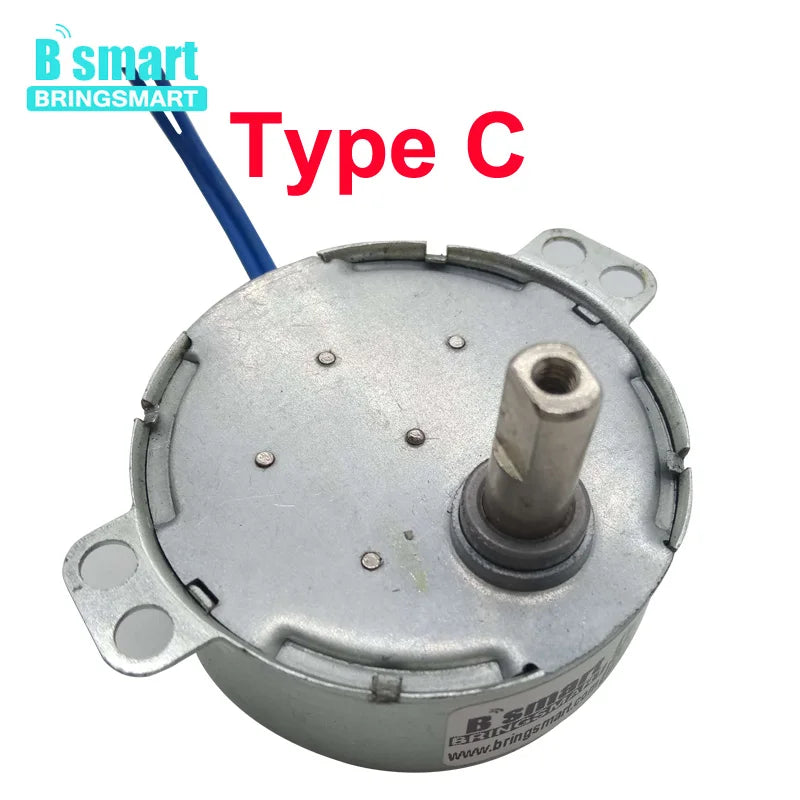

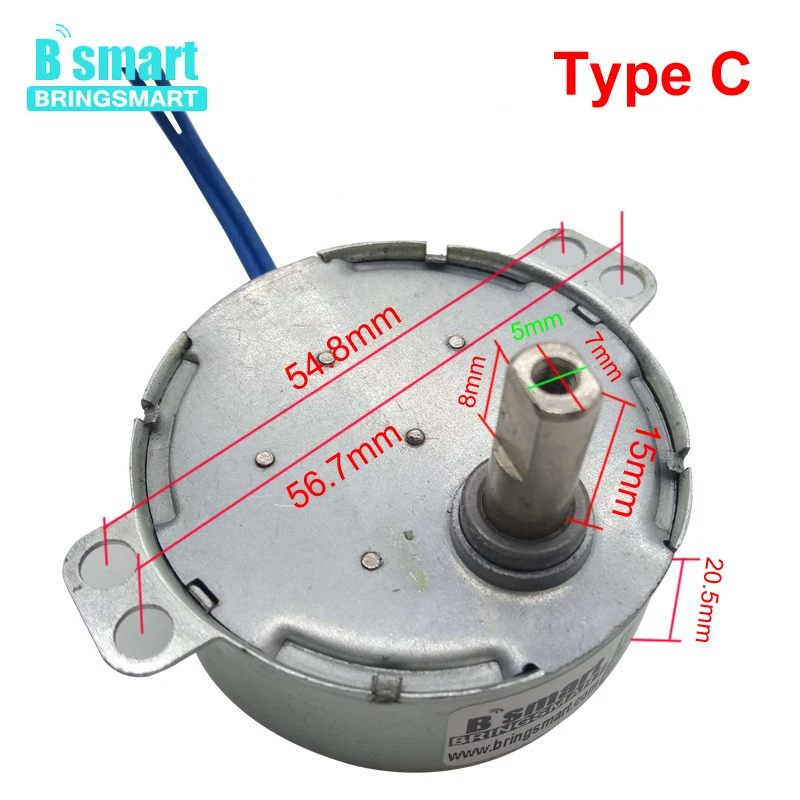

Type C:

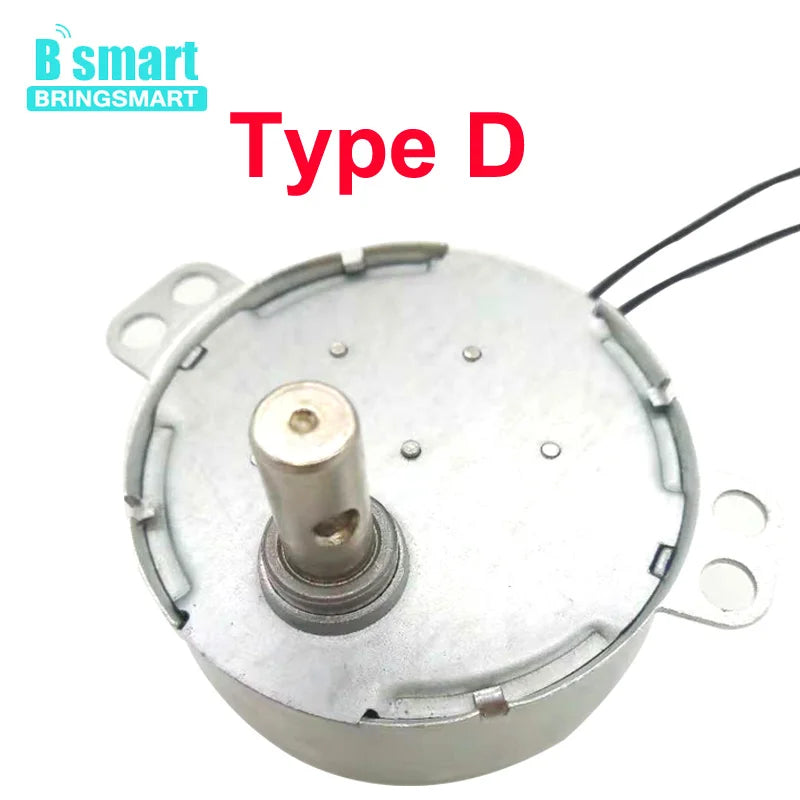

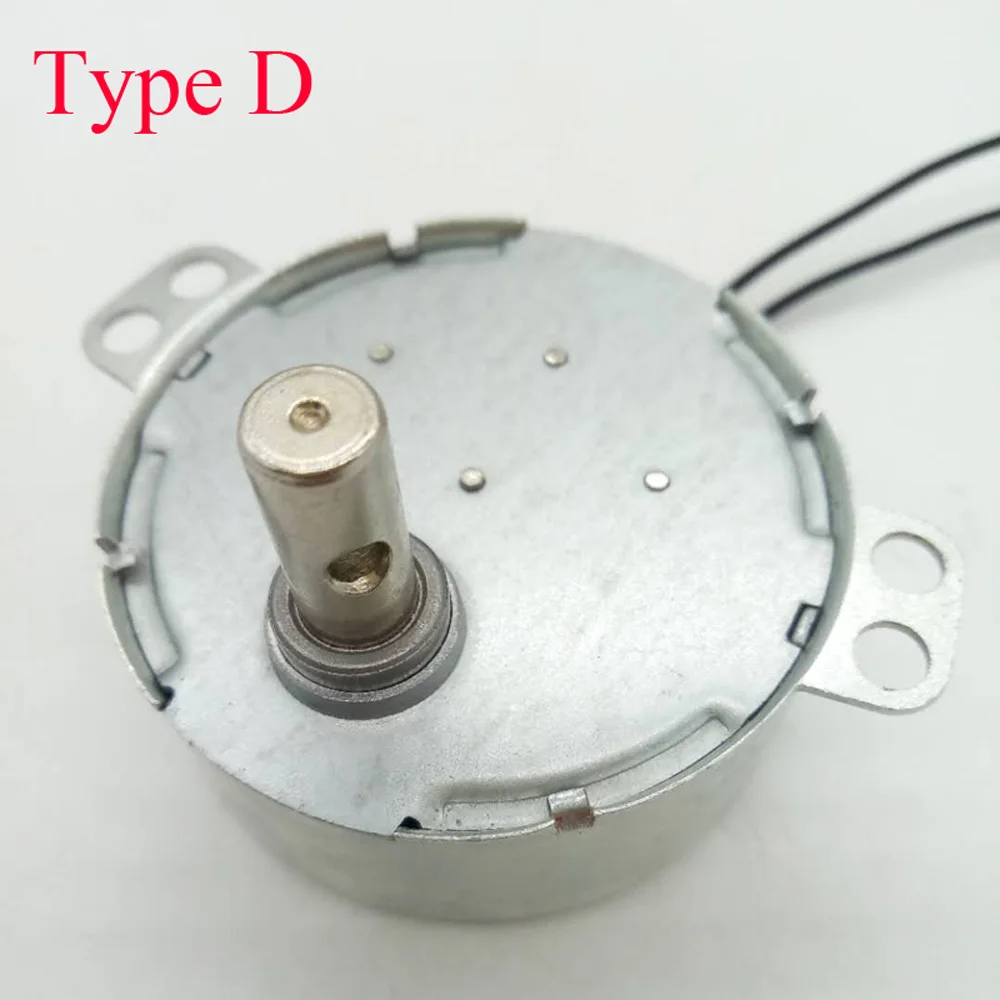

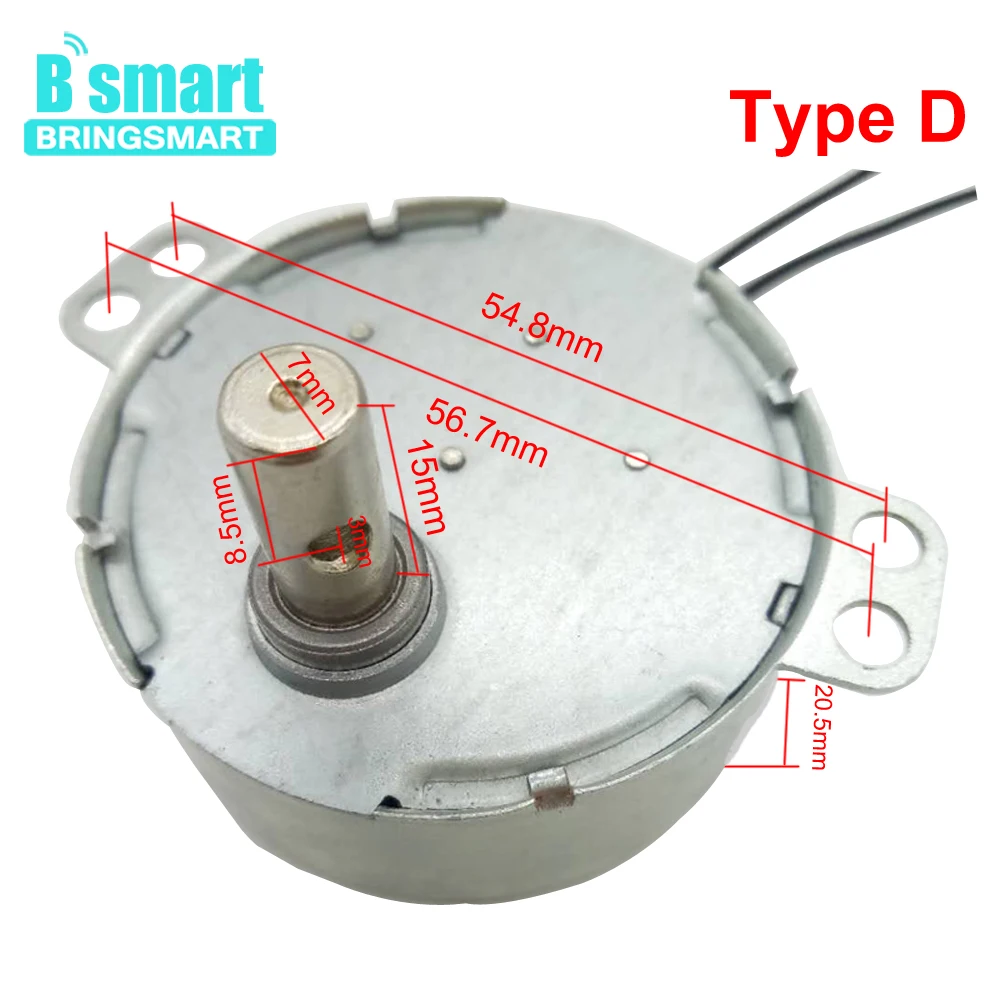

Type D:

Note : If you need a DC synchronous motor, please click on the following picture to check.
