5PJE1275 6602-001199 Washer Drive Belt Compatible with Samsung WF WW Series 1275J5, 1275PJE, 6602-001497, 3359875

Product Overview

This 5PJE1275 / 6602-001199 Poly-V Drive Belt transmits power from the motor to the washing machine drum. A broken or stretched belt is one of the most common reasons the drum stops turning during wash or spin cycles. Genuine OEM-spec replacement for many Samsung front-load washing machines.

Key Features

• Part Number: 5PJE1275 / 6602-001199

• Universal / Alternative Numbers: 6602001199, 1275J5, 1275PJE, 6602-001497, 3359875

• Type: Poly-V / Multi-Rib Drive Belt

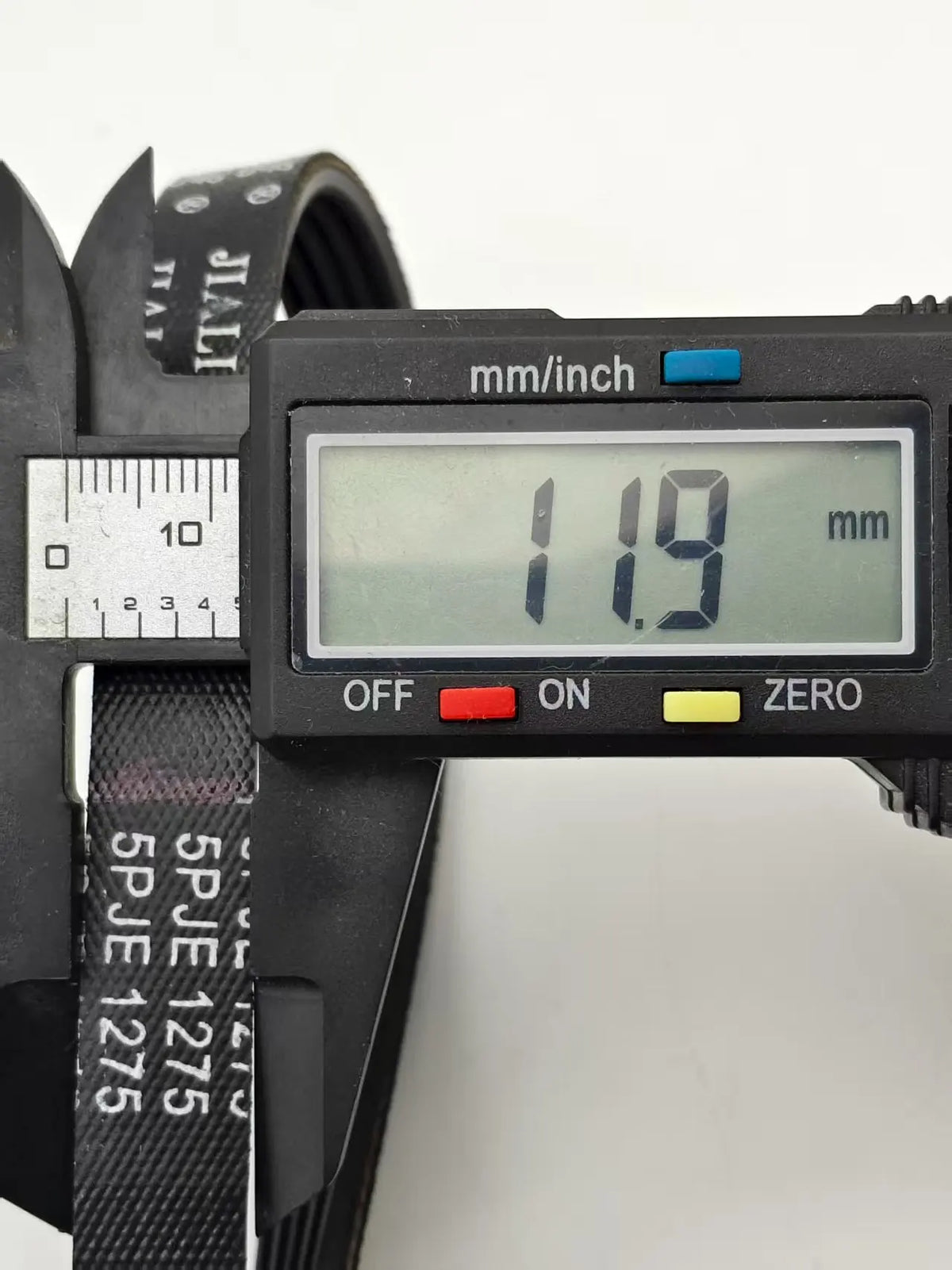

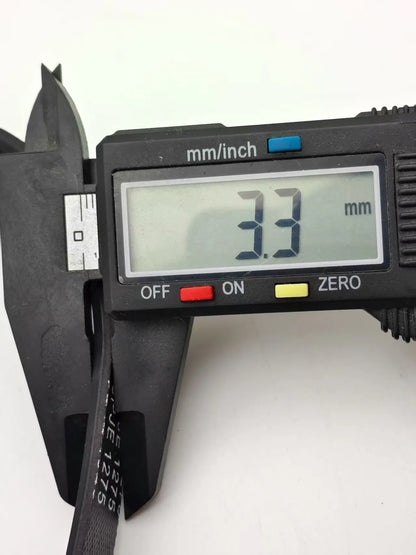

• Specification: 5 ribs · PJE/J profile · Length approx. 1275 mm

• Material: High-quality rubber with reinforced cords

• Quantity: 1 piece

Installation Instructions

1. Unplug the washing machine and disconnect the power and water supply.

2. Remove the rear or front access panel to reach the motor and drum pulley.

3. Release the old belt from the motor pulley and drum.

4. Fit the new 5PJE1275 belt around the drum first, then stretch it carefully over the motor pulley.

5. Ensure the belt sits correctly in the grooves and rotates freely.

6. Reassemble the panels and restore power and water.

7. Run a short test cycle to confirm the drum turns smoothly.

Tip: Check the motor pulley and drum pulley for wear at the same time. Replacing a worn pulley prevents premature belt failure.

Compatibility / Fit Models

This belt fits a wide range of Samsung washing machines.

Samsung WF Series WF0700NBX WF0700NCW WF0702NBF WF0702WJW WF0702WKE WF0702WKV WF1104XAC WF1600NCW WF1600WCS WF1600WCW WF1602W5V WF1700NHW WF1700W5V WF1700W5W WF1700WCC WF1700WCW WF1700WRW WF1702NC WF1702NCS WF1702NCW WF1702NHV WF1702NHW WF1702W5S WF1702W5V WF1702W5W WF1702WCC WF1702WCS WF1702WCW WF1702WEC WF1702WEU WF1702XEC WF1702YQC WF1702YQQ WF1702YQR WF1752WPC WF1752WPW WF1752WQR WF1802NFSS WF1802NFWS WF1802WECS WF1802WEUS WF1802WFVS WF1802XEC WF600B0BCWQ WF600U0BCWQ WF602B2BKSD WF602B2BKWQ WF60F1R0E2W WF60F1R1E2S WF60F1R2E2W WF700B0BDWQ WF700U0BDWQ WF702B2BBWQ WF702U2BBWQ WF8750LSW WF8802RPF WF8802RSW

Samsung WW Series WW60H2200EW WW60H2210EW WW60H2220EW WW60H2230EW WW60H5200EW WW60H5240EW WW60J3047LW WW60J3090JW WW60J3097JW WW60J30G0LW WW60J3243NW WW60J4047JW WW60J4090HS WW60J4210JW WW60J4243HW WW60J4260HW WW60J52E0HW WW60K52E69S WW60K52E69W WW65J42E0HW WW65K42E00W WW65K52E69W WW70J3240JW WW70J4210HW WW70J5210HW WW70J52E0HW

Samsung WD / Other Series WD806U2GAGD WD80J7250GW WD80J7250GX Selected J1000 Q1000 SEW WD-J1000 WD7000 WD8000 WD9000 series models

Note: Always verify the original belt is marked 5PJE1275, 6602-001199 or 1275J5 before ordering. One machine requires 1 belt.

Applications

• Washing machine drum does not turn

• Belt snapped or stretched

• Burning rubber smell or slipping noise during spin

• Ideal for home DIY and technicians

Package Includes

• 1 × Washing Machine Drive Belt (5PJE1275 / 6602-001199 Compatible)
