5EPJ1189 Washer Belt 1189J5 5PJE1189 Drive Belt Compatible with Bosch Siemens 00660579 9000055177

Product Overview

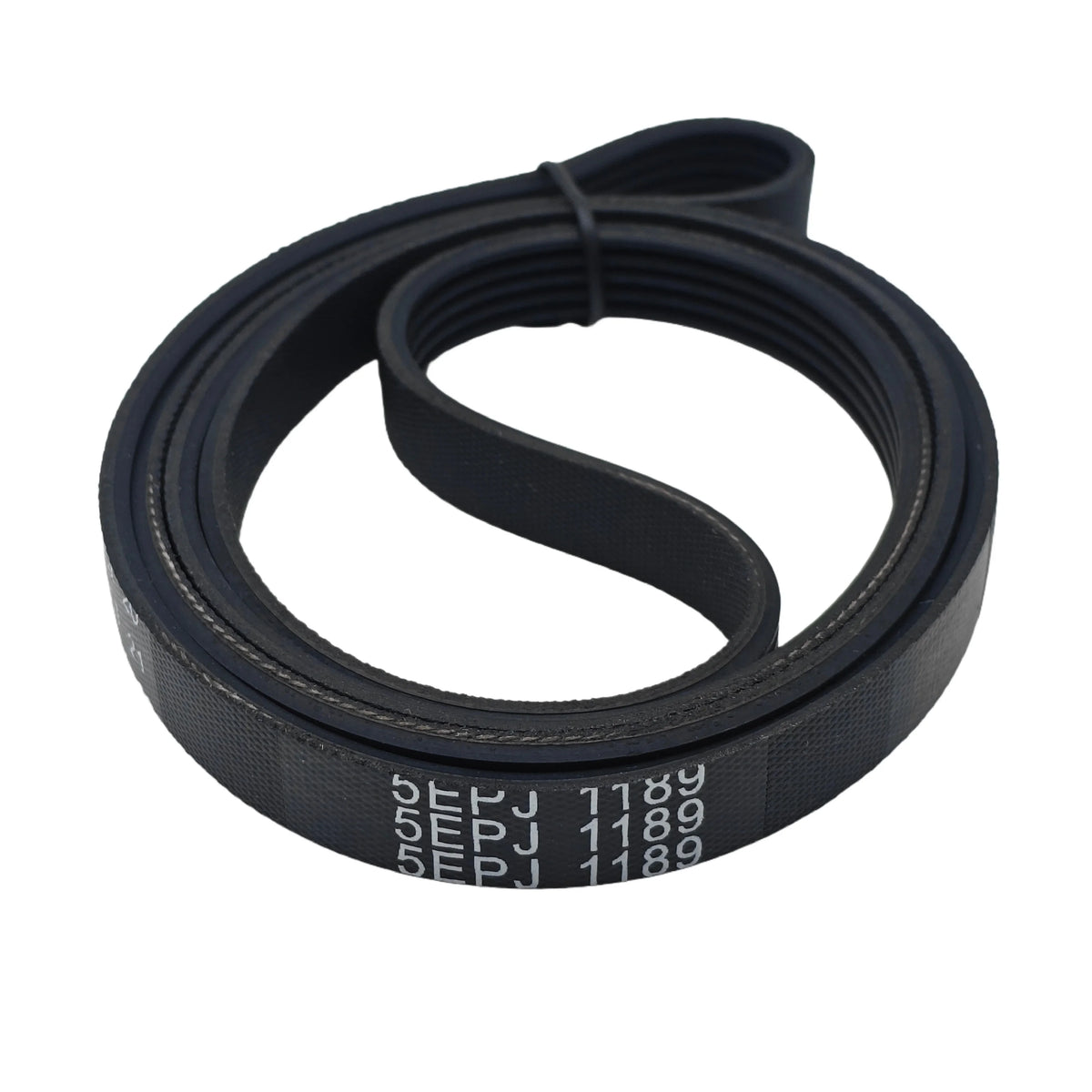

This 5EPJ1189 Poly-V Drive Belt is a 5-rib elastic belt for selected Bosch, Siemens, Neff and Balay washers. It transfers power from the motor to the drum.

A worn or broken belt can cause the drum not to turn, slipping noise, or incomplete spin.

Key Features

• Part Number: 5EPJ1189

• Universal / Alternative Numbers: 5PJE1189, 1189J5, 1189J5PJE, 1189J5EL, 00660579, 00677943, 00746863, 9000055177

• Type: Elastic Poly-V / Multi-Rib Washer Drive Belt

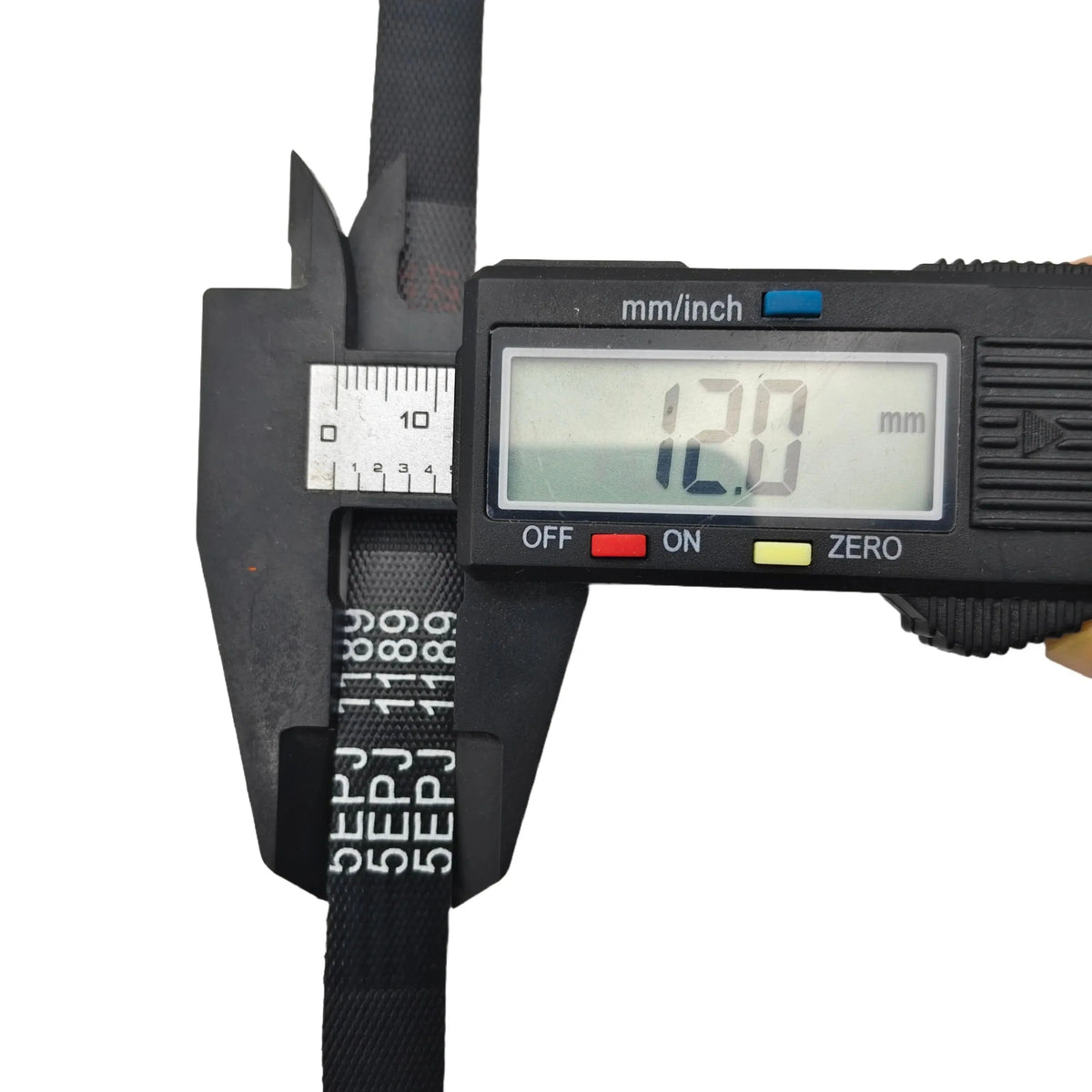

• Specification: 5 ribs · J profile · Length 1189 mm · EPJ / PJE / EL elastic

• Material: High-quality rubber with reinforced cords

• Quantity: 1 piece

Installation Instructions

1. Unplug the washer and disconnect power.

2. Remove the back panel to access the motor and drum pulley.

3. Confirm the old belt is marked 5EPJ1189 / 5PJE1189 / 1189J5 / 00660579.

4. Take off the old belt.

5. Stretch the new elastic belt onto the drum pulley first, then onto the motor pulley.

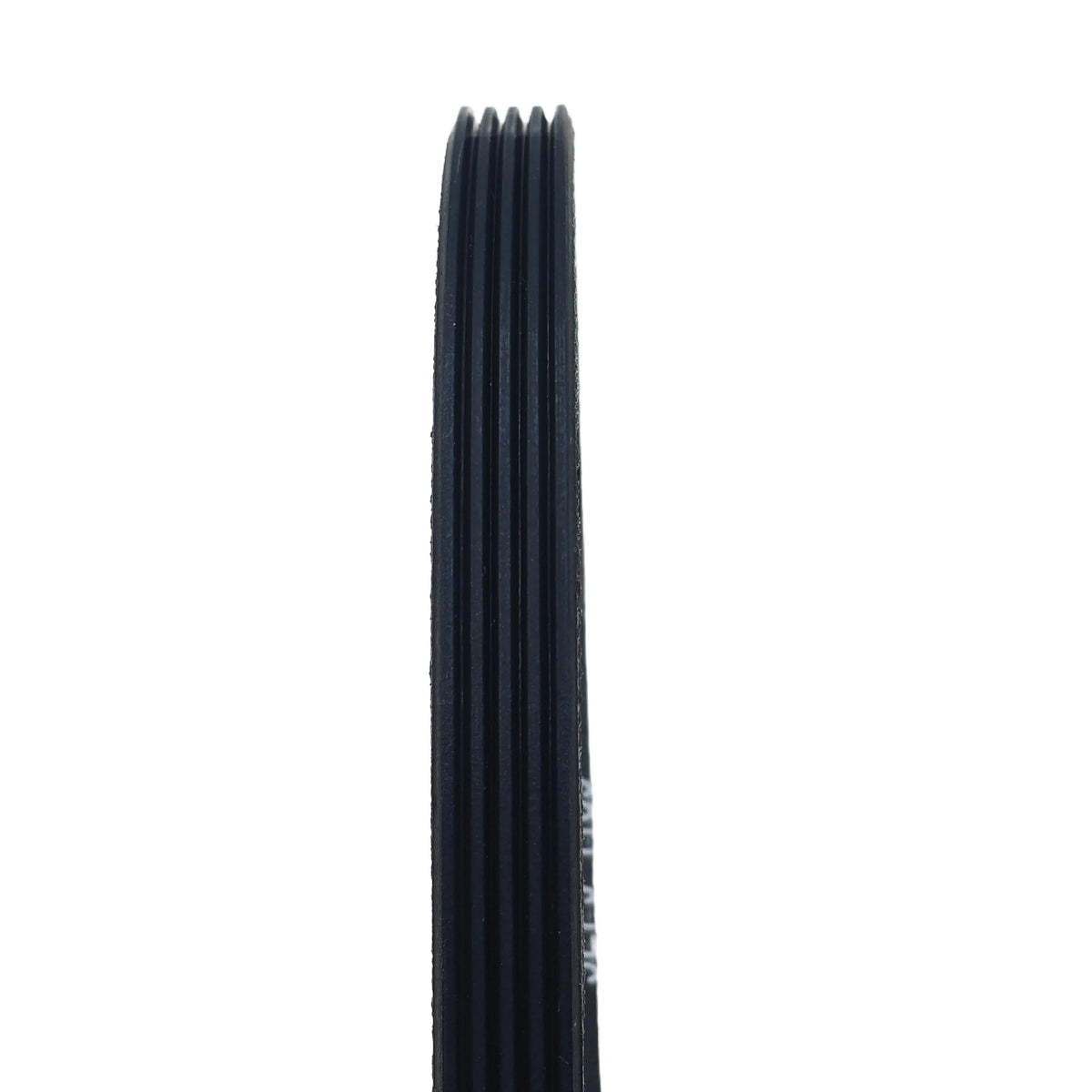

6. Make sure all 5 ribs sit in the grooves.

7. Reassemble, restore power, and run a short test cycle.

Compatibility / Fit Models
This 5-rib 1189 mm belt fits selected Bosch group washers.

Bosch
WAS28440AU
WAS28740
WAS32742AU
WAS32760GB

Siemens / Neff / Balay
Selected models that list 00660579, 00677943 or 5PJE1189

Also used on
Selected Constructa Gaggenau Siltal Lynx models that list 9000055177 or 1189J5

Note: Always verify the original belt is marked 5EPJ1189, 5PJE1189, 1189J5 or 00660579. This is the 5-rib / 1189 mm elastic belt. New belt looks shorter than the old stretched one — stretch it on during install. One washer requires 1 belt. Compatibility may vary by production year.

Applications

• Washer drum does not turn

• Belt snapped or stretched

• Slipping or burning rubber smell

• Ideal for home DIY and technicians

Package Includes

• 1 × Washer Drive Belt (5EPJ1189 / 1189J5 Compatible)
