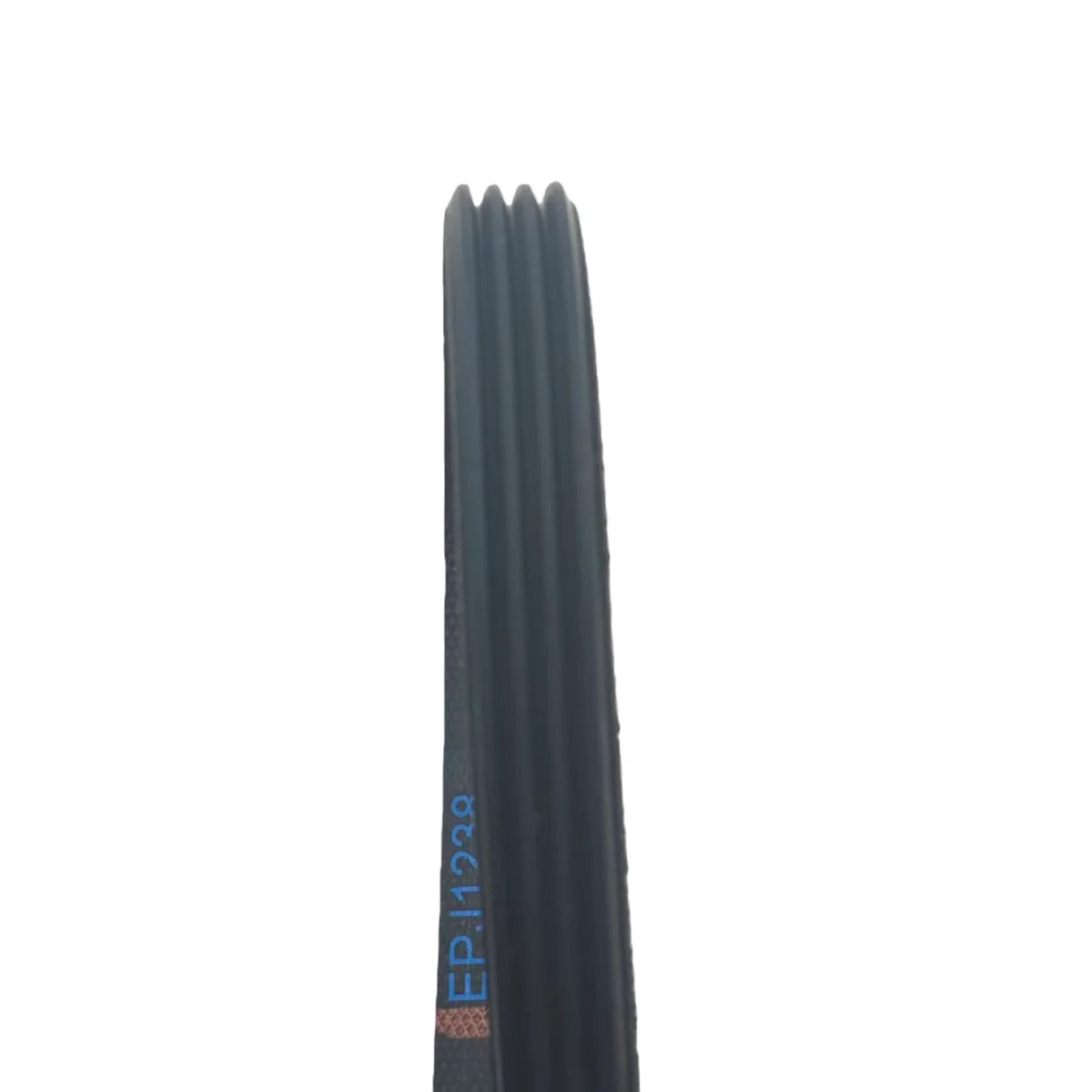

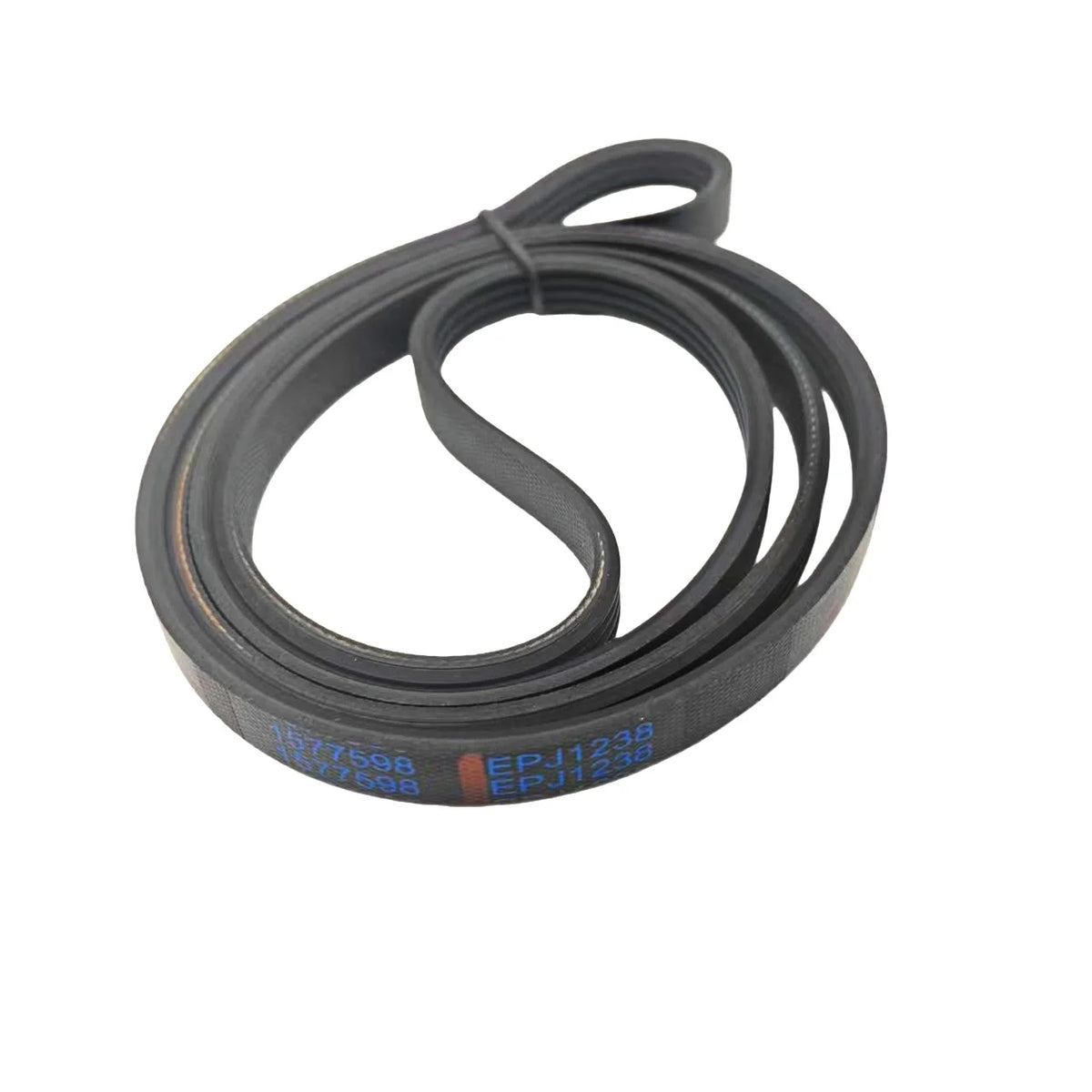

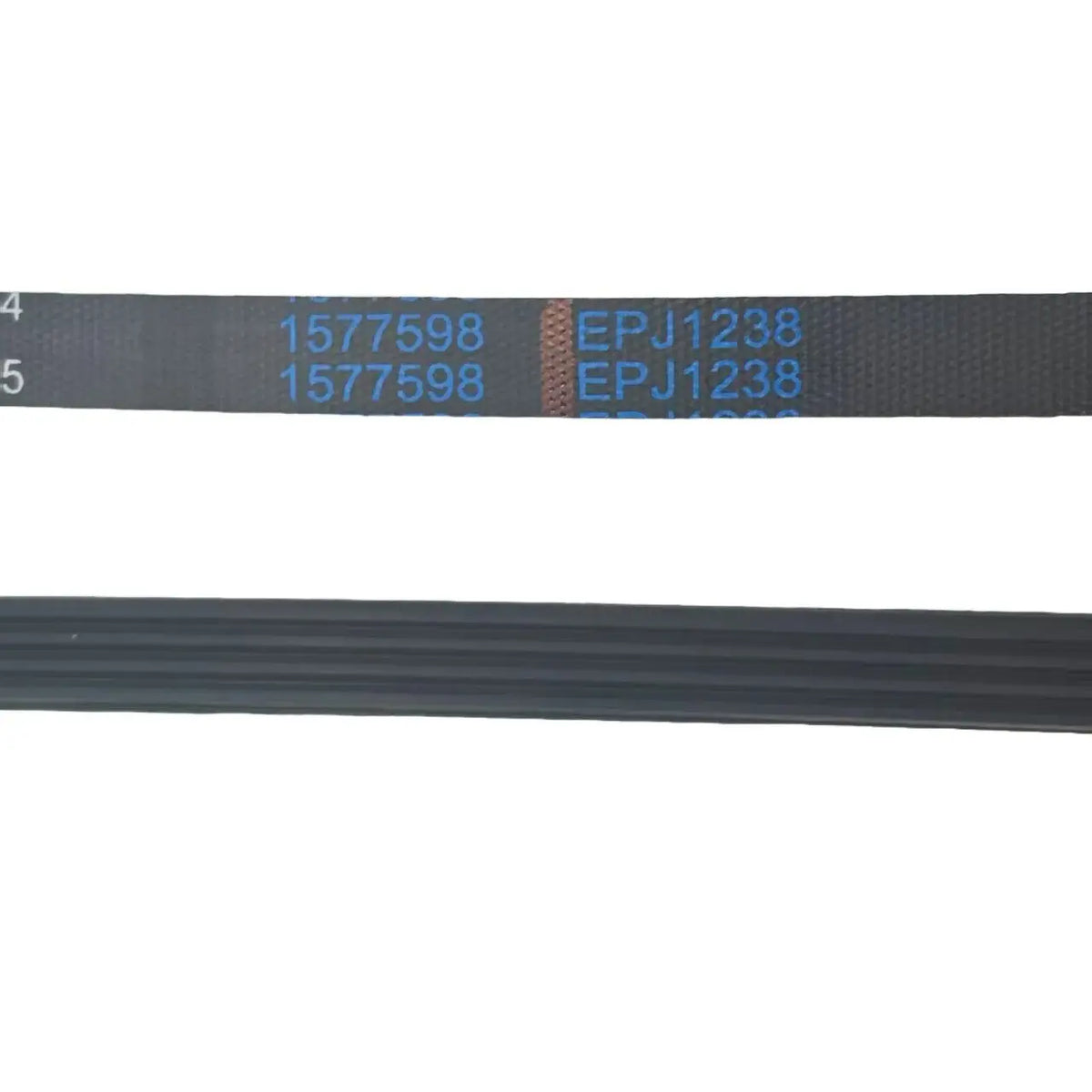

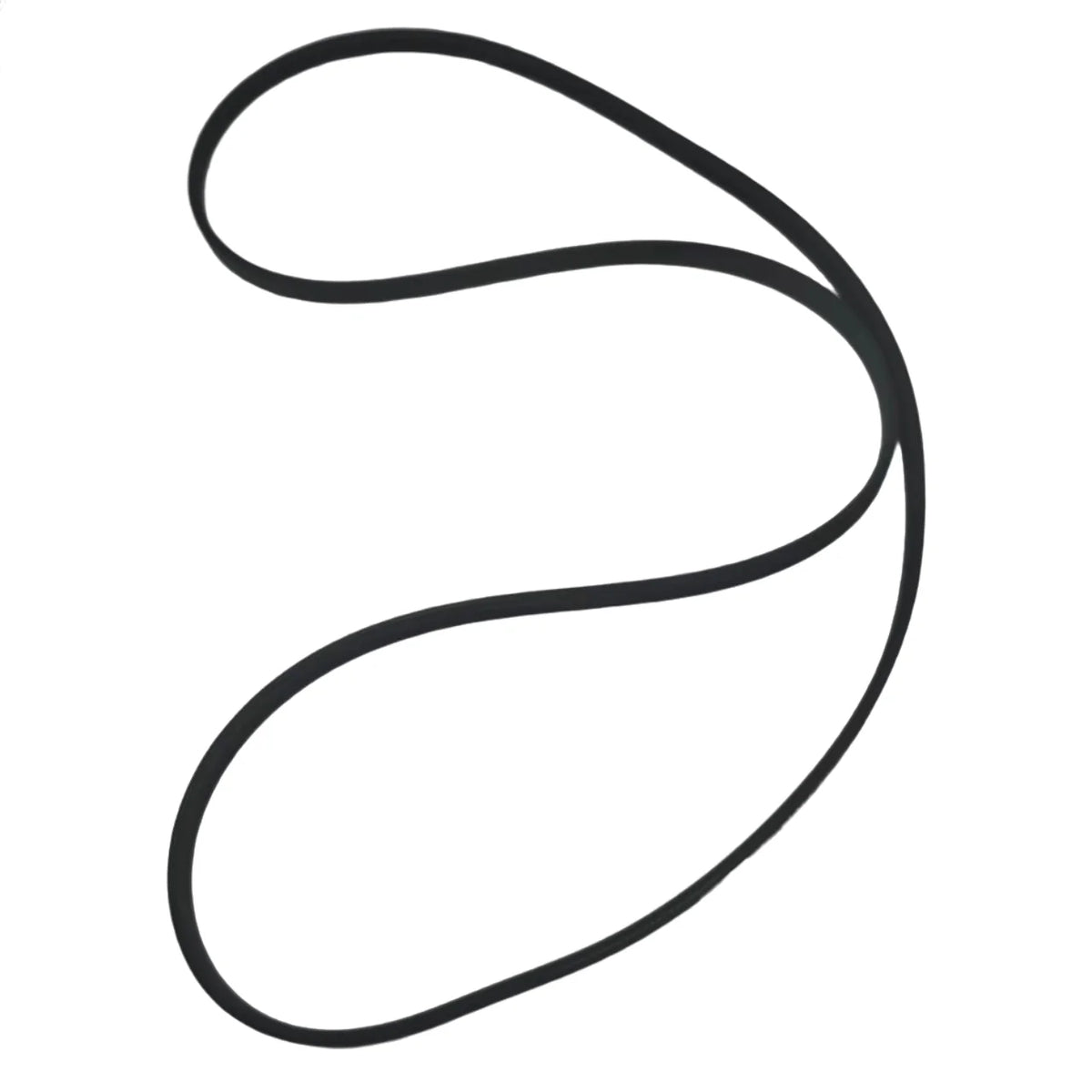

4EPJ1238 Washer Drive Belt 1238mm Compatible with Whirlpool Bauknecht Hanseatic 461971410191 481235818214 1577579 1238J4

4EPJ1238 Washer Drive Belt 1238mm Compatible with Whirlpool Bauknecht Hanseatic 461971410191 481235818214 1577579 1238J4

$12.02 USD
$12.02 USD $12.02 USD
Sale Sold out
Taxes included. Free standard shipping to supported addresses in Australia and the United States. Delivery details.
Product Overview This 4EPJ1238 Elastic Poly-V Drive Belt transmits power from the motor to the washing machine drum. A broken or stretched belt is one of the most common reasons the drum stops turning during wash or spin cycles. Direct replacement for many Whirlpool, Bauknecht, Hanseatic and related front-load washing machines.
color

Delivery to Australia & the US

Returns & refunds

Key Features

  • Part Number: 4EPJ1238

  • Universal / Alternative Numbers: 4PJE1238, 1238PJ4EL, 461971410191, 481235818214, 1577579, 1238J4

  • Type: Elastic Poly-V / Multi-Rib Drive Belt

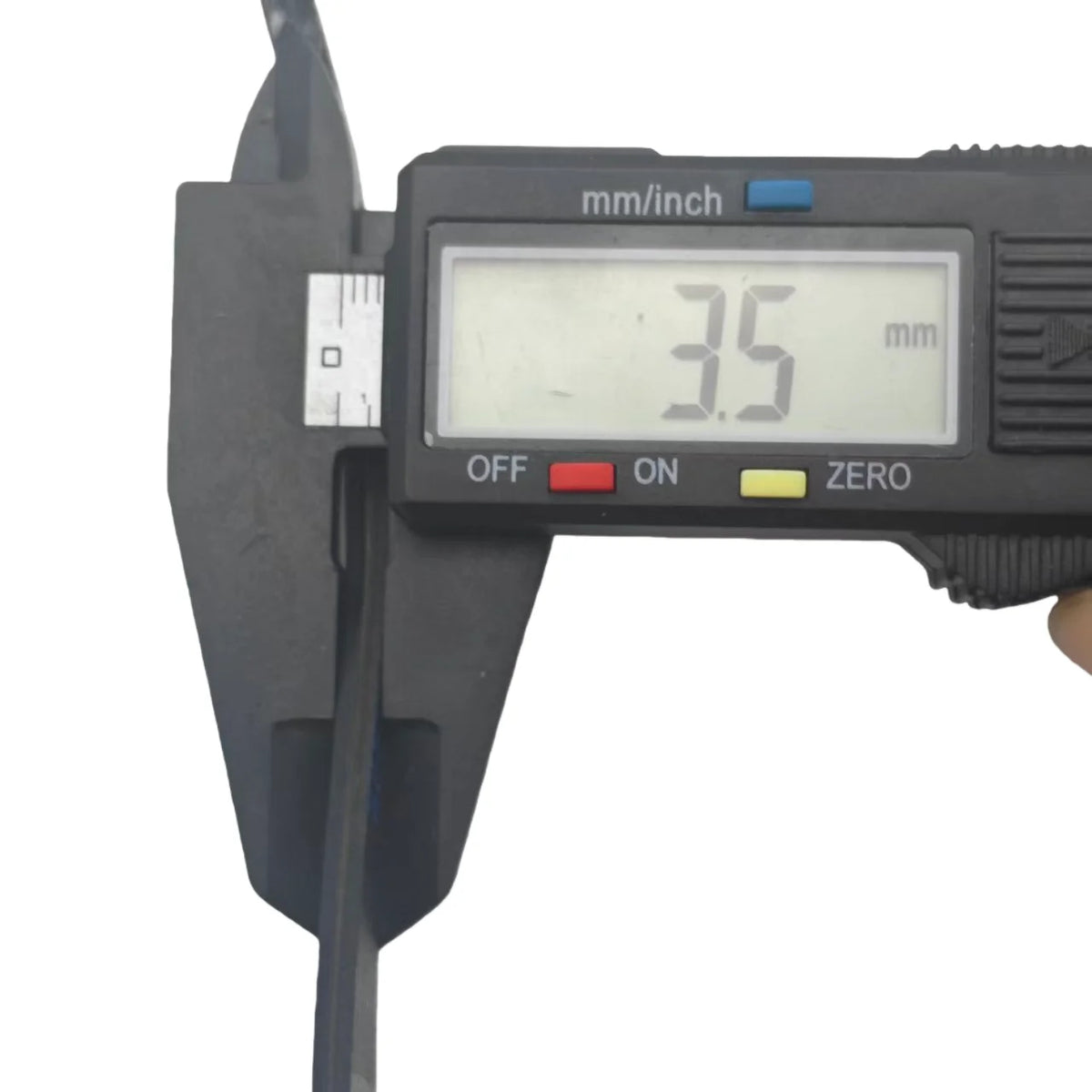

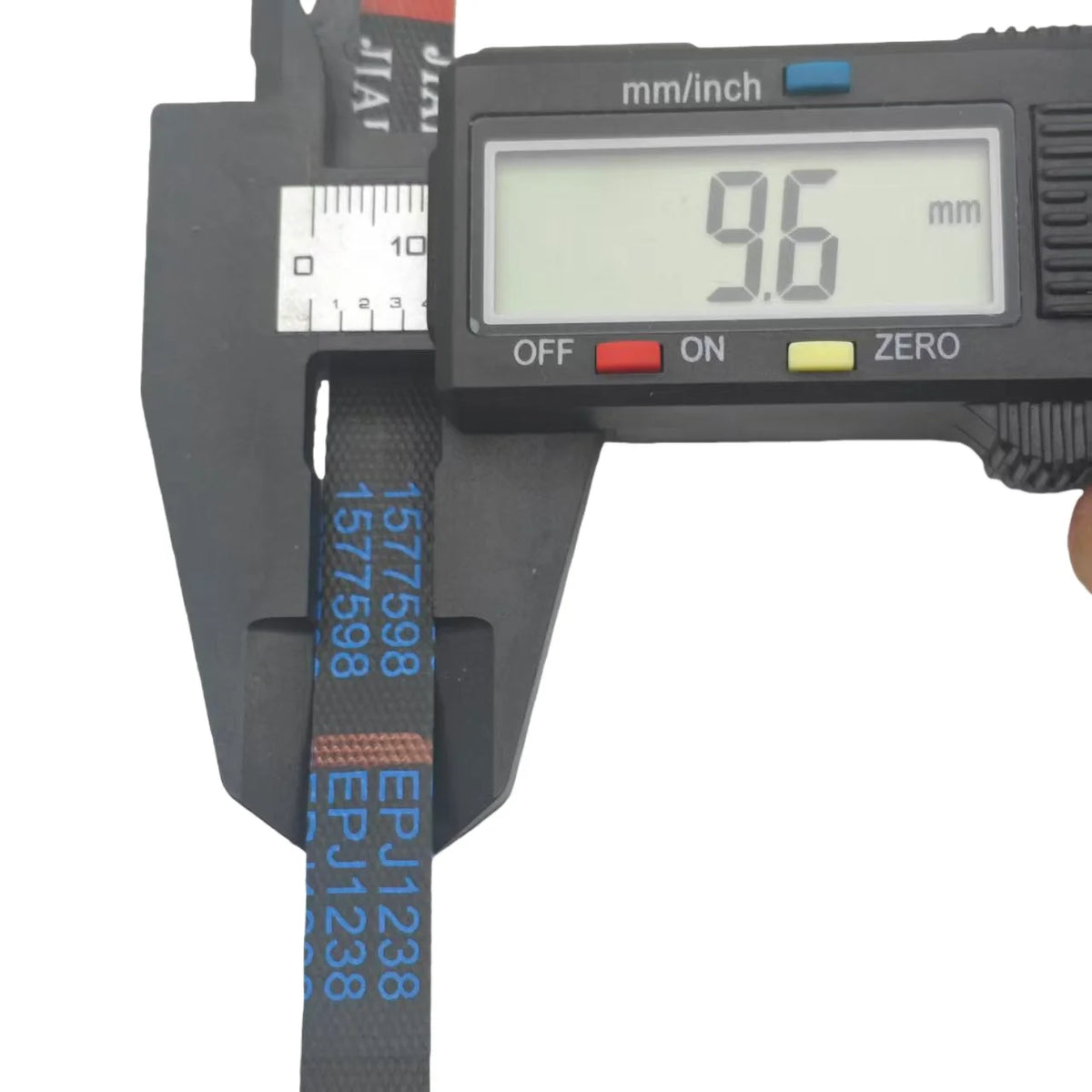

  • Specification: 4 ribs · EPJ/PJE (elastic) profile · Length 1238 mm

  • Material: High-quality rubber with reinforced cords

  • Quantity: 1 piece

Installation Instructions

  1. Unplug the washing machine and disconnect the power and water supply.

  2. Remove the rear or front access panel to reach the motor and drum pulley.

  3. Release the old belt from the motor pulley and drum.

  4. Fit the new 4EPJ1238 belt around the drum first, then stretch it carefully over the motor pulley.

  5. Ensure the belt sits correctly in the grooves and rotates freely.

  6. Reassemble the panels and restore power and water.

  7. Run a short test cycle to confirm the drum turns smoothly.

Tip: Elastic EPJ belts are designed to be stretched during installation. Check the motor pulley and drum pulley for wear at the same time.

Compatibility / Fit Models

This belt fits a wide range of Whirlpool group and related washing machines.

Whirlpool / Bauknecht Selected AWE / AWM / AWA series models using 4EPJ1238 / 461971410191 and models listed with OEM 481235818214

Hanseatic Selected front-load models using the 1238 mm 4-rib elastic belt

Ignis / Laden Selected models sharing the same 4EPJ1238 / 1238PJ4EL belt

Other Selected models from Maytag, Privileg and related brands that use the 4-rib 1238 mm EPJ belt

Note: Always verify the original belt is marked 4EPJ1238, 4PJE1238, 1238PJ4EL or 461971410191 and measures approximately 1238 mm before ordering. One machine requires 1 belt. (Do not confuse with 5-rib or 6-rib 1238 mm versions.)

Applications

  • Washing machine drum does not turn

  • Belt snapped or stretched

  • Burning rubber smell or slipping noise during spin

  • Ideal for home DIY and technicians

Package Includes

  • 1 × Washing Machine Drive Belt (4EPJ1238 Compatible)
