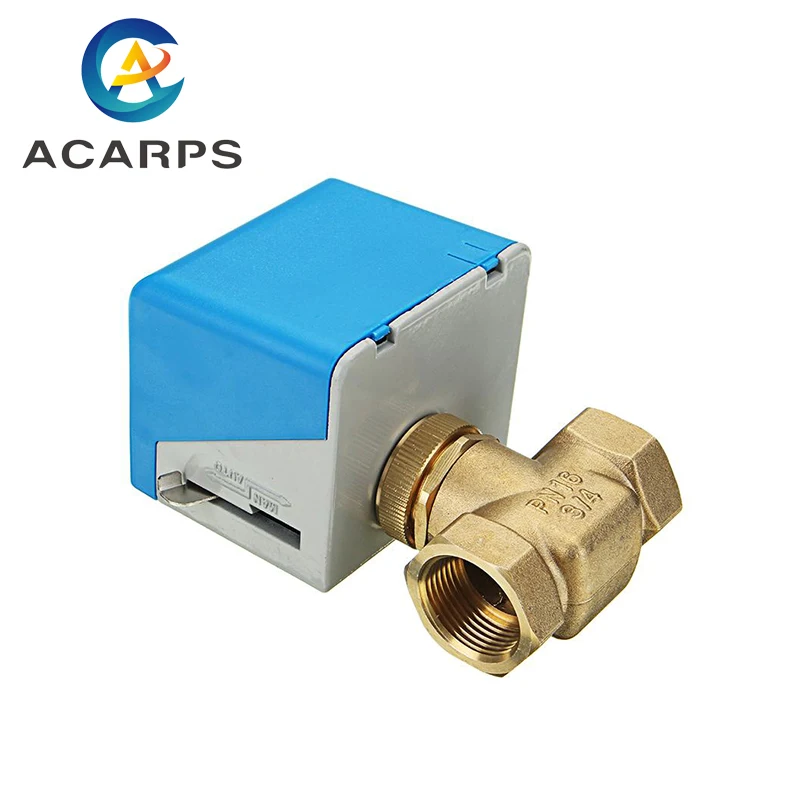

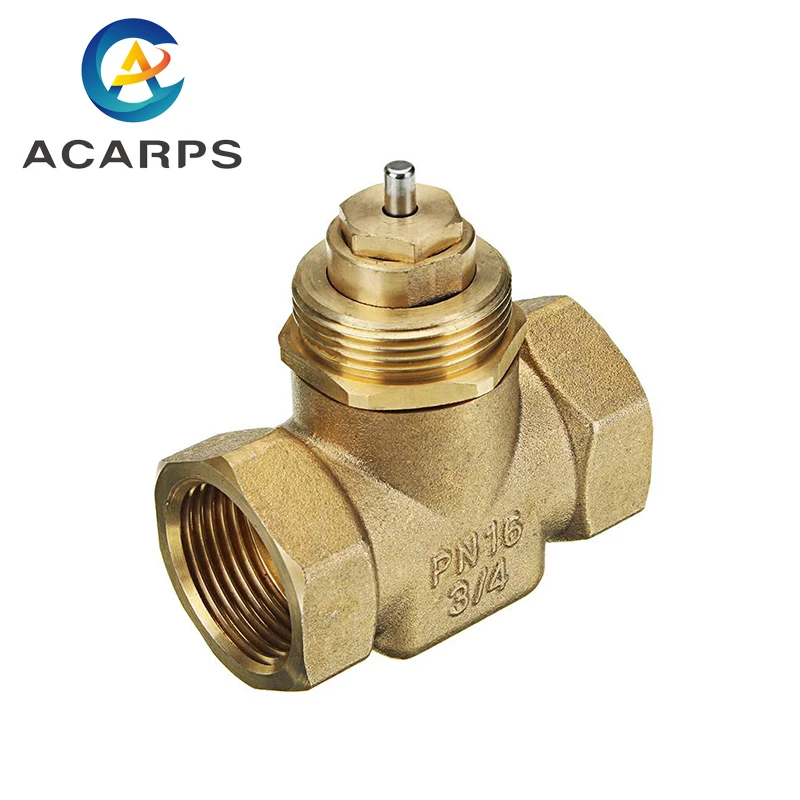

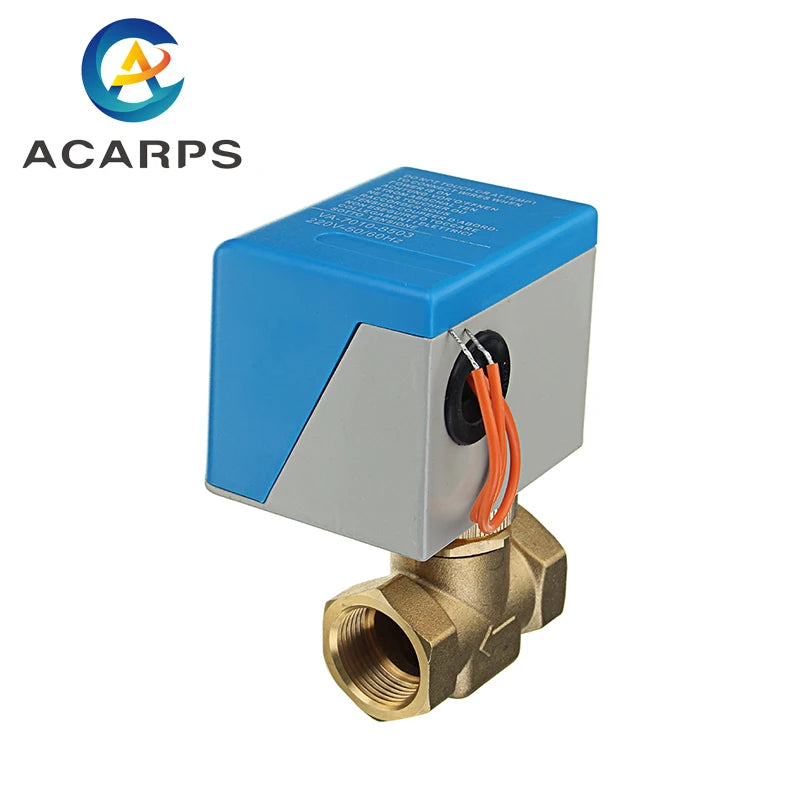

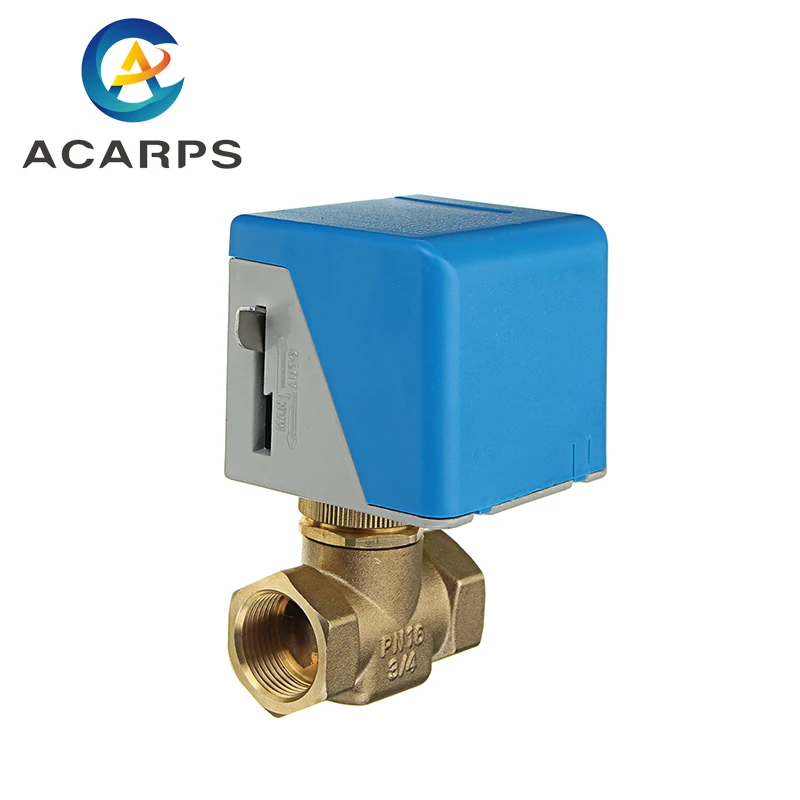

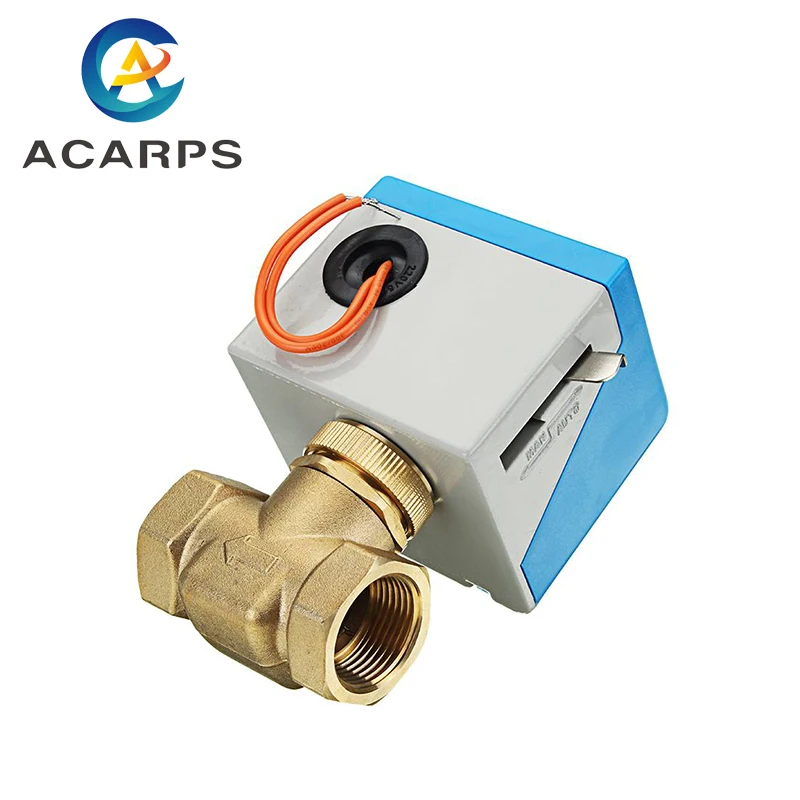

3/4" Motorized Electric Brass Globe Valves 2 Wire AC 220V Two Way Stop Shut-off Valve
3/4" Motorized Electric Brass Globe Valves 2 Wire AC 220V Two Way Stop Shut-off Valve
CHECK BEFORE YOU CHOOSE
Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Valve Type: Globe Valve
Position Type: Normally Closed
Body Material: Brass
Sealing Disk Material: EPDM
Sealing Ring Material: FKM
Connector Type: G Thread Female
Nominal Pressure: 1.6MPa (PN16)
Fluid Temperature: 2~94℃
Environment Temperature: 0~60℃
KV (Flow Coefficient): 2.5
Shutoff Differential Pressure: 0.25Mpa
Voltage: AC 220V
Power Consumption: 2VA
Fully Open Time: 10s
Fully Close Time: 5s
Enclosure Rating: IP40
Size: 3/4"(DN20)
Features:
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
- Female threads for connecting to male threaded pipes.
- Will fully open valve in 5 seconds, or close in 5 seconds.
- With manual handle for operation, push it down and hold to open the valve.
KNOW WHAT YOU ARE CHOOSING
Part details & buying guide
Product details
- Part type
- Valves & Flow Components
- Part listing
- 3/4" Motorized Electric Brass Globe Valves 2 Wire AC 220V Two Way Stop Shut-off Valve
- Specification
- 3/4"
- Voltage
- 220VAC
- Checkout currency
- USD
The listing images and selected option describe the item offered. If the pack quantity or included components are unclear, ask us before ordering.
Check the fit before ordering
- Use the complete device model, including its suffix.
- Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
- A search match or shared brand name does not confirm compatibility. Ask us if the exact model is not stated.
