1/4" / 3/8" Hall Flowmeter TDS / Temperature / Flow Three-in-one Multi-function Sensor

1/4" / 3/8" Hall Flowmeter TDS / Temperature / Flow Three-in-one Multi-function Sensor

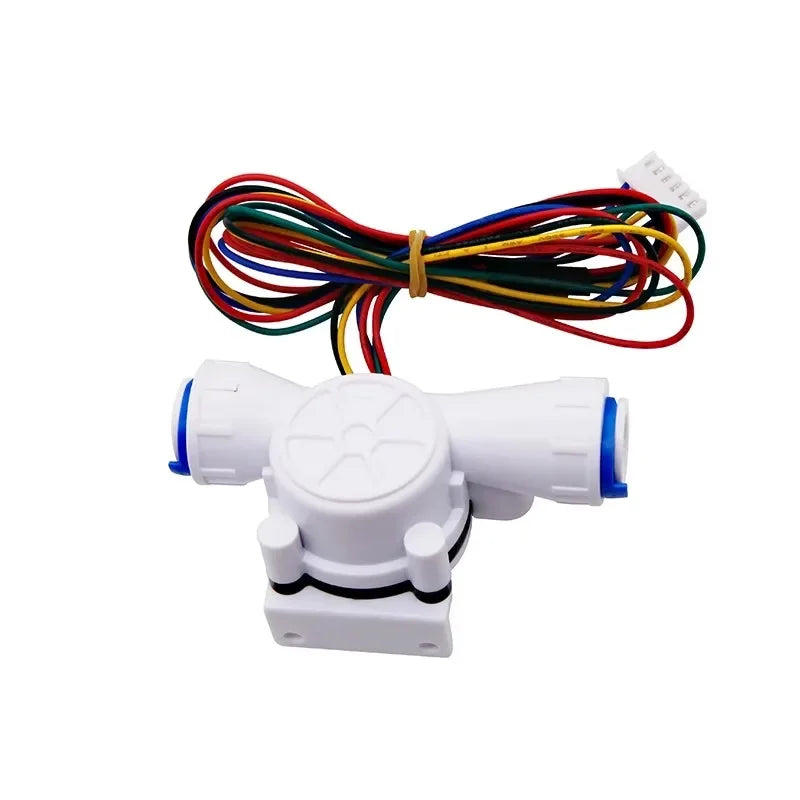

Plastic Turbine Hall water flow sensor meter for water liquid , TDS water conductivity and NTC temperature measurement.

Product name : Plastic Turbine Hall with Temperature & TDS water flow sensor meter for beer water liquid

Material : Plastic white

Specification :

Function : Sensor , flow rate control

Connect pipe: ~ OD9 MM

Color : white

Flow rate : 0.3~10 L/min

Pressure :<0.8mPa

Water pressure resistance : 0.35 Mpa

Voltage range : DC5-24V

Insulation resistance : ＞100MΩ\

Flow pulse characteristics : F=(15*Q-2)±2% Q=L/MIN

Output pulse high level : >DC4.7V (input voltage DC5V)

Max. Working Current : 15mA (DC5 V)

Working Voltage : DC 5V~24V

Load Capacity: =10 mA (DC 5 V)

Operating Working Temperature :

-25 Degree centigrade to +80 Degree centigrade

Accuracy :+- 2%

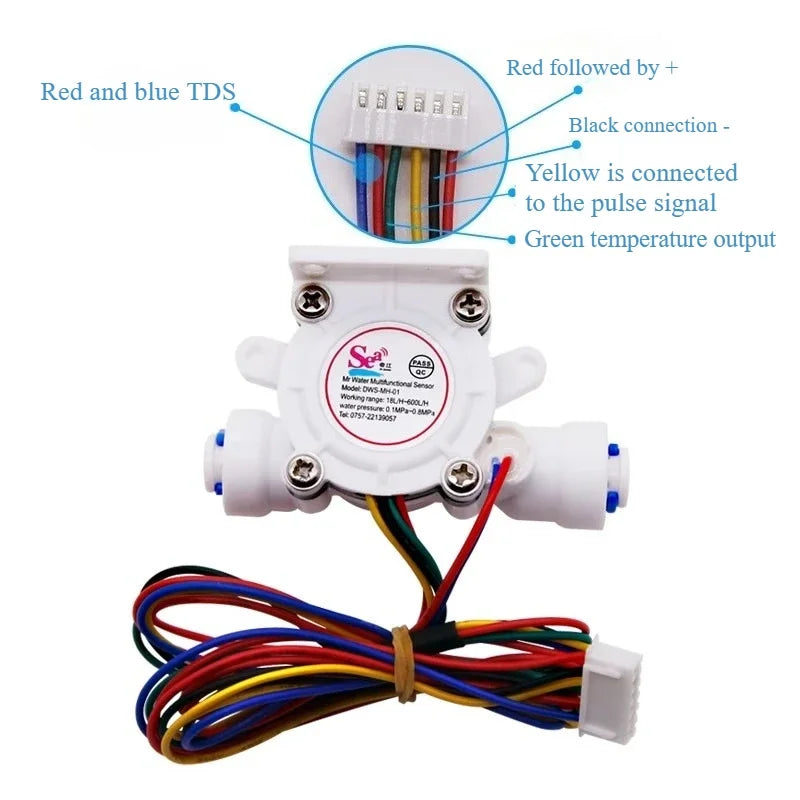

Cable wire :

red : + : 5V

Yellow : NPN signal output

Black : - GND

Green: NTC temperature sensor 50K.

Blue & Red : TDS ( total dissolved solide) water quality teser sensor.

4 wires :

BLACK -

RED + : comment for temperture NTC

Yellow : pulse signal output ,

Green : NTC temperture,

2 wires :

RED and Blue : TDS Conductivity sens

Dimensions :

Photo ：
