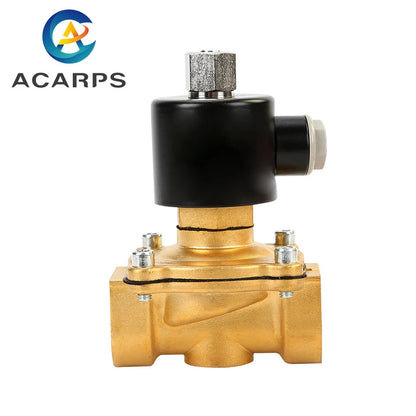

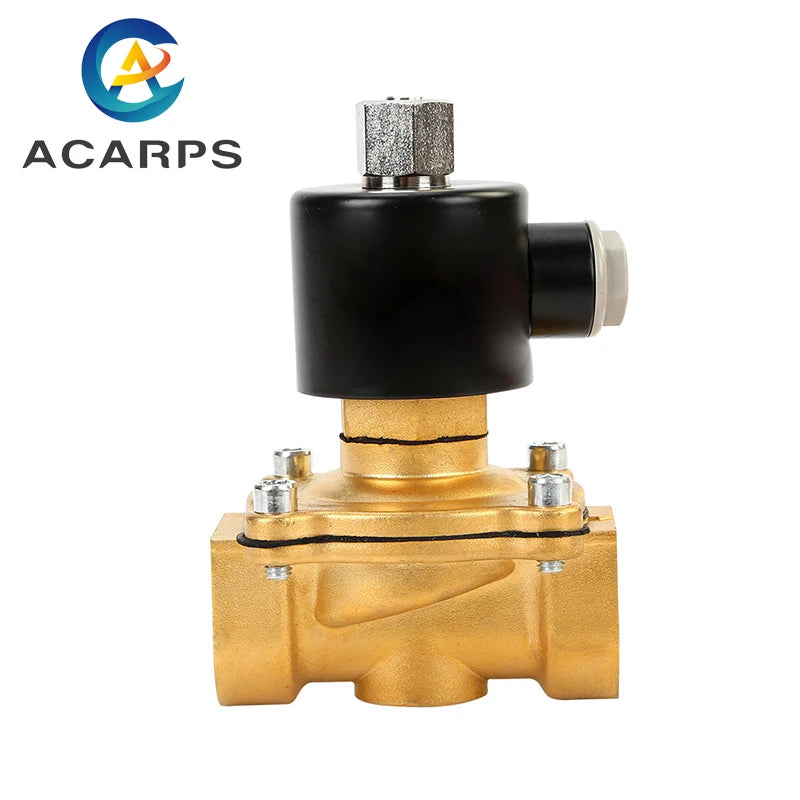

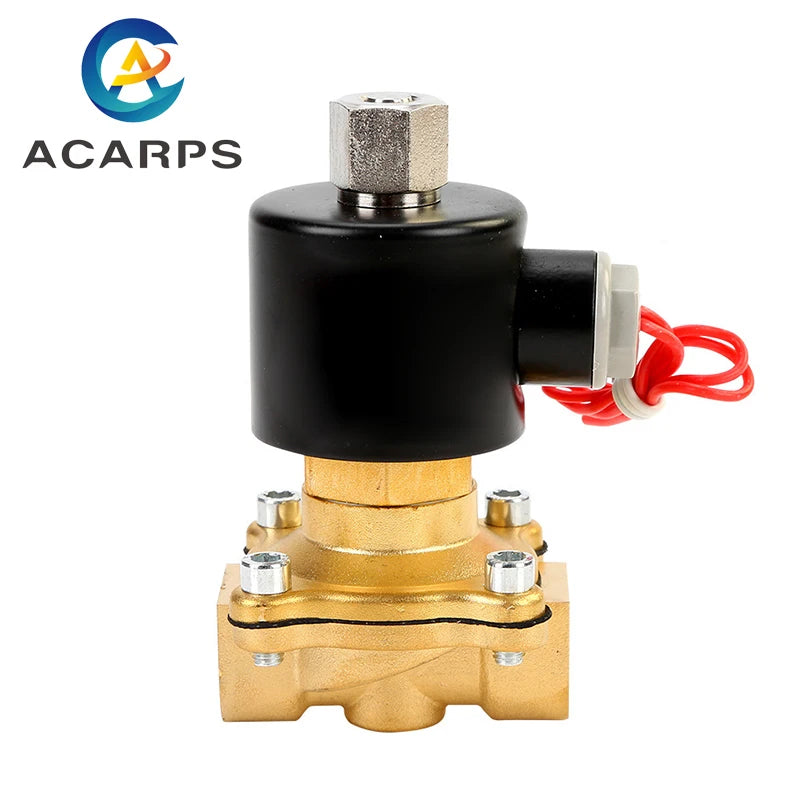

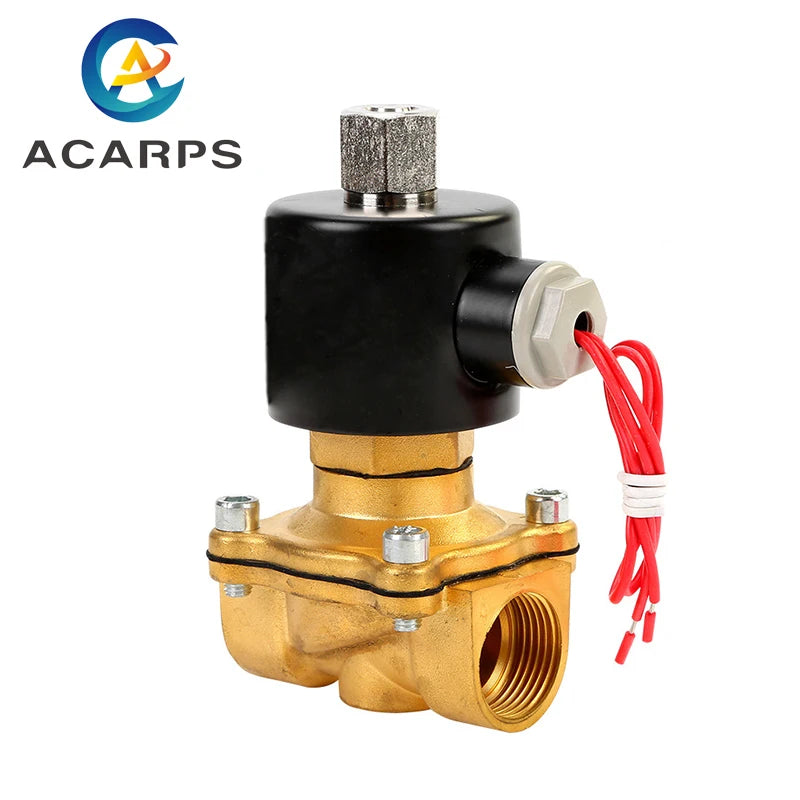

1/4" 1/2" 3/4" 1" 2Way Electric Water Valve 220VAC 24VDC 12VDC 24VAC 110VAC Normally Open Solenoid Valve Brass
1/4" 1/2" 3/4" 1" 2Way Electric Water Valve 220VAC 24VDC 12VDC 24VAC 110VAC Normally Open Solenoid Valve Brass
CHECK BEFORE YOU CHOOSE
Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Specification
Model: 2W
Pipe size:1/4, 1/2, 3/4, 1, 2
Thread:BSP, NPT female
Medium: Air water oil, the neutral gas liquid
Type: Normally Opened (opened when de-energizes,closed when energized.)
Working pressure :1-10bar for water, air, 1-7bar for oil
Operating: Pilot operating
Seal: NBR
Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V (tolearance ±10%)
Materail: Brass
Seal:NBR(-5-80degree)
KNOW WHAT YOU ARE CHOOSING
Part details & buying guide
Product details
- Part type
- Valves & Flow Components
- Part listing
- 1/4" 1/2" 3/4" 1" 2Way Electric Water Valve 220VAC 24VDC 12VDC 24VAC 110VAC Normally Open Solenoid Valve Brass
- Specification
- 1-1/4", 1-1/2", 1/2", 3/4", 3/8", 1/4", 2", 1"
- Voltage
- 240VAC, 120VAC, 110VAC, 220VAC, 380VAC, 12VDC, 24VDC, 24VAC, 230VAC
- Thread Type
- BSP
- Checkout currency
- USD
The listing images and selected option describe the item offered. If the pack quantity or included components are unclear, ask us before ordering.
Check the fit before ordering
- Use the complete device model, including its suffix.
- Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
- A search match or shared brand name does not confirm compatibility. Ask us if the exact model is not stated.
