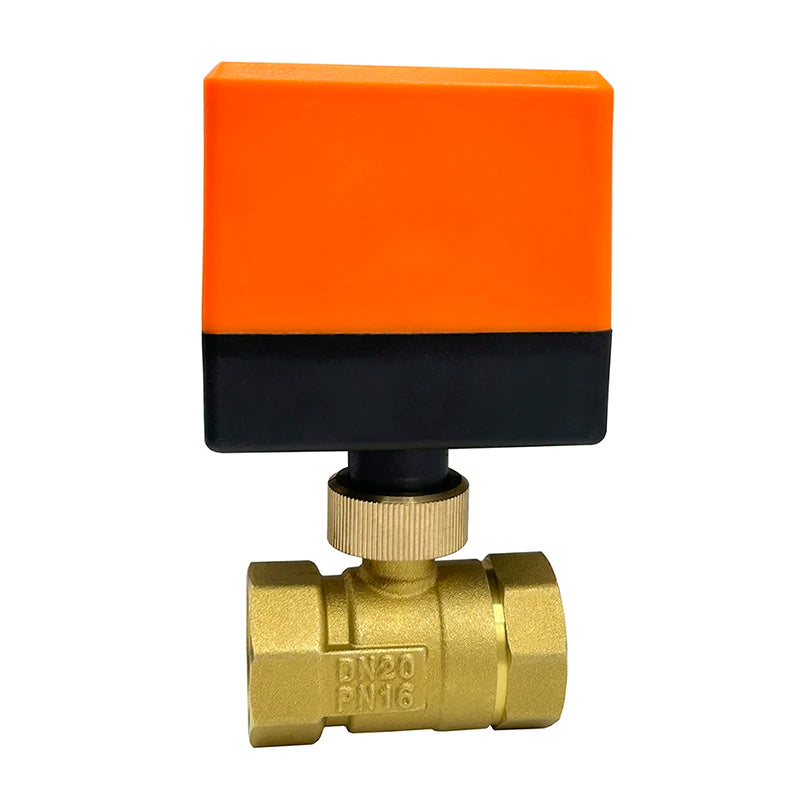

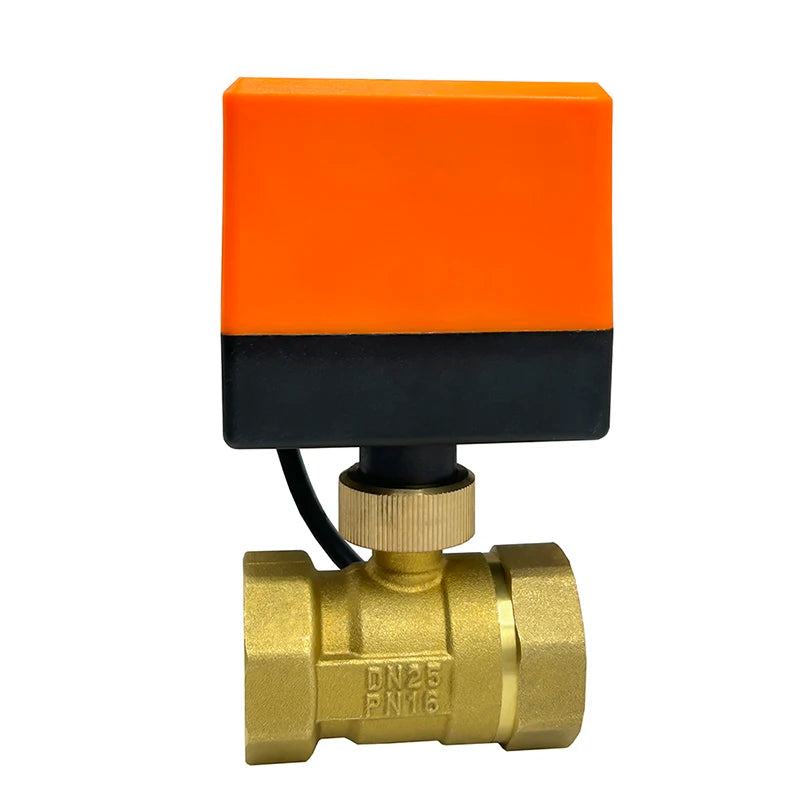

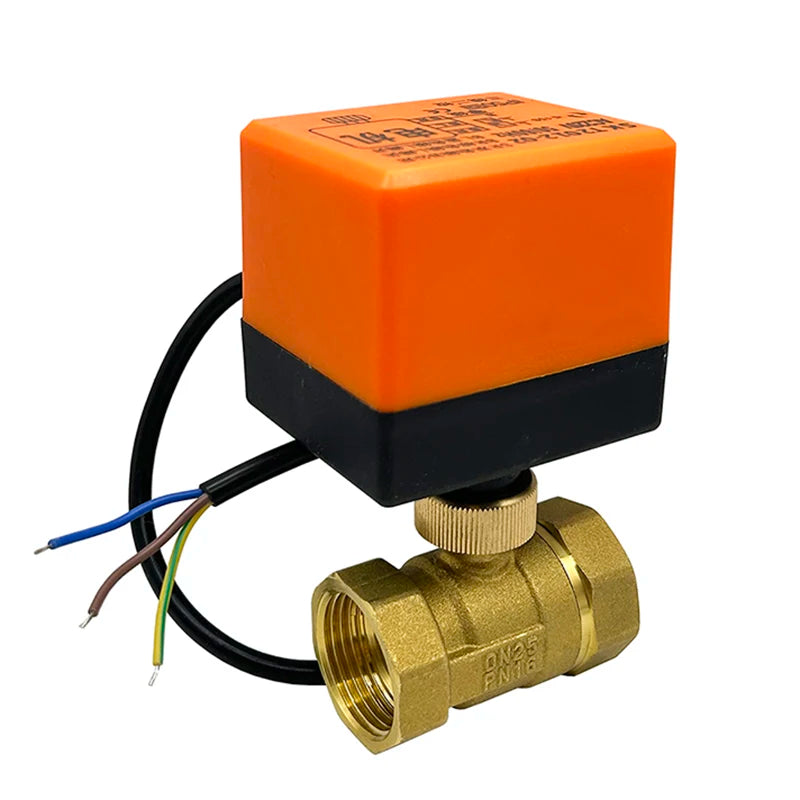

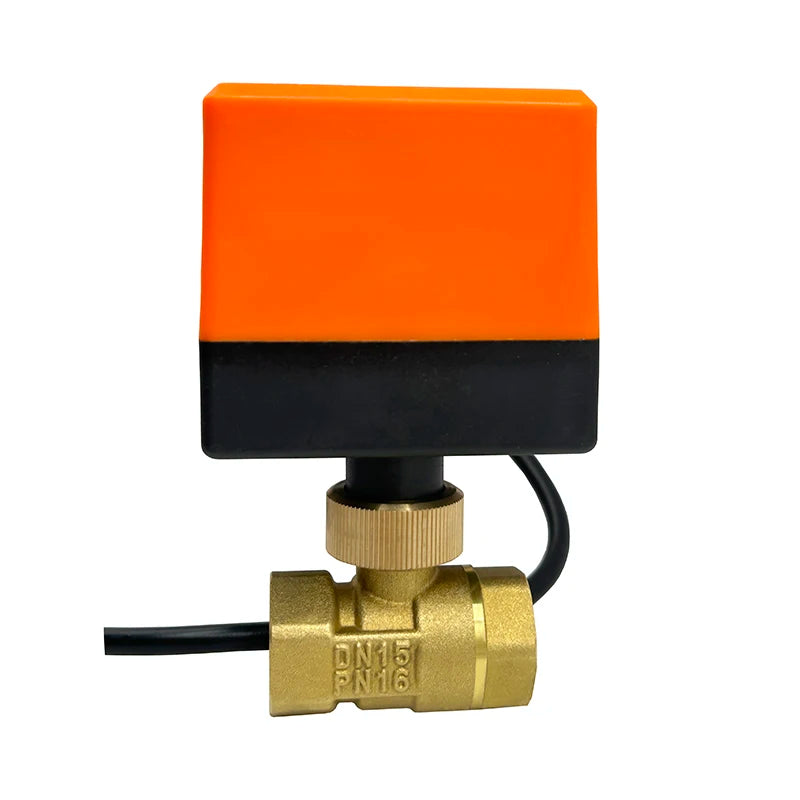

1/2" 3/4" 1" Two Way Motorized Ball Valve 3-Wire 2 Control Brass Electric Ball Valve DN15 DN20 DN25 Ball Valve with Actuator
1/2" 3/4" 1" Two Way Motorized Ball Valve 3-Wire 2 Control Brass Electric Ball Valve DN15 DN20 DN25 Ball Valve with Actuator
CHECK BEFORE YOU CHOOSE
Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Two Ways,
Operation Mode: Three Wire Two Ways Control
Power: 6W (Only when the valves open and close)
Running Time: 8-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque：220V 8 N.M, DC12/24V 6 N.M
Waterproof level：IP54（AC24V is IP50）

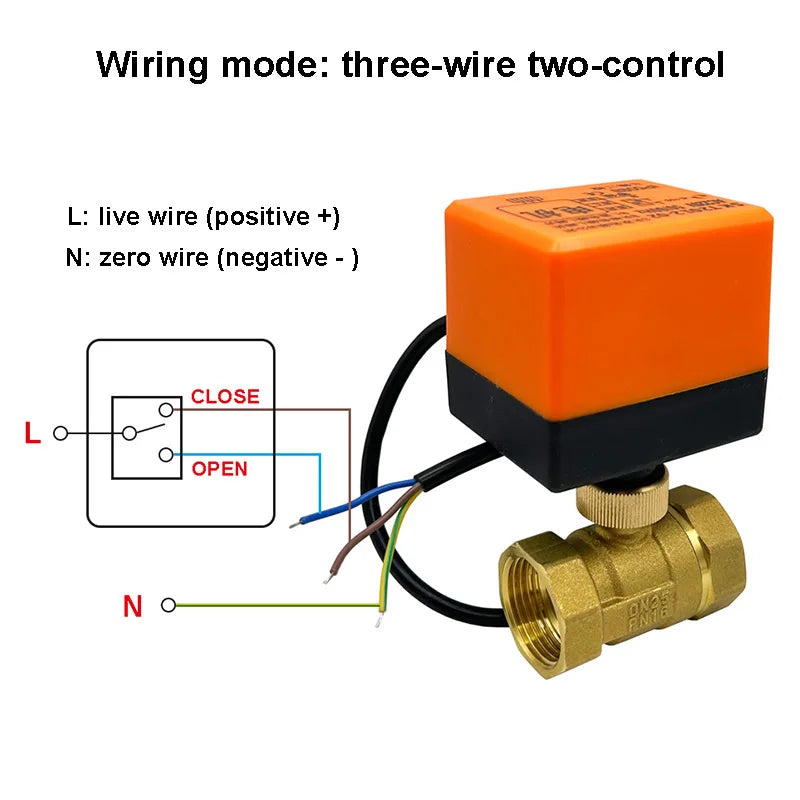

Connection instructions：Yellow connects the negative pole，Positive pole connected to the blue line valve open, positive pole connected to the brown line valve closed
KNOW WHAT YOU ARE CHOOSING
Part details & buying guide
Product details
- Part type
- Valves & Flow Components
- Part listing
- 1/2" 3/4" 1" Two Way Motorized Ball Valve 3-Wire 2 Control Brass Electric Ball Valve DN15 DN20 DN25 Ball Valve with Actuator
- Specification
- DN15, DN20, DN25
- Voltage
- 220VAC, 12VDC, 24VDC, 24VAC
- Wiring Control
- CR02
- Checkout currency
- USD
The listing images and selected option describe the item offered. If the pack quantity or included components are unclear, ask us before ordering.
Check the fit before ordering
- Use the complete device model, including its suffix.
- Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
- A search match or shared brand name does not confirm compatibility. Ask us if the exact model is not stated.
