NC-A701 Coffee Grinder Motor Assembly KH44/33F, Replacement Bean Grinding Motor for Automatic Coffee Machine
NC-A701 Coffee Grinder Motor Assembly KH44/33F, Replacement Bean Grinding Motor for Automatic Coffee Machine
CHECK BEFORE YOU CHOOSE
Match the machine model and component reference. Check dimensions, thread or portafilter size and the selected quantity where applicable.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Most of our products are non customized, and we will ship them to you within three days after receiving your order. If it is a customized product, customer service will proactively contact you!
For packages weighing less than 2 kilograms, we default to Cainiao Logistics. For packages weighing more than 2 kilograms, we may assign other high-quality logistics companies to deliver them to you.
Due to your geographical location, international situation, and safe packaging leads to excessive length and weight, the shipping cost may be adjusted accordingly. Customer service will proactively contact you!
If the shipment encounters force majeure factors, our customer service will send you an email and internal information. Please be sure to pay attention to our customer service information!
Product Number: Coffee Machine Grinding Module Assembly
Product Overview
Fully automatic coffee machine grinding module assembly, integrated DC motor, metal reduction gearbox, coffee cutterhead and powder extraction structure, original accessories used for coffee bean grinding in coffee machines, capable of grinding coffee beans into coffee beans of different thicknesses, complete integrated assembly, direct replacement and maintenance.

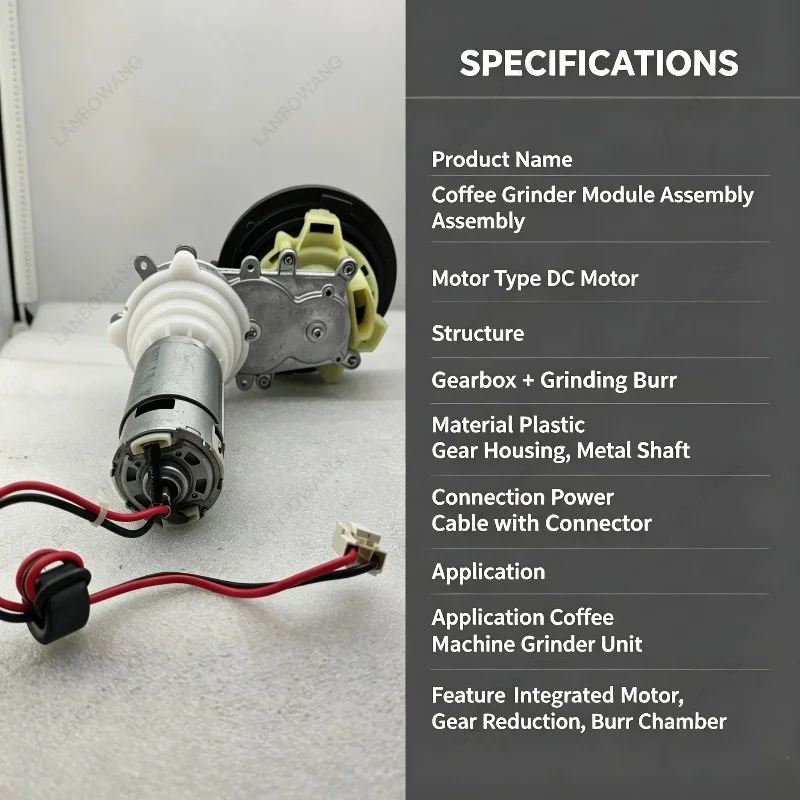

Hardware features

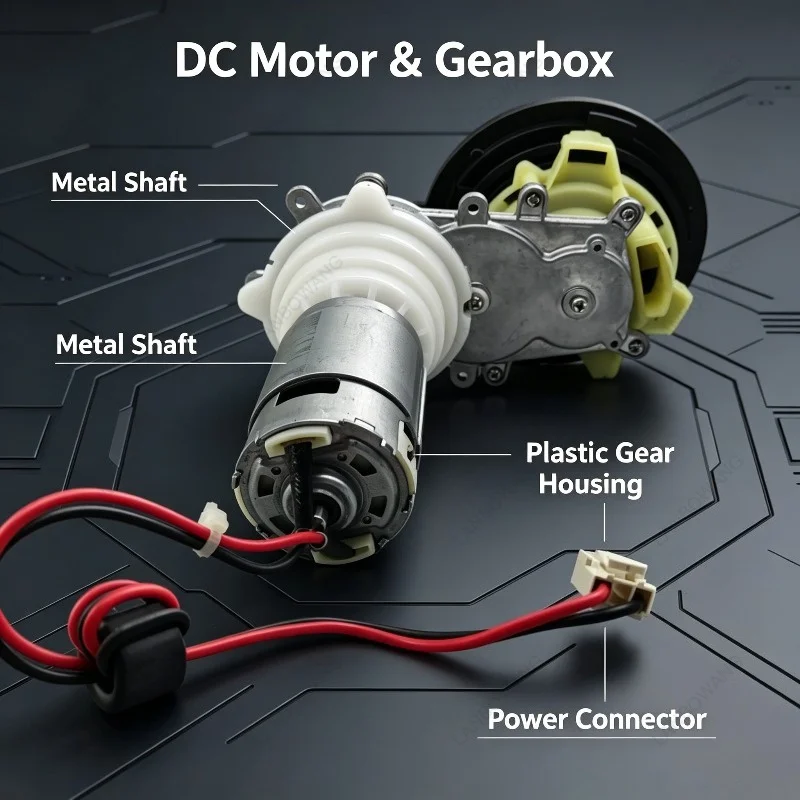

- Drive motor: DC brushed high-power motor, with red and black leads with dedicated plugs
- Transmission structure: aluminum alloy gear reducer, reduces speed and increases torque

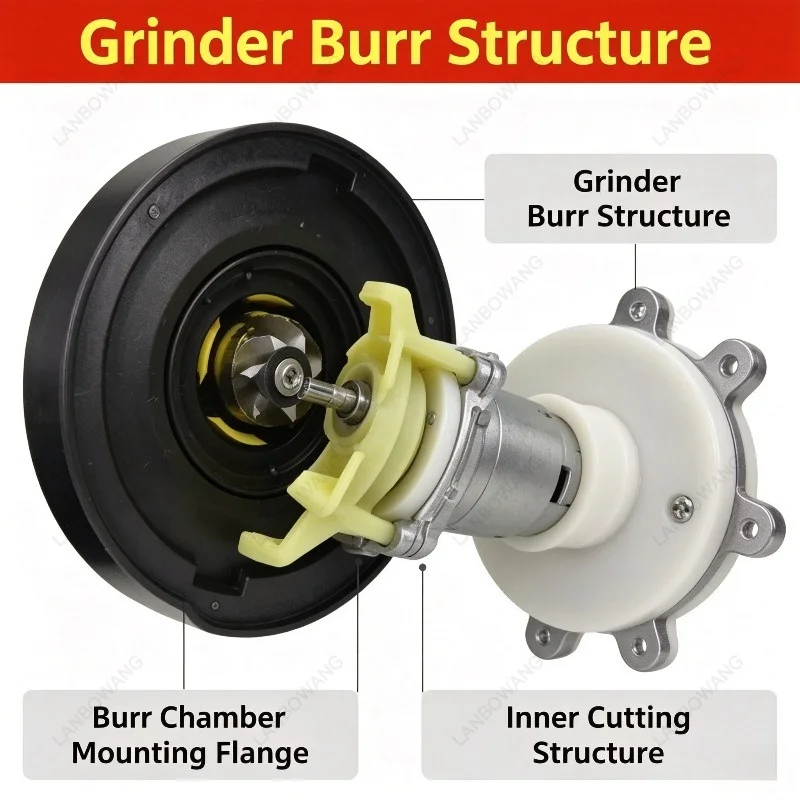

- Grinding cutterhead: metal tapered grinding blade, adjustable grinding thickness
- Housing components: food-grade plastic bracket, sealed corrugated tube structure
- Cable outlet configuration: with wiring harness, bend-resistant protective ring, dedicated white connector

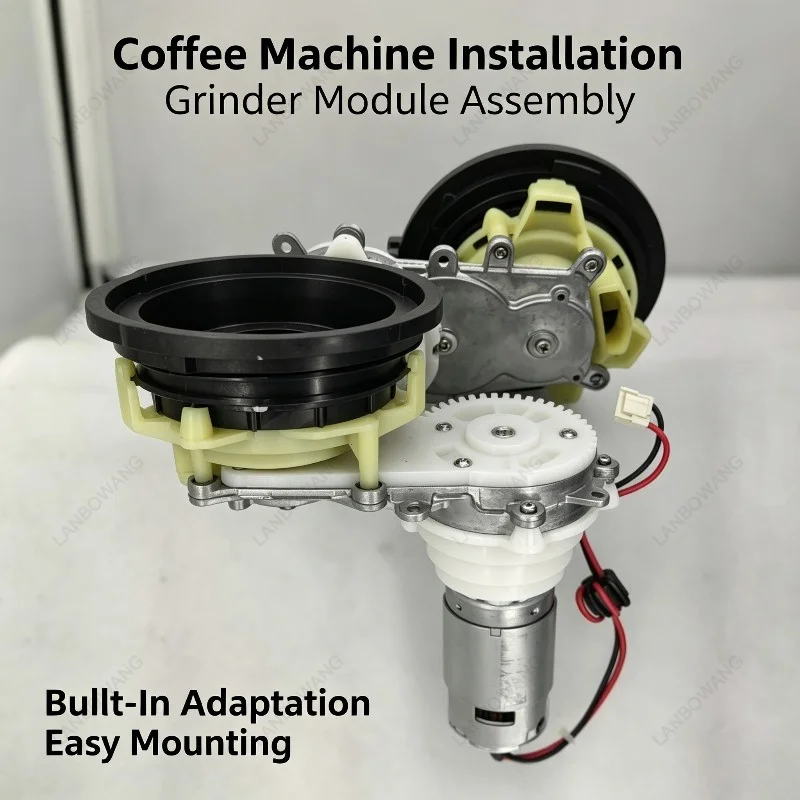

- Installation method: Flange screw fixing, integrated modular design of the entire machine

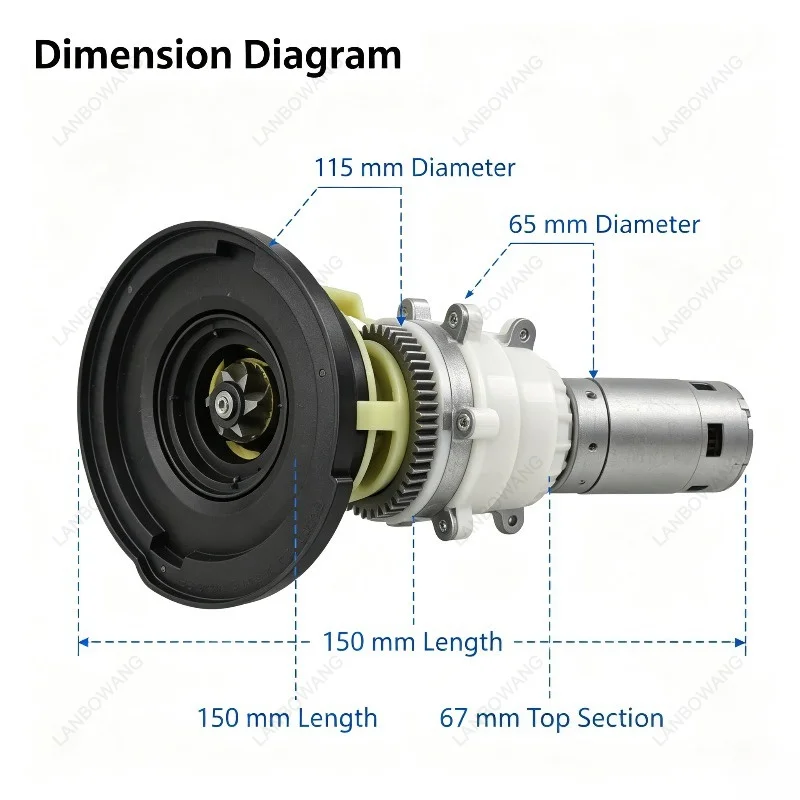

Precise physical dimension parameters
Total length: 150mm, grinding disc outer diameter: 115mm, gearbox flange diameter: 65mm, grinding head height: 67mm, single product bare weight: 1.15kg, color box packaging dimensions: 180mm×130mm×100mm, total gross weight: 1.4kg
Adaptation failure
- Motor not turning: poor plug contact, worn carbon brushes of the motor, circuit breakage
- Weak grinding and jamming: gear wear, cutter disc clearance too small, hard foreign objects stuck
- No powder output: The powder discharge channel is blocked, causing grinding blade wear
- Loud abnormal noise: gear lack of lubrication, cutterhead bumps, bearing damage
Suitable for supporting / application scenarios
- Accessories: Compatible with the corresponding model of fully automatic coffee machine, directly replacing the original grinding unit
- Application scenarios: Maintenance and replacement of fully automatic home coffee machines, coffee machine equipment accessories, coffee bean grinding and grinding
KNOW WHAT YOU ARE CHOOSING
Part details & buying guide
Product details
- Part type
- Coffee Grinders & Parts
- Part listing
- NC-A701 Coffee Grinder Motor Assembly KH44/33F, Replacement Bean Grinding Motor for Automatic Coffee Machine
- color
- motor assembly
- Checkout currency
- USD
The listing images and selected option describe the item offered. If the pack quantity or included components are unclear, ask us before ordering.
Check the fit before ordering
- Use the complete device model, including its suffix.
- Match the machine model and component reference. Check dimensions, thread or portafilter size and the selected quantity where applicable.
- A search match or shared brand name does not confirm compatibility. Ask us if the exact model is not stated.
