DC 6V/12V/24V 2-Position 3-Way Solenoid Valve NC/NO Water Air Water Purifier Coffee Machine Control Switch
DC 6V/12V/24V 2-Position 3-Way Solenoid Valve NC/NO Water Air Water Purifier Coffee Machine Control Switch
CHECK BEFORE YOU CHOOSE
Match the machine model and component reference. Check dimensions, thread or portafilter size and the selected quantity where applicable.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Specification:

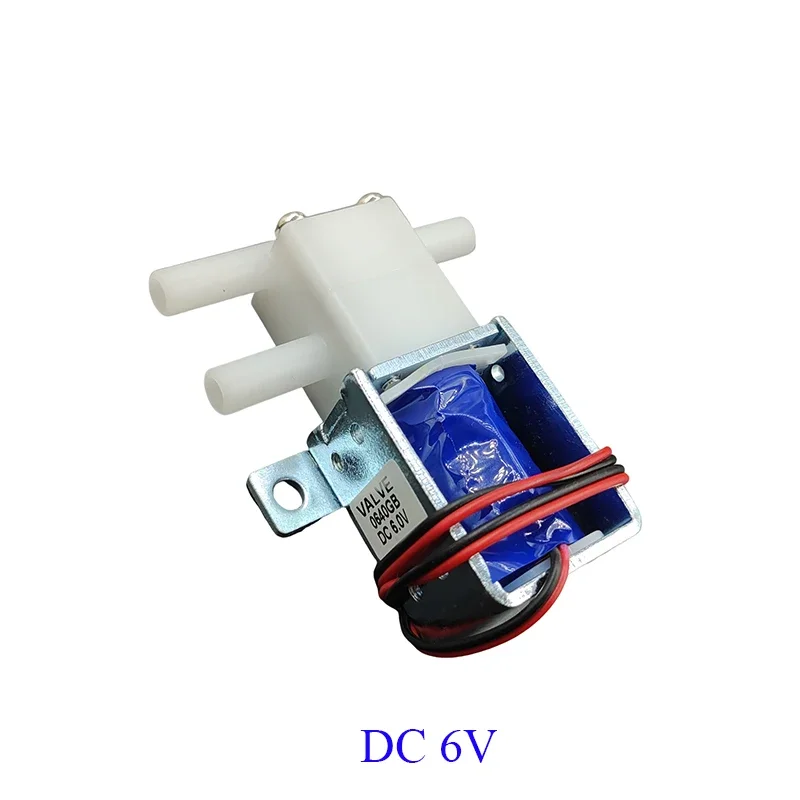

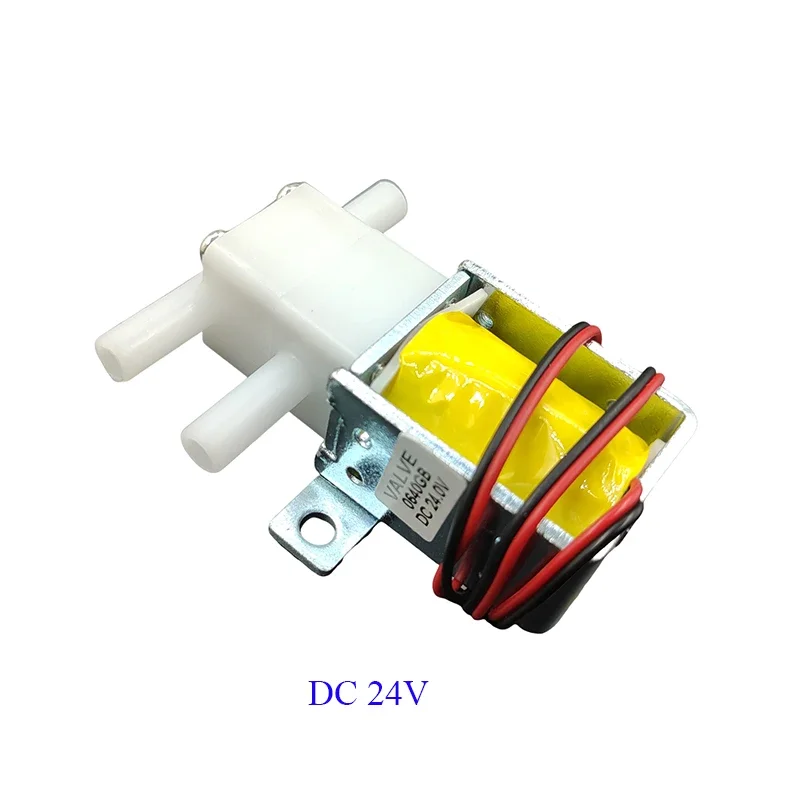

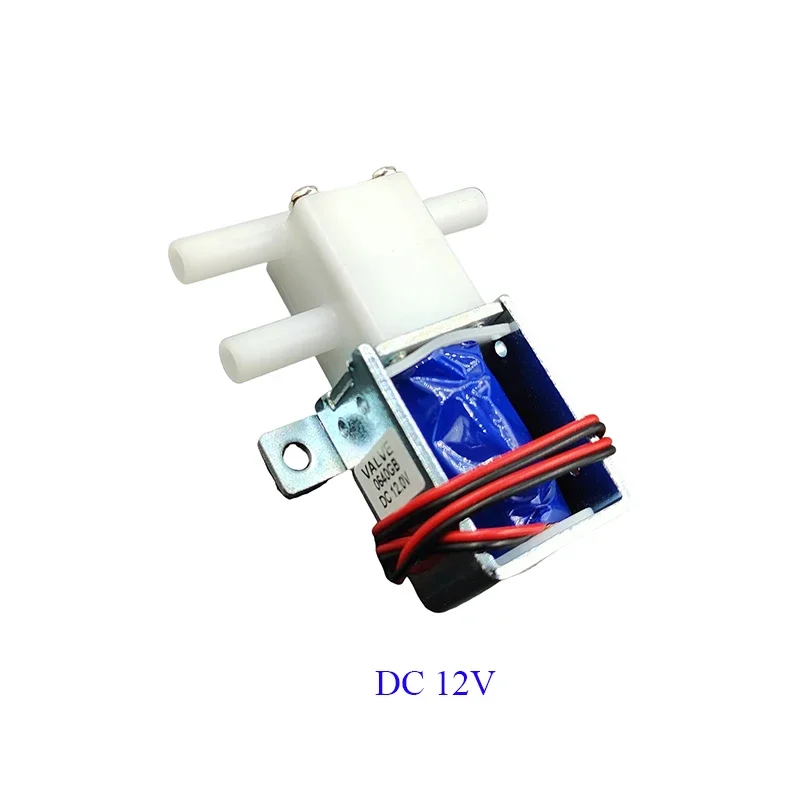

1.Rated voltage: DC 6.0V / 12.0V / DC 24.0V
2.Rated current: < 450mA < 200mA < 220mA
3.Pressure range: 0-300 Kpa
4.Sealability: The inflation is stopped after the inflation pressure is from 0 to 300 mmHg in a 500 cc container, and the pressure reduced is less than 5 mmHg/min after 30 seconds of stabilization.
5.Use fluid: Water / Air
6.Service life: In a 500CC container, inflate for 10 seconds and exhaust for 5 seconds for a loop test more than 50,000 times.
7.Operating temperature range: 0℃ ~90℃
8.Power: < 6W
9.Working mode: Normally Closed and Normally Open
Package List: Mini Valve x 1PCS

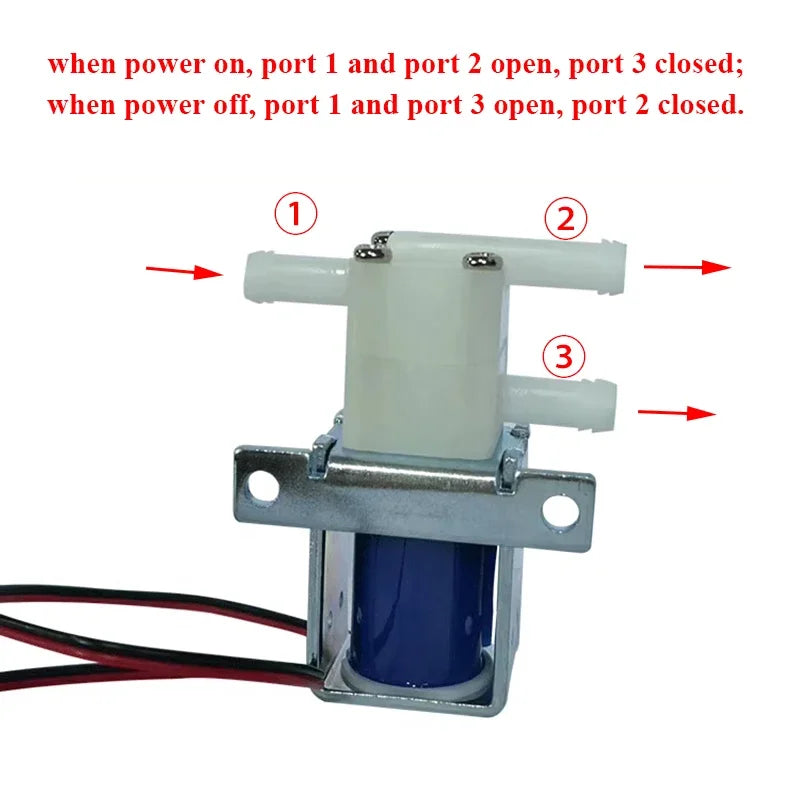

Working principle:
When power on, port 1 and port 2 open, port 3 closed;
When power off, port 1 and port 3 open, port 2 closed.
KNOW WHAT YOU ARE CHOOSING
Part details & buying guide
Product details
- Part type
- Coffee Machine Spare Parts
- Part listing
- DC 6V/12V/24V 2-Position 3-Way Solenoid Valve NC/NO Water Air Water Purifier Coffee Machine Control Switch
- Voltage
- DC 6.0V, DC 12.0V, DC 24.0V
- Checkout currency
- USD
The listing images and selected option describe the item offered. If the pack quantity or included components are unclear, ask us before ordering.
Check the fit before ordering
- Use the complete device model, including its suffix.
- Match the machine model and component reference. Check dimensions, thread or portafilter size and the selected quantity where applicable.
- A search match or shared brand name does not confirm compatibility. Ask us if the exact model is not stated.
