AC220V 24V Electric Brass Motorized Ball Valve 2/3 Way Manual Override Three Wire Control Water Shut Off Valve for Solar HVAC
AC220V 24V Electric Brass Motorized Ball Valve 2/3 Way Manual Override Three Wire Control Water Shut Off Valve for Solar HVAC
CHECK BEFORE YOU CHOOSE
Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
1.NOTE
Default Parameters

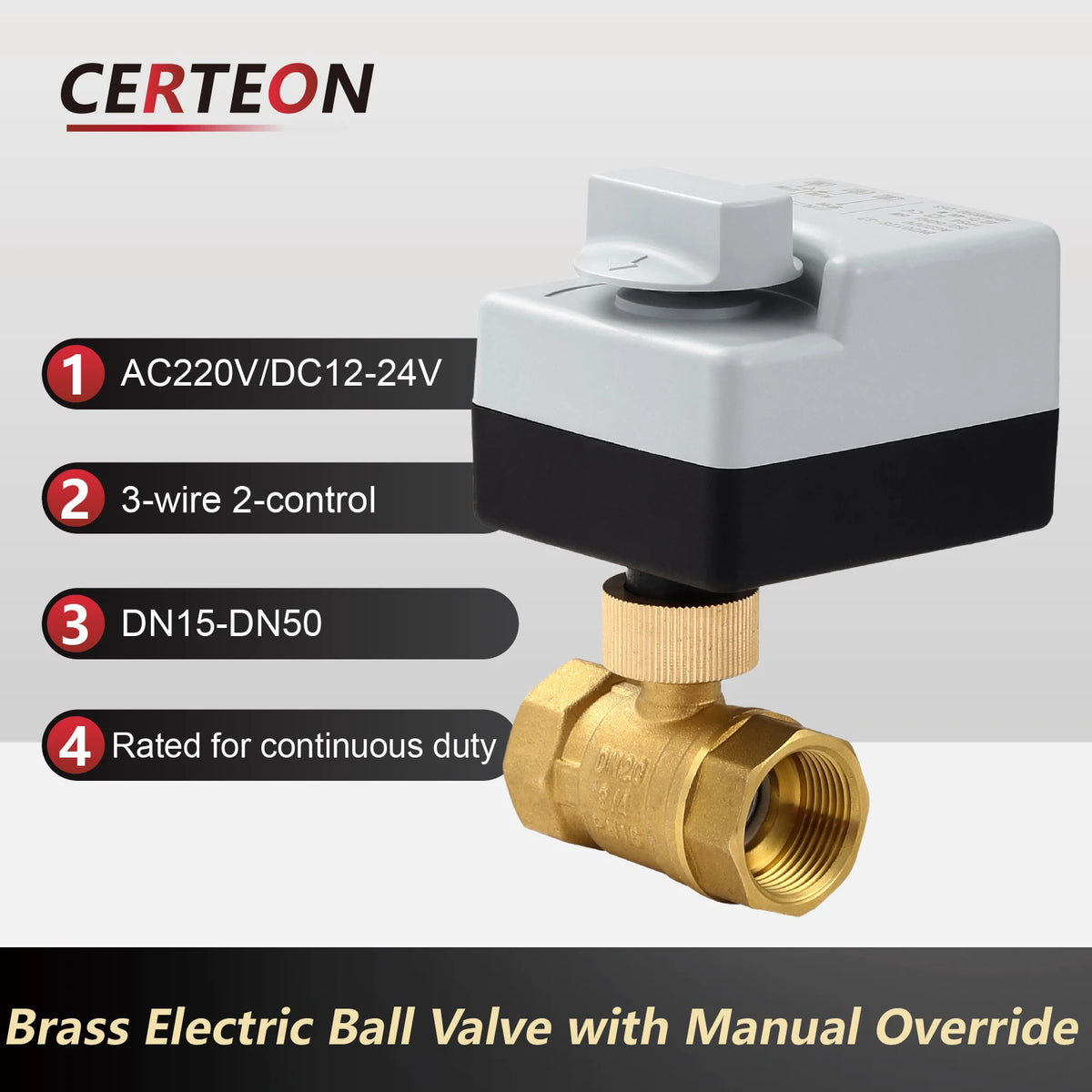

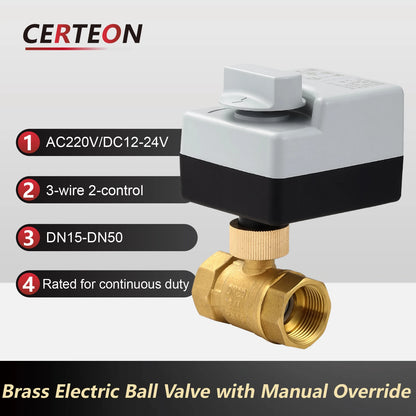

Power Supply: AC220V, DC12–24V (optional)
Switch: Electric / Manual
Type: 2-way / 3-way (optional)
Thread: Internal thread

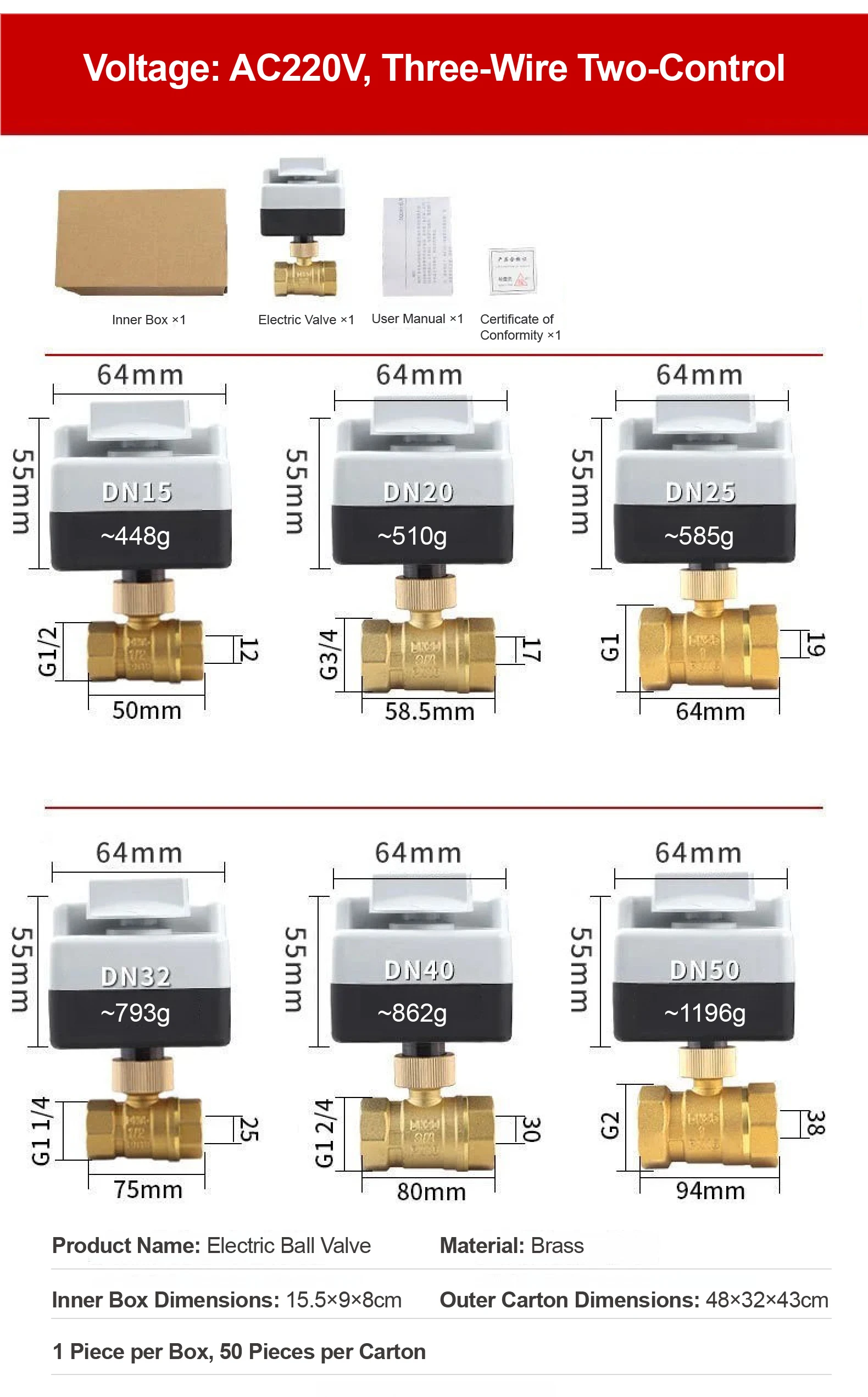

Size: DN15, DN20, DN25, DN32, DN40, DN50
Feature: 3-Wire 2-Control
Customizable Parameters
Type: 2-way 2-wire single control normally open, 2-way 2-wire single control normally closed, 3-way 2-wire single control normally open, 3-way 2-wire single control normally closed
Thread: Customizable conversion between male-to-female and female-to-male threads
Due to page limitations, not all configurations are listed here. For customization, please contact us.

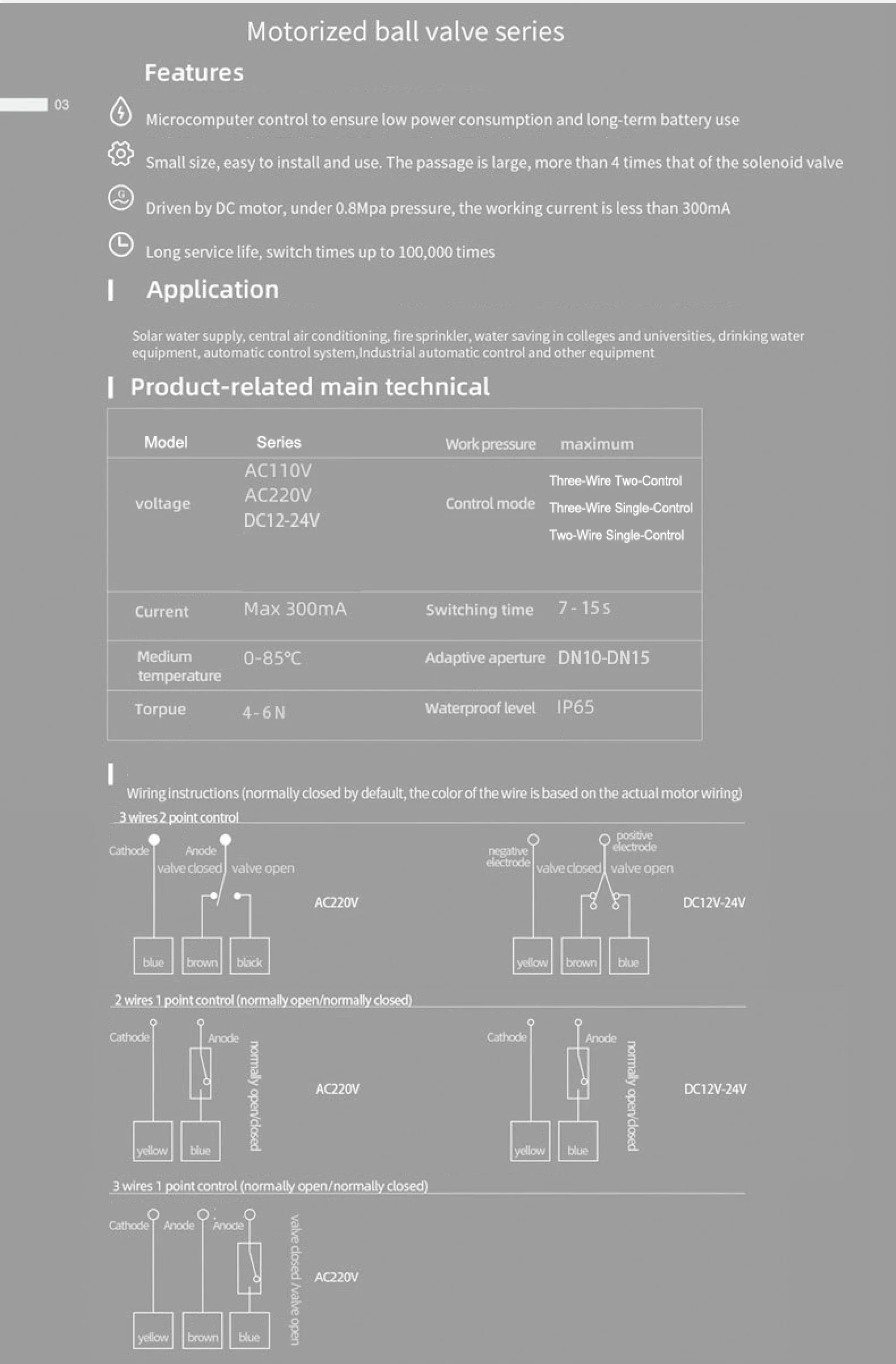

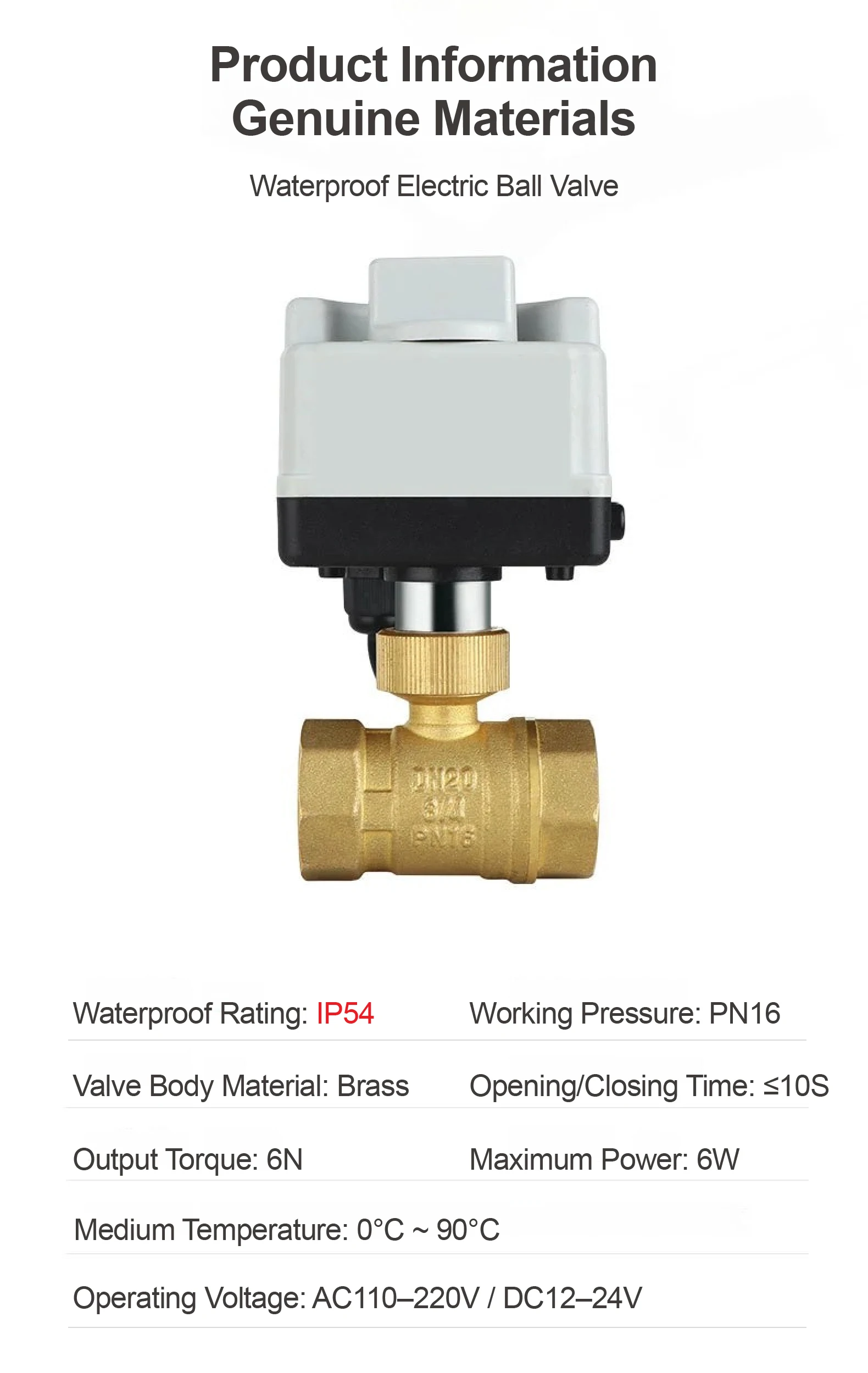

2. Parameters
Parameter |
Specification |
Power Supply |
AC220V / DC12-24V (optional) |
Valve Type |
2-way / 3-way (optional) |
Port Size |
DN15 / DN20 / DN25 / DN32 / DN40 / DN50 |
Wiring Control |
3-Wire, 2-Control |
Body Material |
Brass |
Torque Output |
6N·m |
Working Pressure |
PN16 |
Switch Time |
≤10 seconds |
Max Power Consumption |
6W |
Ingress Protection |
IP54 |
Operating Voltage |
AC110-220V / DC12-24V |
Medium Temperature |
0°C ~ 90°C |

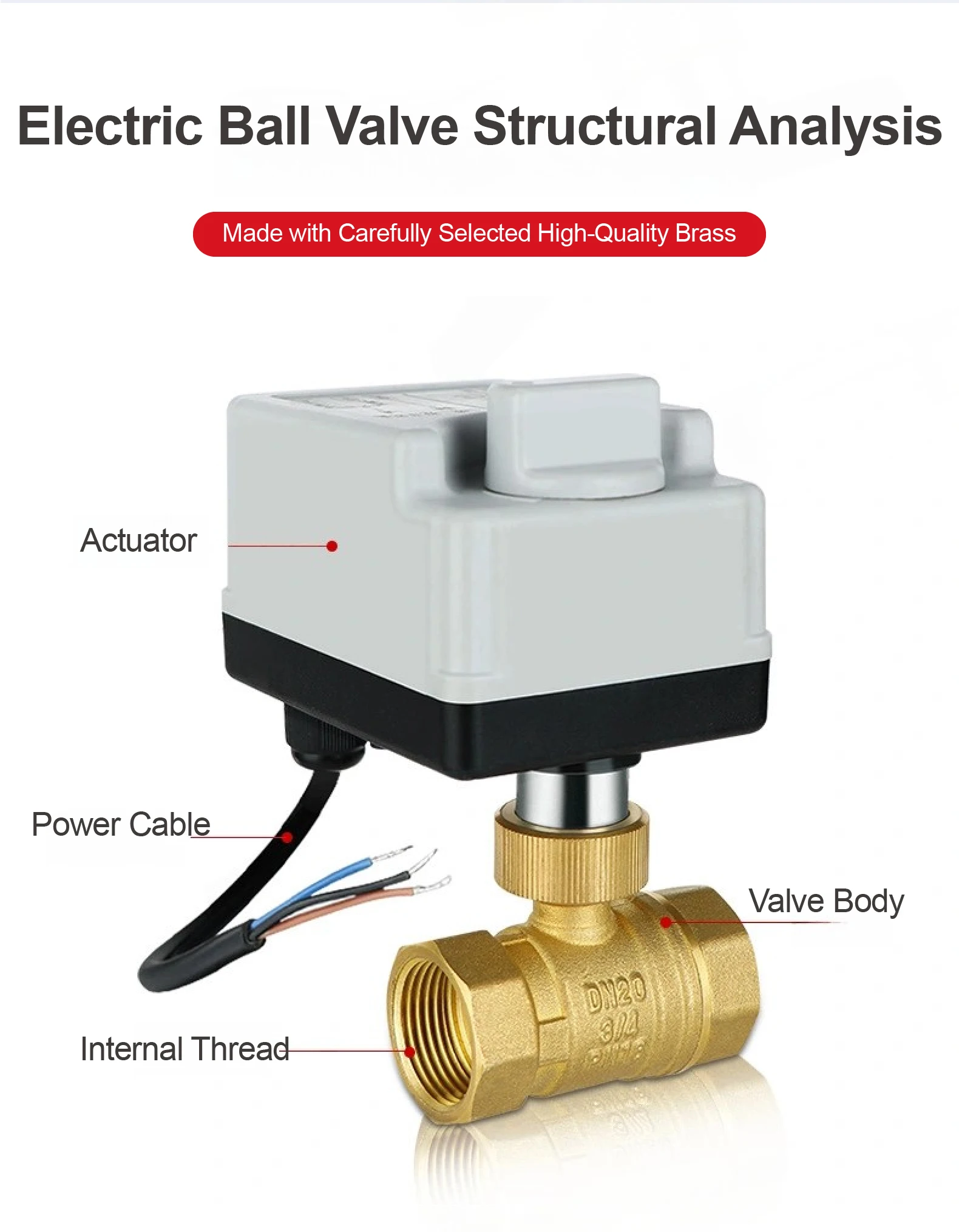

3. Features

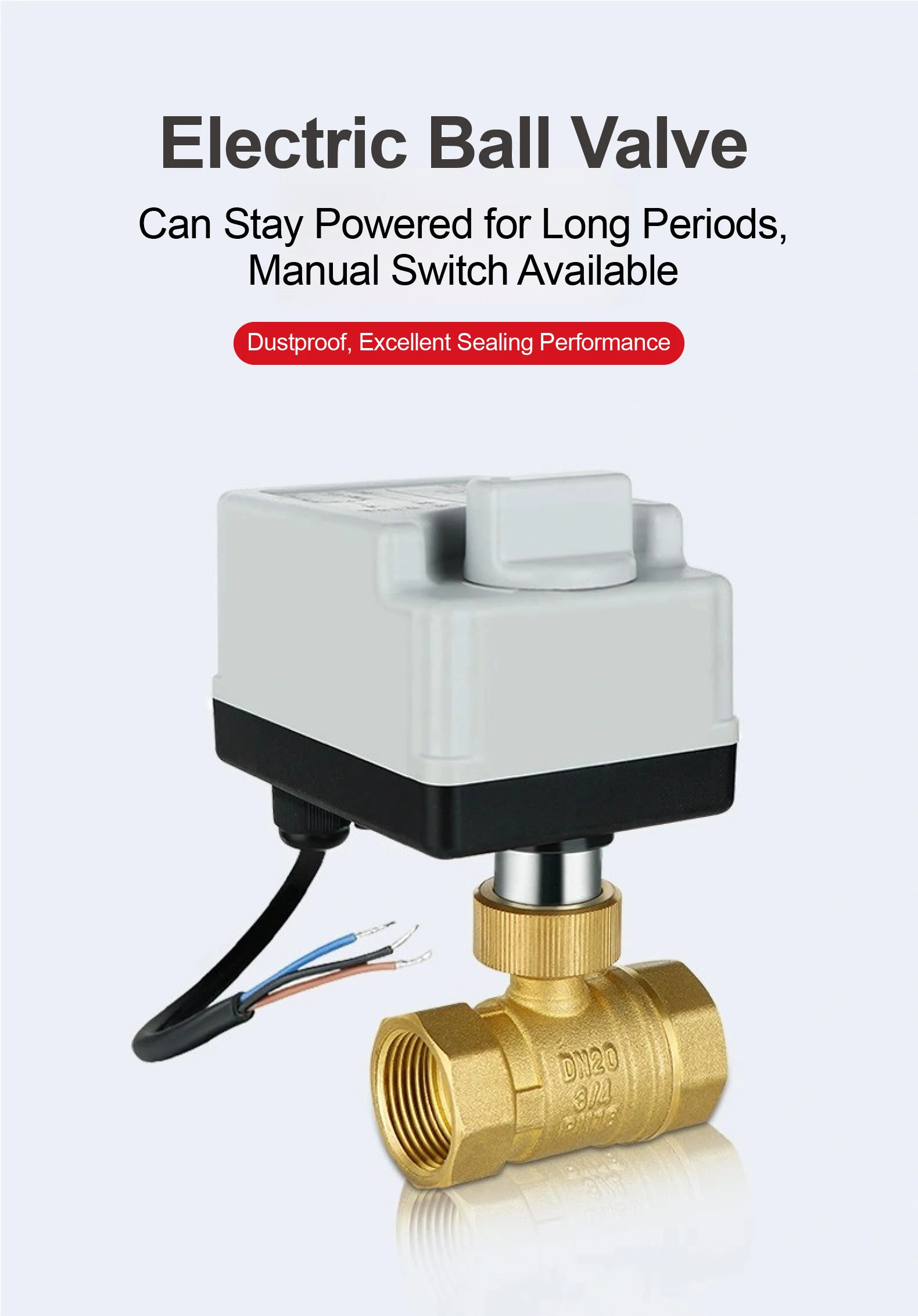

Long-Term Power-On Capability
Designed for continuous power operation without overheating, ideal for industrial use.

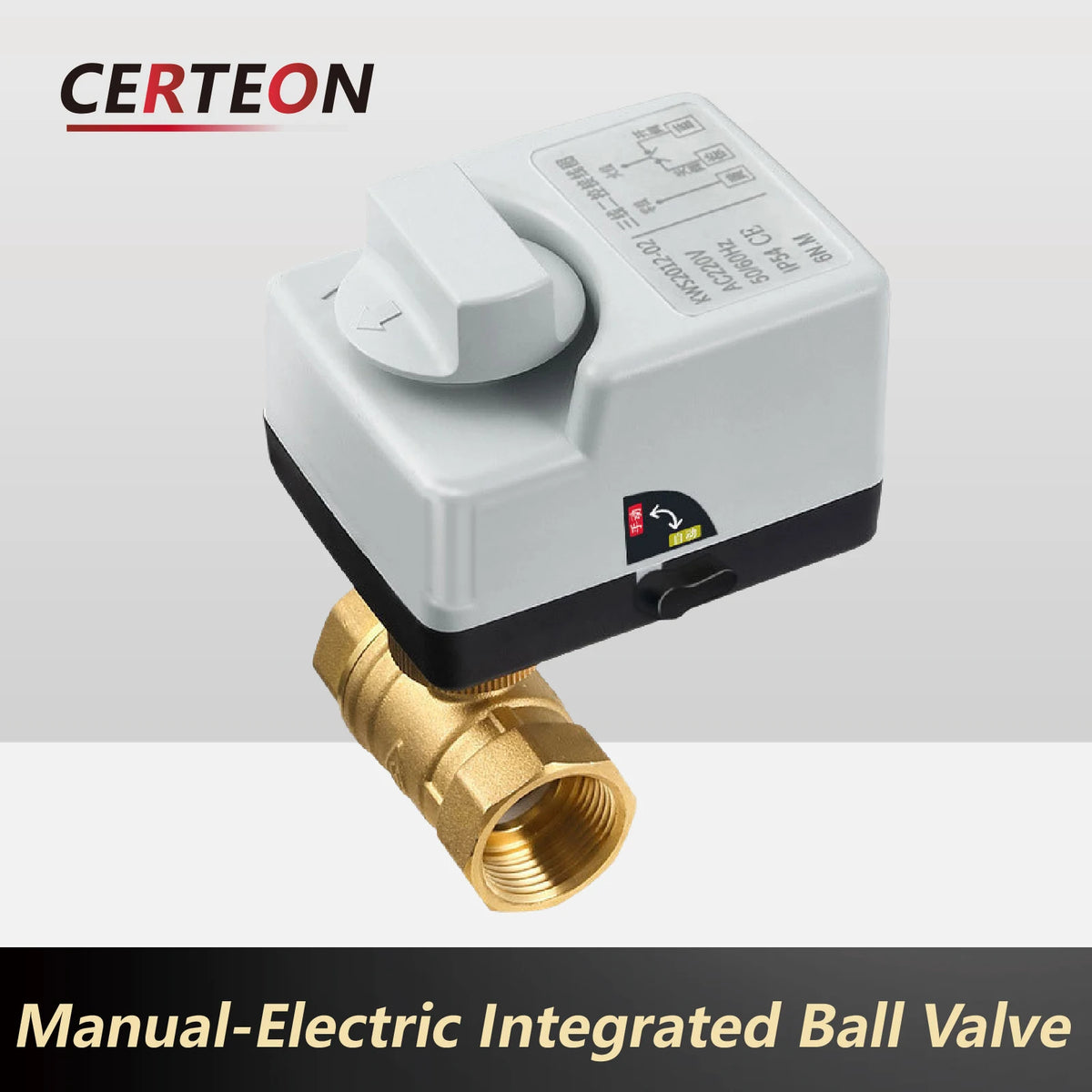

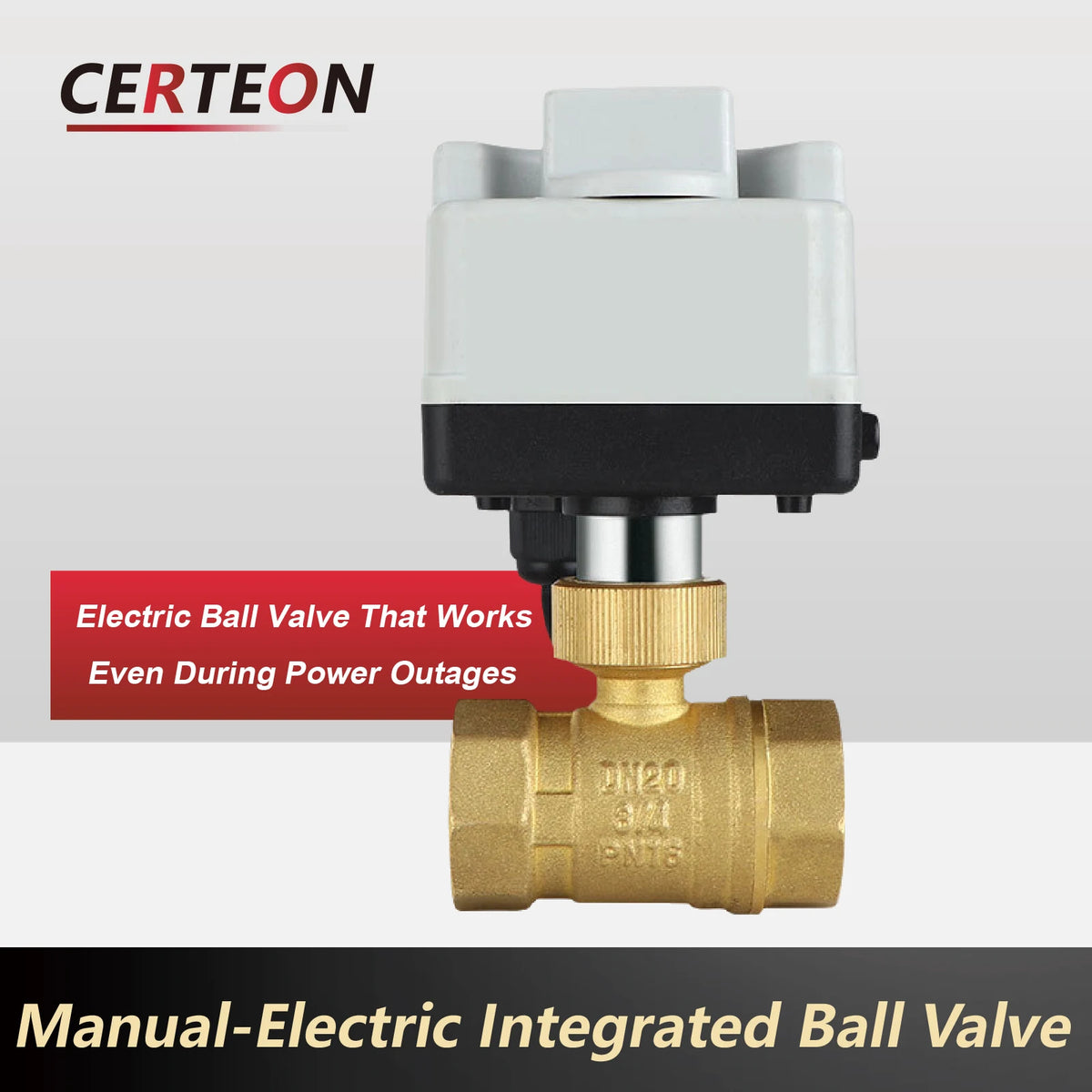

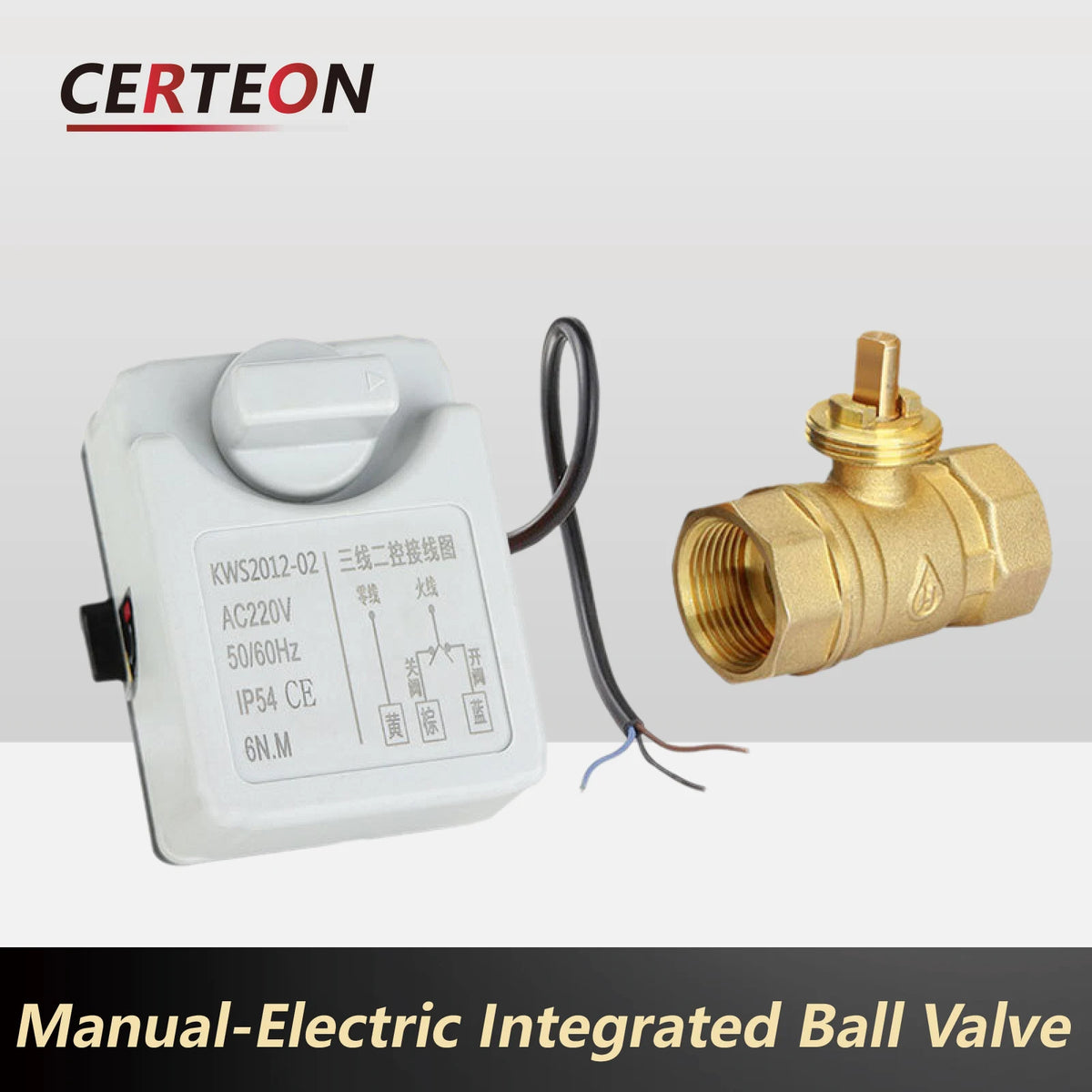

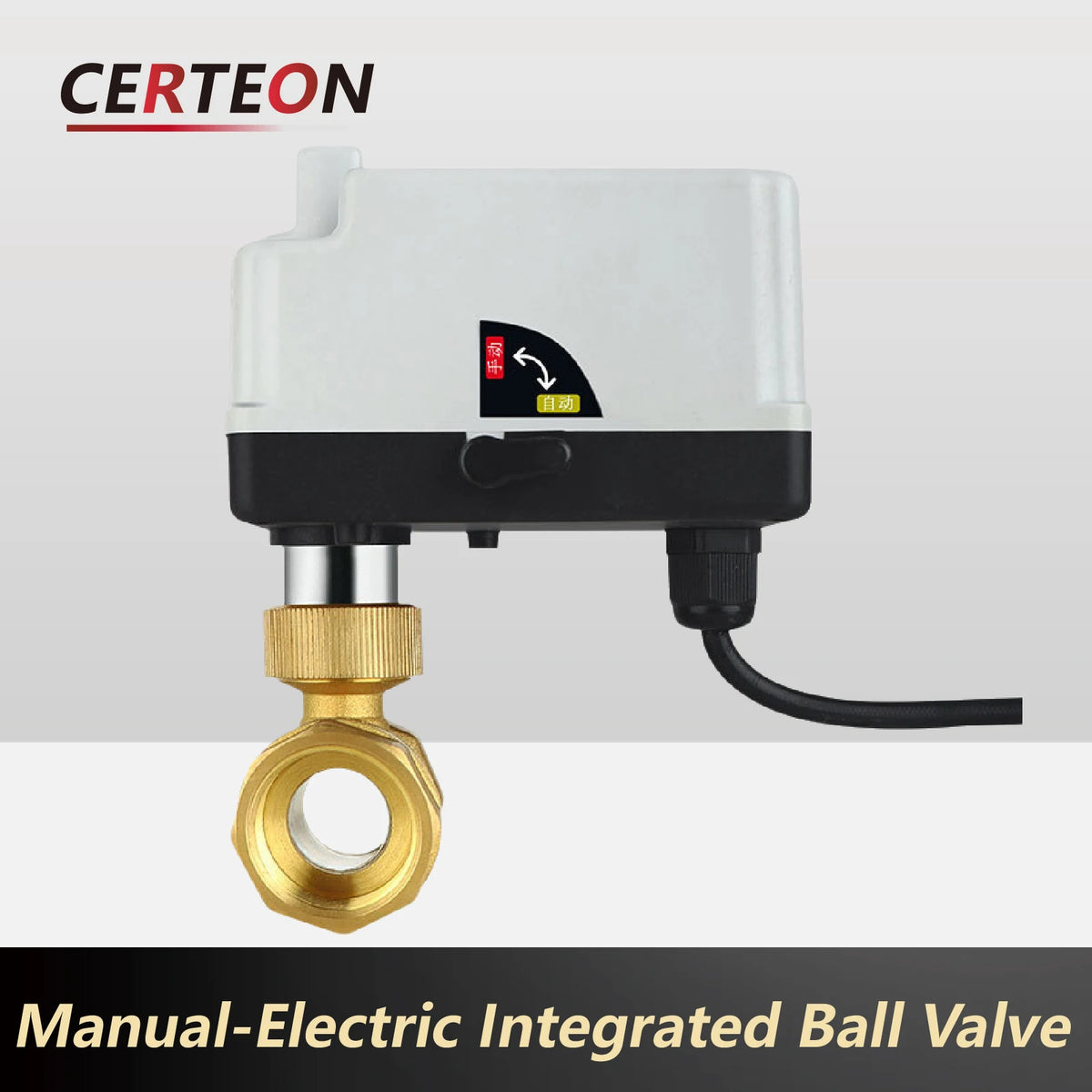

Manual Override
Integrated manual switch allows operation during power outages or maintenance.

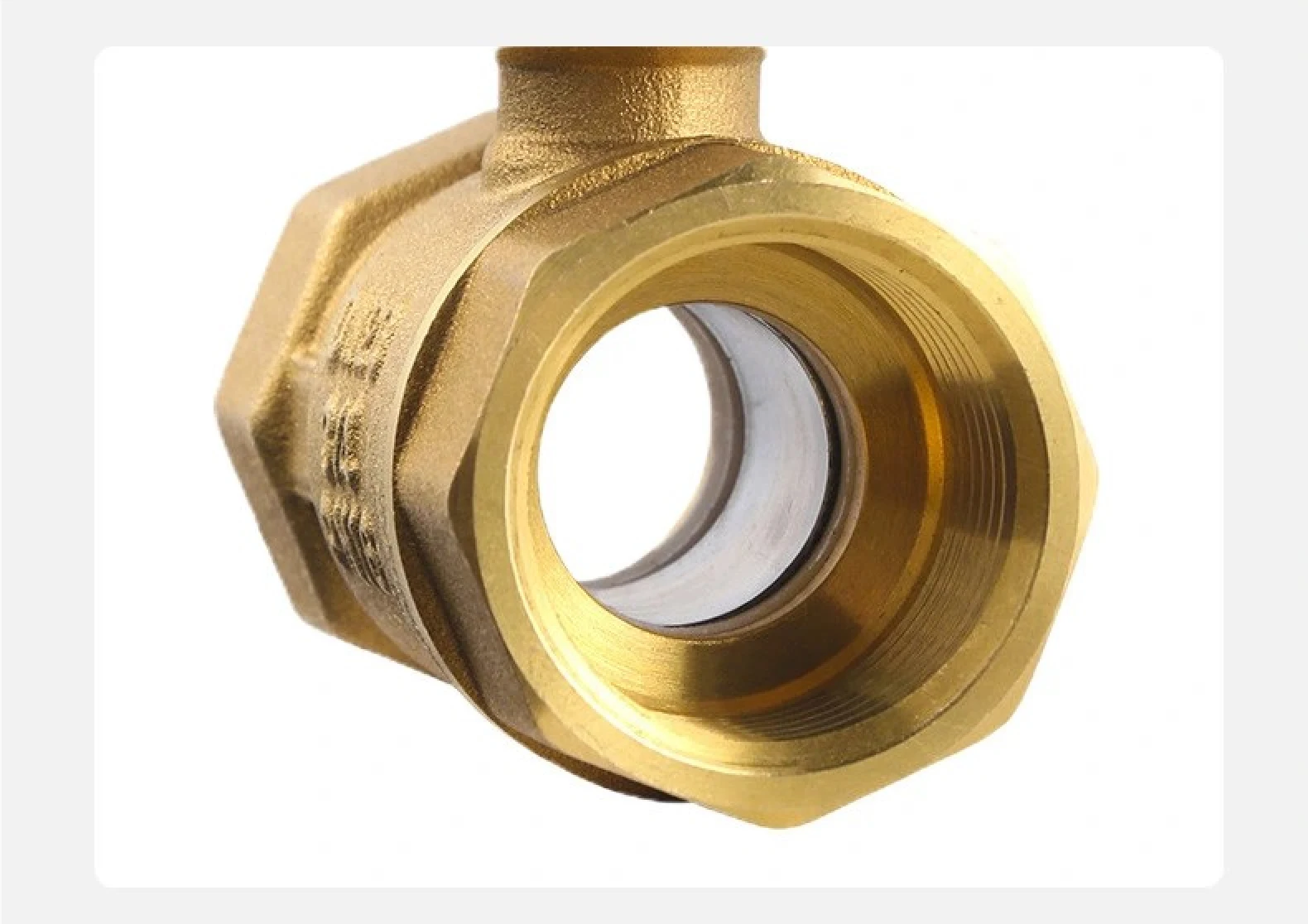

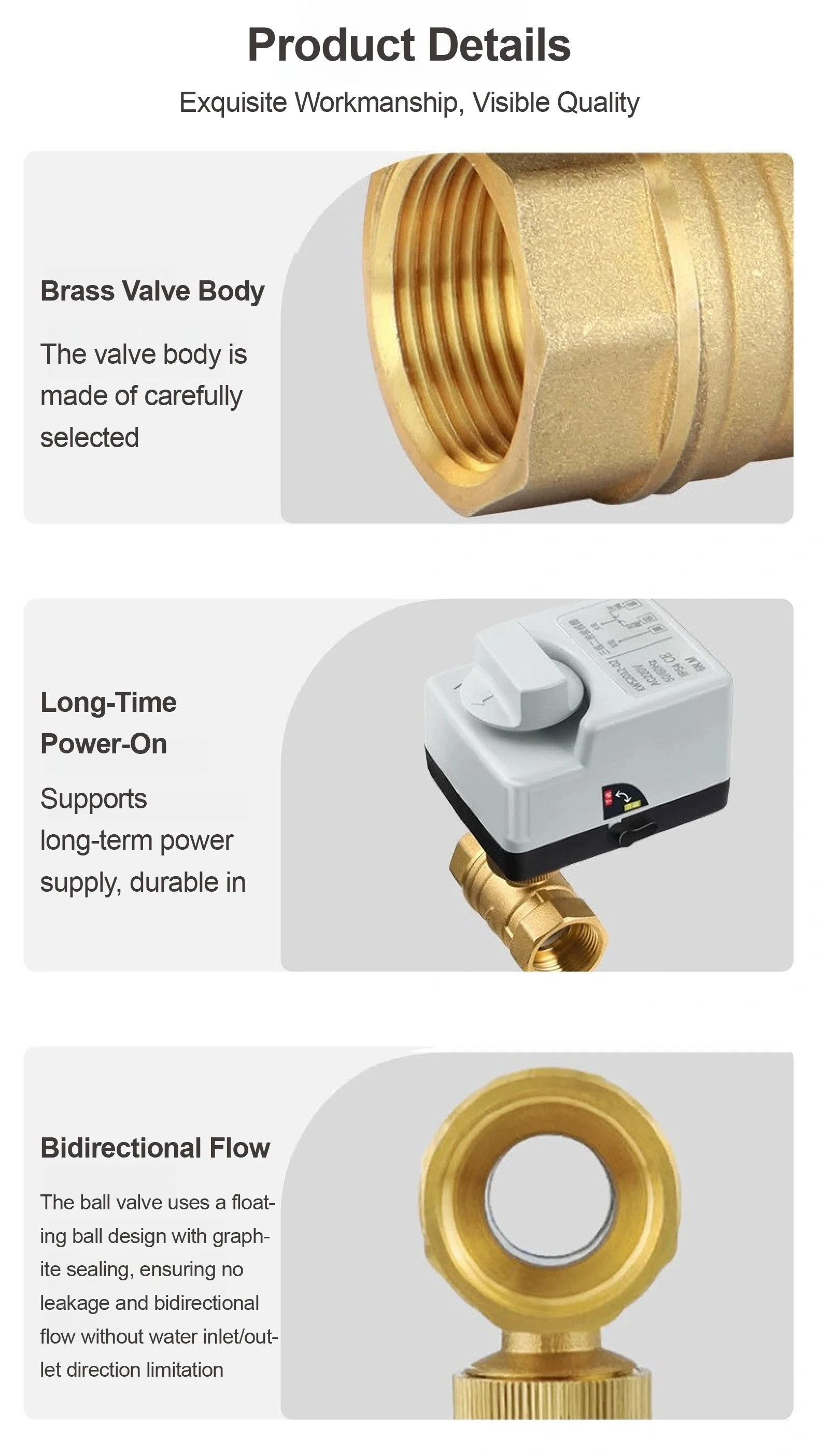

Premium Brass Construction
Heavy-duty brass valve body ensures excellent durability and corrosion resistance.
IP54 Dust & Water Resistance
Provides reliable protection against dust and water splashes for extended outdoor or indoor use.
Bi-Directional Flow
Floating ball structure with graphite sealing ensures zero leakage and no inlet/outlet direction limitation.

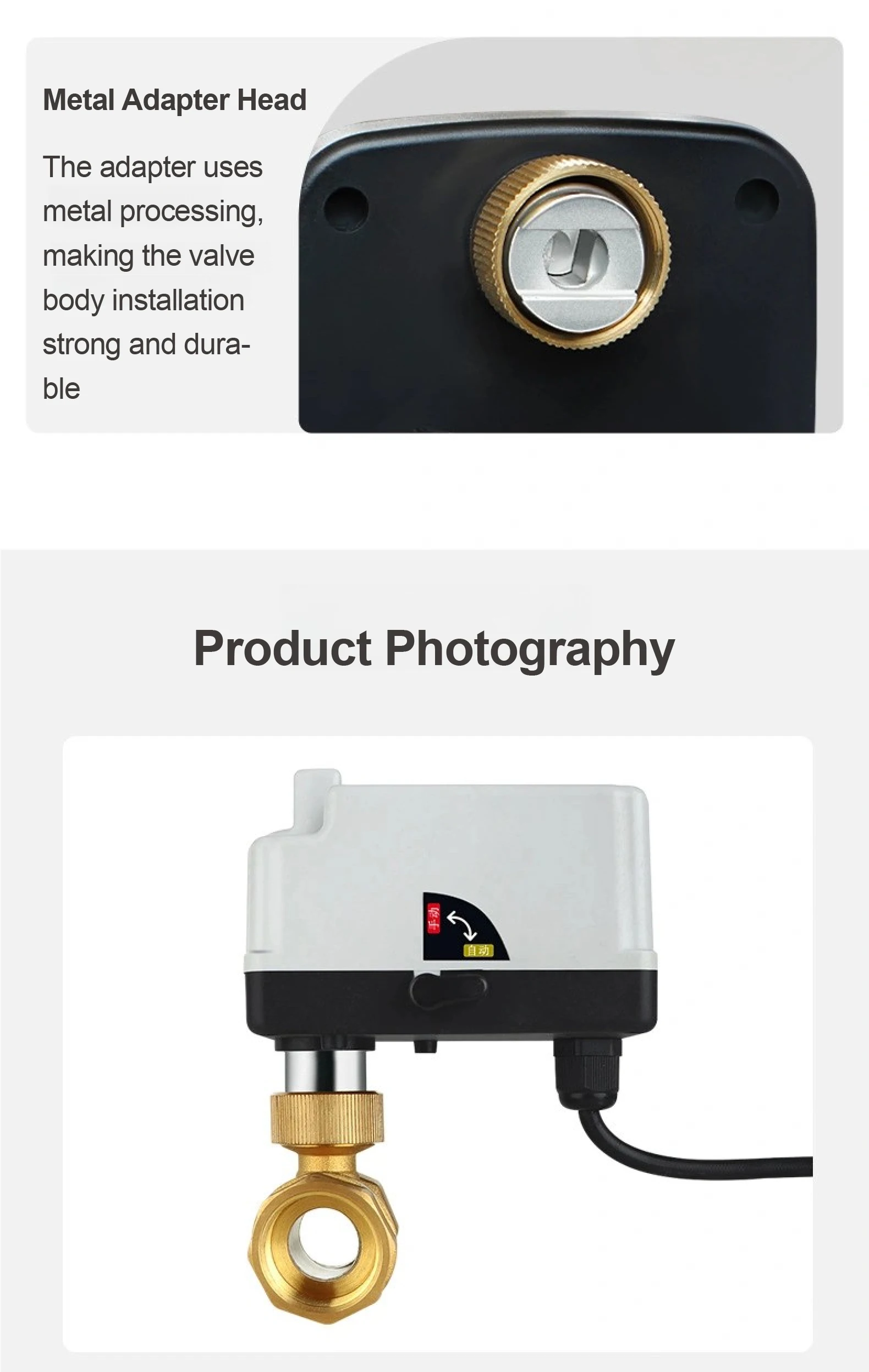

Metal Connector Ends
Reinforced metallic joints provide stable and secure installation.
4. Applications
HVAC systems and zone valve control
Industrial automation pipelines
Smart irrigation and agriculture systems
Domestic water supply management
5. FAQs
Q1: Can the valve be installed in any direction?
A1: Yes, the valve supports both vertical and horizontal installation.
Q2: Is this valve suitable for hot and cold water?
A2: Yes, it supports media temperatures from 0°C to 90°C.
Q3: How is the valve controlled?
A3: It supports electric control with manual override as backup.
