7EPJ1307 For Wascomat P/N: 0020300174 Washing Machinge Belt
7EPJ1307 For Wascomat P/N: 0020300174 Washing Machinge Belt
CHECK BEFORE YOU CHOOSE
Check the device or intended use, dimensions and selected pack. For replacement parts, match the existing reference and connection.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images

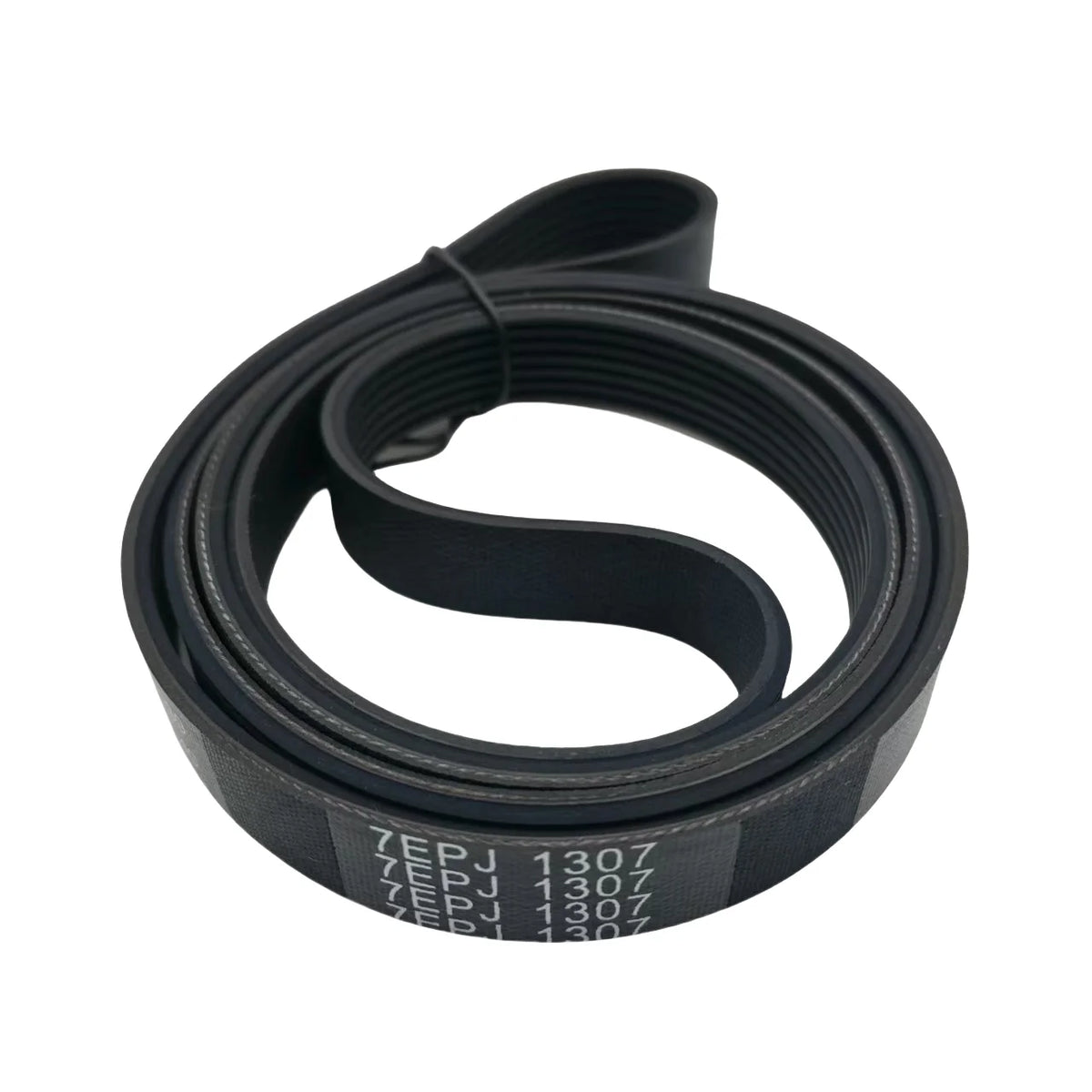

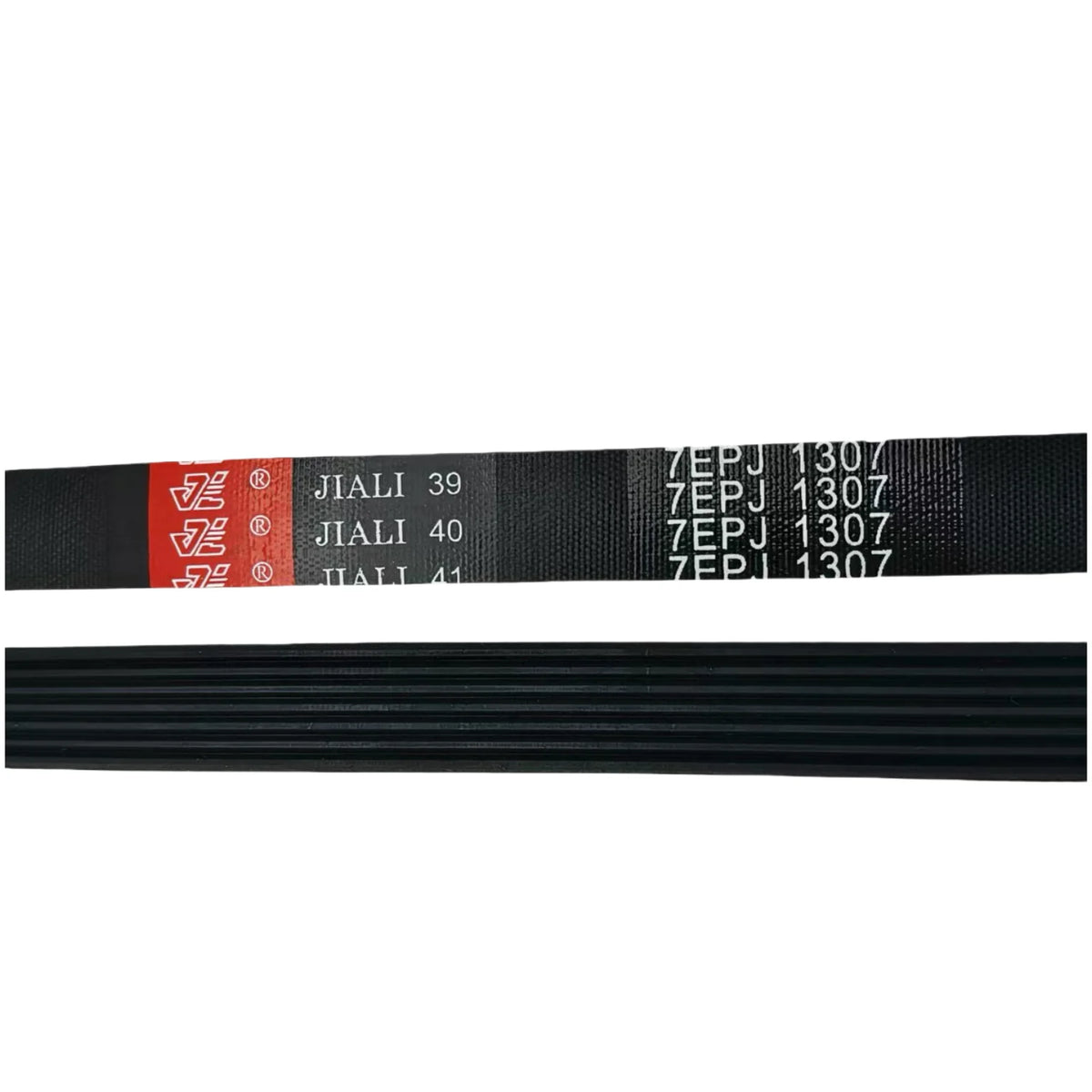

Product Overview This 7EPJ1307 Poly-V Drive Belt is a high-quality elastic multi-rib belt for selected Wascomat and Haier washing machines. It transfers power from the motor to the drum. A broken or stretched belt is a common reason the drum no longer turns.
Direct size-matched replacement for the original belt.
Key Features
- Part Number: 7EPJ1307
- Universal / Alternative Numbers: 7EPJ 1307, 0020300174, V12670, V12527
- Type: Poly-V / Multi-Rib Elastic Drive Belt
- Specification: 7 ribs · Length approx. 1307 mm · J profile · Elastic
- Material: High-quality rubber with reinforced cords
- Quantity: 1 piece
Installation Instructions
- Unplug the washing machine and disconnect power.
- Remove the rear panel to access the motor and drum.
- Release the old belt from the motor pulley and drum.
- Fit the new 7EPJ1307 belt around the drum first, then stretch it carefully over the motor pulley (elastic belt requires firm tension).
- Ensure the belt sits correctly in the grooves.
- Reassemble the panels and restore power.
- Run a short test cycle to confirm the drum turns smoothly.
Tip: Elastic belts need strong stretching during installation — take care not to damage the belt.
Compatibility / Fit Models This belt fits selected Wascomat and Haier washing machines using the following part numbers: 7EPJ1307 / 0020300174 / V12670 / V12527.
Wascomat Series Selected commercial models using OEM part 0020300174 (crossover / drive belt)
Haier Series HCW12C Selected Haier drum washing machines marked with V12670 or V12527
Note: Public detailed model lists for this belt are limited. Always verify the original belt is marked 7EPJ1307, 0020300174, V12670 or V12527 and measures approximately 1307 mm with 7 ribs before ordering. One machine requires 1 belt. Compatibility may vary by production year.
Applications
- Washing machine drum does not turn
- Belt snapped or stretched
- Burning rubber smell or slipping noise during wash
- Ideal for home DIY and technicians
Package Includes
- 1 × Washing Machine Drive Belt (7EPJ1307 Compatible)
SEO Keywords Description (EN) 7EPJ1307 belt, 0020300174 Wascomat belt, V12670 Haier belt, V12527 drive belt, 7EPJ 1307 washing machine belt
KNOW WHAT YOU ARE CHOOSING
Part details & buying guide
Product details
- Part type
- Laundry Accessories
- Part listing
- 7EPJ1307 For Wascomat P/N: 0020300174 Washing Machinge Belt
- color
- 7EPJ1307
- Checkout currency
- USD
The listing images and selected option describe the item offered. If the pack quantity or included components are unclear, ask us before ordering.
Check the fit before ordering
- Use the complete device model, including its suffix.
- Check the device or intended use, dimensions and selected pack. For replacement parts, match the existing reference and connection.
- A search match or shared brand name does not confirm compatibility. Ask us if the exact model is not stated.
