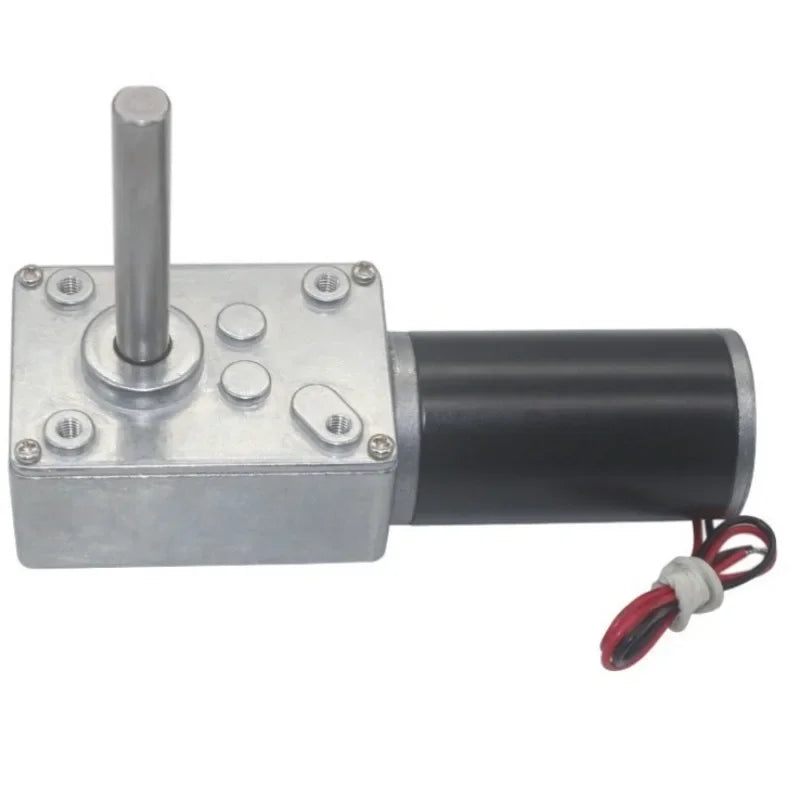

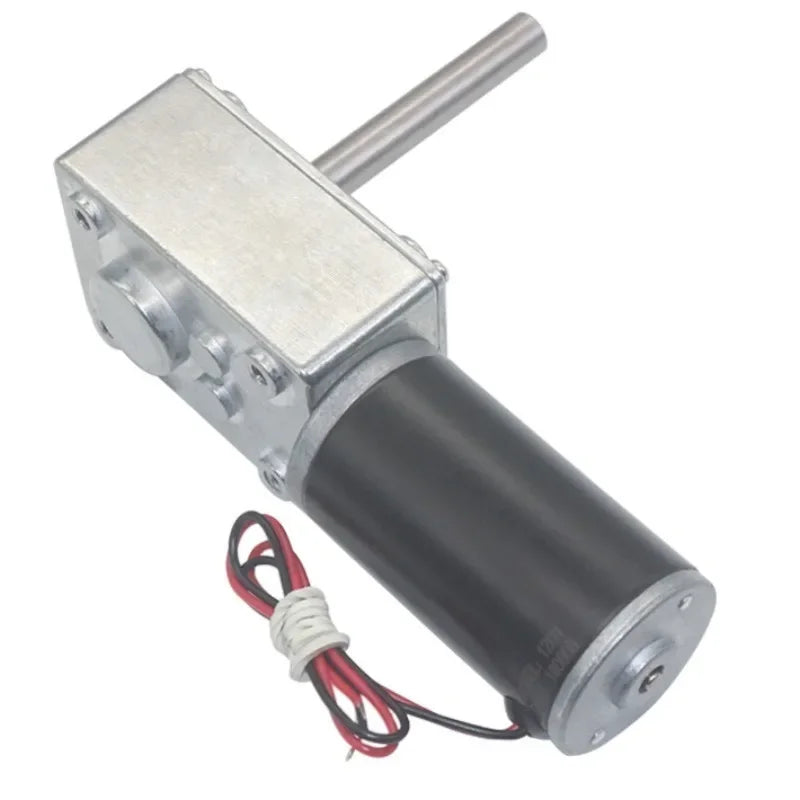

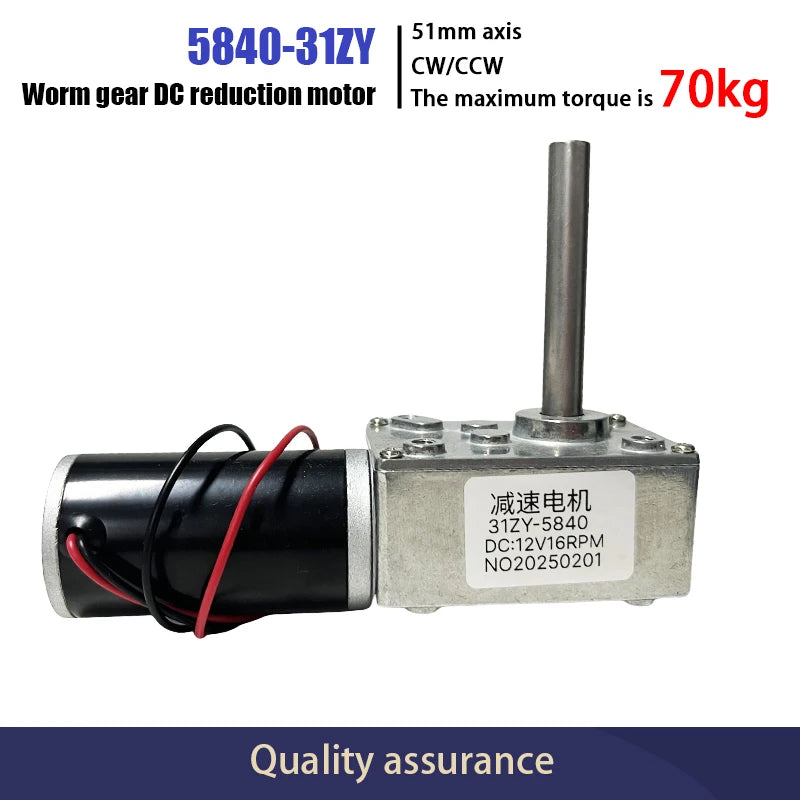

5840-31ZY 12V 24V DC Motor Worm Gear Motor Self-lock High Torque 3.4-70kg Motor for Curtain Machine Billboard Home Equipment
5840-31ZY 12V 24V DC Motor Worm Gear Motor Self-lock High Torque 3.4-70kg Motor for Curtain Machine Billboard Home Equipment
CHECK BEFORE YOU CHOOSE
Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Specifications:
Rated Voltage: DC 12V / 24V
No-load Speed: 7rpm, 10rpm, 12rpm, 16rpm, 27rpm, 40rpm, 80rpm, 160rpm, 260rpm, 470rpm
Max Power: 21W
Max Torque: 70kg.cm

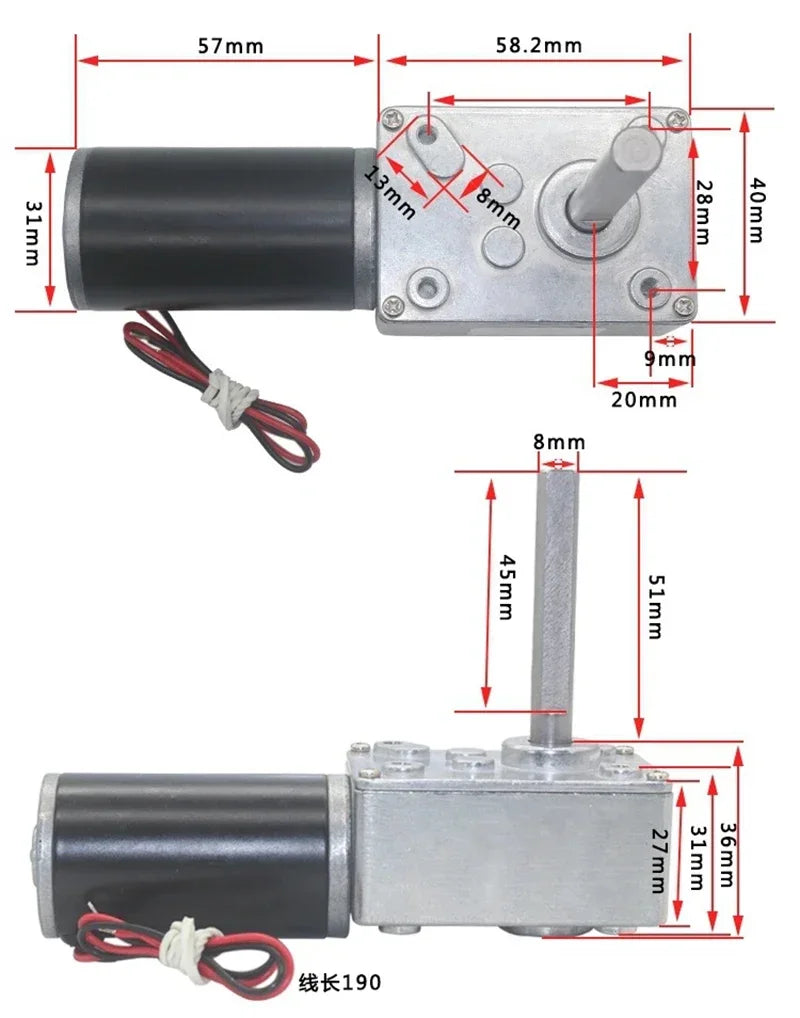

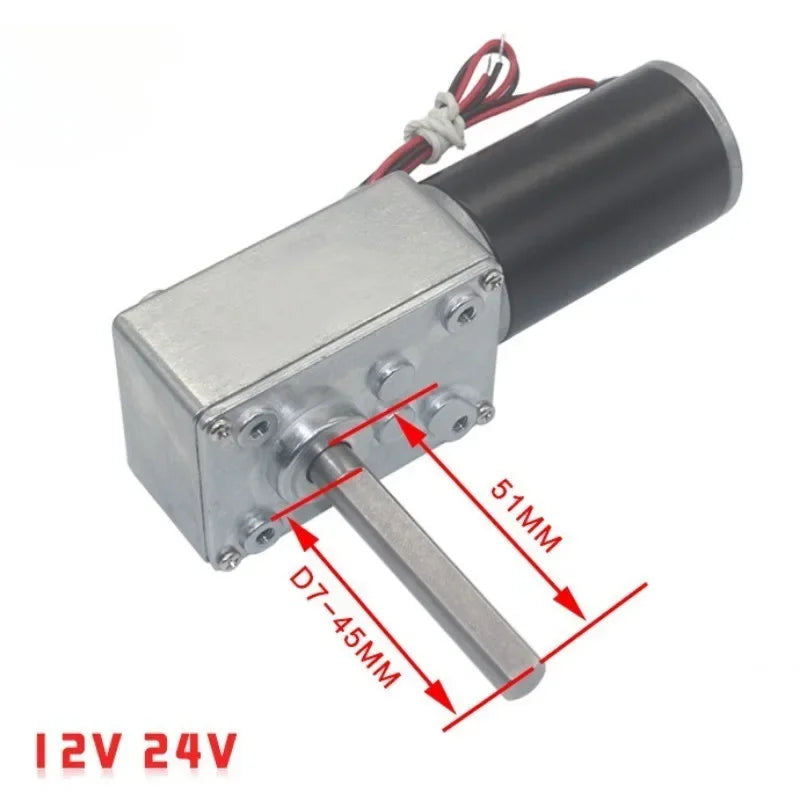

Shaft diameter : 8mm, D type
Shaft length: 51mm
Features:
1. Made of high quality material, durable and long service life.
2. 31mm high quality copper tube motor, small volume and big torsion

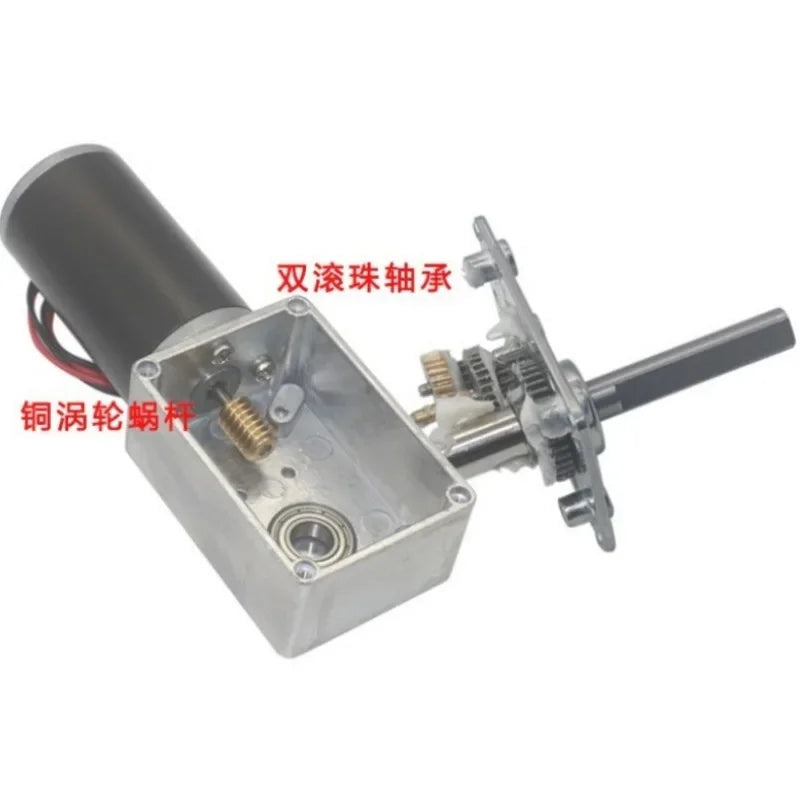

3. Ball bearing design enhances the wear resistance of shaft
4. All metal gears are impact resistant, long life and low noise
5. Generally used in curtain machines, advertising equipment, window openers and smart devices
