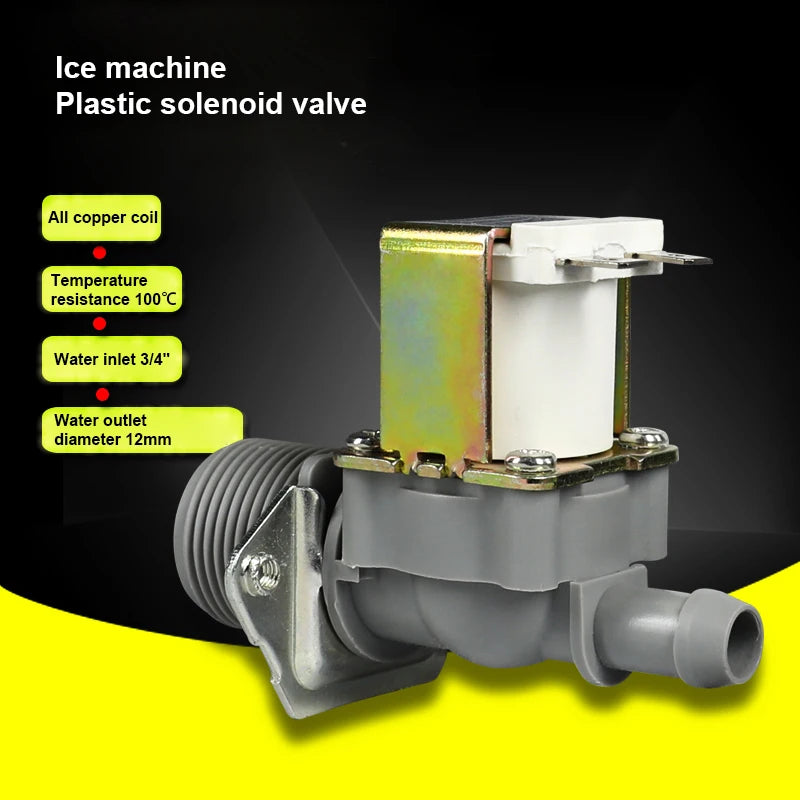

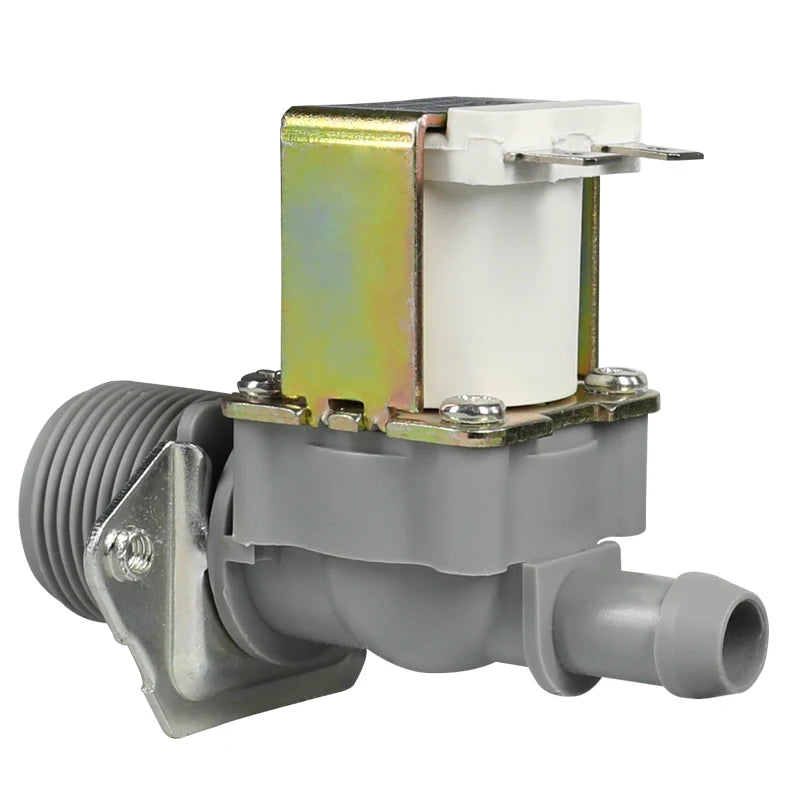

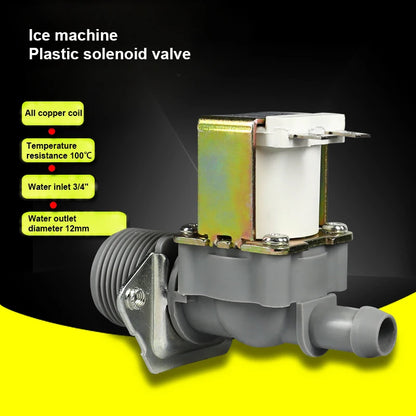

3/4" Plastic Motorized Solenoid Valve Temperature Resistance 100℃ Inlet Valve Ice Machine Air Conditioner 12V 24V 220V
3/4" Plastic Motorized Solenoid Valve Temperature Resistance 100℃ Inlet Valve Ice Machine Air Conditioner 12V 24V 220V
Couldn't load pickup availability
Work form: Normally closed/Normally open
Action mode: Pilot type
Working voltage: DC12V, DC24V, AC220V
Environment temperature: 0-50℃
Medium temperature: 0-100℃
Work pressure: Have pressure 0.02-0.8Mpa；No pressure 0-0.01Mpa
Water pressure resistance:1.6Mpa
Power connection: 6.3 standard plug spring
Medium: purified water and tap water. (Not suitable for acid-base, thick, viscous liquids and other non-liquids).
Notice:
1. The more you order, the more offers, please contact us.
2. Package list: Solenoid Valve*1pc+coil protection cover*1pc.
3.The plastic solenoid valve is a separate solenoid valve, and the coil protection cover and plug spring need to be purchased separately. The brass solenoid valve coil protection cover is standard and does not need to be purchased separately.
4. Order by default, and send pressure solenoid valve if there is no remark or message.
5. Working water pressure 【Pressure valve, Pressureless valve】：
Pressure solenoid valve (water inlet valve): 0.02~0.8Mpa 【approximately 1~8kg pressure】
Generally, tap water is supplied with pressure solenoid valve; the pressure range is about 1~8 kg.
Pressureless solenoid valve (Water outlet valve): 0~1100mm H2O 【0~80cm】
Low-pressure water flow, or the water tank is naturally discharged, and the highest water level and the solenoid valve installation position should not be greater than 80cm. Choose a non-pressure solenoid valve.

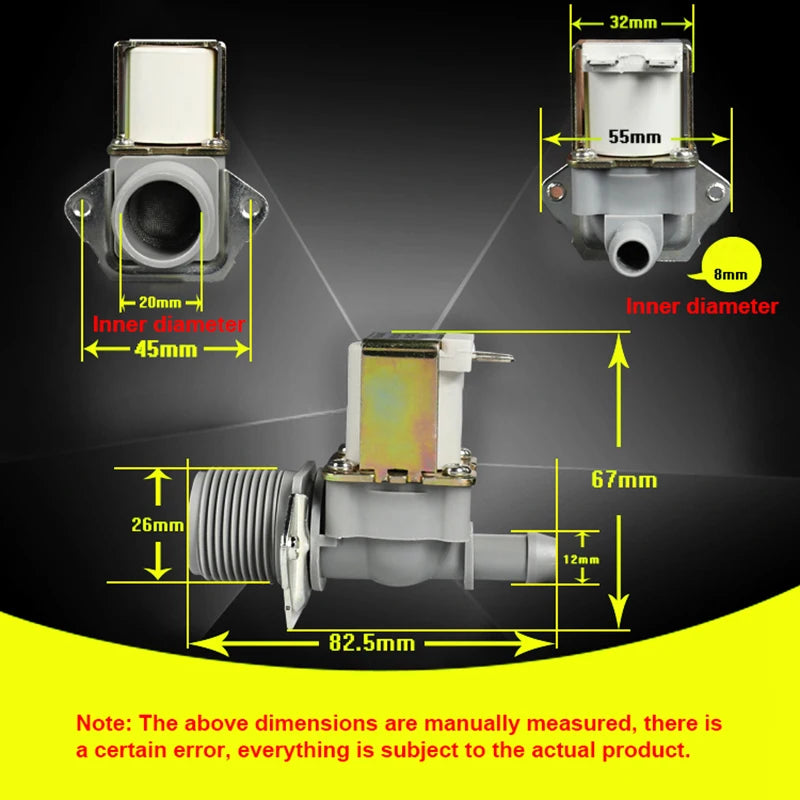

6. Size for manual measurement, there may be a 0 to 2 mm error, belongs to the normal phenomenon.
7. And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
