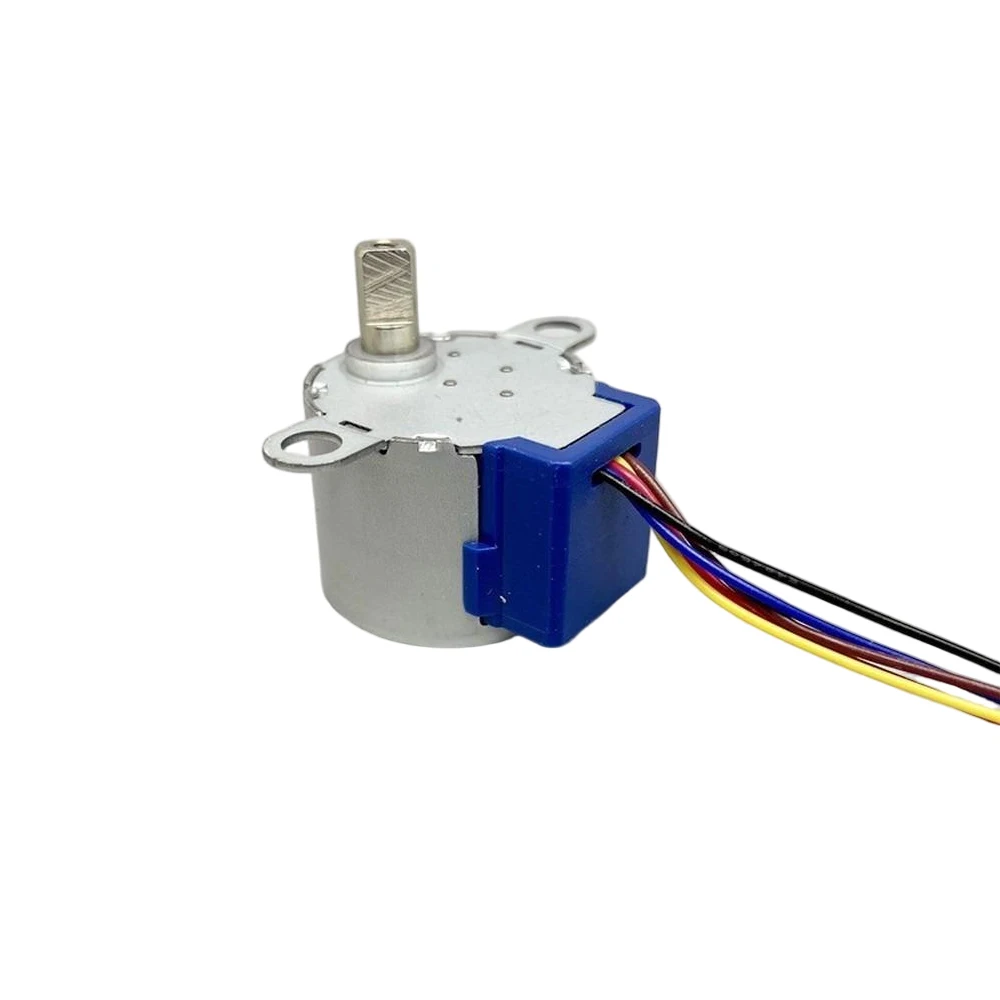

24BYJ48 5V Stepper Reduction Motor 1:64 Gearbox, 4-Phase 5-Wire DC Gear Motor Low Noise for Fan Swing Head/DIY
24BYJ48 5V Stepper Reduction Motor 1:64 Gearbox, 4-Phase 5-Wire DC Gear Motor Low Noise for Fan Swing Head/DIY
CHECK BEFORE YOU CHOOSE
Check dimensions, thread size, material and connection type. For powered components, match the voltage and electrical specification.
Part details & fitting checklist ↓Couldn't load pickup availability
Product description & listing images
Specifications:

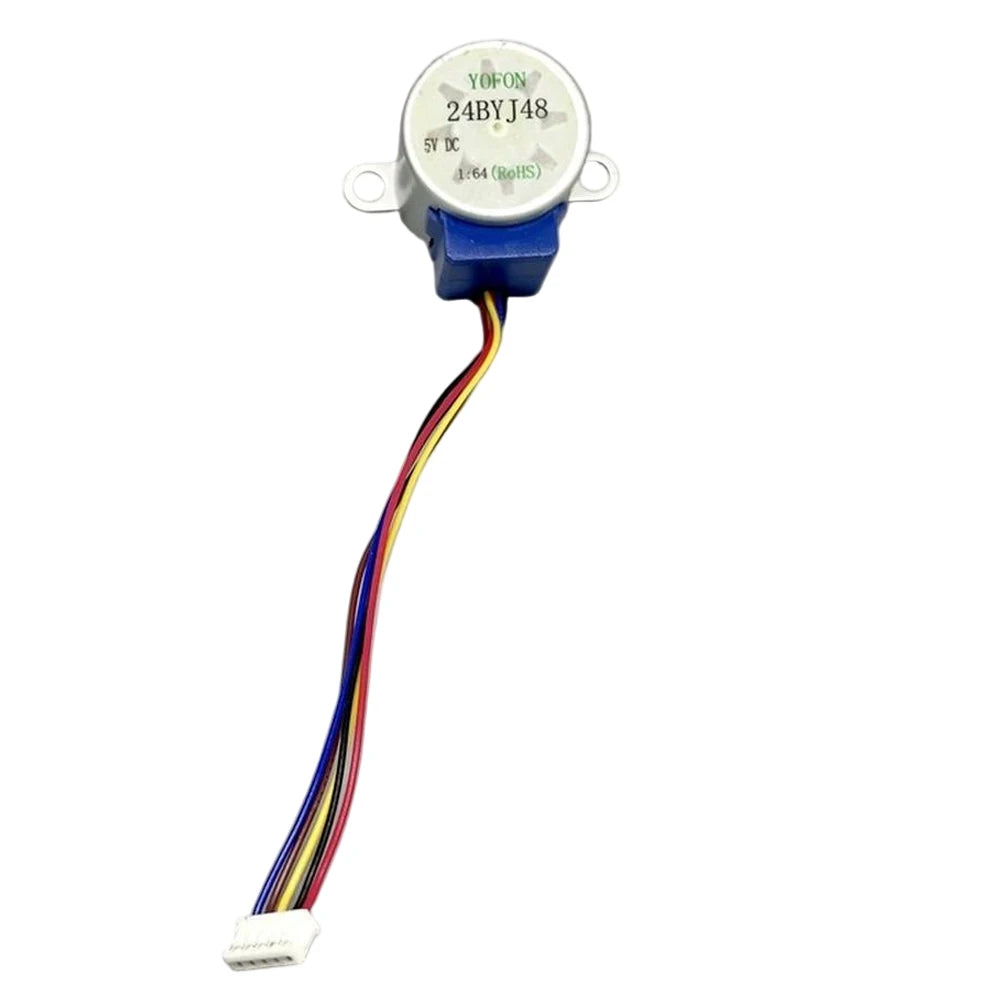

Model: 24BYJ48

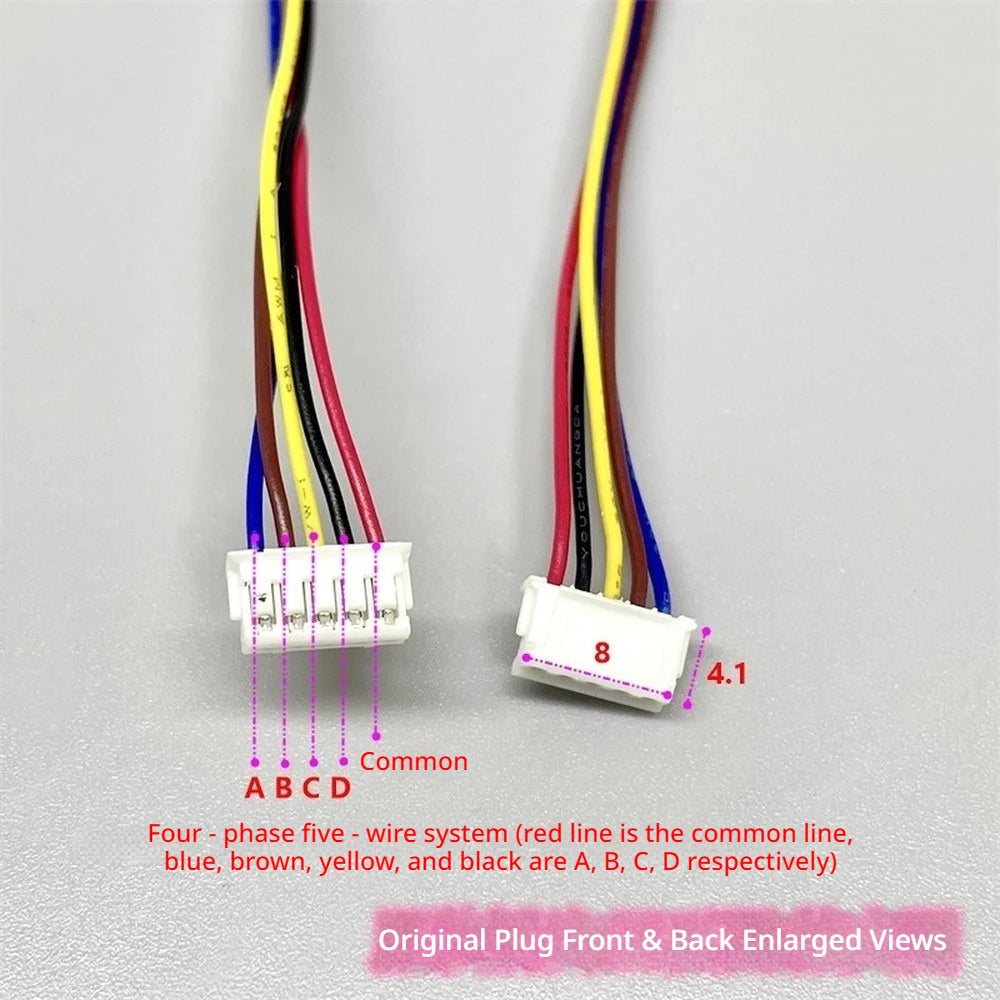

Connection: 4-phase 5-wire (Red wire is common wire; Blue, Brown, Yellow, Black correspond to A, B, C, D)
Resistance: 20Ω between common wire and any single phase wire; 40Ω between any two A/B/C/D wires
Rated Voltage: DC 5V
Gear Ratio: 1:64 (Low Speed)
Wire Length: 9.5cm (Terminal pitch: 1.5mm)

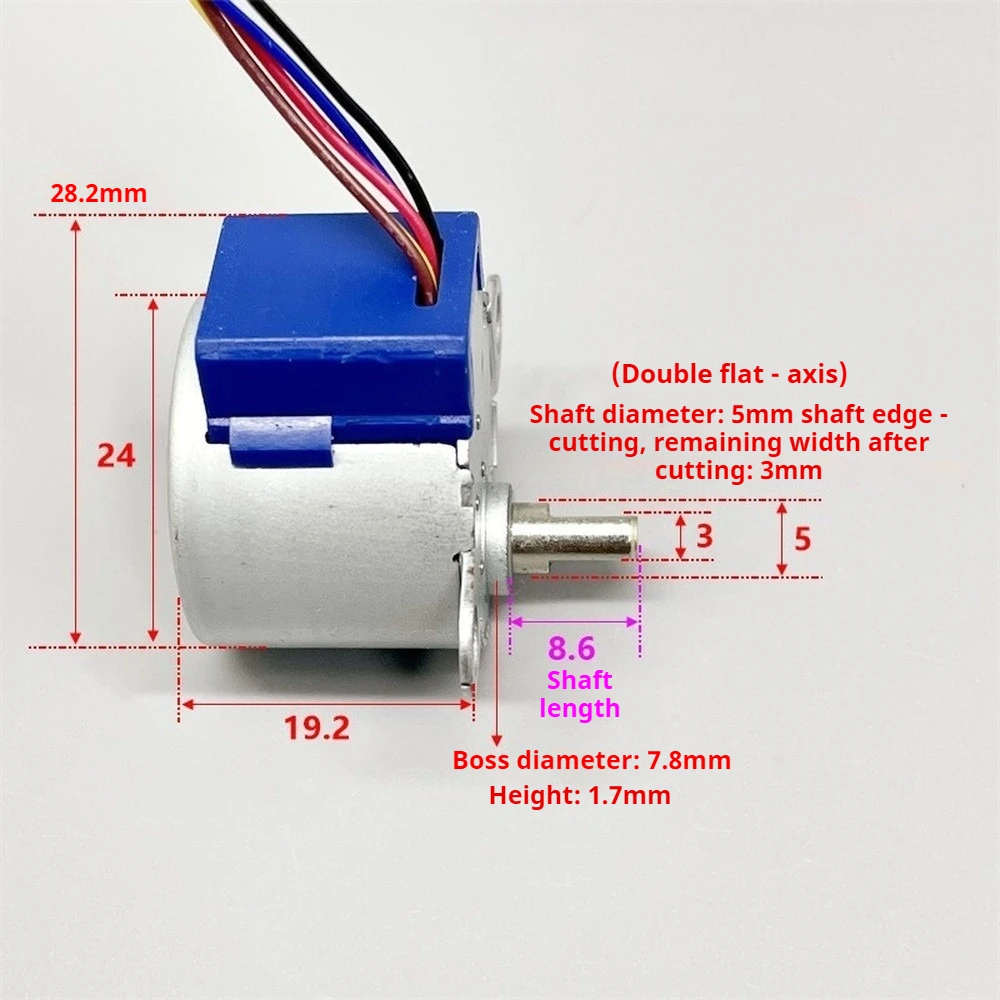

Shaft Diameter: 5mm shaft with flat cut, residual width 3mm after cutting (double flat shaft)
Shaft Length: 8.6mm
Application: Fan & folding fan accessories, for air guide, swing head rotation
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package includes:
1x DC Motor
